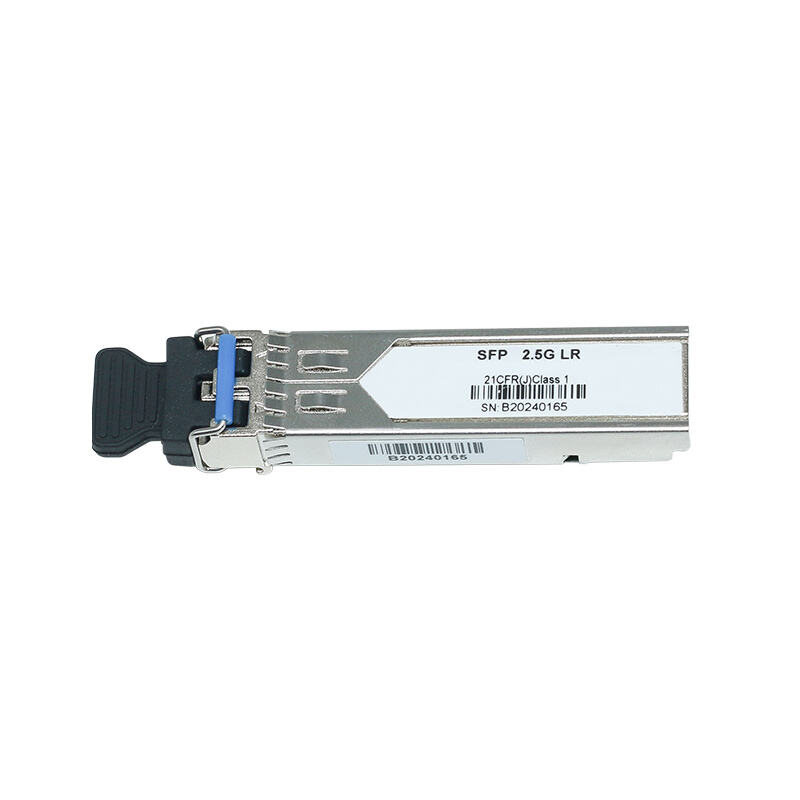

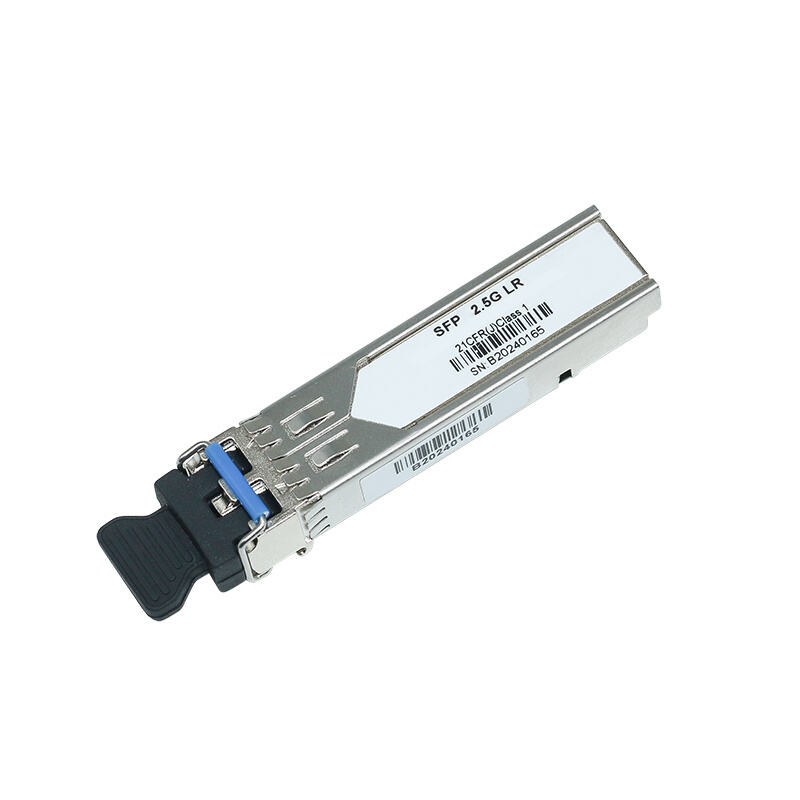

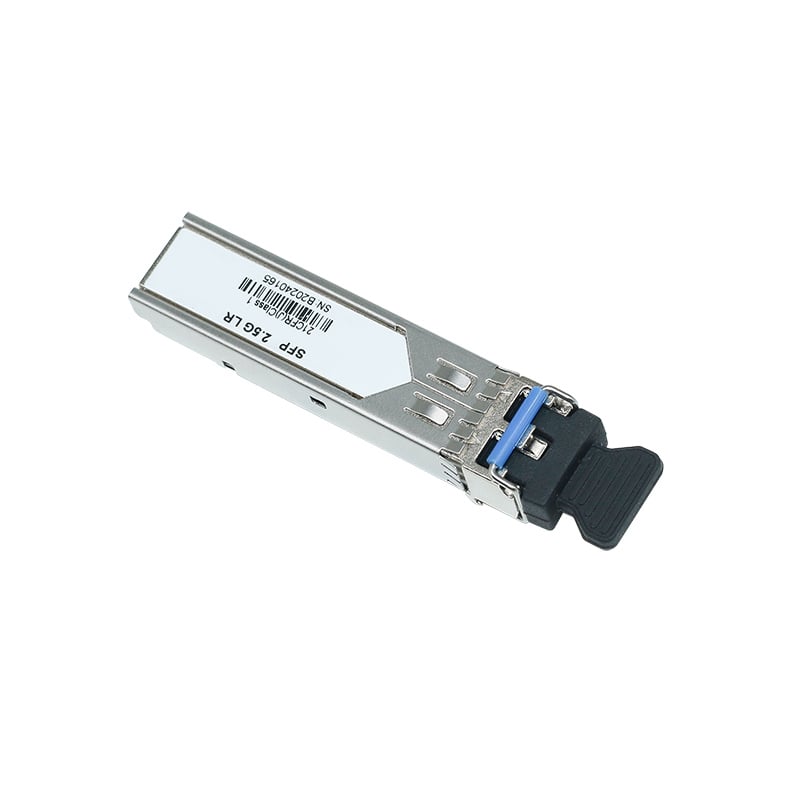

LX1034C(E/I)DR SFP transceivers, according to Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) SFF-8074i and SFF-8472, revision 9.5, are designed for data communication on single-mode fiber up to 40km. They are compliant with ITU-T G.957 SDH STM-16 L-16.1 and Bellcore GR-253 SONET OC-48 LR-1. LX1034C(E/I)DR SFP transceivers offer a wide range of design options, including Digital Diagnostic Monitoring (DDM) features and three temperature options (commercial, extended or industrial).
LX1034C(E/I)DR SFP transceivers, according to Small FormFactor Pluggable Multi-Sourcing Agreement (MSA) SFF-8074i and SFF-8472,revision 9.5, are designed for data communication on singlemode fiber up to 40km. They are compliant with ITU-T G.957 SDH STM-16 L-16.1 and Bellcore GR-253 SONET OC-48 LR-1.
LX1034C(E/I)DR SFP transceivers offer a wide range ofdesign options, including Digital Diagnostic Monitoring (DDM) features and three temperature options (commercial,extended or industrial).
Compliant to ITU-T G.957 STM-16 L-16.1
Specifications according to SFF-8074i and SFF-8472, revision 9.5
Digital Diagnostic Monitoring available
Uncooled 1310nm DFB Laser
Up to 2.67Gb/s bi-directional data links
Duplex LC connector compliant
Single +3.3V DC power supply
Hot-pluggable SFP footprint
Class 1 laser safety certified
Operating temperature Options
- (Commercial) -10℃ to +70℃
- (Extended) -10℃ to +85℃
- (Industrial) -40℃ to +85℃
Up to 40km on 9/125µm SMF
Optical Characteristics
Table 1. Transmitter Optical Characteristics
|
Parameter |
Symbol |
Minimum |
Typical |
Maximum |
Unit |
Notes |
|
Launch Optical Power |
Po |
-5 |
- |
0 |
dBm |
- |
|
Center Wavelength Range |
λc |
1280 |
1310 |
1335 |
nm |
- |
|
Extinction Ratio |
EX |
8.2 |
- |
- |
dB |
- |
|
Spectral Width (-20dB) |
Δλ |
- |
- |
1 |
nm |
- |
|
Side Mode Supression Ratio |
SMSR |
30 |
- |
- |
dB |
|
|
Total Jitter |
TJ |
- |
- |
0.1 |
UI |
- |
|
Dispersion Penalty |
- |
- |
- |
1 |
dB |
- |
|
Optical Rise/Fall Time |
Trise/Tfall |
- |
- |
150 |
ps |
- |
|
Pout @TX-Disable Asserted |
Poff |
- |
- |
-45 |
dBm |
- |
|
Eye Diagram |
ITU-T G.957 SDH STM-16 L-16.1 compatible |
|||||
Table 2. Receiver Optical Characteristics
|
Part Number |
Transmitter |
Output Power |
Receiver |
Sensitivity |
Reach |
Temp |
DDM |
RoHS |
|
LX1034CDR |
1310nm DFB |
-5 ~ 0dBm |
APD |
< -27dBm |
40km |
-10 ~ 70℃ |
Available |
Compliant |
|
LX1034EDR |
1310nm DFB |
-5 ~ 0dBm |
APD |
< -27dBm |
40km |
-10 ~ 85℃ |
Available |
Compliant |
|
LX1034IDR |
1310nm DFB |
-5 ~ 0dBm |
APD |
< -27dBm |
40km |
-40 ~ 85℃ |
Available |
Compliant |
SDH STM-16 L-16.1 systems
SONET OC-48 LR-1 systems
2.125Gb/s Fiber Channel
