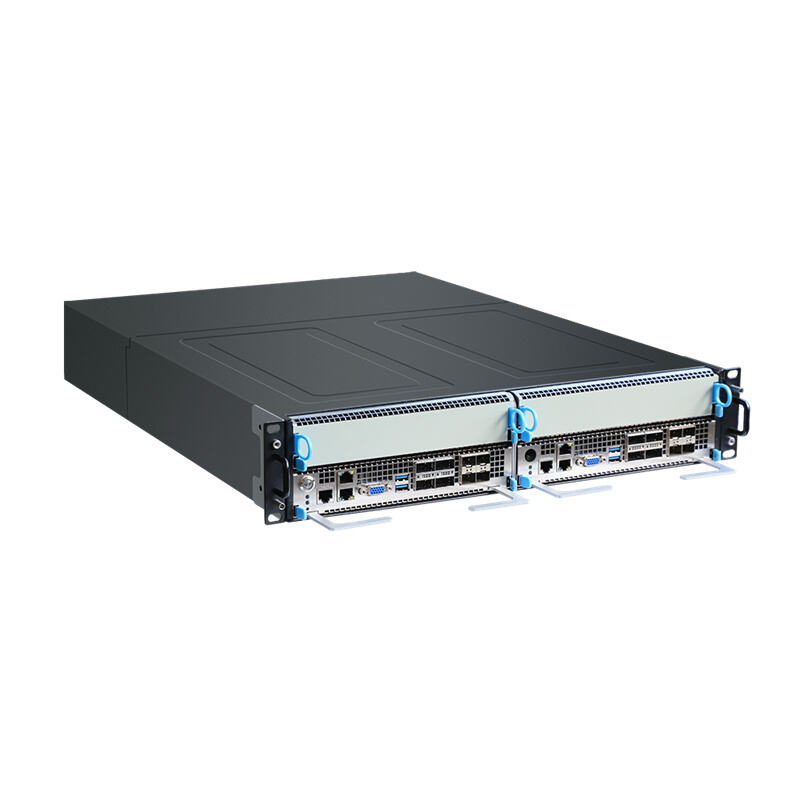

The MS8000 is a multi-node modular computing platform specifically customized for the cybersecurity market. Developed based on the Kunpeng KPN module, the MS8000 platform supports server form factors of 1U2 nodes and 2U4 nodes, and comes with built-in 100G and 10G network cards. It features high integration, high reliability, and low power consumption, providing efficient, secure, and green computing solutions for industries such as finance, telecommunications, and government.
High-performance multi-core computing
The single-node system supports dual Kunpeng KPN modules with optional 32/48/64 cores CPU, paired with 256GB/512GB of memory, meeting the demands of high-intensity parallel computing and data processing in cybersecurity scenarios.
High-density modular design

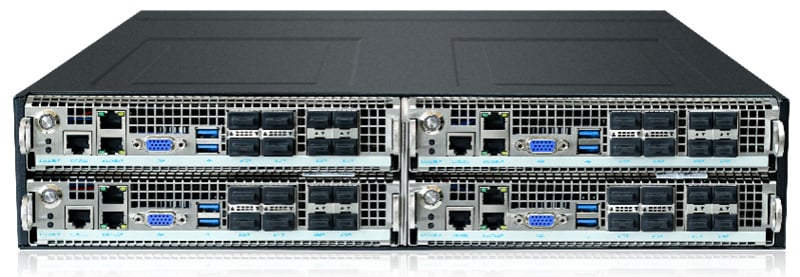

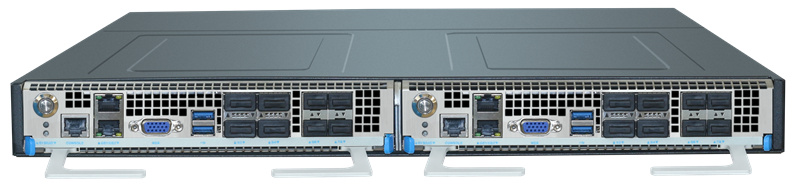

1U2 nodes/2U4 nodes, distinguished from general-purpose servers, with high space utilization, supporting flexible expansion and rapid deployment.
Intelligent network access capability

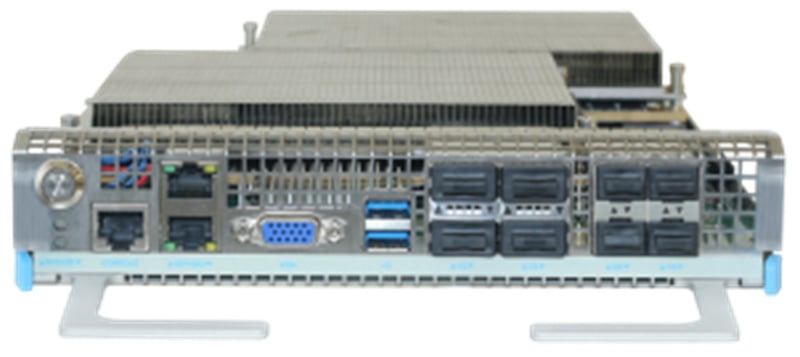

A single node integrates 4x100G + 4x10G + 2xGE multi-rate interfaces, eliminating the need for additional NIC expansion, reducing deployment complexity and costs, and adapting to diverse network architectures.
Localized Security and Trustworthiness
Independently developed based on the Kunpeng ecosystem, with fully localized hardware and management components, it meets the stringent requirements for data security and information innovation compliance in specialized sectors such as finance, government, and other fields with strict regulatory demands.
Wide range of applications
Suitable for various DPI analysis fields such as cybersecurity monitoring, real-time traffic analysis, threat detection, edge computing, and more.
Efficient O&M Management
Integrated BMC intelligent management system to achieve equipment status monitoring, fault diagnosis, and automated operations and maintenance, thereby enhancing management efficiency.
Green and Energy-Efficient Design
The power consumption per node is below 400W. By combining high-density architecture with low-power hardware, it significantly reduces energy consumption and operational costs, aligning with the concept of sustainable development.
|
Item |
MS8100 |
MS8200 |
|
Appearance |
|
|
|
Size |
44 mm * 442mm * 600 mm（H * W * D） |
88.1 mm * 442mm * 600 mm（H * W * D） |
|
Modular Unit |
|
|
|
32-Cores CPU |
2 modular units, hot-swappable, with the following modular unit configuration:
|
4 modular units, hot-swappable, with the following modular unit configuration:
|
|
48-Cores CPU |
2 modular units, hot-swappable, with the following modular unit configuration:
|
4 modular units, hot-swappable, with the following modular unit configuration:
|
|
64-Cores CPU |
|
4 modular units, hot-swappable, with the following modular unit configuration:
|
|
Management Interface |
Per Node:
Chassis:
|
Per Node:
Chassis:
|
|
Power Type |
Dual Redundant Power Supply |
|
|
|
AC Input：100 ～ 240VAC（50Hz/60Hz）145 ～ 350VDC |
|
|
|
DC Input：36 ～ 72VDC |
|
|
Power Consumption |
32-Cores Device:≤700W 48-Cores Device:≤800W |
32-Cores Device:≤700W 48-Cores Device:≤800W 64-Cores Device:≤2100W |
|
Environment |
working temperature：0 ～ 45℃ storage temperature：-5 ～ 70℃ |
|
|
|
Humidity: 5% to 90% (non-condensing) |
|
|
Environmental Standards |
RoHS Compliant |
|
