The SFC7132CH is a high-density 100G/40G Ethernet traffic distribution device featuring low latency and high bandwidth, making it ideal for 100G link capture and analysis.
SFC7132CH is a new-generation 100G/40G Ethernet aggregation and traffic distribution device. It is built with domestically developed switching chips and features high port density, diverse operating modes, flexible high-performance deployment, and convenient management and maintenance. It is capable of adapting to various application environments and providing real-time network communication data to devices such as network information monitoring systems, network traffic analyzers, and signaling analyzers as needed.

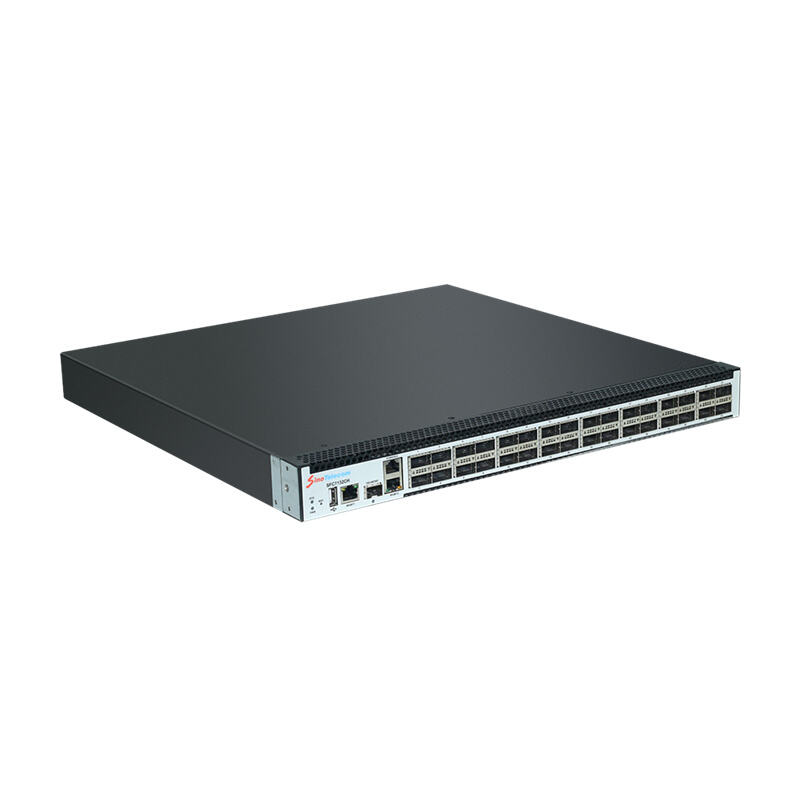

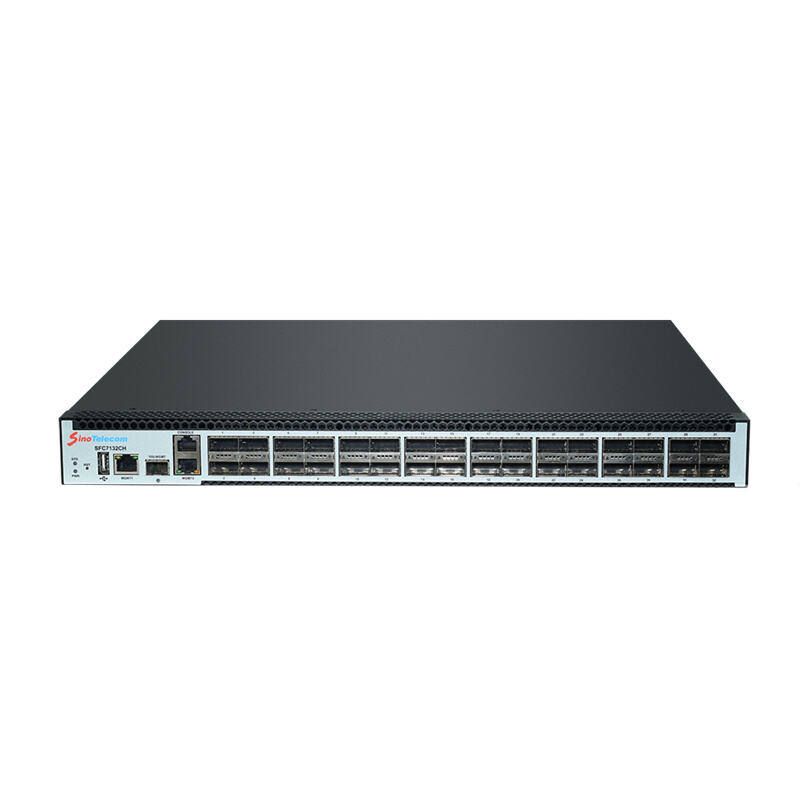

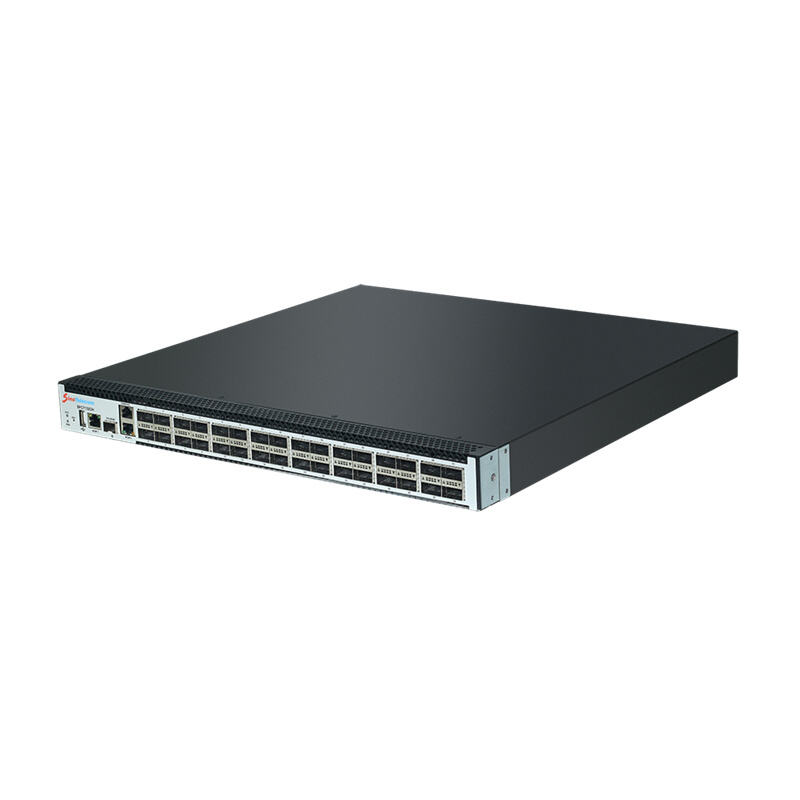

The SFC7132CH aggregation and distribution device offers 32 QSFP28 ports, which can be flexibly configured as either data input or output interfaces. These ports support standard transceiver modes as well as single-fiber bidirectional data transmission modes.
The SFC7132CH provides powerful intelligent flow selection and multi-path monitoring capabilities. It supports multi-port data tagging, aggregation, filtering, packet replication for multiple outputs, and load-balanced distribution. This makes it particularly well-suited for complex application environments with a high number of links, large network traffic volumes, and dense configurations. It offers a convenient and efficient data acquisition solution for network security, protocol analysis, and signaling detection systems.
|
Item |
functionality |
Description |
|
Basic Parameters |
Hardware form |

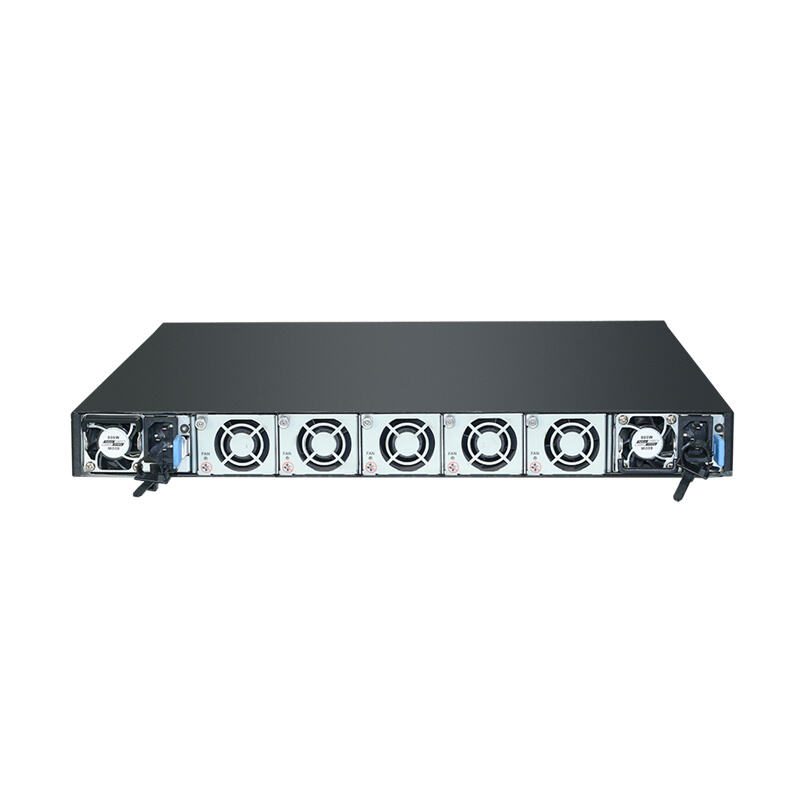

Standard 1U rack-mount device with redundant power supplies and redundant fans. |
|
Basic Functions |
Replication/Aggregation /Traffic distribution |
Supports one-to-many, many-to-one, and many-to-many traffic replication, aggregation, and distribution. |
|
Load-balance |
Supports bundling multiple interfaces into output groups, load balancing based on IP quintuple, and same-source-same-destination load balancing based on inner and outer IP addresses. |
|
|
Filter rules |
MAC address matching, supporting both exact and mask formats VLAN matching, supporting both exact and mask formats IP quintuple matching, supporting both masked quintuples and exact quintuples TCP flag bit matching Fragmented packets, supporting matching the first fragment and non-first fragments User-defined fields ,etc. |
|
|
Rule capacity |
The maximum number of masks is 12K for IPv4 or 4K for IPv6, sharing mask resources. The maximum number of precise rules supported is 300K for IPv4 or IPv6. |
|
|
Ports |
Supports transmit/receive multiplexing and single-fiber transmission. |
|
|
Packet header modification |
Supports modifying the source MAC and destination MAC of the packet. |
|
|
IP address modification |
Supports modifying the IP address of the datagram. |
|
|
VLAN Lable |
Supports adding port tags Supports custom VLAN addition
Supports modifying the original VLAN to a port tag Supports modifying the original VLAN to a custom VLAN
|
|
|
Packet header stripping |
Suports stripping IPIP/MPLS/GRE/VxLAN tunnel. |
|
|
Advanced Functions |
IP quintuple modification |
Supports modifying the IP address of the datagram and the transport layer port number. |
|
Packet truncation |
Supports truncation to any specified length between 64B-1518B. Supports L4 Payload truncation. |
|
|
Packet header stripping |
Suports stripping IPIP/MPLS/GRE/VxLAN tunnel. Suports stripping GTP/L2TP/Teredo/AH/VxLAN tunnel. |
|
|
Packet anonymization |
Supports custom field-level data masking for location data, capable of handling 4-segment message anonymization. |
|
|
Timestamp |
Support for nanosecond-level timestamp addition, which can be modified in the MAC address or added to the packet tail. |
|
|
Rule capacity |
Supports tens of millions of rule capacity |
|
|
Filter rules |
Traffic learning by interface (e.g., N1/N2/N4/N5/N7/N15/N16/N22/N40/S1-MME/S6a/SGs/S11/VoLTE SIP). Signaling flow parsing (e.g., outputs S11's Create Session Request messages by interface). |
|
|
Management Functions |
Network managment |
Suports IPv4 and IPv6 address. |
|
WEB managment |
Supports HTTP/HTTPS login, with all major functions accessible through the web interface. |
|
|
CLI |
Supports SSH and Telnet login, with all configuration functions accessible via the command line |
|
|
Configuration backup |
Supports configuration file import/export/editing. |
|
|
NTP |
Supports NTP clock synchronization. |
|
|
Monitor |
Log |
Supports defining SYSLOG by severity level and reporting it to the server. |
|
SNMP |
Supports SNMP, v2c/v3 protocols, and SNMP TRAP. |
Note:Advanced feature software customization is supported. The above advanced features are already available in the software, but they are not necessarily included in all versions. The specific features depend on the actual software version and must be selected based on specific requirements.
|
Item |
SFC7132CH-B |
SFC7132CH-A2 |
SFC7132CH-A4 |
||
|
Size |
442mm * 44.5mm * 620mm（W * H * D） |
||||
|
Advanced Functions |
Not Support |
Maximum 320G advanced processing performance |
Maximum 640G advanced processing performance |
||
|
Interfaces |
32*100GE/40GE |
||||
|
Management Interfaces |
2x 10/100/1000M management port, RJ45; 1x standard UART console serial port, RJ45 |
||||
|
Management Methods |
Local or remote CLI (Command Line Interface); WEB management; SNMP management interface; RPC (Remote Procedure Call) interface; supports cluster management |
||||
|
Power Type |
Dual Redundant Power Supply |
||||
|
|
AC Input：100 ～ 240VAC（50Hz/60Hz）145 ～ 350VDC |
||||
|
|
DC Input：36 ～ 72VDC |
||||
|
Power Consumption |
250W ～ 300W |
450W～500W |
600W～700W |
||
|
Environment |
working temperature：0 ～ 45℃ storage temperature：-5 ～ 70℃ |
||||
|
|
Humidity: 5% to 90% (non-condensing) |
||||
|
Environmental Standards |
RoHS Compliant |
||||
