Product Description

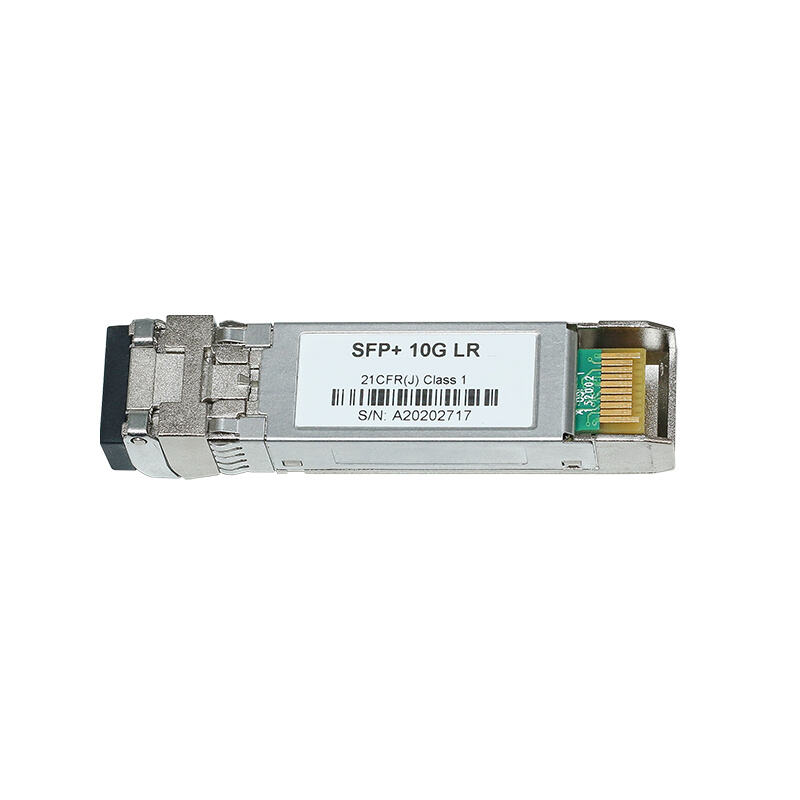

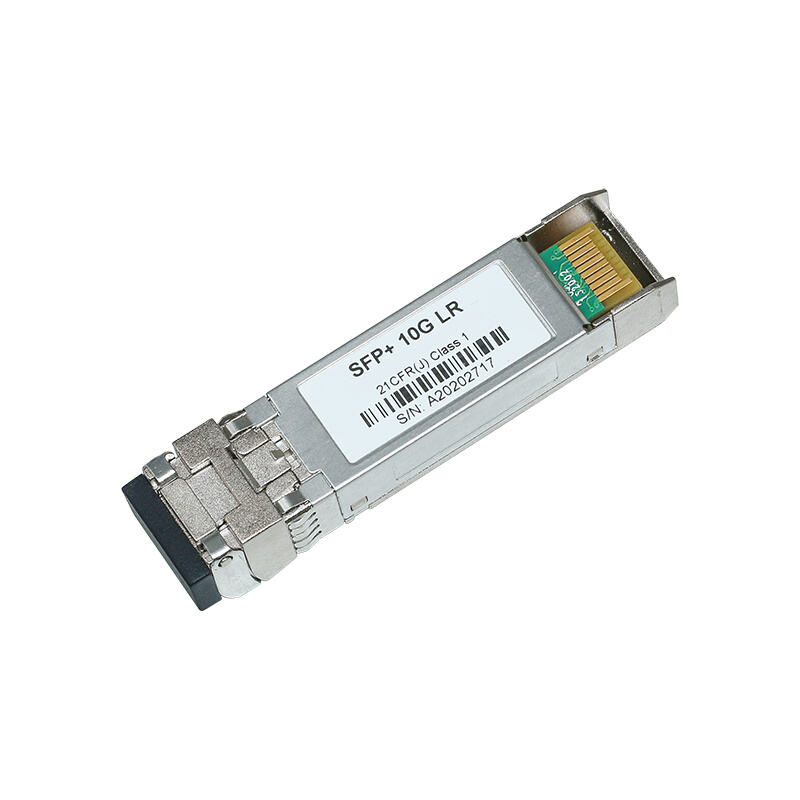

The 10 Gb/s SFP+ tunable transceiver is anintegrated fiber optic transceiver that provides a high-speed serial link atsignaling rates up to 11.3 Gb/s. The module complies with the 10 GigabitEnhanced Small Form Factor Pluggable （SFP+）multisource agreement-MSA （SFF-8431）and SFF-8432， SFF-8690，SFF 8472. It complies with the ITU-T G.698.1standard with 50 GHz channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80km reach (Ethernet), and DWDM 10GFC for 80 km reach (Fiber Channel)applications.

The transceiver integrates the receiver andtransmitter path on one module. The transceiver contains a C-band-tunableintegrated Mach-Zehnder (MZ) laser, enabling data transmission over single-modefiber through an industry-standard LC connector. On the receiver side, the 10Gbps data stream is recovered from an APD/ trans-impedance amplifier, andpassed to an output driver. This module features a hot-pluggable electricalinterface.

Features

● Supports 9.95Gb/s to 11.3Gb/s bit rates

● Monolithically integrated full C-band tunable transmitter

● 50 GHz ITU channel spacing with integrated wavelength locker

● C-band-tunable Laser and APD receiver

● Maximum link length of 80km

● Full Duplex LC connector

● Hot-pluggable SFP+ footprint

● Supports Line-side and XFI loopback

● No Reference Clock required

● Built-in digital diagnostic functions

● Standard bail release mechanism

● Power dissipation <2.5W

● Case temperature range:0°C to 70°C

Optical Characteristics

Parameter	Symbol	Min	Typ	Max	Unit	Note
Transmitter
Average Optical Power	Pout	-1		3	dBm	1
Frequency stability (BOL)		ƒc -1.5		ƒc +1.5	GHz	2
Frequency stability (EOL)		ƒc - 2.5		ƒc +2.5	GHz	2
Center Wavelength Spacing			50		GHz	3
Optical Extinction Ratio	ER	8.2			dB
Side mode Suppression ratio	SMSR	35			dB
Average Launch power of OFF transmitter	POFF			-30	dBm
Output Eye Mask	Compliant with IEEE 802.3ae
Receiver
Rx Sensitivity with dispersion 0 ps/nm	RSENS			-23	dBm	@9.95, 10.3, 10.5Gbps, BER=10^-12
				-27	dBm	@10.709Gbps, BER=10^-4
				-27		@11.1Gbps, BER=10^-4
				-26.5		@11.3Gbps, BER=10^-4
Rx Sensitivity with dispersion –400 to +1450 ps/nm				-21		@9.95, 10.3, 10.5Gbps, BER=10^-12
				-25		@10.709Gbps, BER=10^-4
				-25		@11.1Gbps, BER=10^-4
				-24		@11.3Gbps, BER=10^-4
Input Saturation Power (Overload)	Psat	-6			dBm
Wavelength Range	λC	1480		1580	nm
Wavelength Range		1480		1580	nm
LOS De-Assert	LOSD			-27	dBm
LOS Assert	LOSA	-36			dBm
LOS Hysteresis		0.5			dB

Notes:
1. Output power is power coupled into a 9/125 mm single-mode fiber.
2. ƒc refer toPage 2 the Frequency row of XGXP-DWT96-80D Wavelength Guide Table,and test condition is reflect power totransmitter lower than -27dBm.
3. Correspondsto approximately 0.4 nm.
