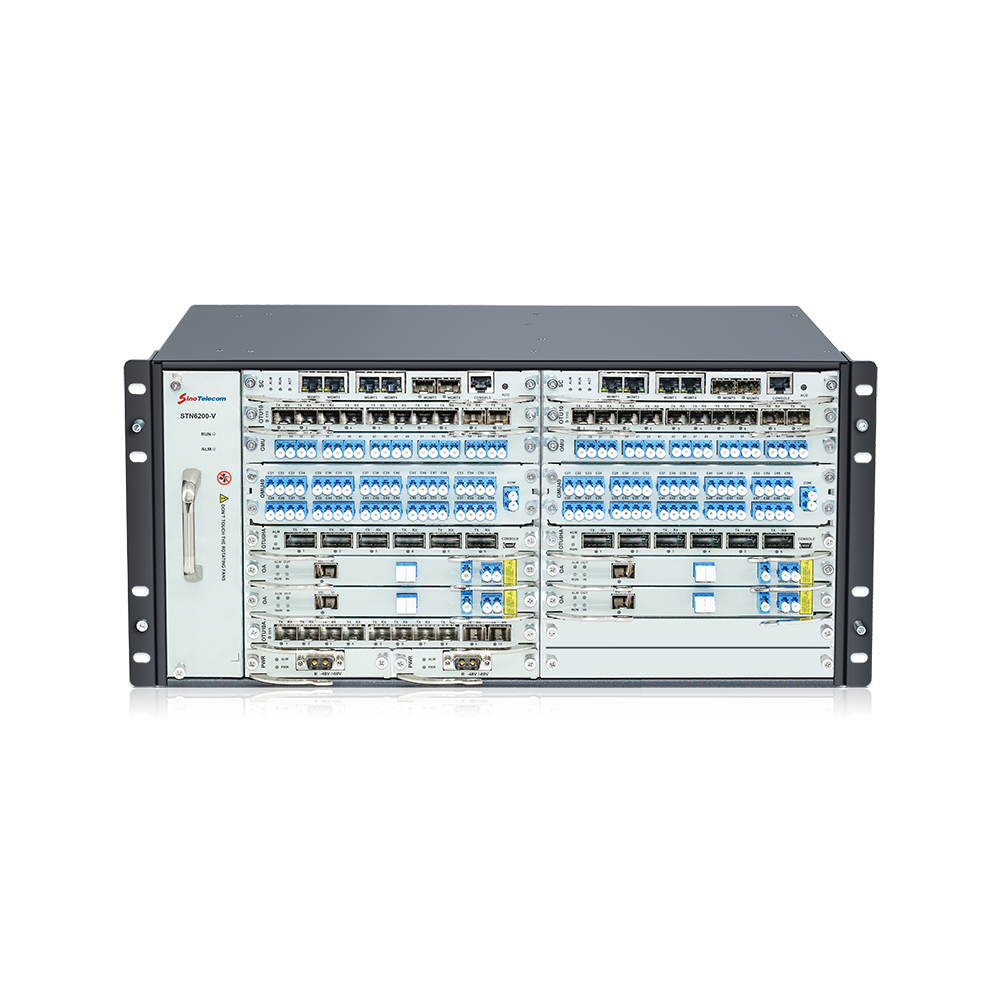

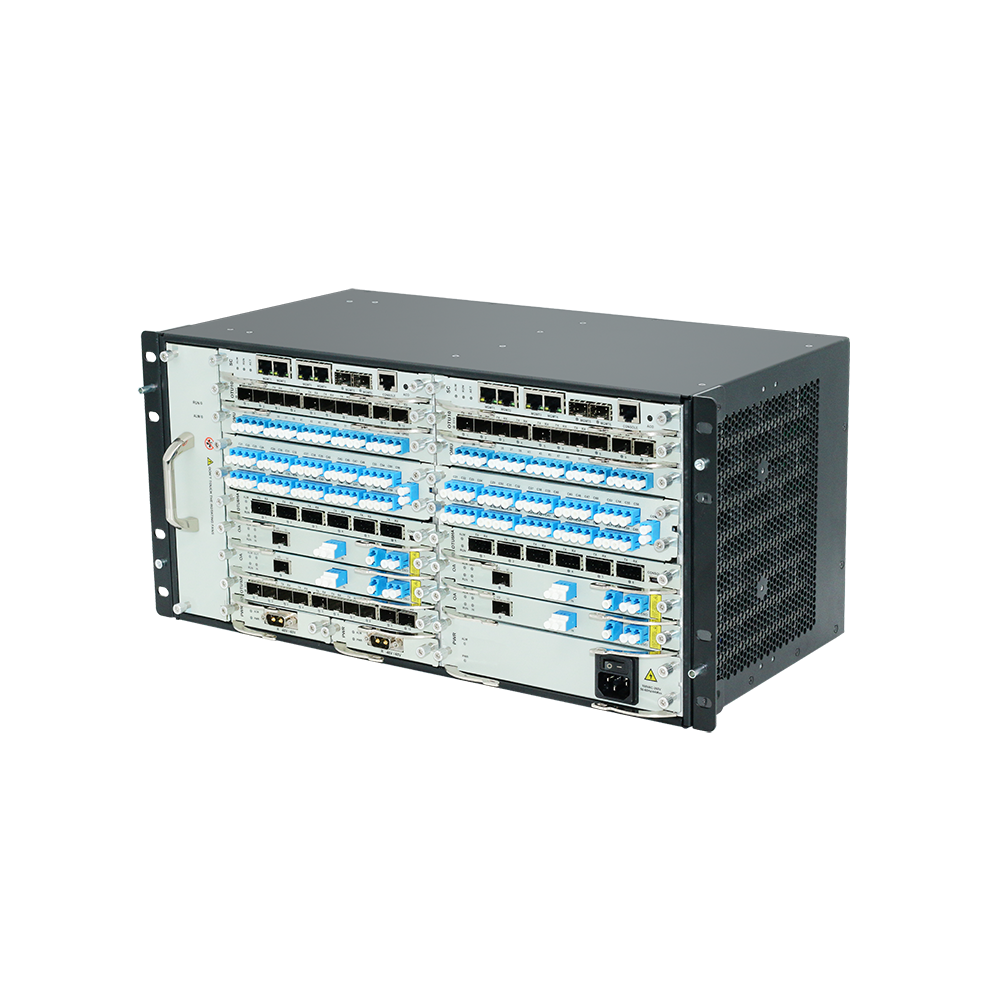

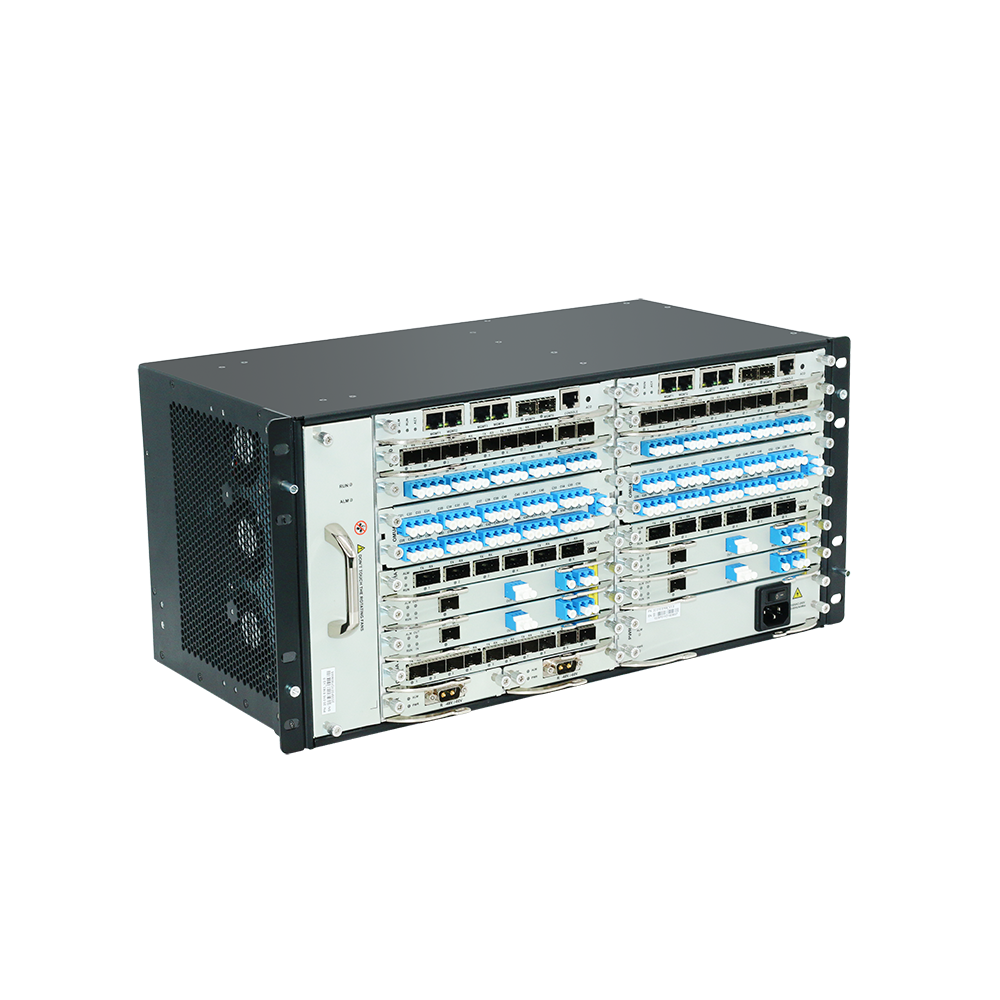

The STN6200 platform is primarily used in the network access layer and aggregation layer. It supports various sub-cards for service access. STN6200 platform is specialized in optical transmission and optical protection service and supports optical fiber sensing, optical cross monitoring and optical fiber monitoring.
The STN6200 platform is suitable for CWDM/DWDM/OLP/RTFS scenarios. It supports over 30 types of s ervice cards, such as OA/OUT/SAX/SAH/SOA/OLP/OBA/FEC/RA/OTN/OSC/OMU/DCM, etc. The service cards support hot swap. STN6200-V has a compact hardware structure, low power consumption, and flexible configuration. It supports 1+1 dual power backup (dual AC220V / dual DC48V / AC220V+DC48V) and 1+1 SC board card backup. The chassis offers high reliability.
The STN6200 platform supports a B/S-based network management interface. NMS3000 has powerful management capabilities and a user-friendly operating interface, supporting fast service configuration and activation. This simplifies equipment maintenance and management. The STN6200-V platform is widely used in telecommunications operators, energy and power, broadcasting, security, and other fields.
|
Parameters |
STN6200-V |
||
|
Dimension H*W*D (mm) |
222(H)*444(W)*225(D) |
||
|
Power supply (Optional) |
Dual DC48V |
Dual AC220V |
DC48V+AC220V |
|
Slots |
19 |
16 |
17 |
|
Max. power consumption |
350W |
||
|
Fan |
1 |
||
|
Working temperature |
-10℃ ~ 50℃ |
||
|
Storage temperature |
-20℃ ~ 80℃ |
||
|
Relative humidity |
5% ~ 95% non-condensing |
||
|
Installation method |
Suitable for “ 19 ”," 21 ”,” 23 ” rack |
||
