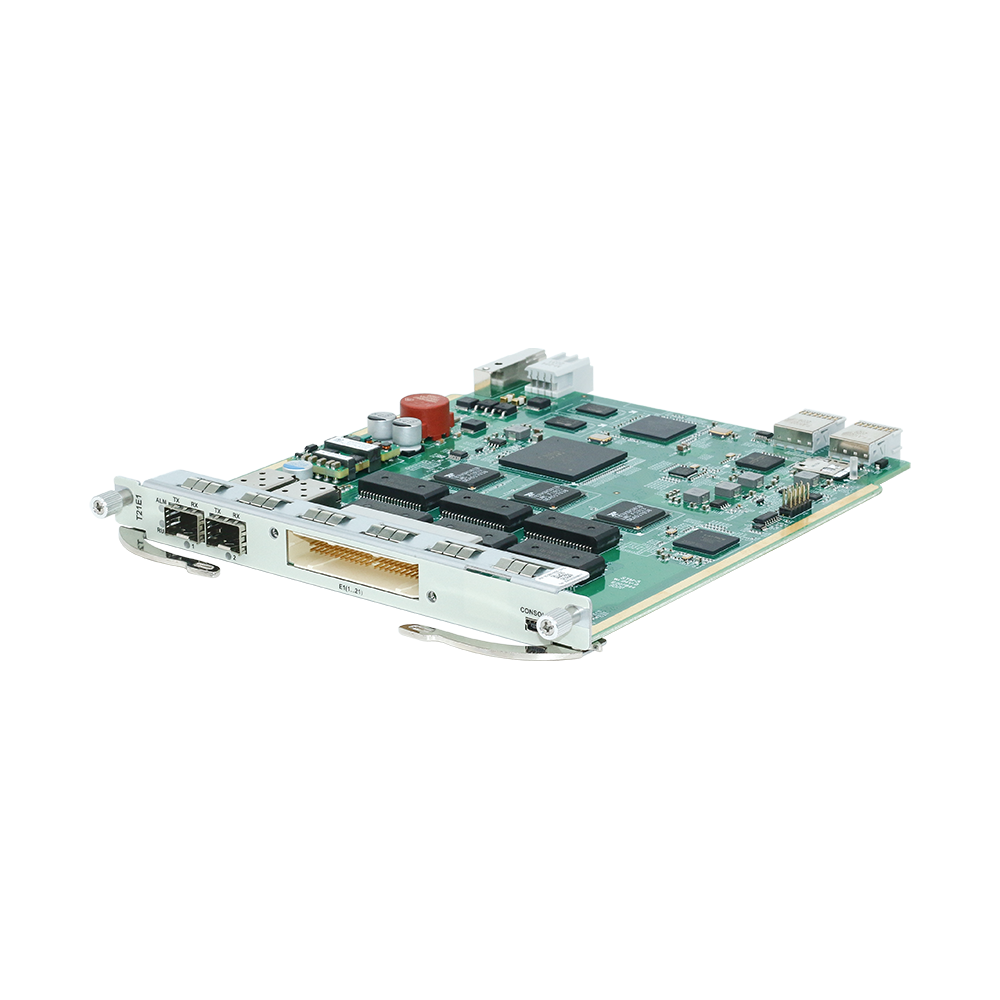

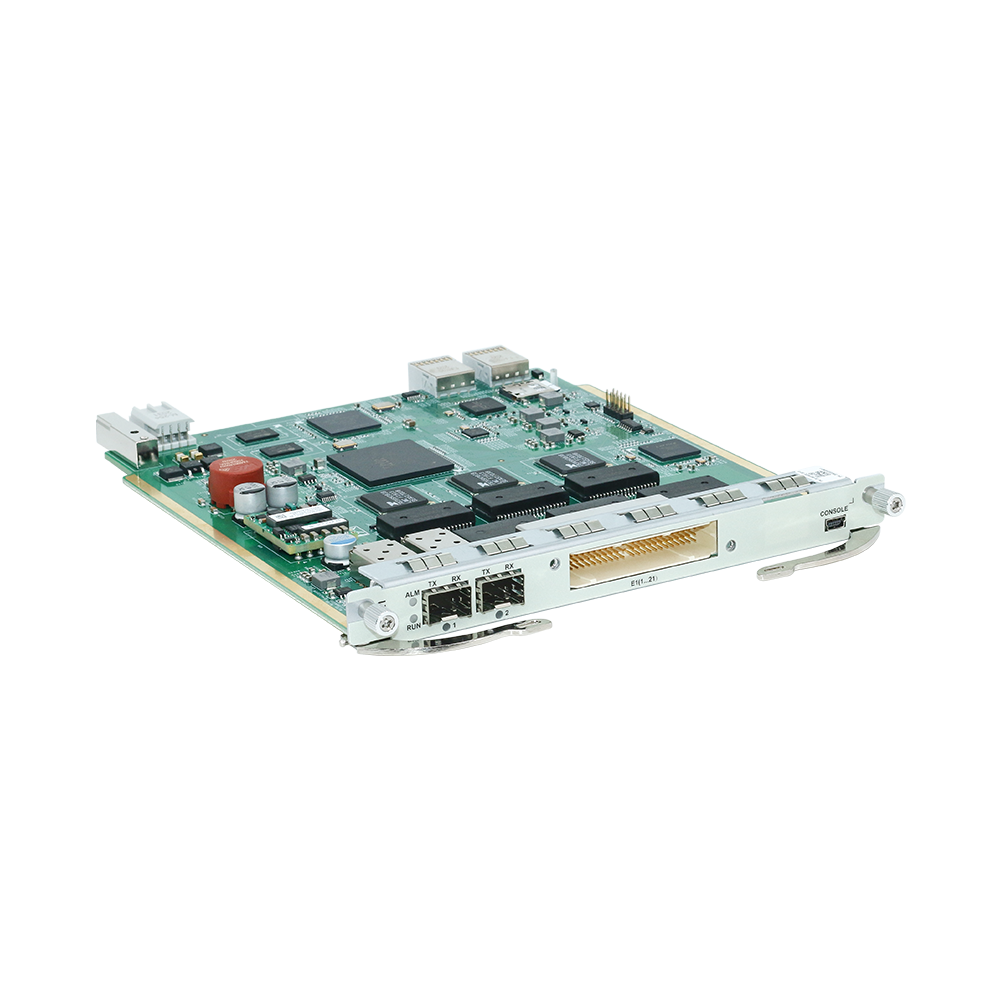

TCUE1 is a 21*E1 service board for the STN6200-CU2/CU5 platform from Sino-Telecom.
The 21*E1 service board TCUE1, utilized on the STN6200 platform, supports the access of 21-channel E1 services. It employs industry-leading chip technology and fully complies with relevant domestic and international standards.

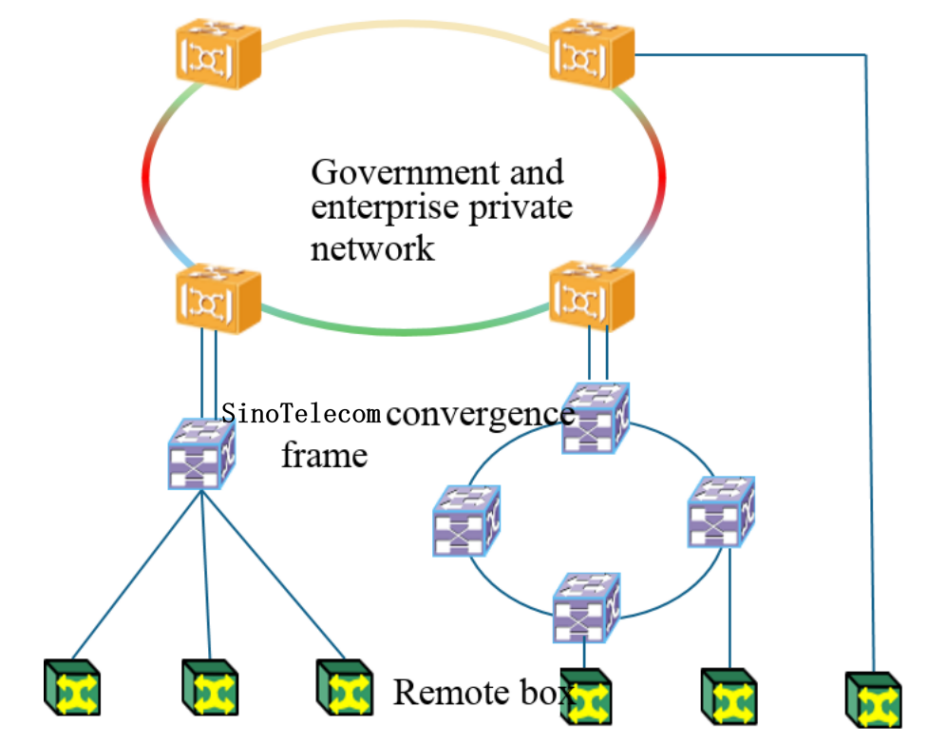

The 21*E1 service board TCUE1 supports mapping E1 to any of the 63 VC12 multiplexing structures of STM1. When paired with a line card, it can aggregate to OTU1 or OTU2 services, flexibly meeting customers' needs for simultaneous transmission of multiple services. It is suitable for customer leased line access and multi-service aggregation scenarios.
TCUE1 is a 21×E1 service board designed for the Sino Telecom STN6200-CU2/CU5 platform. It supports access to up to 21 E1 services and adopts industry-leading chip technology, fully complying with relevant domestic and international standards.
The TCUE1 board enables flexible mapping of E1 services to any of the 63 VC-12 multiplexing structures within STM-1. When used in conjunction with a line card, it supports aggregation into OTU1 or OTU2 services, allowing efficient and flexible multi-service transmission. TCUE1 is well suited for customer leased line access and multi-service aggregation applications.
|
Feature |
Description |
|
Panel size (mm) (width * depth * height) |
186mm*215mm*20mm |
|
User-side interface |
21-way E1 signal |
|
working environment |
Operating temperature: -5°°C to 50°°C Storage temperature: -40°°C to 70°°C Relative humidity: 5% to 95%, non-condensing |
|
Typical power consumption |
15W |
|
indicator |
description |
|
User-side signal and mapping method |
E1 <-> VC12 <-> VC4 |
