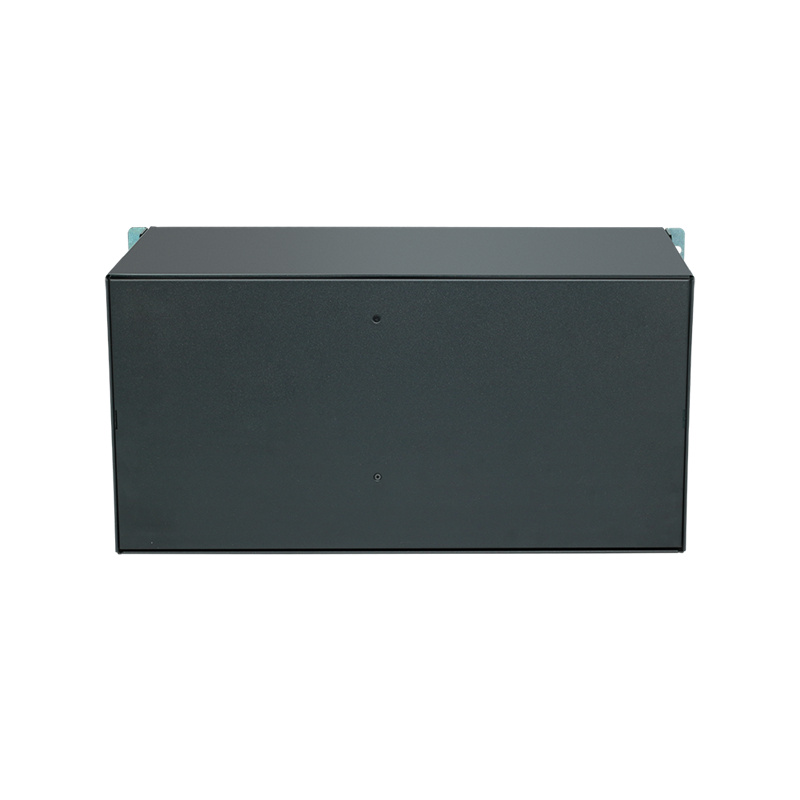

STN6800-V is a 10G/100G/200G high-capacity OTN transport system primarily used for interconnected transmissions in backbone networks, metropolitan area networks, and data centers. It supports large bandwidth granularity multiplexing, OADM, electrical layer cross-connection, multi-service mapping, and 10G/100G/200G transmission. It is applied to build an end-to-end OTN/WDM backbone transmission solution.
STN6800-V is a 10G/100G/200G high-capacity OTN transport system primarily used for interconnected transmissions in backbone networks, metropolitan area networks, and data centers. It supports large bandwidth granularity multiplexing, OADM, electrical layer cross-connection, multi-service mapping, and 10G/100G/200G transmission. It is applied to build an end-to-end OTN/WDM backbone transmission solution.

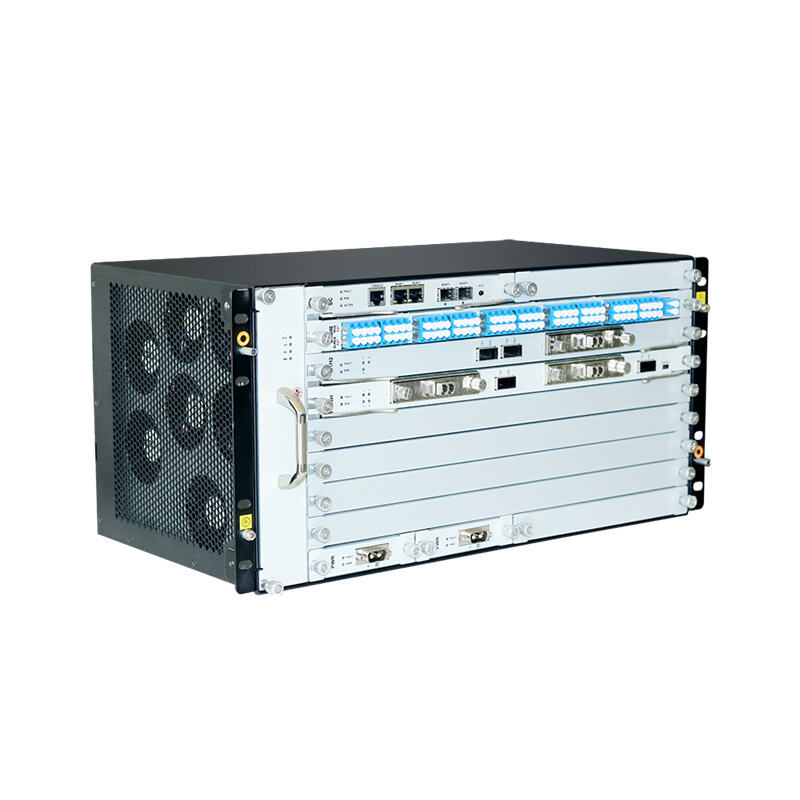

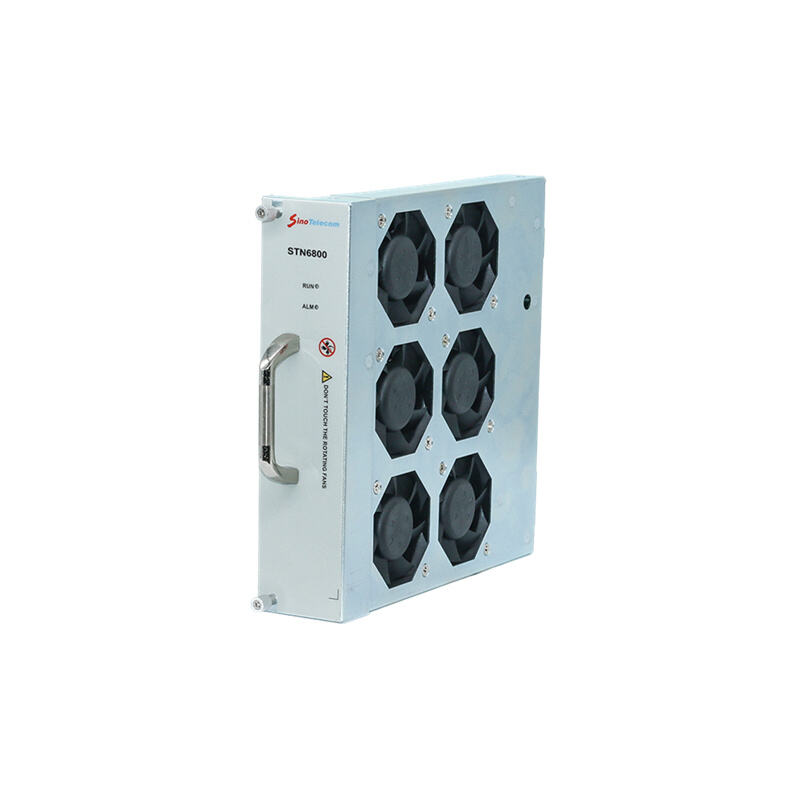

STN6800-V has high integration, supporting 7 complete slots (supporting any OTN service card), or 14 semi-slots (supporting WDM, OA, and OLP cards), or a combination of complete/semi configuration. It supports cross-connection between neighbor slots, 1+1 backup for control and power cards, distributed electronic cross-connection through the backplane, flexible data services combination of OTN and SDH, super FEC error correction, and over 1000 kilometers 100G/200G transmission without OEO relay. It is applied for complex networking, easy to deploy, and supports a centralized network management system.
STN6800-V is developed based on Sino-Telecom's software platform, SinoOS, which ensures high reliability and stability. It supports an SNMP-based network management system with a friendly user interface that is easy to operate.
|
Characteristic |
Description |
|
Slot capacity |
2 semi slots for 1+1 system control and 2 semi slots for 1+1 power supply card Configuration 1: 7 complete slots OTN service cards. Configuration 2: 6 complete slots OTN service cards and 3 semi slots WDM cards (OMD, OA, OLP) Configuration 3: 4 complete slots OTN service cards and 7 semi slots WDM cards (OMD, OA, OLP) Configuration 4: 15 semi slots WDM cards (OMD, OA, OLP) |
|
Line Side Interface |
OTU2/2e,OTU4,OTUC2 |
|
Client Side Interface |
GE/FE,10GE LAN/WAN,40GE,100GE STM-1/4/16/64,OC-3/12/48/192 OTU2,OTU2e,OTU3,OTU4 |
|
Power Supply |

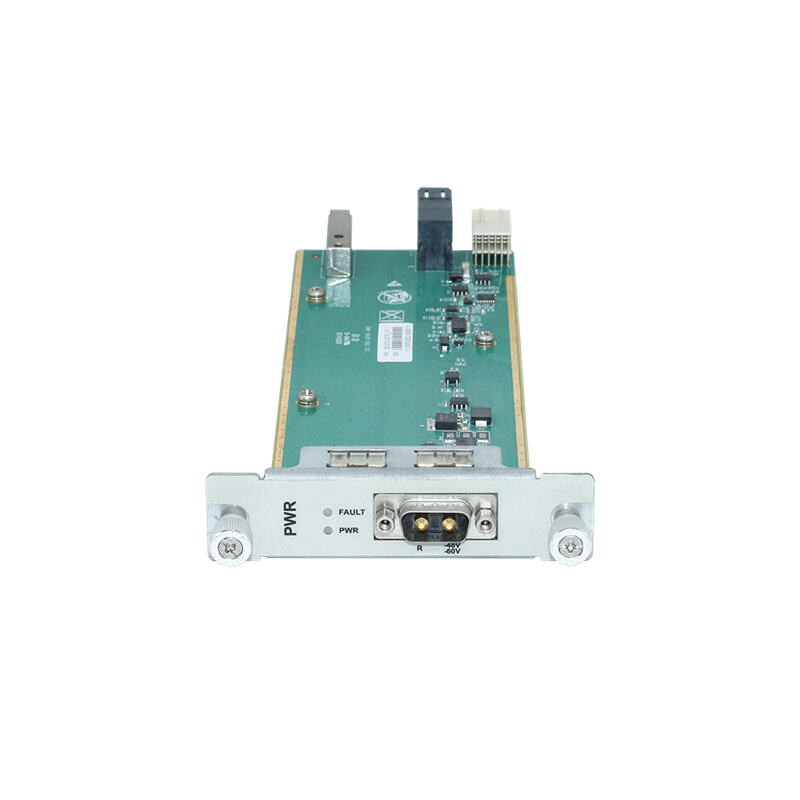

Support 1+1 backup DC power supply; Input voltage range: -40V~-72V |
|
Power Consumption |
Max.1100W |
|
Dimension(W*H*D) |
444.5mm * 222mm * 241.5mm |
|
Environment |
Working temperature: 0℃~40℃; Storage temperature: -40℃~70℃; Relative humidity: 10%~90%, no condensing; |
|
Board |
Interface |
Description |
|

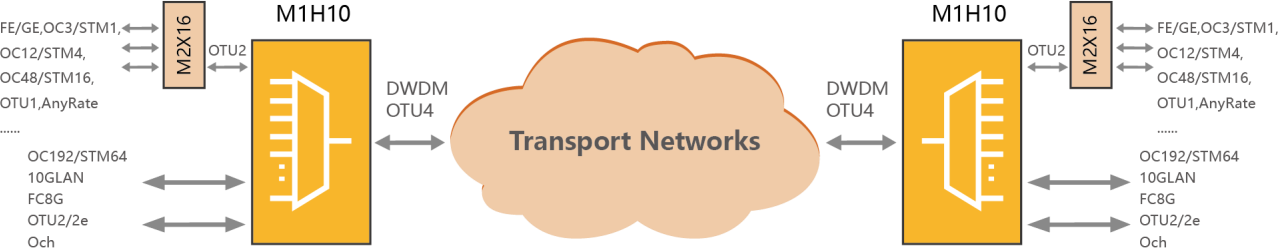

M1H10 |
1*100G line side port (CFP) 10*10G client side ports (SFP+) |

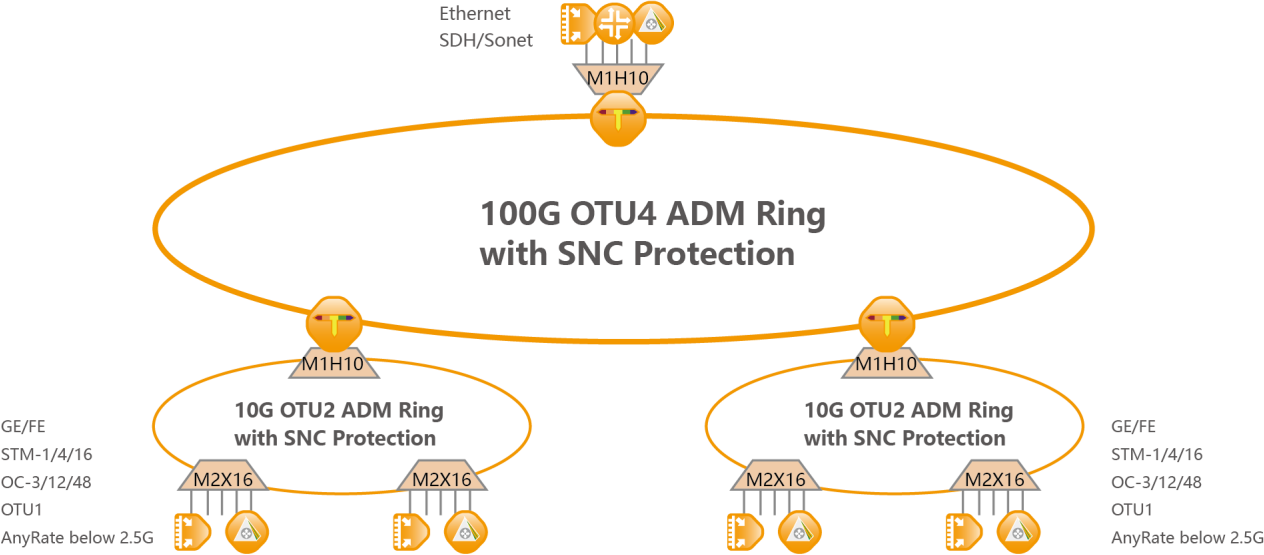

The signal of client side (10GE, STM-64/OC-192) is mapped to ODU2/2e. The signal of line side is demultiplexed from ODU4 to ODU2/2e and then connected to the client side. 100G signal of line side supports G.709 universal FEC or Soft-Decision FEC 10G OTU2/2e signal supports I.4 and I.7 EFEC, or G.709 universal FEC Support GCC0, GCC1, GCC2 in-band management Support SNC/I, SNC/N transmission protection |
|
M1H2 |
1*100G line side port (CFP) 1*100G(QSFP28) or 2*40G(QSFP+) client side ports |
The signal of client side 100G (100GE or OTU4) is mapped to ODU4 The signal of client side 40G (40GE or OTU3) is mapped to ODU3 The signal of line side is terminated into ODU4 or ODU3 and then connected to the client side 100G signal of line side supports G.709 universal FEC or Soft-Decision FEC Support GCC0, GCC1, GCC2 in-band management Support SNC/I, SNC/N transmission protection |
|
T4H |
2*100G line side ports (CFP) 2*100G client side ports (QSFP28) |
The 100G signal of client side supports 100GE or OTU4 Line side supports transparent transmission of 100G signal of client side (100GE or OTU4) or multiplexed to ODU4 to OTN transport Line side supports coherent CFP, 4x25G DWDM CFP, or grey CFP application |
|
M2H20 |
1*100G/200G line side port (CFP2) 2*100G(QSFP28) or 4*40G client ports (QSFP+) or 20*(4x5) 10G client side ports |
The 100G signal of client side (100GE or OTU4) is mapped to ODU4. The 40G signal of client side (40GE or OTU3) is mapped to ODU3. The 10G signal of client side 10G (10GE, STM-64/OC-192) is mapped to ODU2/2e. The 100G signal of line side is demultiplexed to ODU2/2e or ODU3 from ODU4, and then connected to the signal of client side. The 200G signal of line side is demultiplexed to ODU4 from ODUC2, and demultiplexed to lower ODU2/2e or ODU3, and then connected to the client side. The 100G line side signal line side supports G.709 universal FEC or Soft-Decision FEC. The 200G line side signal supports Soft-Decision FEC. 10G OTU2/2e signal supports I.4 or I.7 EFEC, or G.709 universal FEC Support GCC0, GCC1, GCC2 in-band management Support SNC/I, SNC/N transmission protection |
|
T20X |
10*10G line side ports (SFP+) 10*10G client side ports (SFP+) |
The signal of client side (10GE, STM-64/OC-192) is mapped to ODU2/2e. The signal of line side is demultiplexed to ODU2/2e, and then connected to the client side 10G OTU2/2e signal supports I.4 or I.7 EFEC, or G.709 universal FEC. Support GCC0, GCC1, GCC2 in-band management Support SNC/I, SNC/N transmission protection. |
|

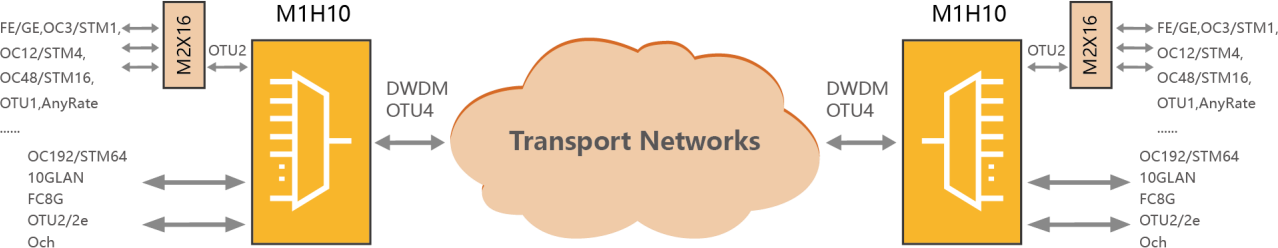

M2X16 |
2*10G line side ports (XFP) 16*2.5G or arbitrary lower rate client side ports (SFP) |
The signal of client side (GE/FE, STM-1/4/16, OC-3/12/48 low speed signal) is mapped to ODU0 or ODU1. The signal of line side is demultiplexed to ODU0 or ODU1 from ODU2 and then connected to the client side. 10G OTU2/2e supports I.4 and I.7 EFEC, or G.709 universal FEC Support GCC0, GCC1, GCC2 in-band management. Support SNC/I, SNC/N transmission protection. |
|
Board |
Interface |
Description |
|
SC |
System control card(1+1 backup) 2 optical interfaces and 2 electric interfaces Support SNMP protocol |
|

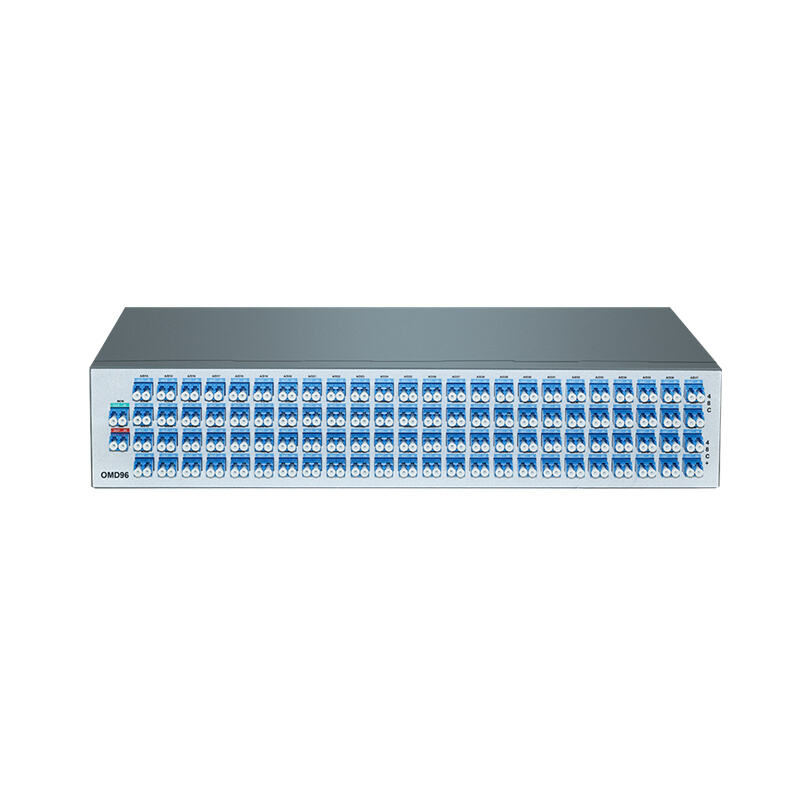

OMD |
MUX/DEMUX card, semi slot Support 2/4/8/16/18 channels C/DWDM MUX/DEMUX Support cascade ports for channel expansion |
|
|
OMD40 |
40 channel DWDM MUX/DEMUX card, complete slot Channel spacing 100GHz,C band |
|
|
OMD80 |
80 channel DWDM MUX/DEMUX card, dual complete slot Channel spacing 50GHz,C band |
|
|
OA1 |
One stage EDFA card, semi slot Support VOA gain adjustable Support OSC monitoring channel interface Support MON monitoring interface |
|
|

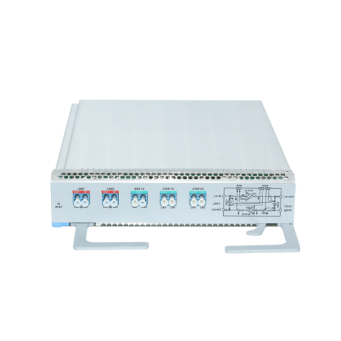

OA2 |
Two stage EDFA card, semi slot Support VOA gain adjustable Support serial connect DCM between the 2 stages Support OSC monitoring channel interface Support MON monitoring interface |
|
|

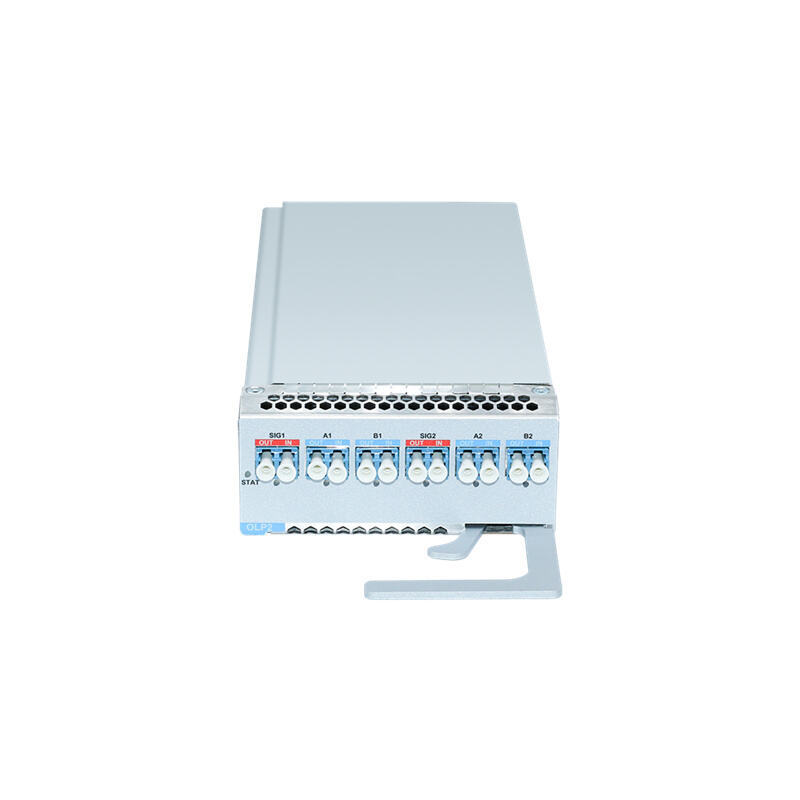

OLP |
Optical line protection card, semi slot Support 1+1, 1:1 protection Support manual, automatic, and mandatory work modes Support power off locking and light off locking Support panel key button switch |
