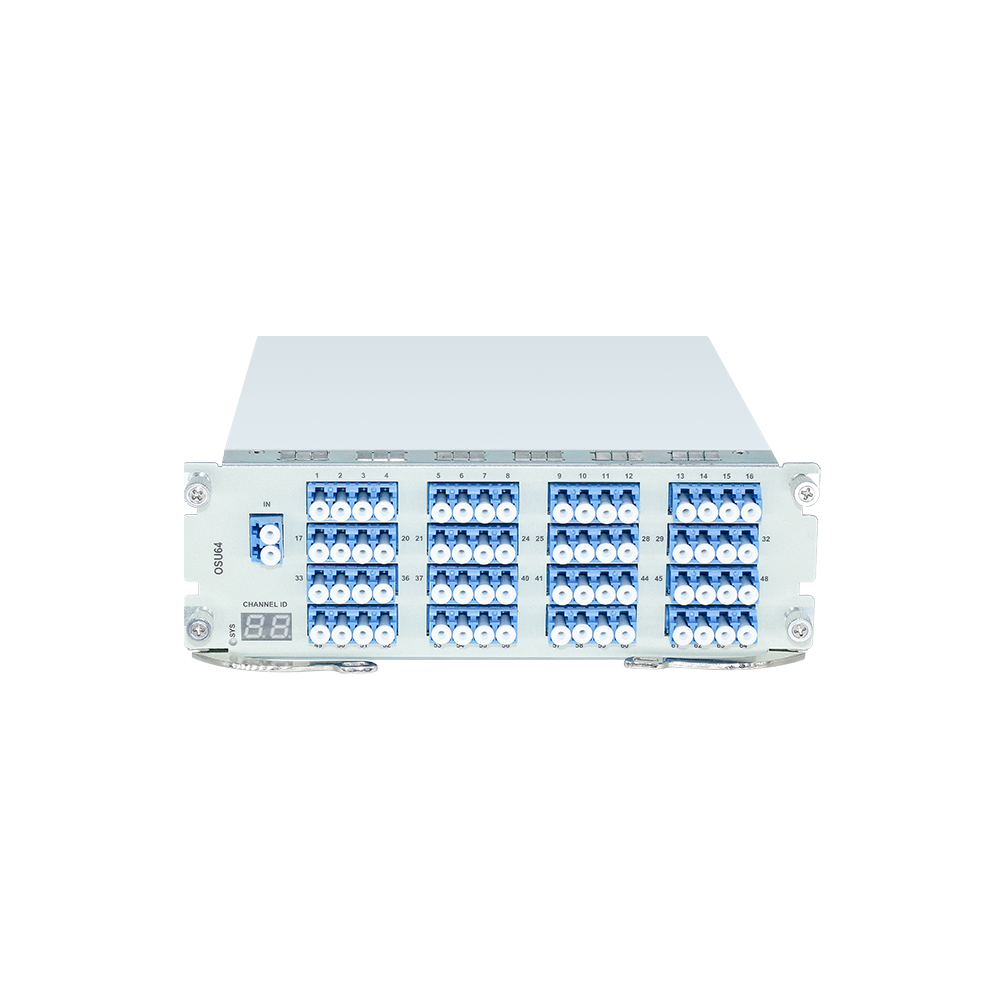

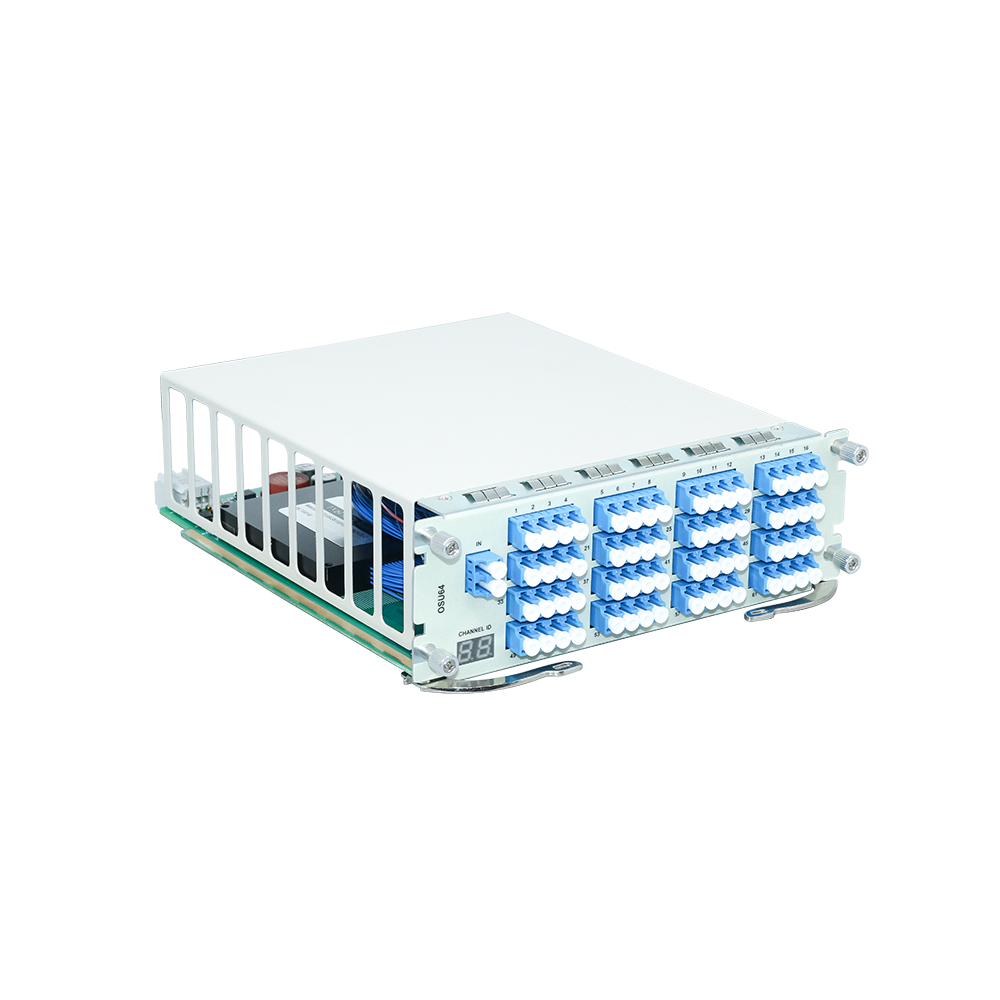

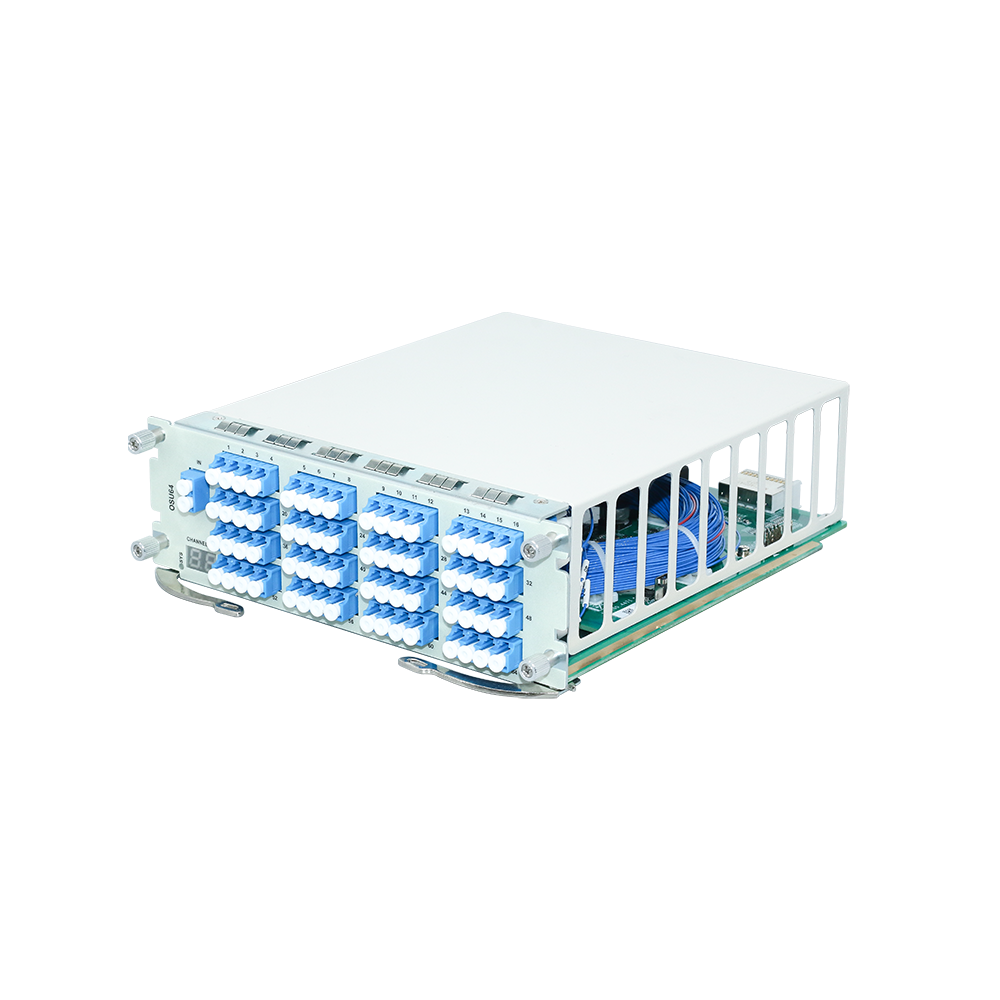

The optical router of OSU is composed of an optical switch and a pilot circuit. Its main function is to select the output route through multiple channels (1 x 64). It carries out physical switching or logical operations for optical signals in optical transmission lines or integrated optical lines.
The optical router is mainly used in optical switching, configuration of Optical Add Drop Multiplexer (ODM), optical fiber ring protection, and optical cross-connect systems. It can select different fiber cores with an OTDR test signal to detect multiple optical fibers.
Low insertion loss and high return loss;
Fast switching;
Supports digital display of the current channel;
Supports serial port local sensitivity configuration
Supports NMS remote sensitivity configuration
|
Parameter |
Performance |
|
Working wavelength |
1260~1650nm |
|
insertion loss |
≤2.0 d B(1X64) |
|
Number of channels |
64 |
|
Return Loss |
≥ 50 d B |
|
Switching Time |
≤25ms |
|
Service Life |
≥ 109 times |
|
Carrying Optical Power |
≤ 500mW |
|
Slot Width |
64 way ( 3 standard function slot) |
|
Maximum Power Consumption |
15W |
