OMD(48,96)

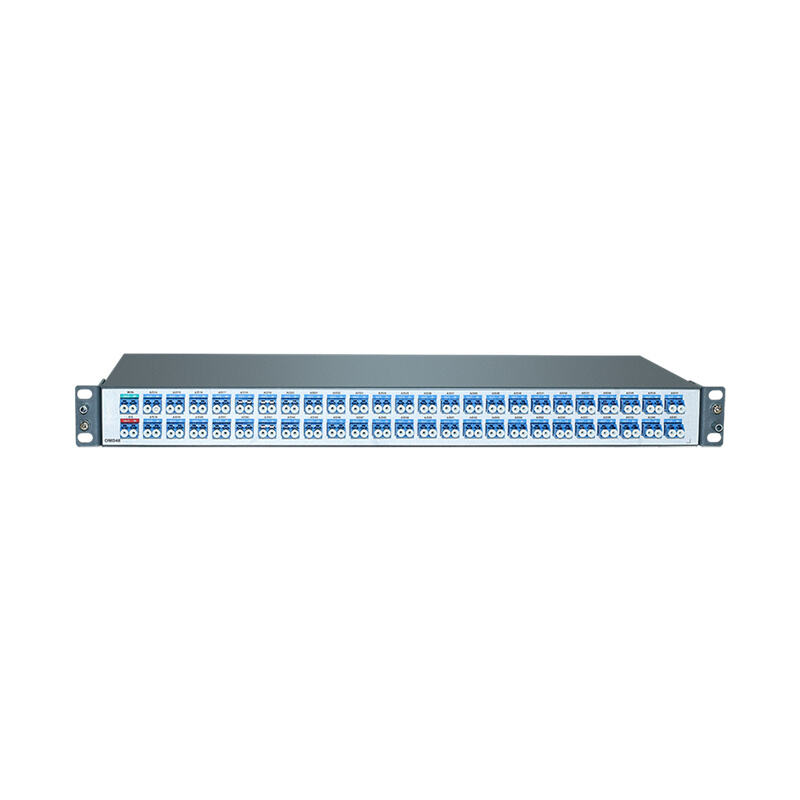

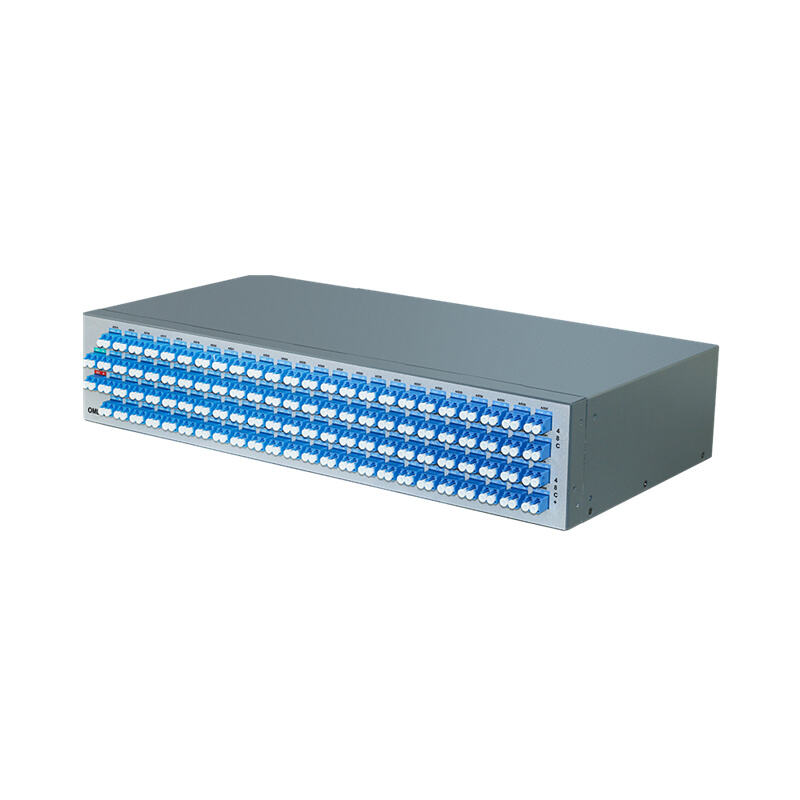

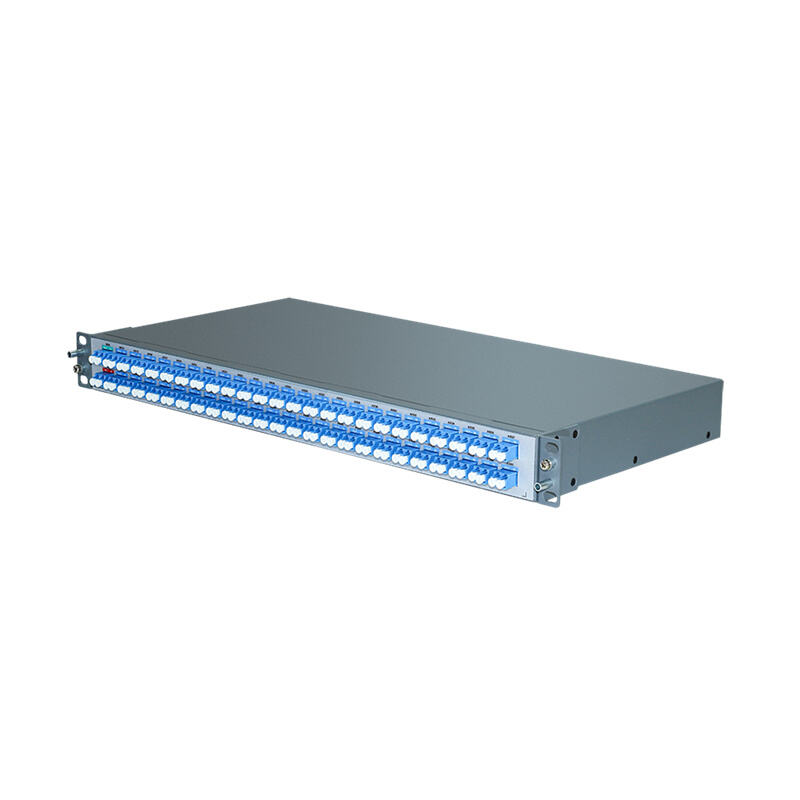

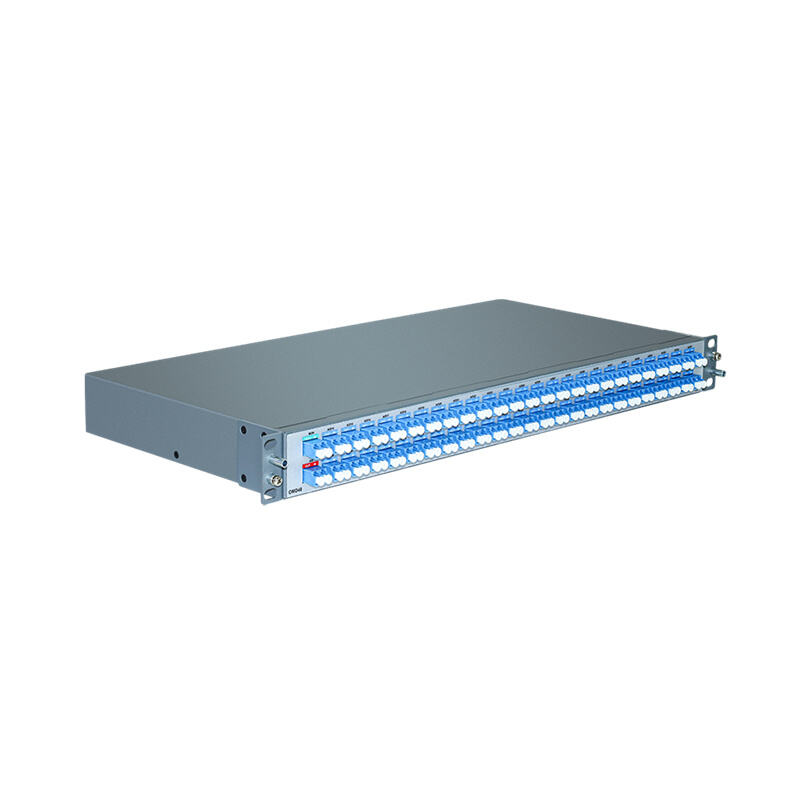

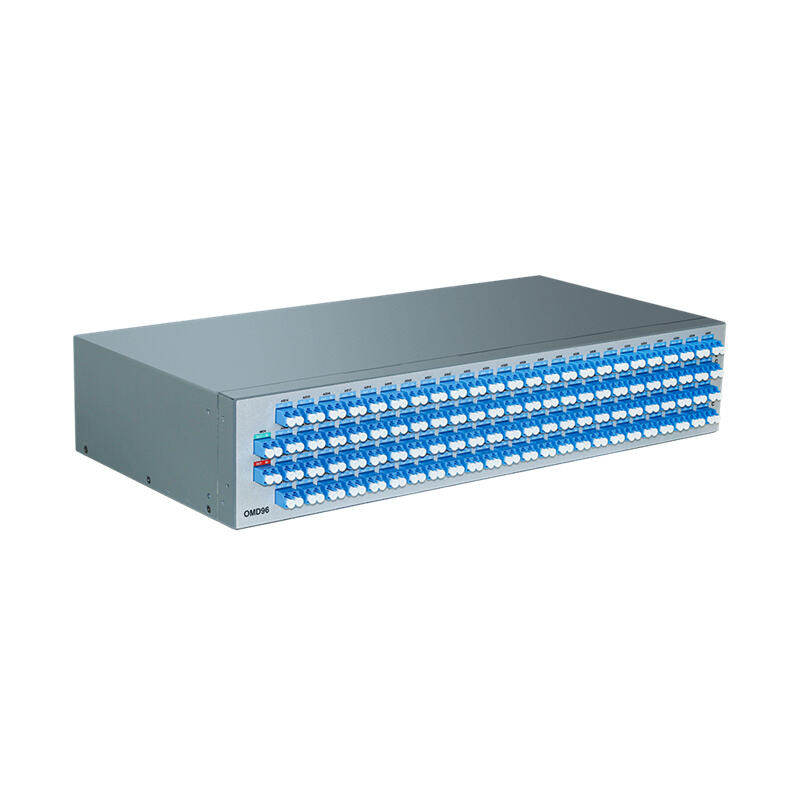

OMD48/OMD96 is a 48-channel or 96-channel dense wavelength division multiplexing and demultiplexing device from Sino-Telecom, primarily used in the field of optical communication.

Product Description
physical properties
technical indicators
Networking application
Related Products

Product Description

OMD48 is suitable for core layer transmission in backbone networks and metropolitan area networks, meeting the requirements for multi-service bearer. It is used for high-speed optical interconnection between data centers, supporting single-wave 100G/200G/400G transmission, and meeting the requirements for short-distance and high-capacity data exchange.

OMD96 is suitable for high-capacity scenarios such as ultra-high-speed backbone networks, 5G fronthaul/midhaul, and cloud computing center interconnection.

physical properties

feature	description
chassis	OMD48：1U；OMD96：2U

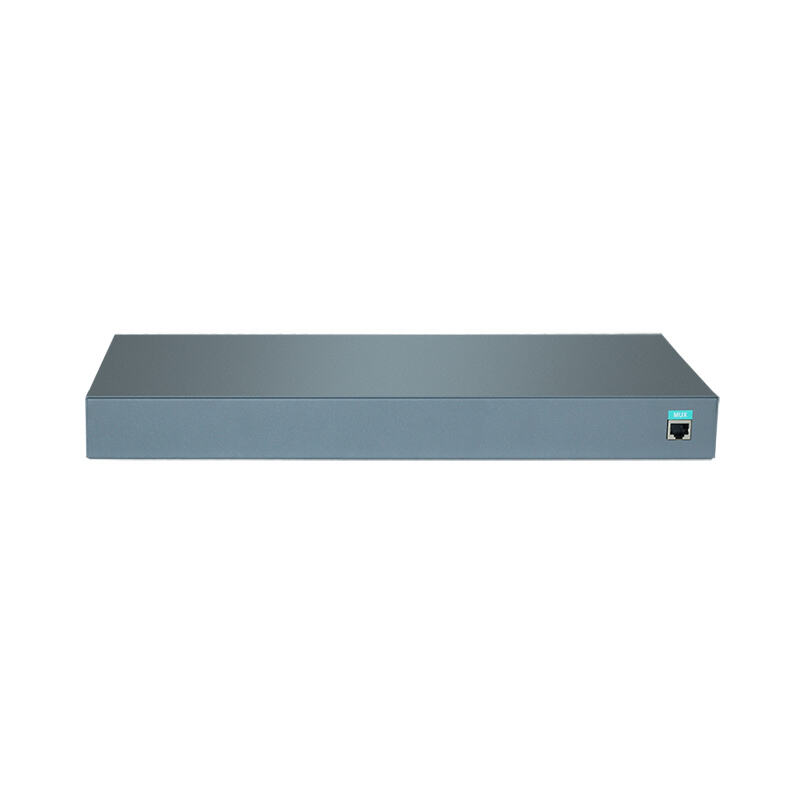

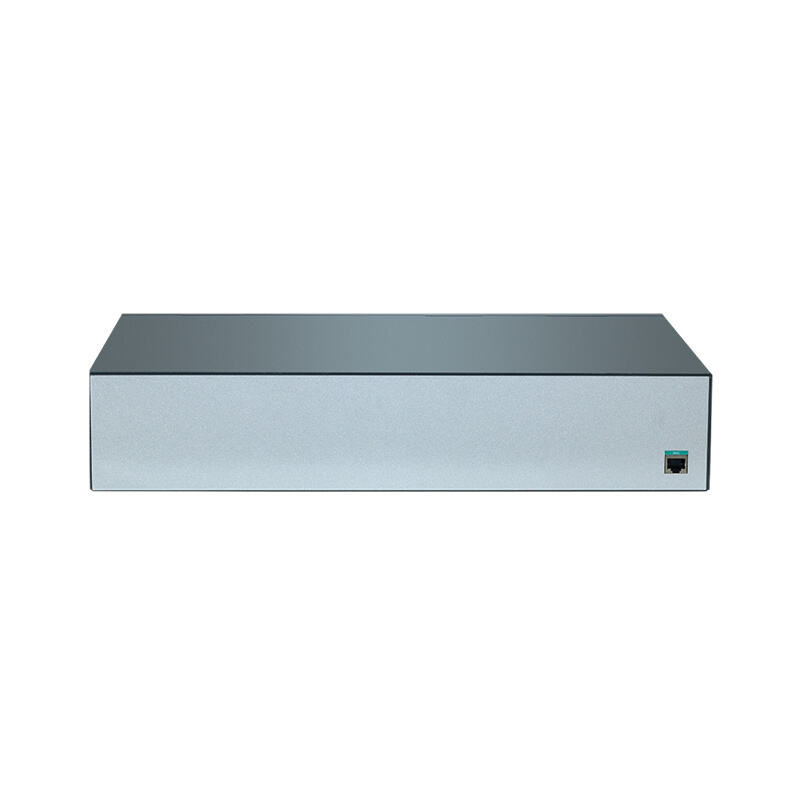

Management interface	RJ45 port

technical indicators

project	unit	indicator	Remarks
MUX（48Ch，C）
wavelength range	nm	1528.773~1566.314
Spectral type		Flat-top type
channel spacing	GHz	100
insertion loss	dB	＜6
return loss	dB	＞40
Polarization-dependent loss	dB	＜0.5
Isolation degree of adjacent channels	dB	＞15
Isolation degree of non-adjacent channels	dB	＞30
Maximum difference in insertion loss across channels	dB	＜1
Center frequency deviation	GHz	±2.5
1dB minimum spectral width	GHz	＞50
3dB minimum spectral width	GHz	＞75
20dB maximum spectral width	GHz	＜150
Monochromatic light split ratio	dB	20±2	Spectral ratio 1%
DeMUX（48Ch，C）
wavelength range	nm	1528.773~1566.314
Spectral type		Flat-top type
channel spacing	GHz	100
insertion loss	dB	＜6
return loss	dB	＞40
Polarization-dependent loss	dB	＜0.5
Adjacent channel isolation	dB	＞15
Isolation degree of non-adjacent channels	dB	＞30
Maximum difference in insertion loss among channels	dB	＜2
Center frequency deviation	GHz	±2.5
1dB minimum spectral width	GHz	＞50
3dB minimum spectral width	GHz	＞75
20dB maximum spectral width	GHz	＜150
"Mon's spectral ratio"	dB	20±2	Spectral ratio 1%

OMD96

project	unit	indicator	Remarks
MUX（48Ch，C&C+）
wavelength range	nm	1528.773~1566.73
Spectral type		Flat-top type
channel spacing	GHz	100
insertion loss	dB	＜6
return loss	dB	＞40
Polarization-dependent loss	dB	＜0.5
Isolation degree of adjacent channels	dB	＞15
Isolation degree of non-adjacent channels	dB	＞30
Maximum difference in insertion loss across channels	dB	＜1
Center frequency deviation	GHz	±2.5
1dB minimum spectral width	GHz	＞50
3dB minimum spectral width	GHz	＞75
20dB maximum spectral width	GHz	＜150
DeMUX（48Ch，C&C+）
wavelength range	nm	1528.773~1566.73
Spectral type		Flat-top type
channel spacing	GHz	100
insertion loss	dB	＜6
return loss	dB	＞40
Polarization-dependent loss	dB	＜0.5
Isolation degree of adjacent channels	dB	＞15
Isolation degree of non-adjacent channels	dB	＞30
Maximum difference in insertion loss among channels	dB	＜2
Center frequency deviation	GHz	±2.5
1dB minimum spectral width	GHz	＞50
3dB minimum spectral width	GHz	＞75
20dB maximum spectral width	GHz	＜150
Dressing filter
Spectral type		Flat-top type
Input channel spacing	GHz	100
Output channel spacing	GHz	50
Combined insertion loss	dB	＜3
Partial wave insertion loss	dB	＜3
Maximum difference in insertion loss across channels	dB	＜1
Distribution isolation degree	dB	＞15
Polarization-dependent loss	dB	＜0.5
1dB minimum spectral width	GHz	＞42
3dB minimum spectral width	GHz	＞46
"Monochromatic light distribution ratio"	dB	16~23	Spectral ratio of 1% to 2%
