EDFA-OLA is an OAU line optical amplifier card for the STN6800-D16 platform from Sino-Telecom, integrating two sets of line amplifiers and supporting bidirectional amplification. The EDFA-OLA card supports C-band transmission with a transmission distance of 0~120km, and integrates optical signal wavelength and power monitoring, fiber link attenuation and break point testing, and a 1510nm network management monitoring channel.
The EDFA-OLA line optical amplification card supports both fixed gain and adjustable gain options.
It achieves C-band signal power amplification and supports adjustable gain function;
The laser can be turned on and off through network management settings, facilitating testing and operation and maintenance;
The board card is equipped with a VOA module, which can be used to automatically adjust the input optical power of the EDFA module.
Complete the receiving and transmitting control and processing of optical supervisory channel signals;
Realize the multiplexing and demultiplexing of the main optical channel and the optical supervisory channel;
Collaborate with OTDR cards to fulfill the online OTDR detection function, thereby achieving the detection of the fiber status in the optical line system;
Provide an online monitoring port that can output a small amount of optical signal to monitor the spectral performance of the optical signal without interrupting the service;
Support the detection and reporting of optical power;
Support the reporting of single board card alarms and performance events.
|
feature |
description |
|
slot |
Single slot (fixed gain) Dual slot (adjustable gain) |
|
project |
unit |
Indicator (fixed gain) |
Indicator (Adjustable Gain) |
||
|
|
|
LA |
LA1 |
LA2 |
|
|
number of channels |
-- |
48@100GHz 96@50Ghz |
48@100GHz 96@50Ghz 40@150GHz |
48@100GHz 96@50Ghz 40@150GHz |
|
|
Amplifier type |
-- |
EDFA |
EDFA |
EDFA |
|
|
Operating wavelength range |
nm |
1528~1568 |
1528~1568 1524~1572 |
1528~1568 1524~1572 |
|
|
Nominal gain |
dB |
20 |
20 |
30 |
|
|
Total input optical power range |
dBm |
-29~+3 |
-26~+6 |
-35~-1 |
|
|
Noise Figure (NF) |
dB |
＜6 |
＜8.1@G=15 ＜5.8@G=20~22 ＜5.5@G=23~25 |
＜8@G=22 ＜6.1@G=25 ＜5.5@G=28~35 |
|
|
Channel gain |
dB |
--- |
15~25 |
22~35 |
|
|
gain flatness |
dB |
<1.5 |
<1.5 |
<1.5 |
|
|
Polarization-dependent loss |
dB |
＜0.5 |
＜0.5 |
＜0.5 |
|
|
Gain response time |
ms |
＜10 |
±0.5 |
±0.5 |
|
|
Input/output reflection coefficient |
dB |
<-30 |
<-30 |
<-30 |
|
|
Input/output optical power detection accuracy |
dB |
±0.5 |
±0.5 |
±0.5 |
|
|
Output optical power stability |
dB |
±0.5 |
±0.5 |
±0.5 |
|
|
Transient response time of surge/dip suppression |
ms |
＜1 |
＜1 |
＜1 |
|
|
Transient gain fluctuation due to wave addition/subtraction @48 wave eliminates 47 waves |
dB |
-1~+1 |
-1~+1 |
-1~+1 |
|
|
Gain response time |
ms |
＜10 |
±0.5 |
±0.5 |
|
|
project |
unit |
indicator |
Remarks |
|
|
Operating wavelength |
nm |
1528～1568 1524~1572 |
|
|
|
Scope and accuracy |
dB |
|
||
|
Inherent insertion loss |
dB |
<1 |
Typical value: 0.5dB |
|
|
Wavelength-dependent loss |
dB |
＜0.3 @0~8dB ＜0.6 @8~15dB |
|
|
|
return loss |
dB |
>40 |
|
|
|
Polarization-dependent loss |
dB |
<0.5 |
|
|
|
response time |
ms |
<200 |
||

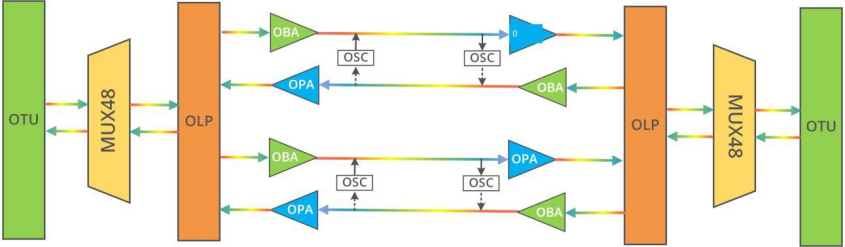

Point-to-point application

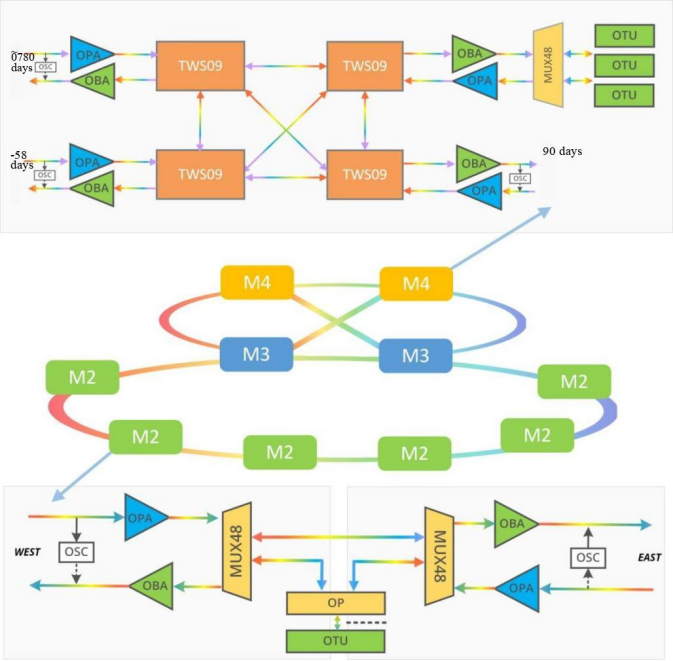

Typical application scenarios
