Product Description

The STN6800-II is a 10G/100G OTN transport system primarily used in metropolitan areas for convergence, access, and interconnected transmissions in data centers. It supports electronic cross between cards, multi-service particle scheduling, and 10G/100G transmission. The system offers comprehensive management and protection functions to ensure efficient operation and system integrity.

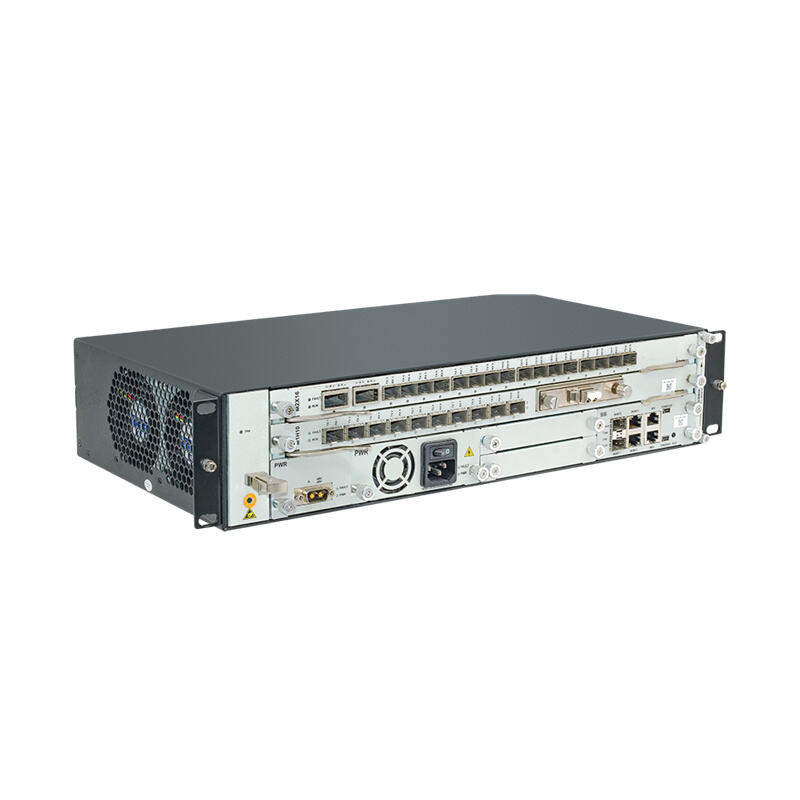

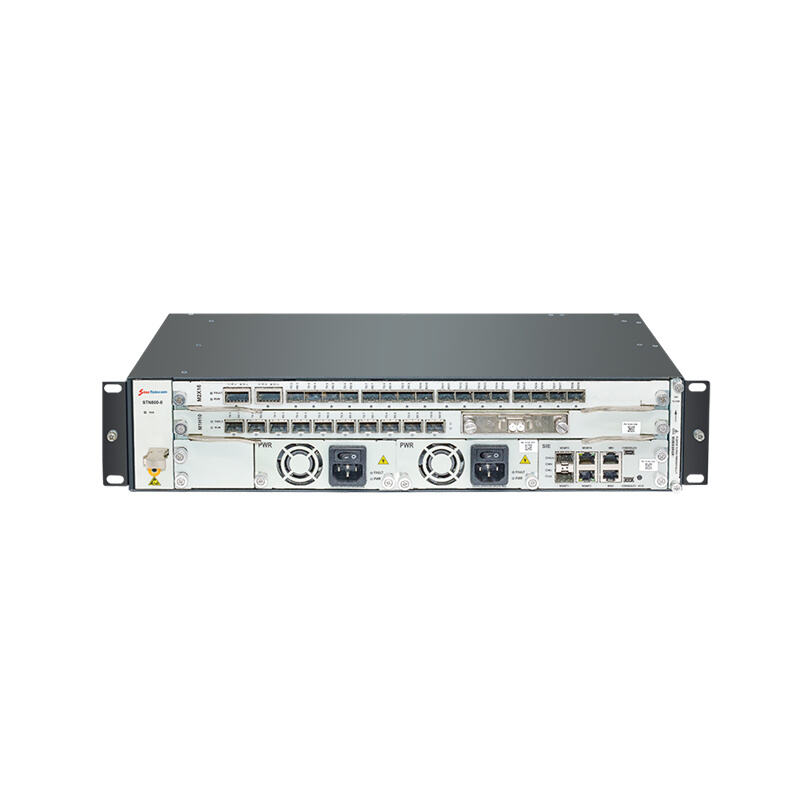

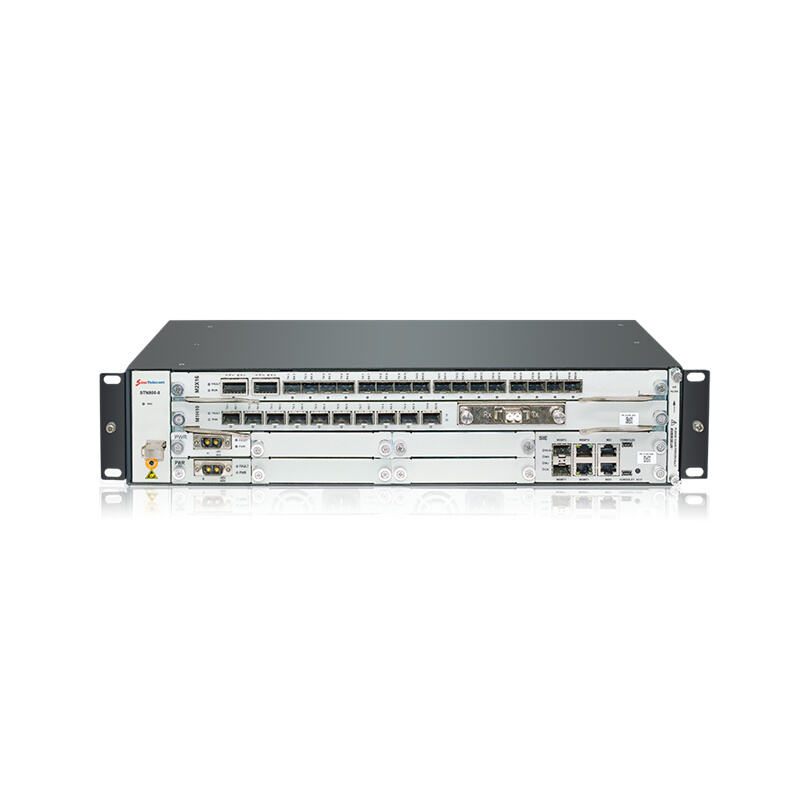

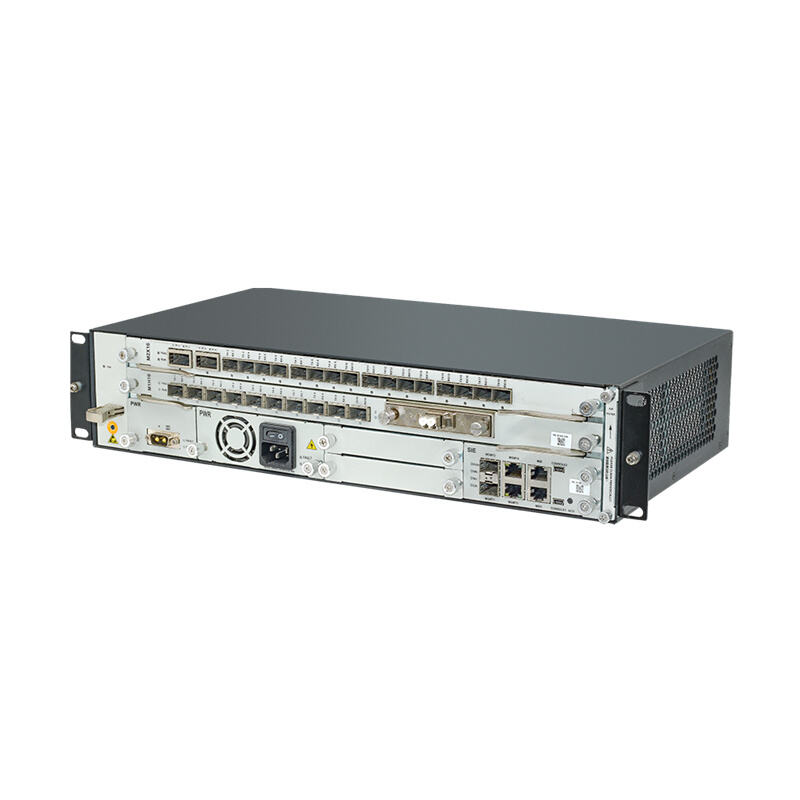

The STN6800-II features 2 slots for service boards, which support 1+1 backup for cross board protection and control. Additionally, it has 4 slots for WDM/EDFA boards and 2 slots for power supply (dual-DC, dual-AC, or AC plus DC options are available). This configuration enhances the reliability and stability of the system, providing uninterrupted service.

Developed based on Sino-Telecom's software platform, SinoOS, the STN6800-II ensures high reliability and stability. SinoOS supports SNMP-based Network Management System (NMS) and offers a user-friendly interface that is easy to operate, facilitating efficient management and control of the system.

Features

Characteristics	Description
Slot capacity	2 slots for universal service board, the maximum 200G service bandwidth for single slot, service slots support electronic cross protection and 1+1 control backup; 4 slots for WDM/EDFA board (dual-DC power) or 2 slots for WDM/EDFA (AC plus DC power); 2 slots for power supply (dual-DC, dual-AC, or AC plus DC for optional); 1 slot for system interface;
Line Side Interface	OTU2/2e,OTU4,OTUC2;
Client Side Interface	GE/FE, 10GE LAN/WAN, 40GE, 100GE; STM-1/4/16/64, OC-3/12/48/192; OTU2, OTU2e, OTU3, OTU4;
Power Supply	1+1 backup DC power supply; DC: Input -40V～-72V; AC:Output 100～240V, 47～63Hz;
Power Consumption	Max. 350W;
Environment	Working temperature: 0 °C～45 °C Storage temperature: -40 °C～70°C Relative humidity: 10%～90%, no condensing

Feature of Service Board

Board

Interface

Description

M1H10

1 100G line side port (CFP)

10 10G client side ports (SFP+)

The signal of client side (10GE, STM-64/OC-192) is mapped to ODU2/2e
The signal of line side is demux from ODU4 to ODU2/2e and then connect to the client side
100G signal of line side supports G.709 Regular FEC or Soft-Decision FEC
10G OTU2/2e supports I.4 and I.7 EFEC, or G.709 regular FEC
GCC0, GCC1, GCC2 in-band management
SNC/I, SNC/N transmission protection

M1H2

1 100G line side port (CFP)

1 100G(QSFP28) or 2 40G client ports (QSFP+)

The signal of client side 100G (100GE or OTU4) is mapped to ODU4
The signal of client side 40G (40GE or OTU3) is mapped to ODU3
The signal of line side is terminated into ODU4 or ODU3 and then connect to the client side
100G signal of line side supports G.709 Regular FEC or Soft-Decision FEC
GCC0, GCC1, GCC2 in-band management
SNC/I, SNC/N transmission protection

T4H

2 100G line-side ports (CFP)

2 100G client-side ports (QSFP28)

The 100G signal of client side support 100GE or OTU4
Line side support transparent transmission of 100G signal of client side (100GE or OTU4) or multiplex to ODU4 to OTN transport (100GE or OTU4)
Line side support coherent DWDM SFP, 4x25G DWDM CFP, or grey CFP application

M2H20

100G/200G line-side port (CFP2)

100G(QSFP28) or 4 40G client-side ports (QSFP+) or 20(4x5)10G client-side ports

The 100G signal of client side (100GE or OTU4) is mapped to ODU4
The 40G signal of client side (40GE or OTU3) is mapped to ODU3
The 10G signal of client side 10G (10GE, STM-64/OC-192) is mapped to ODU2/2e
The 100G signal of line side is s demux to ODU2/2e or ODU3 from ODU4, and then connect to the signal of client side
The 200G signal of line side is demux to ODU4 from ODUC2, and demux to lower ODU2/2e or ODU3, and then connect to the client side
G.709 regular FEC or Soft-Decision FEC
200G line side support Soft-Decision FEC
10G OTU2/2e support I.4 or I.7 EFEC, or G.709 regular FEC
GCC0, GCC1, GCC2 in-band management
SNC/I, SNC/N transmission protection

T20X

10 10G line side ports (SFP+)

10 10G client side ports (SFP+)

The signal of client side (10GE, STM-64/OC-192) is mapped to ODU2/2e
The signal of line side is DEMUX to ODU2/2e, and then connect to the client side
10G OTU2/2e support I.4 or I.7 EFEC, or G.709 regular FEC
GCC0, GCC1, GCC2 in-band management
SNC/I, SNC/N transmission protection

M2X16

2 10G line side ports (XFP)

16 2.5G low speed anyrate client-side ports (SFP)

The signal of client side (GE/FE, STM-1/4/16, OC-3/12/48 low speed signal) is mapped to ODU0 or ODU1
The signal of system side is DEMUX to ODU0 or ODU1 from ODU2 and then connect to the client side
10G OTU2/2e support I.4 and I.7 EFEC, or G.709 regular FEC
GCC0, GCC1, GCC2 in-band management
SNC/I, SNC/N transmission protection
