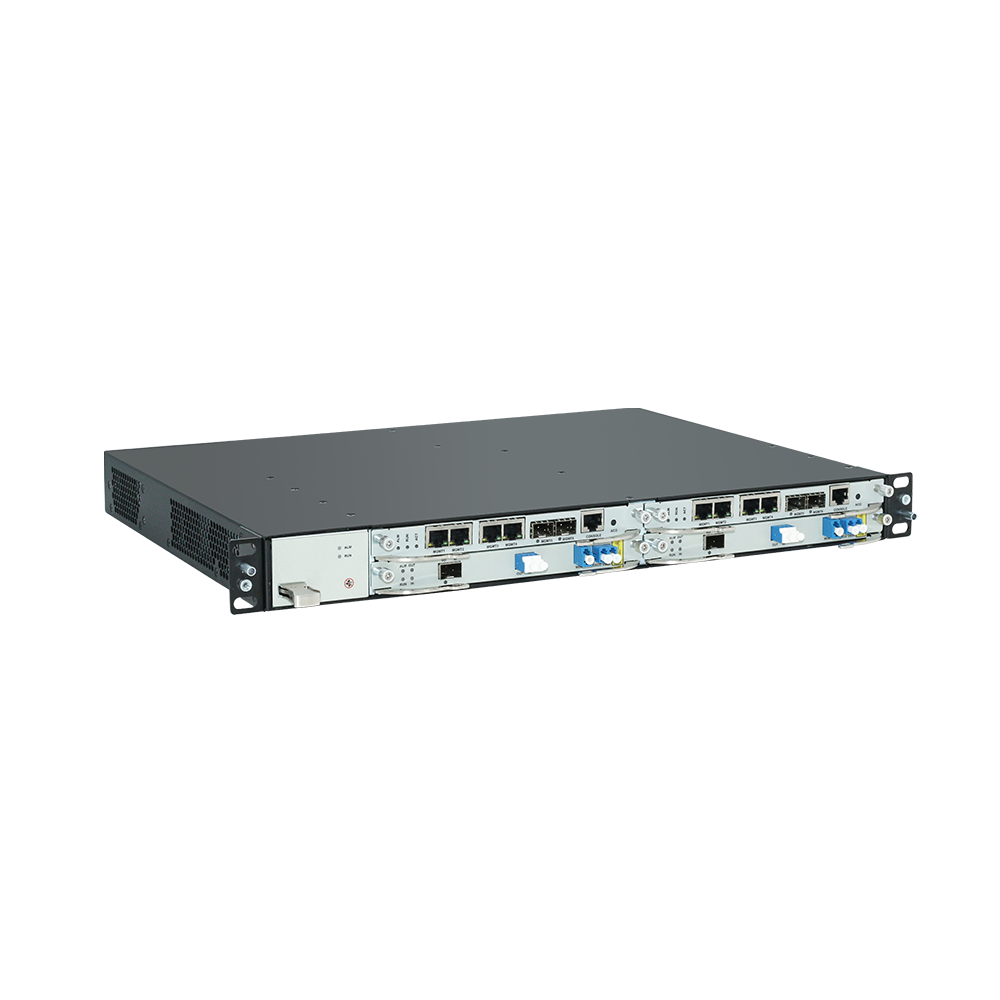

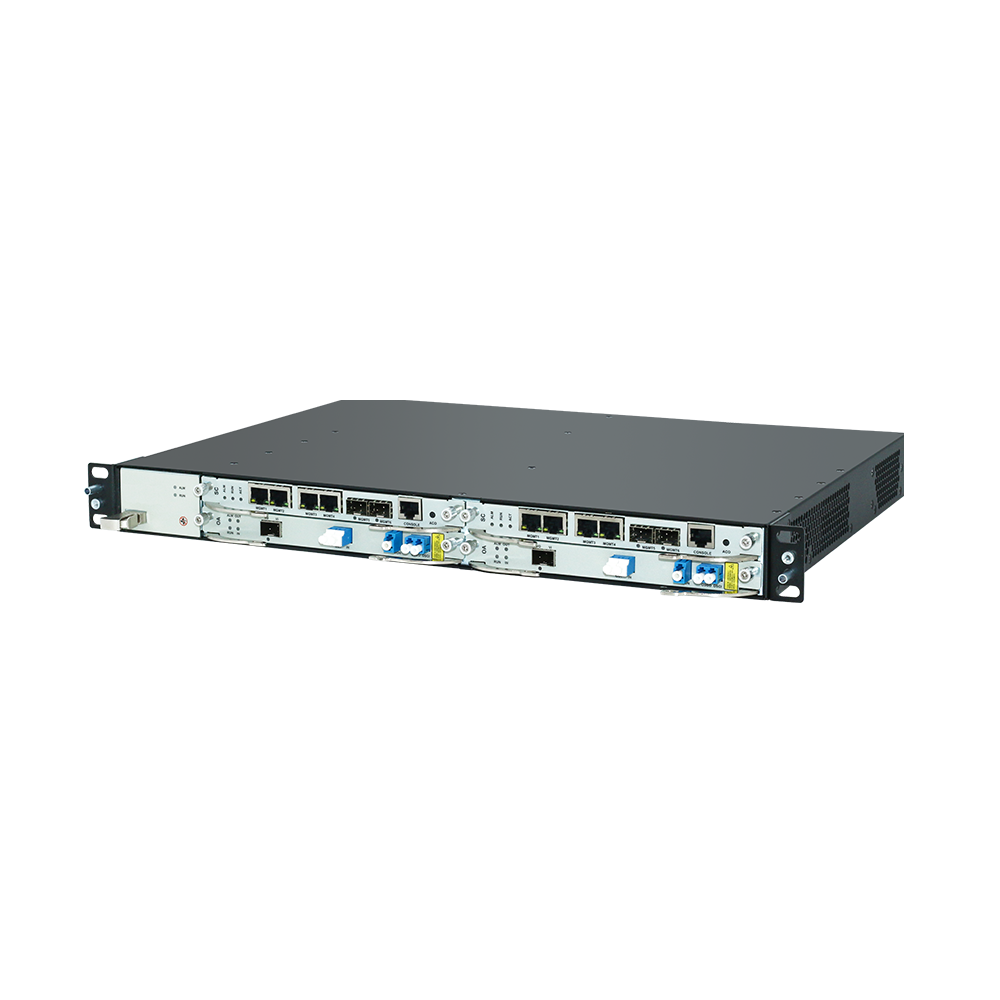

STN6200-IA serial is mainly used in network access layer and aggregation layer. It supports multi kinds of sub cards used in service access. STN6200-IA is specialized in PON signal aggregation & distance-extend and optical transmission & optical protection service; it supports optical fiber sensing, optical crossing monitoring and optical fiber monitoring.

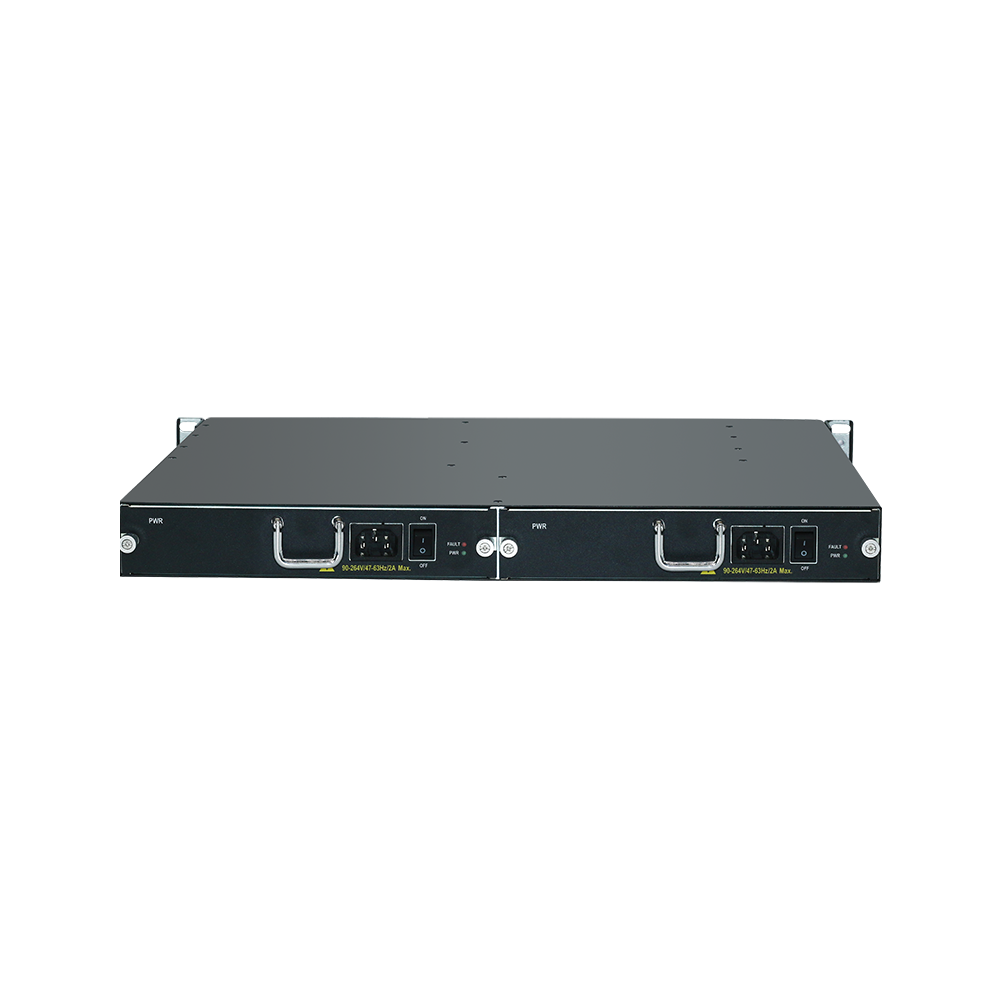

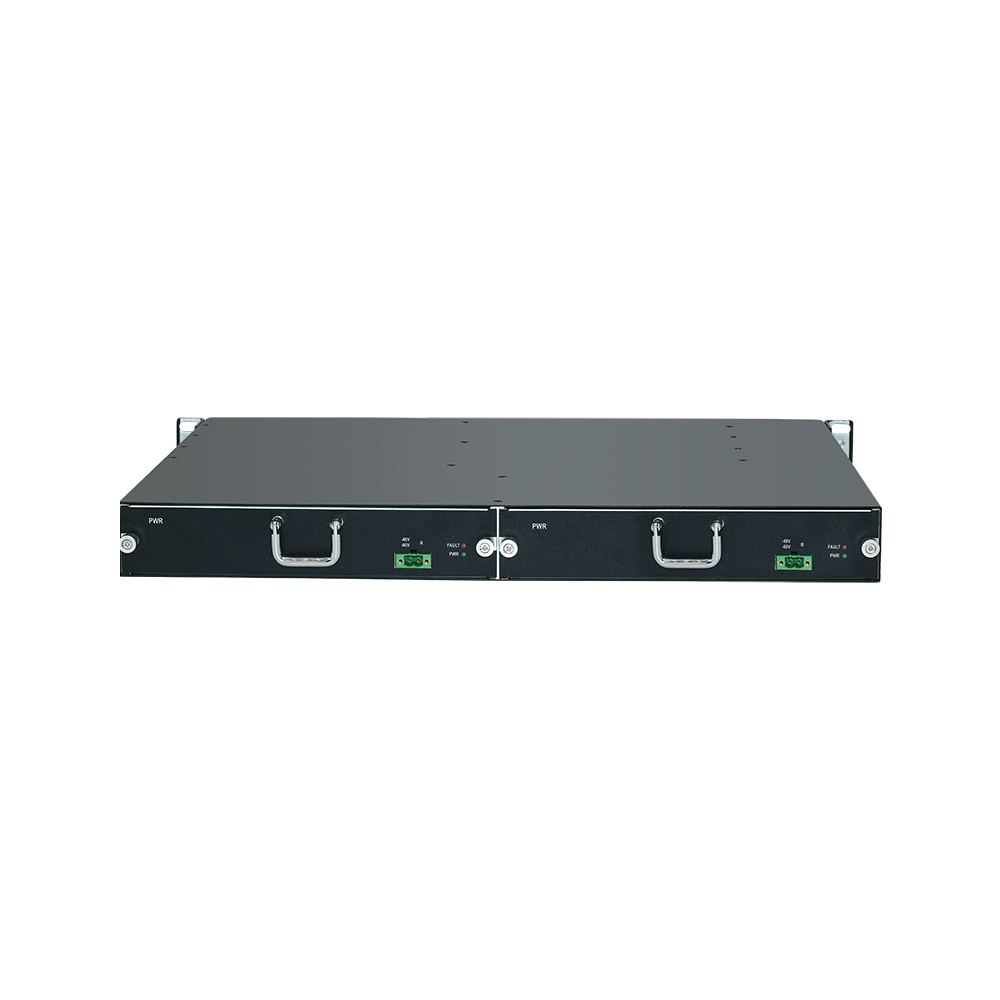

STN6200-IA platform supports 1+1 dual power backup (AC220V/DC48V mixed application), 1+1 SC board card backup and service sub card hot swap. It supports in-band remote management by the Sino-telecom's network management system NMS3000. NMS3000 has powerful management ability and friendly operation interface, supports fast service configuration and opening. It's easy for equipment maintain and management.
|
Parameter |
STN6200-IA |
|
Device Dimensions (mm) |
44(H)*445(W)*325(D) |
|
Power supply |
DC -48 / -60V or AC 110 ~ 220V or DC -48/-60V and AC 110~220V (mixed) |
|
Installation Method |
19-inch cabinet |
|
Service slots |
4 |
|
Single-channel maximum rate |
100Gbit/s |
|
Optical fiber interface |
LC/UPC, SC/UPC |
|
Transmission fiber |
G.652，G.653，G.655 |
|
Protection mode |
Device level protection: 1+1 SC card backup; 1+1 power card backup Network level protection: Optical line protection, optical channel protection, OTU2 SNCP protection on line side |
|
Transmission technology |
DWDM(G.694.1)，CWDM(G.694.2) 1.25G，2.5G，8G，10G，40G，100G line rate Amplifier：EDFA，SOA |
