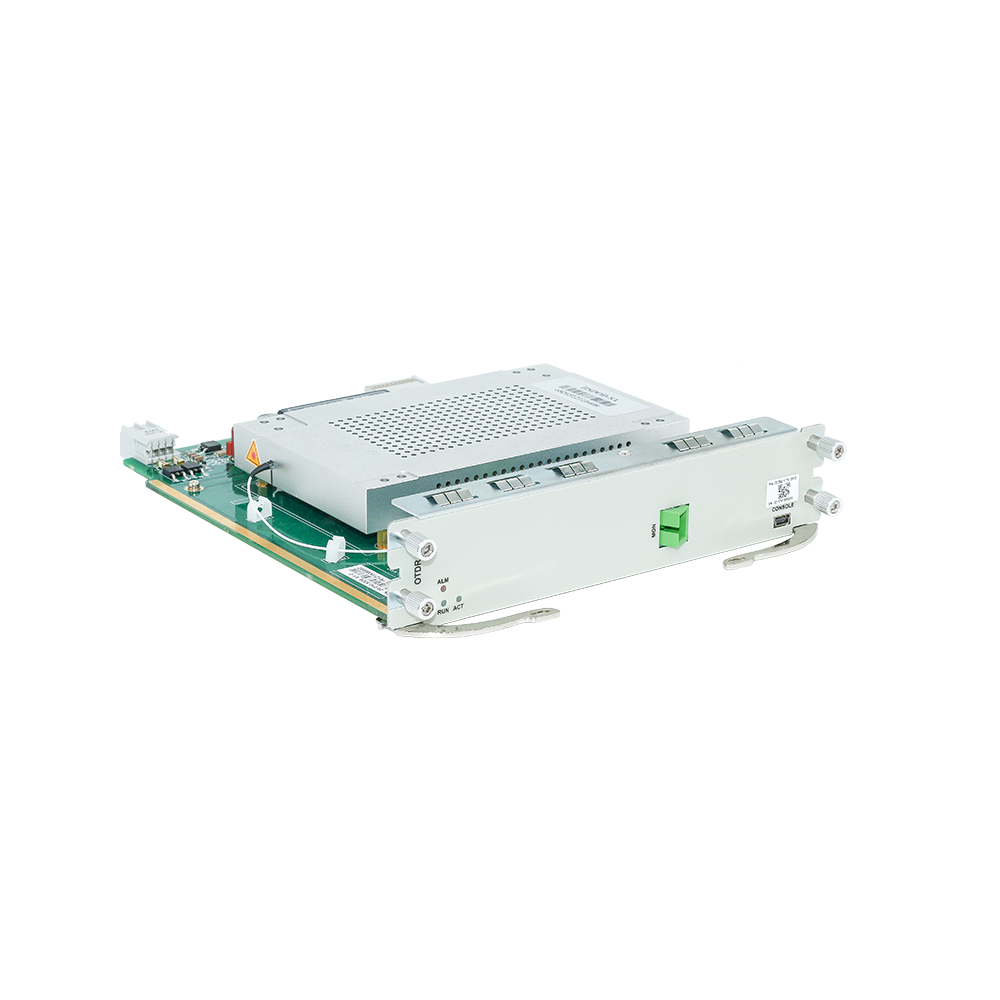

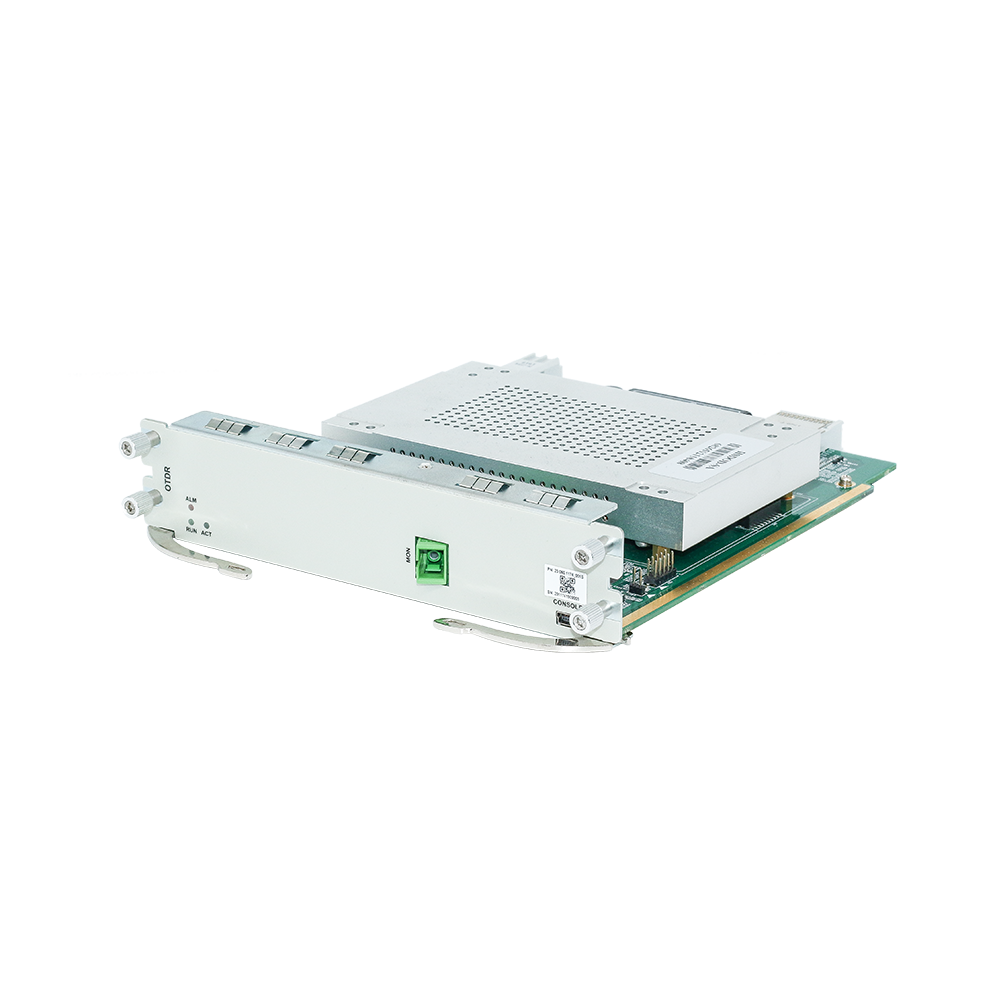

The OTDR optical time domain reflectometer has a built- in OTDR module, which utilizes the backscattered light generated as the light propagates in the optical fiber to obtain attenuation information.
It can be used to measure fiber attenuation, splice loss, fiber fault location, etc. The OTDR is an essential tool for fiber optic cable construction, maintenance, and monitoring. With the OTDR module, optical cable monitoring, construction, and maintenance can be efficiently achieved.
The OTDR optical time domain reflectometer has a built- in OTDR module, which utilizes the backscattered light generated as the light propagates in the optical fiber to obtain attenuation information.
It can be used to measure fiber attenuation, splice loss, fiber fault location, etc. The OTDR is an essential tool for fiber optic cable construction, maintenance, and monitoring. With the OTDR module, optical cable monitoring, construction, and maintenance can be efficiently achieved.
Large dynamic range；
High test accuracy；
Various types available；
Ultra-short event dead zone；
Communication light automatic monitoring function；
|
Parameters |
Indicator |
|
Working wavelength |
1625nm±10nm |
|
Event dead zone |
≤2m |
|
Attenuation dead zone |
≤5m |
|
Dynamic Range |
40dB |
|
Ranging accuracy |
±1m± sampling resolution ±-10-5 x distance |
|
Minimum distance resolution |
0.0127m |
|
Pulse width |
5ns~20us |
|
Slot width |
2 Standard function slots |
|
Max power consumption |
9W |

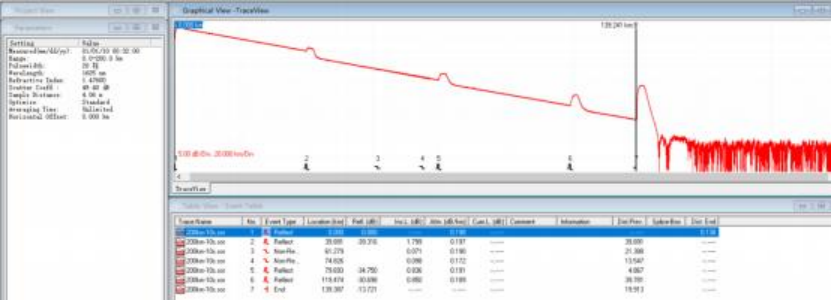

Optical cable test data
