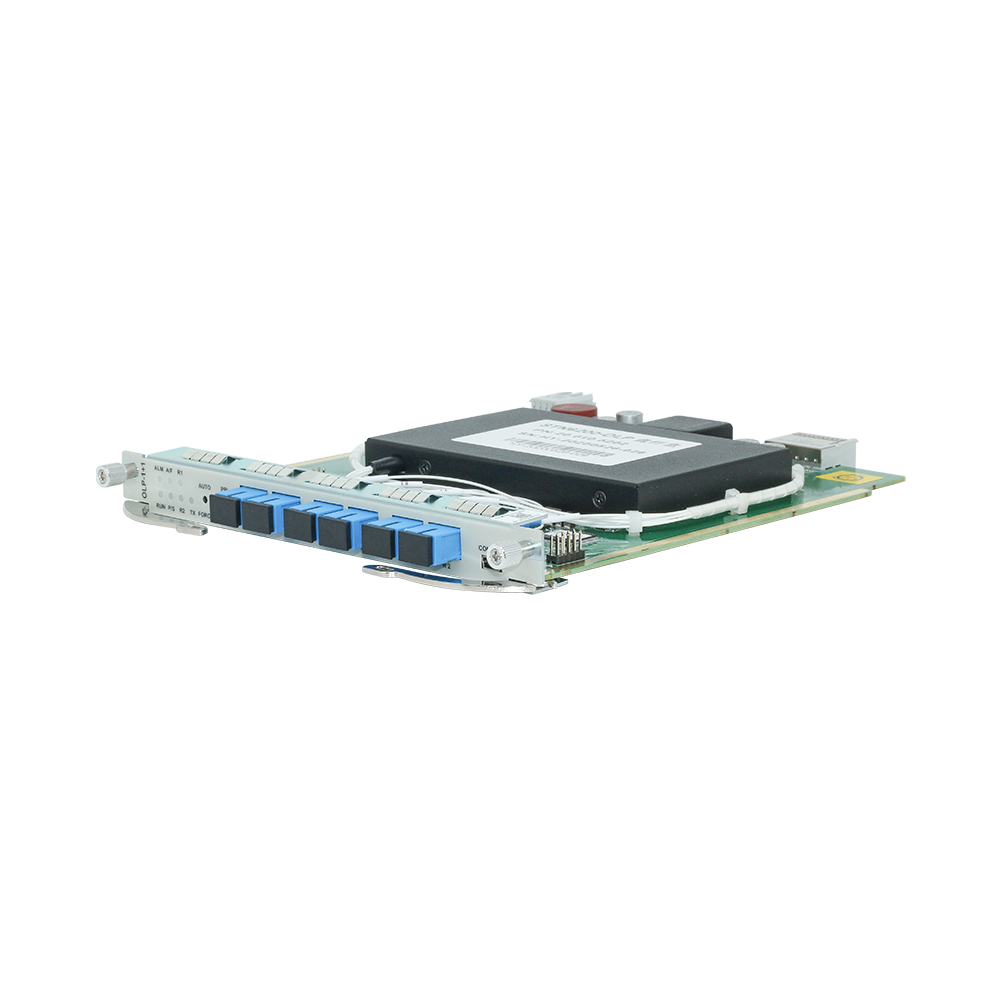

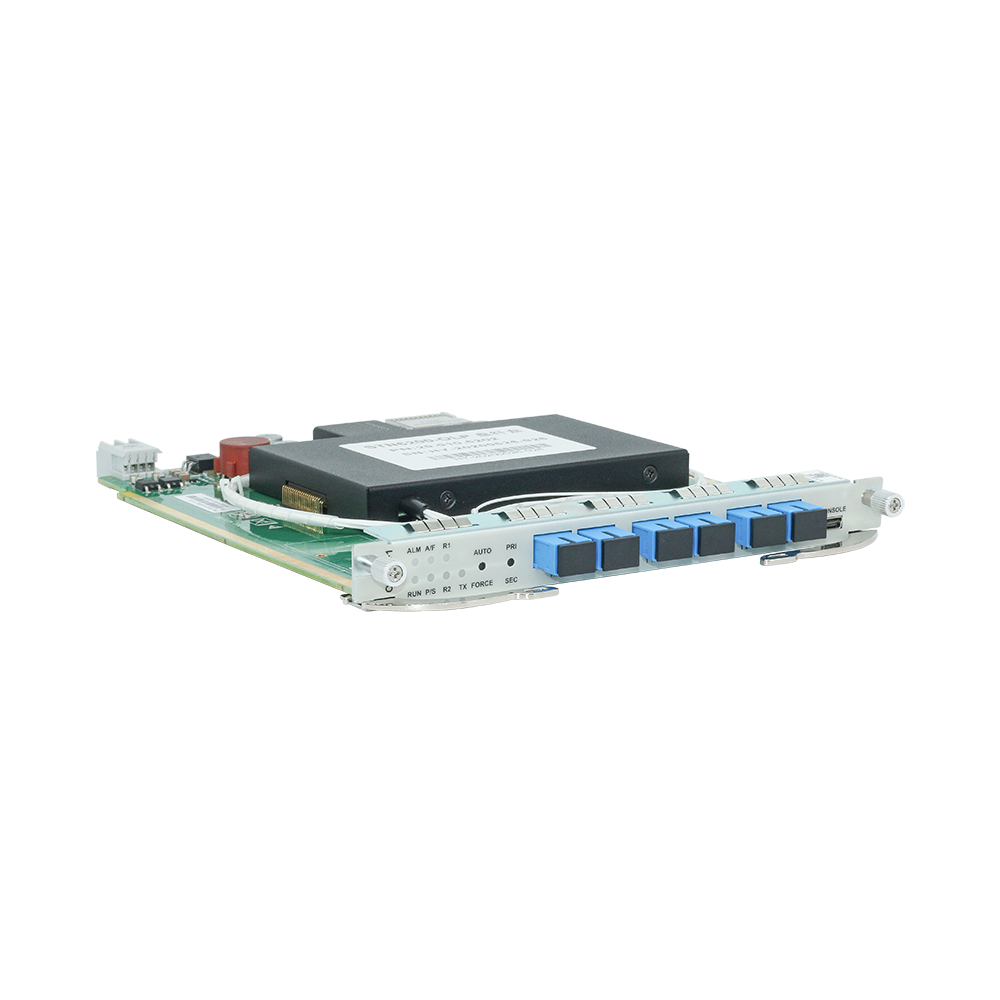

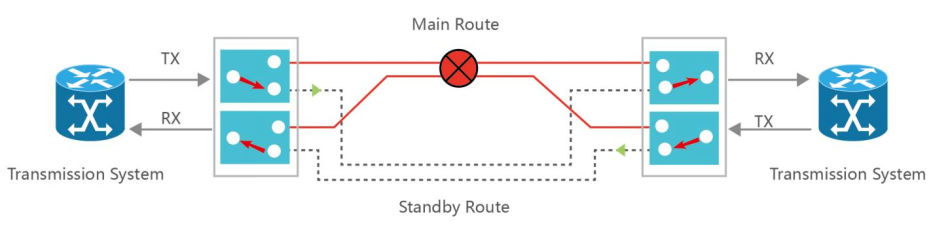

STN6200- OLP1:1 is an optical line protection service card based on advanced optical switching technology. Its main function is to automatically switch the optical transmission line from the primary route to the backup route instantly when there is a fiber break or an increase in loss. This ensures the normal operation of the communication service and reduces the recovery time from several hours to milliseconds when there is a decrease in communication quality or service interruption.
STN6200- OLP1:1 is an optical line protection service card based on advanced optical switching technology. Its main function is to automatically switch the optical transmission line from the primary route to the backup route instantly when there is a fiber break or an increase in loss. This ensures the normal operation of the communication service and reduces the recovery time from several hours to milliseconds when there is a decrease in communication quality or service interruption.
Provides 1:1 protection mode;
Fast switching;
Routing topology management;
Real-time monitoring of routes;
Low insertion loss;
Support for remote/local scheduling;
Highly integrated
Protection Lock;
|
Item |
Description |
|
Operating Wavelength |
1260~1360 nm / 1460~1640 nm |
|
Monitoring Optical Power Range |
+25 ~-50 dBm |
|
Main Path Insertion Loss |
≤3dB |
|
Alternative Path Insertion Loss |
≤3dB |
|
Return Loss |
≥45 dB |
|
Crosstalk |
≥55dB |
|
Optical Power Resolution |
≤0.01dB |
|
Measurement Precision of Optical Power |
≤0.5dB (＋25 dBm～-40dBm ) ≤1.0dB (-40 dBm~-50dBm) |
|
Polarization Dependent Loss |
≤0.1 dB |
|
Wavelength Dependent Loss |
≤0.25dB |
|
Switching Time |
≤50ms |
|
Maximum power consumption |
8W |
