Product Description

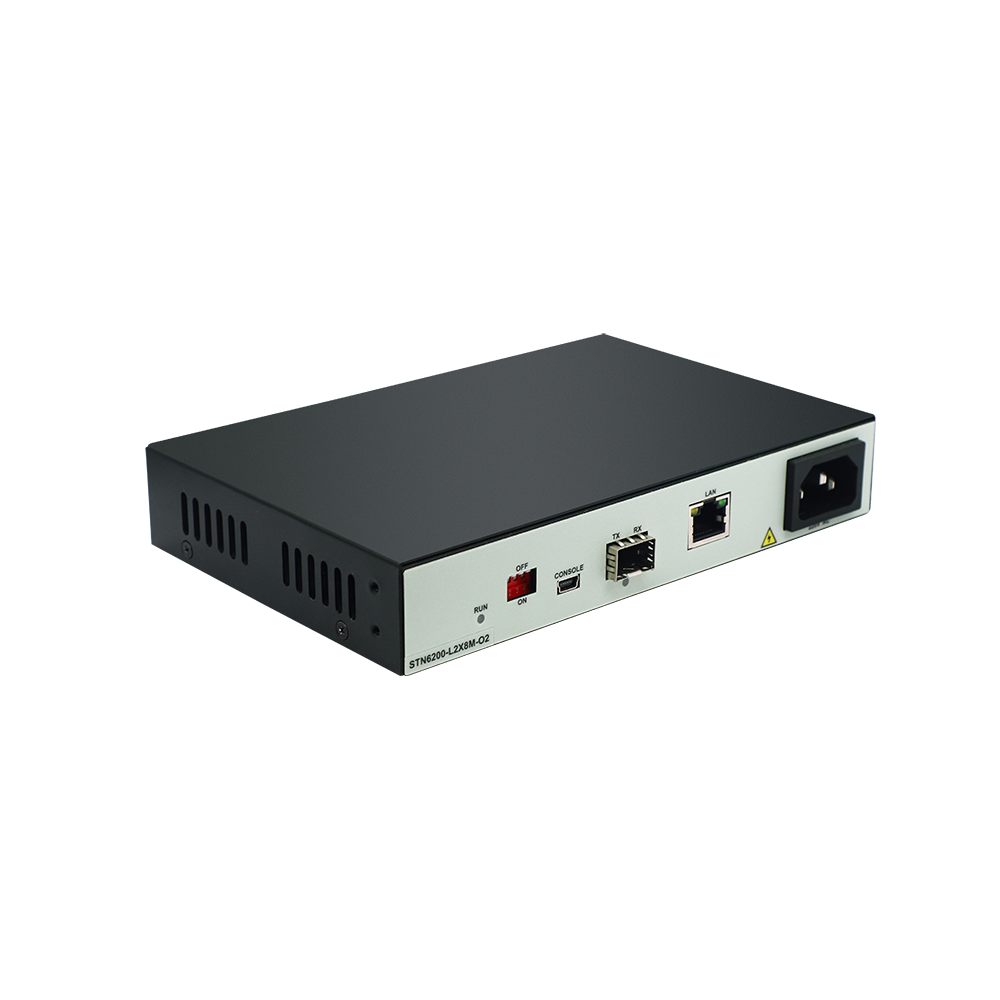

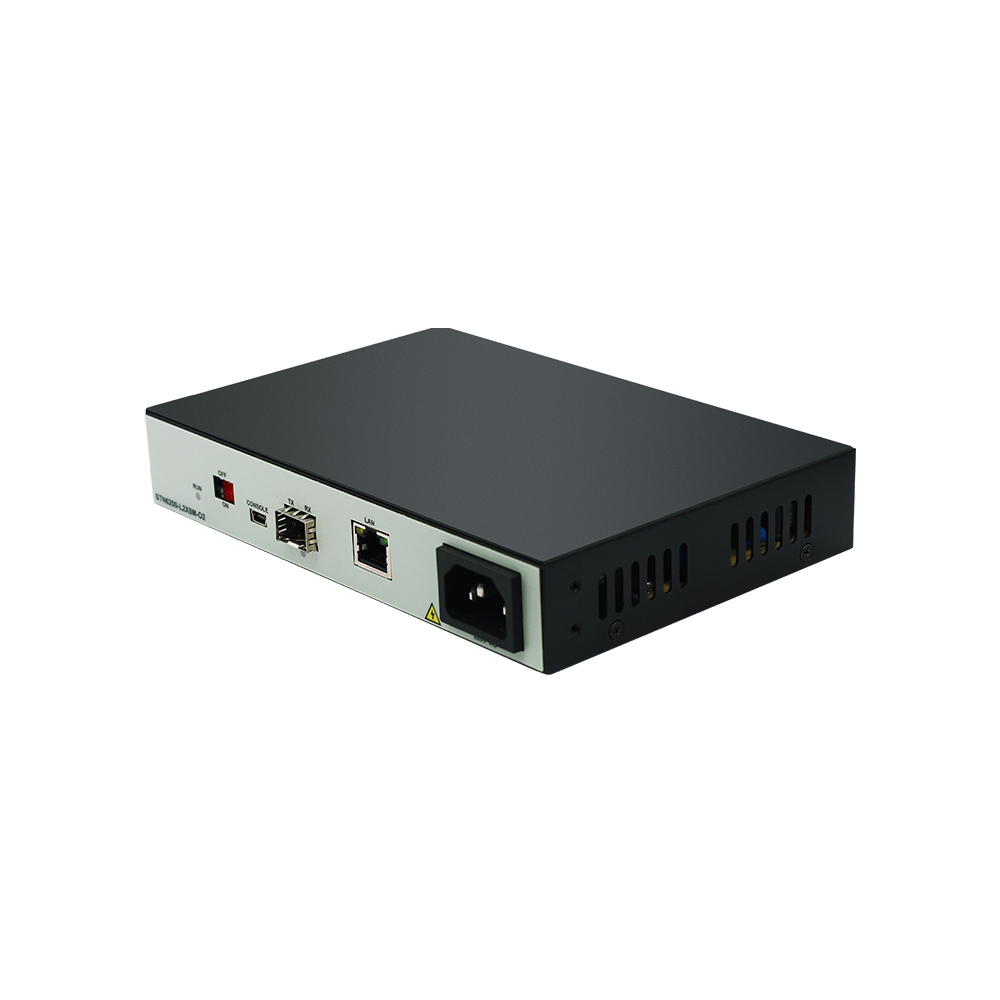

STN6200-L2X8M-O2 is an operational and manageable carrier-grade Ethernet terminal product that utilizes mature technology to accomplish bidirectional optical-to-electrical conversion for FE/GE services at a relatively low cost. It features one FE/GE electrical port and one FE/GE optical port, primarily serving to extend fiber optic capabilities in metropolitan area Ethernet networks.

physical properties

Feature	Description
Size (mm) (w * d * h)	178mm120mm32mm
Power supply	Ac input: 100vac~240vac, 47~63hz
User-side interface	One rj45-based fe/ge electrical port
Line side interface	One sfp-based fe/ge optical port
Working environment	Operating temperature: -10°°c to 55°°c storage temperature: -40°°c to 70°°c relative humidity: 5% to 95%, non-condensing
Installation method	Multiple installation methods, including desktop, wall-mounted, and cabinet-mounted
Typical power consumption	5w

technical indicators

Indicator

Description

Function

Full/half-duplex adaptive;
rich working status indicator lights for convenient and accurate understanding of device ports and link status;
optical ports support 100base-fx and 1000base-x optical front-end transmission standards, allowing interoperability with other products;
support for ultra-long frame transmission;
support for single and dual fiber transmission;
support for lldp function;

Support power-down monitoring and reporting function.
