DWDM MUX / DEMUX

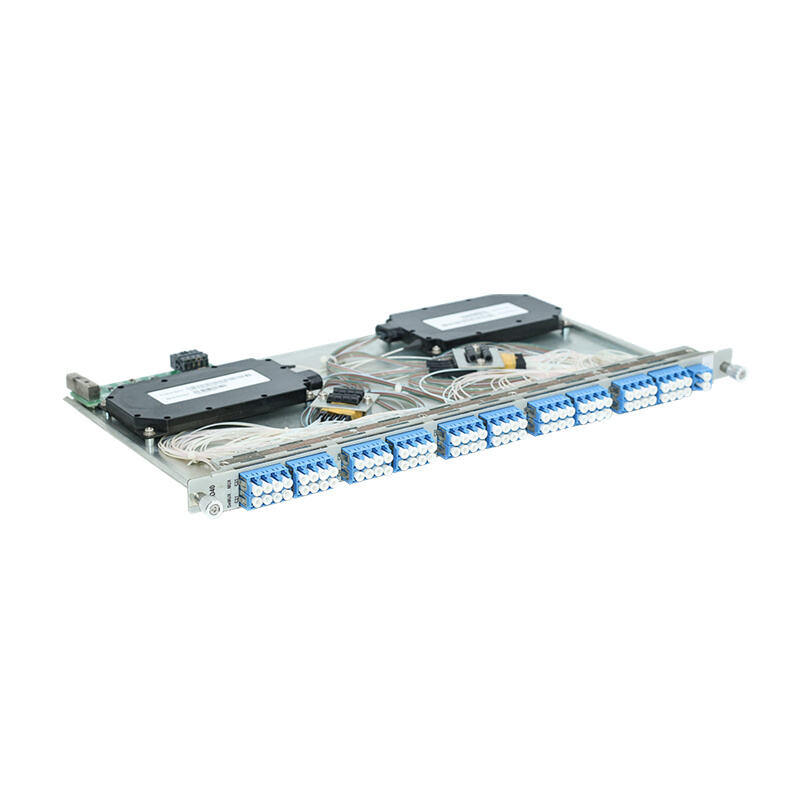

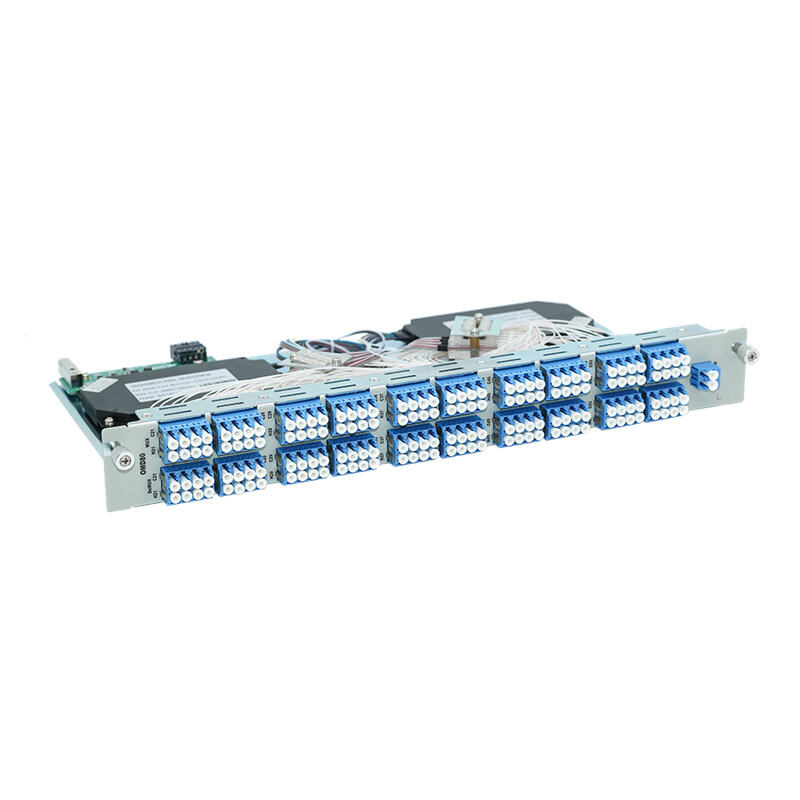

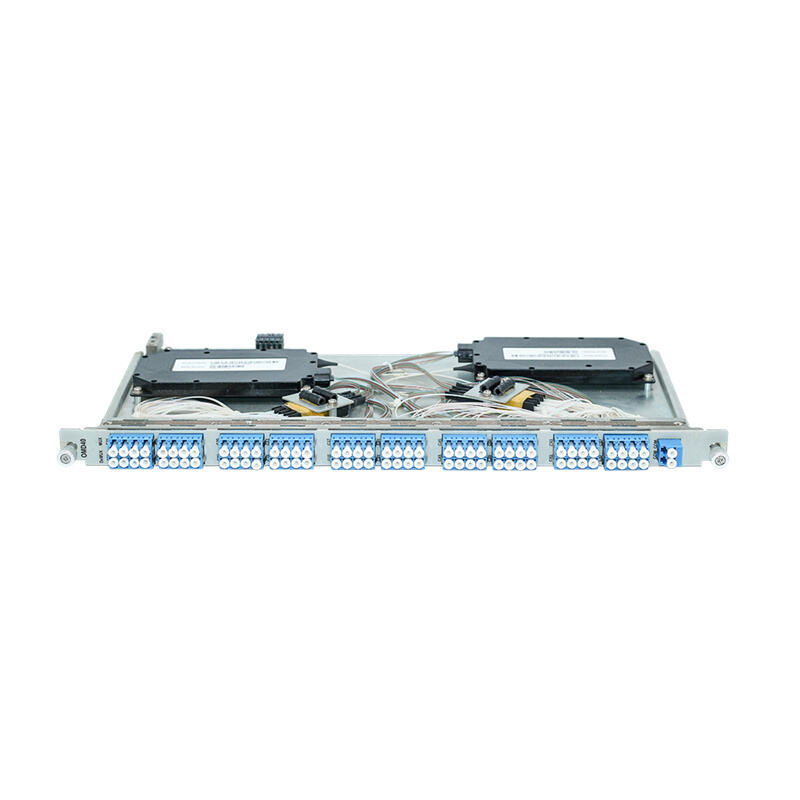

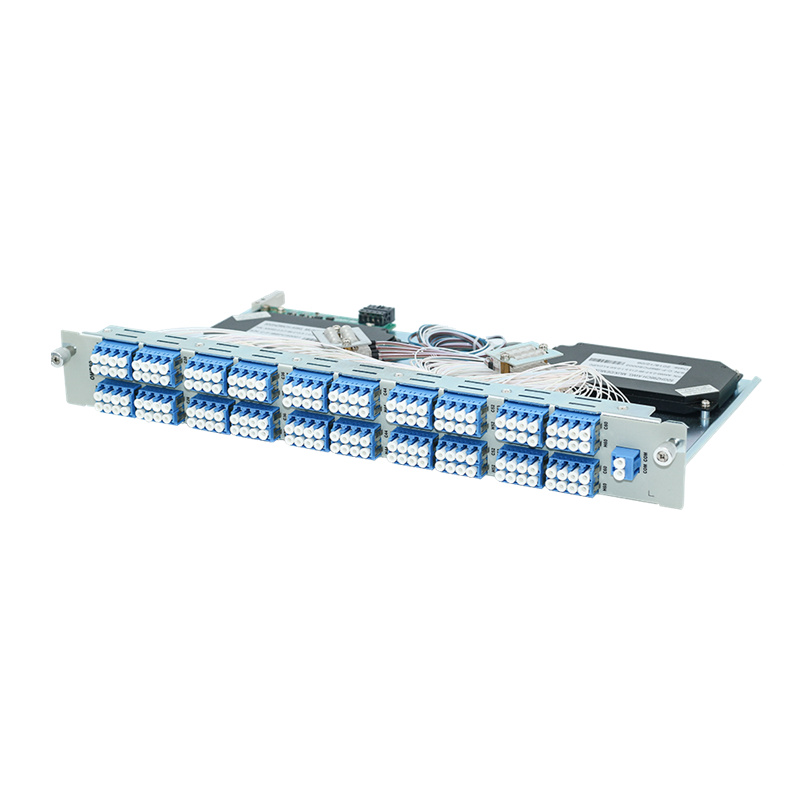

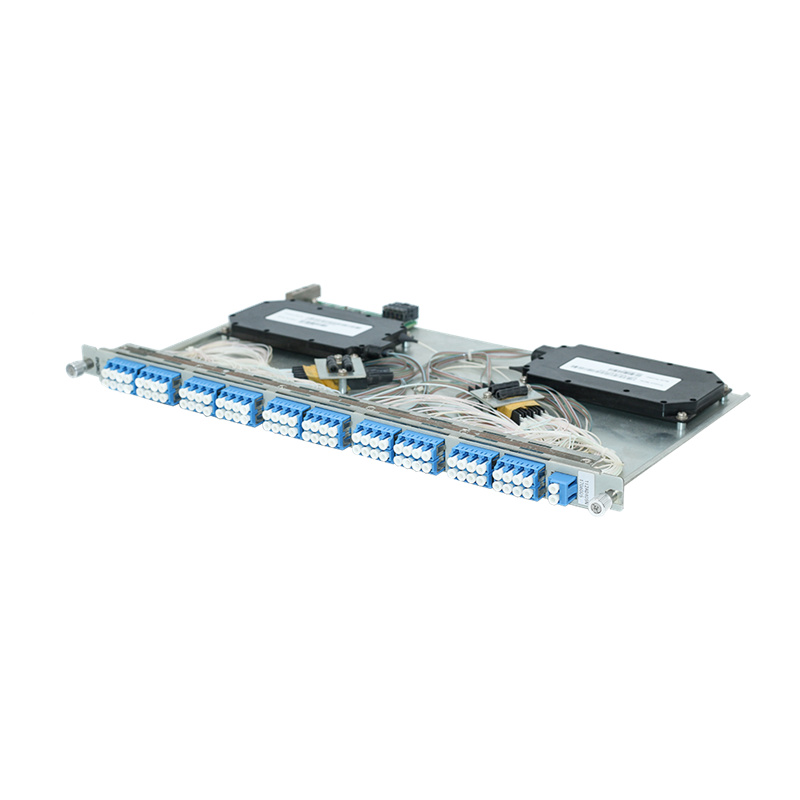

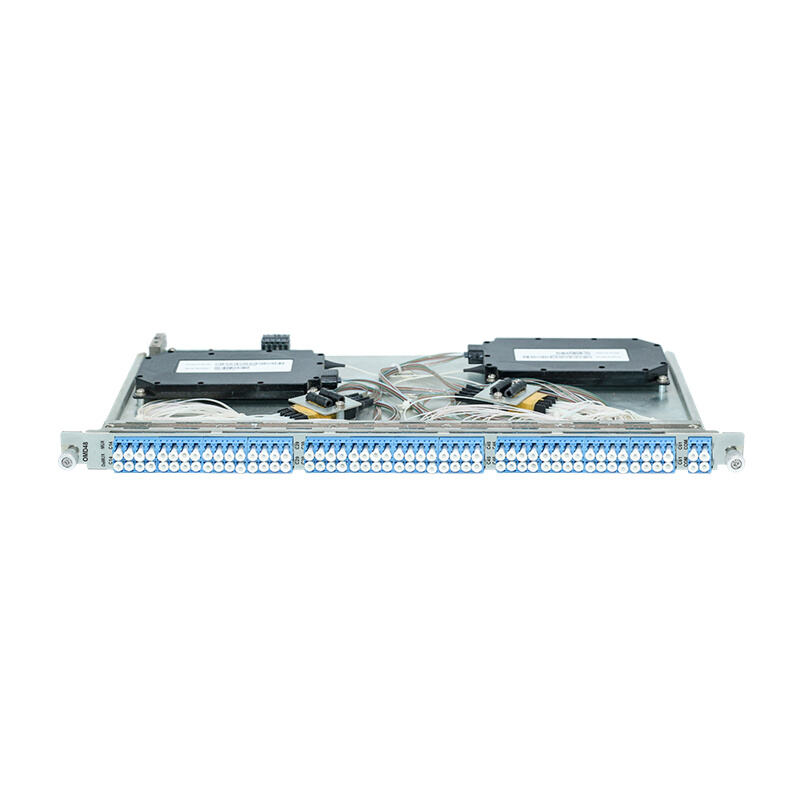

The 40ch Mux & Demux STN6800-OMD40 is a high-density, low-loss, and plug-in board that provides an excellent solution for infrastructure savings by aggregating all 40 DWDM channels at a single site. All 40 channels are spread over the C-band per ITU-T 100GHz spacing between channels using high-quality AAWG technology.

Product Description
General Specification
Specification
Related Products

Product Description

Highlights

Low insertion loss
Based on free space technology
Multiplexing of up to 40 channels on fiber pair
Passive, no electric power required
Low-profile modular design, fits in STN6800 series chassis
Duplex LC/UPC connectors, easily supporting duplex patch cables between transceiver and passive unit

General Specification

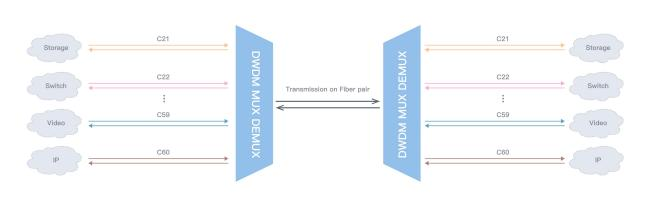

Function


Specification

Parameters	Specifications
Number of Channels	40CH
Channel Spacing	100GHz
Reference Passband	±0. 1nm
ITU Frequency	192.00THz - 195.90THz
ITU Wavelength	1530.334nm - 1561.419nm
Center Frequency Accuracy	±0.05nm
Insertion Loss	≤6.0dB
Insertion Loss Uniformity	≤ 1.0dB
Ripple	≤0.75dB
1dB Bandwidth	≥0.36nm
3dB Bandwidth	≥0.51nm
Adjacent Channel	≥25dB
Non-Adjacent Channel Isolation	≥30dB
Total Crosstalk	≥21dB
Polarization Dependent Loss	≤0.5dB
Return Loss	≥40dB
Polarization Mode Dispersion (PMD)	≤0.5ps
Chromatic Dispersion	±20 Ps/nm
Connector Form	LC/UPC
Operating Temperature	-5℃ ~ +65℃
Storage Temperature	-40℃ ~ +85℃
Relative Humidity	0% ~ 90%
