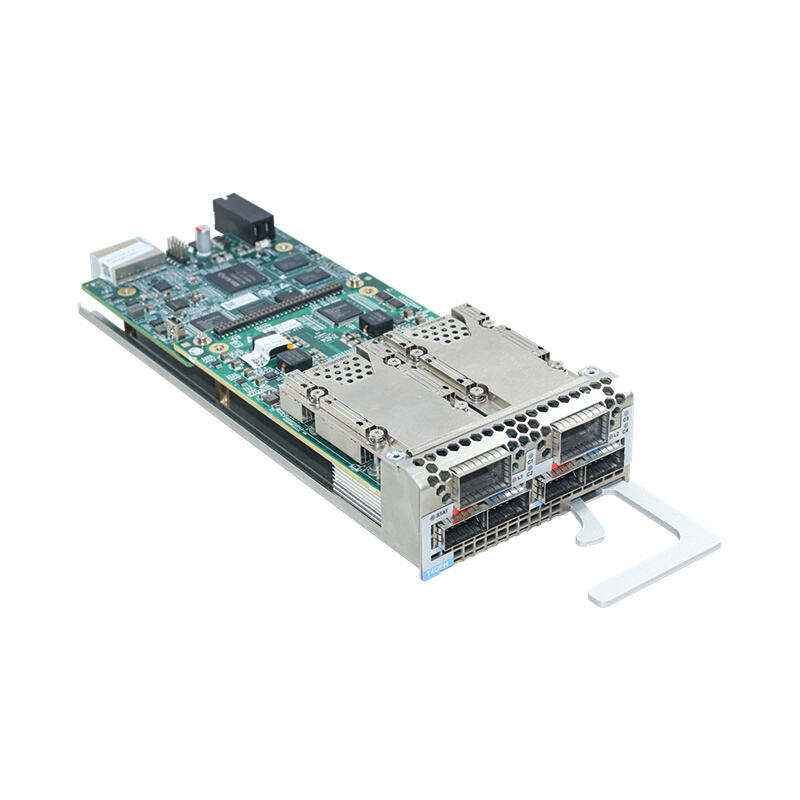

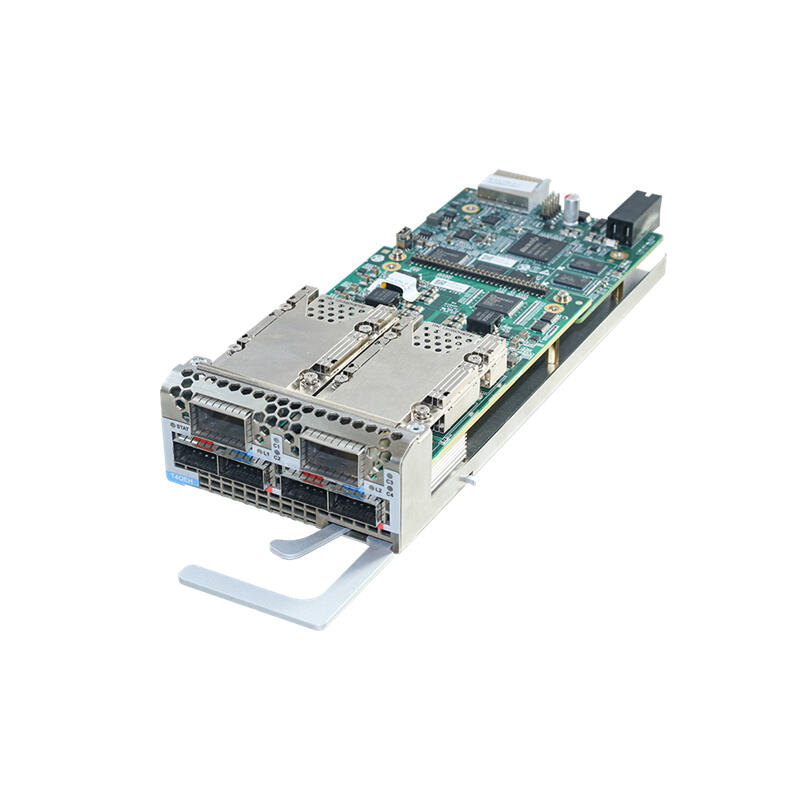

T4QEH is a high-density single-slot 800G TMUX card for the STN6800-D16 platform from Sino-Telecom. It is a 4*400G tributary aggregation card suitable for the STN6800-D16-2U network element.
The T4QEH board card integrates two independent wavelength converters, each of which can operate in 800G mode;
The client side supports 400G QSFP-DD112 type optical modules;
The line test supports coherent 800G OSFP DCO color light modules.
|
feature |
description |
|
Device dimensions |
Single slot board card |
|
Basic functions |
Realize the mutual conversion between 400G services and OTUC8 signals |
|
Customer-side interface |
Supports 4 pluggable QSFP-DD112 400G customer-side interfaces |
|
Line side interface |
Supports two pluggable 800G OSFP DCO coherent color light modules. |
|
Customer-side business type |
400GE |
|
Client-side signal and mapping method |
400GE <-> ODUC4<->ODUC8<->OTUC8 |
|
OTN function |
The line side provides an OTUC8 interface Adopt the frame format and overhead processing recommended by ITU-T G.709 ODUk (k=C4, C8) layer: Supports PM function OTUk (k=C4, C8) layer: Supports SM function |
|
WDM specification |
Support the DWDM technical specifications of ITU-T G.694.1 |
|
Line-side wavelength tunable function |
The wavelength division side optical signal is adjustable within a 40-wave range of 100GHz spacing in the extended C-band. |
|
Line-side modulation format |
800G：16QAM |
|
FEC mode |
SD-FEC |
|
indicator |
description |
|
PRBS |
support |
|
Ethernet bidirectional service interruption |
support |
|
Error correction coding |
Support OFEC |
|
Performance monitoring and alarm monitoring |
Supports OTN, Ethernet performance monitoring, and alarm monitoring functions. |
|
Automatic laser shut-off (ALS) |
support |
|
Time delay measurement |
support |
|
LLDP |
support |
|
Ethernet service encapsulation method |
400G：GMP |
|
loopback |
External near-end loopback Internal far-end loopback |
|
Local Fault |
When there is a loss of Ethernet input or a fault on the wavelength division side, the customer side inserts a Local Fault downstream Support transparent transmission for Local Fault and Remote Fault |
|
protection function |
The switching of the optical protection board card must be completed within 50ms |
Point-to-point application
