TU4XG is a 4*10GE EoO/EoS/EoOSU/fgODUflex service board for the STN6200-CU2/CU5 platform from Sino Telecom.
The 4*10GE EoO service board TU4XG is a 10G service board card with Ethernet switching functionality used on the STN6200 platform. It utilizes industry-leading chip technology and fully supports relevant domestic and international standards.

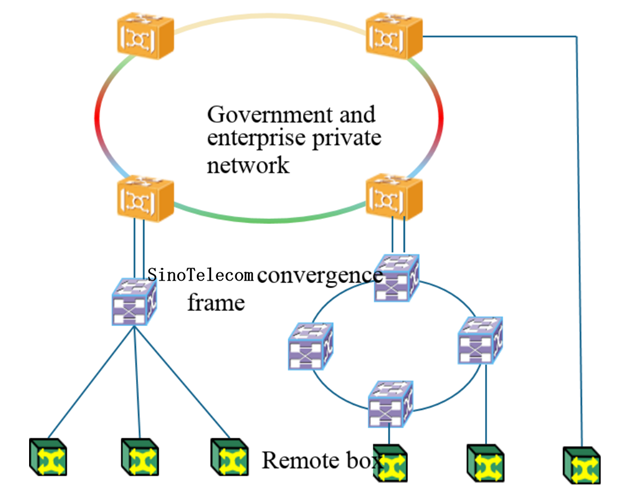

The 4*10GE EoO service board TU4XG supports 4-port 10GE customer-side interfaces and is suitable for optical transmission network applications in metropolitan access and metropolitan aggregation.
TU4XG is a 4*10GE EoO/EoS/EoOSU/fgODUflex service board for the STN6200-CU2/CU5 platform from Sino Telecom.
The 4*10GE EoO service board TU4XG is a 10G service board card with Ethernet switching functionality used on the STN6200 platform. It utilizes industry-leading chip technology and fully supports relevant domestic and international standards.
The 4*10GE EoO service board TU4XG supports 4-port 10GE customer-side interfaces and is suitable for optical transmission network applications in metropolitan access and metropolitan aggregation.
|
Feature |
Description |
|
Dimensions |
186 mm (W) × 215 mm (D) × 20 mm (H) |
|
Line Side Interface |
4x10GE based on SFP |
|
Working Environment |
Operating temperature: -5 °C to +50 °C Storage temperature: -40 °C to +70 °C Relative humidity: 5% to 95%, non-condensing |
|
Typical Power Consumption |
30W |
|
Indicator |
Description |
|
User-side signal and mapping method
|
10GE-LAN (GFP-F) <->ODU2/ODUflex 10GE-LAN (BMP) <-> ODU2e 10GE-LAN <-> Ethernet convergence <-> GE <-> ODU0 10GE-LAN <-> Ethernet aggregation <-> GE <-> fgODUflex 10GE-LAN <-> OSU 10GE-LAN <-> VC4-xv or VC3-xv or VC12-xv <->VC4 |
|
Transmission protection |
LAG1/1 |
|
Ethernet Private Line (EPL) service |
Support Ethernet Private Line (EPL) service |
|
Ethernet Virtual Private Line (EVPL) service |
Support the convergence of multiple Ethernet Layer 2 services Support Ethernet service layer 2 forwarding |
|
LAG function |
Support Ethernet port aggregation |
|
Fluid control function |
Support flow control based on IEEE 802.3x |
|
QoS function |
Support QoS functionality based on port or port/VLAN traffic |
|
Speed limit function |
Support speed limiting function based on port or port/VLAN service |
|
Ethernet OAM |
Support performance monitoring and alarm monitoring reporting for Ethernet services |
|
MPLS-TP function |
Support Ethernet MPLS-TP forwarding service |
|
OSU function |
Supports Ethernet mapping OSU function, supports OSU SNC protection, and supports lossless bandwidth adjustment for services |
