OTU1H4 is a compact and high- density photoelectric optical converter, which can realize wavelength conversion, 3R functionality, and optical signal amplification. It can be used in conjunction with Mux/Demux in DWDM network. For long-distance applications, it needs to be deployed with Optical Amplifier (OA) and Dispersion Compensation Module (DCM). The board supports 40G/100G QSFP28/QSFP+ client-side interfaces, making it suitable for scenarios such as 40G/100G Ethernet, data centers, and others.
OTU1H4 is a compact and high- density photoelectric optical converter, which can realize wavelength conversion, 3R functionality, and optical signal amplification. It can be used in conjunction with Mux/Demux in DWDM network. For long-distance applications, it needs to be deployed with Optical Amplifier (OA) and Dispersion Compensation Module (DCM). The board supports 40G/100G QSFP28/QSFP+ client-side interfaces, making it suitable for scenarios such as 40G/100G Ethernet, data centers, and others.
Low insertion loss
Based on free space technology
Up to 18 channels can be multiplexed on a fiber pair
Passive, no electric power required
Low-profile modular design, fits in STN6200 series chassis
Duplex LC/UPC, easily support duplex patch cables between transceiver and passive unit

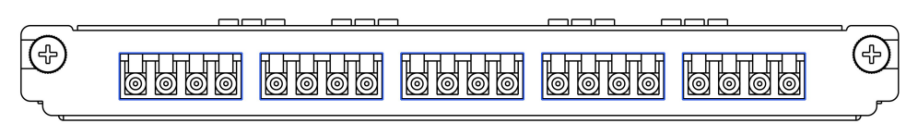

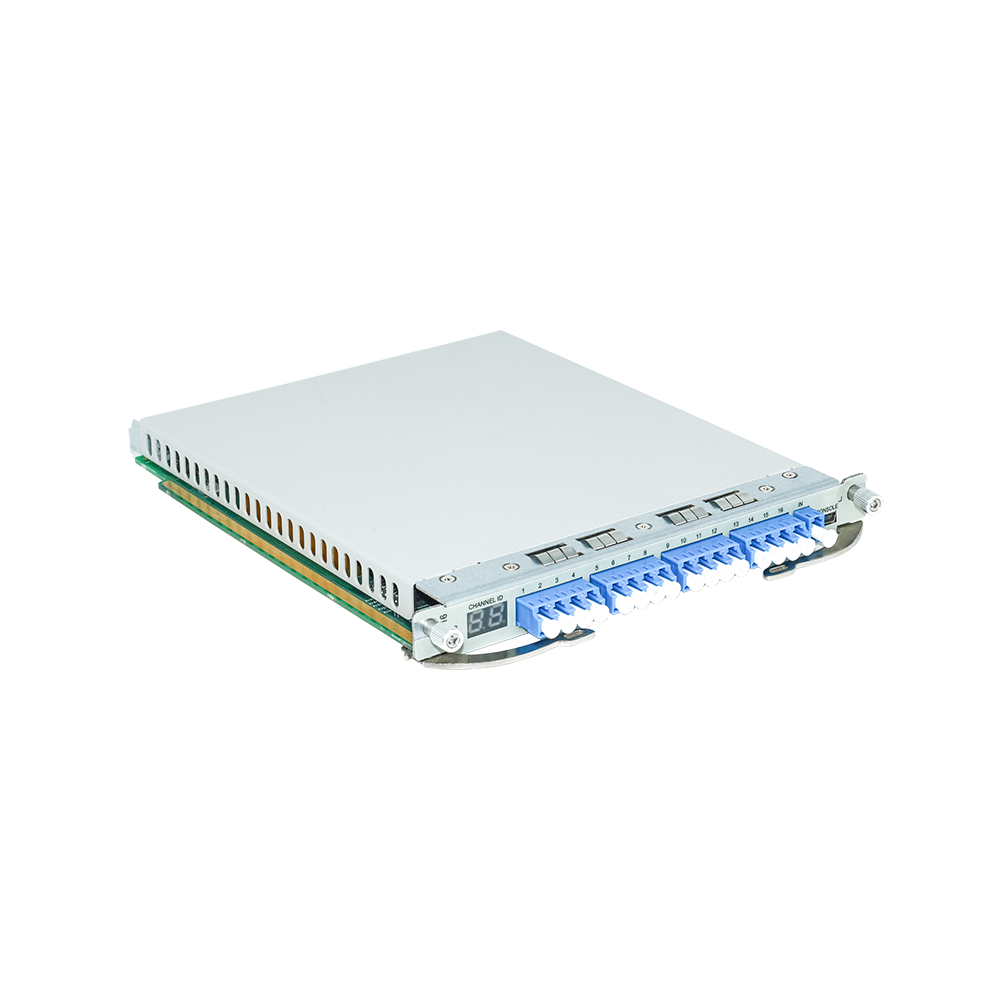

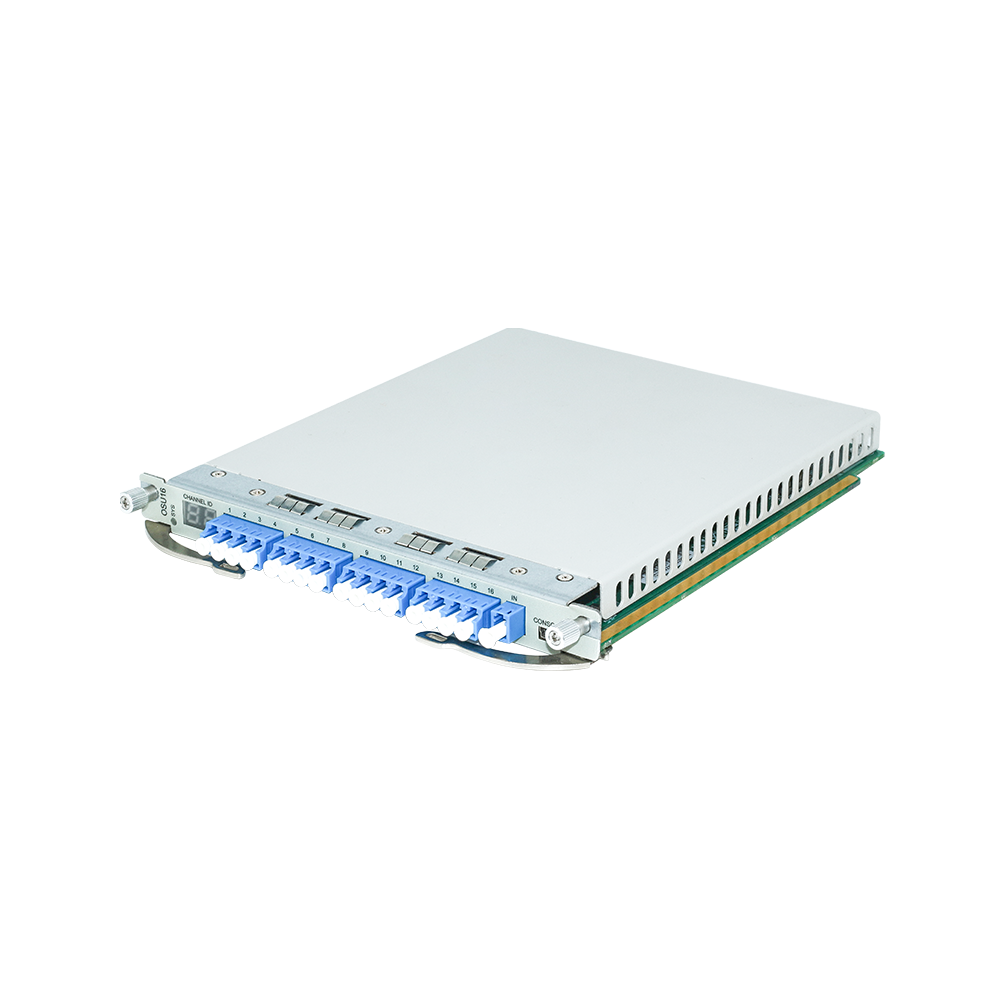

Front View

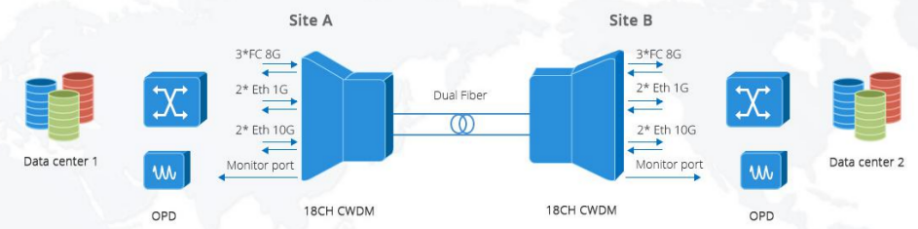

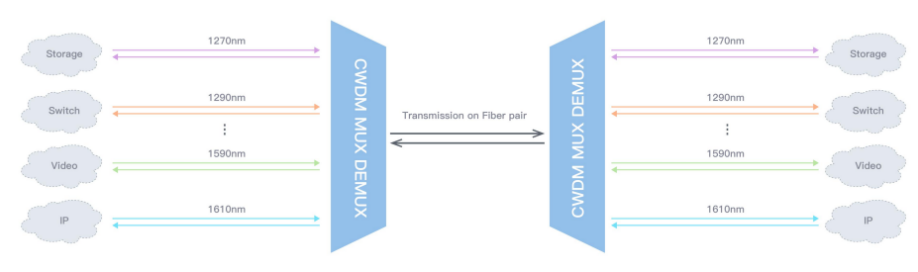

Function
|
Parameters |
Specifications |
|
Center Wavelength (nm) |
1270nm, 1290nm, 1310nm, 1330nm, 1350nm, 1370nm, 1390nm, 1410nm, 1430nm, 1450nm, 1470nm, 1490nm, 1510nm, 1530nm, 1550nm, 1570nm, 1590nm, 1610nm |
|
0.5dB bandwidth |
≥14nm |
|
Channel Passband |
±6.5nm |
|
Channel Spacing |
20nm |
|
Passband Ripple |
≤ 0.5dB |
|
Insertion Loss |
≤ 3.5dB |
|
Adjacent Channel Isolation |
≥ 30dB |
|
Non-adjacent Channel Isolation |
≥ 45dB |
|
Return Loss |
≥ 45dB |
|
Directivity |
≥ 50dB |
|
Polarization Dependent Loss (PDL) |
≤ 0.2dB |
|
Polarization Mode Dispersion (PMD) |
≤ 0.15ps |
|
Operating Temperature |
-5℃ ~ +65℃ |
|
Storage Temperature |
-40℃ ~ +85℃ |
|
Connector Type |
LC/UPC Connector |
|
Dimensions (H x W x D) |
20.3mm x 179mm x 196mm |
|
Mounting |
STN6200 series Plug-in Board |
*Customized specifications are available upon request.
