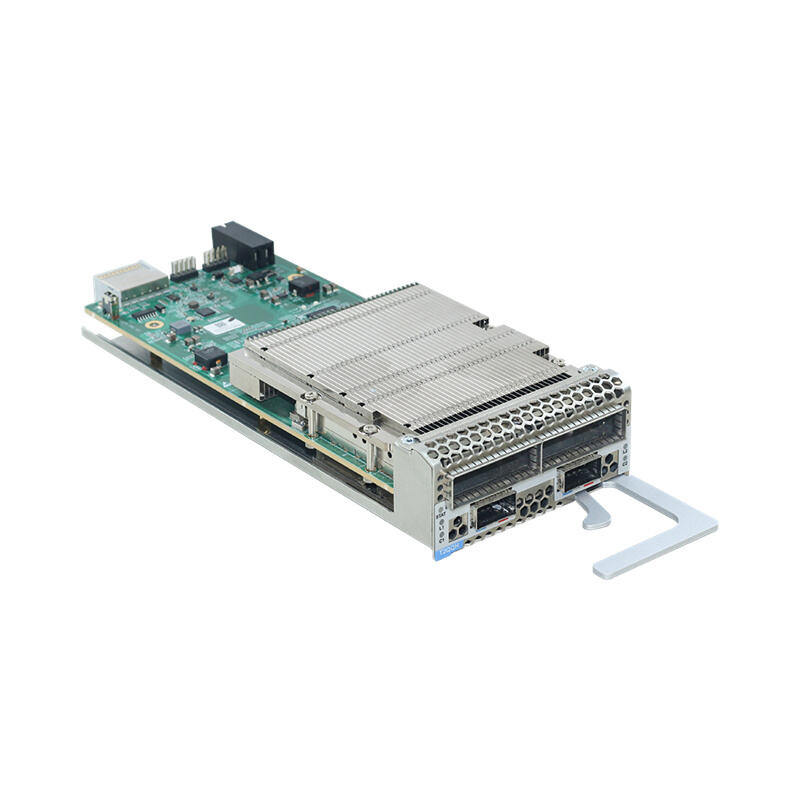

T2QQH is a high-density single-slot 400G TMUX card for the STN6800-D16 platform from Sino-Telecom. It is a 2*400G tributary line aggregation card suitable for STN6800-D16-1U/2U network elements.
The T2QQH board card integrates two independent transponders, each of which can operate in 400G mode;
The client side supports 2×400G QSFP-DD type optical modules, including DR4, LR4, FR4, SR8, and LR8;
The line test supports coherent 2*400G CFP DCO color light modules.
|
feature |
description |
|
Device dimensions |
Single-slot board card |
|
Basic functions |
Realize the mutual conversion between 400G services and OTUC4 signals |
|
Customer-side interface |
Supports 2 pluggable QSFP-DD 400G modules |
|
Line side interface |
Supports two pluggable 400G CFP2 DCO coherent color light modules |
|
Customer-side business type |
400GE |
|
Business mapping path |
400GE <-> ODUC4<->OTUC4 |
|
OTN function |
The line side provides an OTUC4 interface Adopt the frame format and overhead processing recommended by ITU-T G.709 ODUk (k=C4) layer: Supports PM function OTUk (k=C4) layer: Supports SM function |
|
WDM specification |
Support the DWDM technical specifications of ITU-T G.694.1 |
|
Line-side wavelength tunable function |
The wavelength division side optical signal is adjustable within a 48-wave range of 100GHz spacing in the extended C-band |
|
Line-side modulation format |
400G：16QAM/16QAM-PCS/QPSK |
|
FEC mode |
SD-FEC |
|
indicator |
description |
|
PRBS |
support |
|
Ethernet bidirectional service interruption |
support |
|
Error correction coding |
Support ultra-strong FEC, namely SD-FEC |
|
Performance monitoring and alarm monitoring |
Supports OTN, Ethernet performance monitoring, and alarm monitoring functions |
|
Automatic laser shut-off (ALS) |
support |
|
Time delay measurement |
support |
|
LLDP |
support |
|
Ethernet service encapsulation method |
400G：GMP |
|
loopback |
External near-end loopback Internal far-end loopback |
|
Local Fault |
When there is a loss of Ethernet input or a fault on the wavelength division side, the customer side inserts a Local Fault downstream Support transparent transmission for Local Fault and Remote Fault |
|
protection function |
The switching process for the optical protection card must be completed within 50ms |

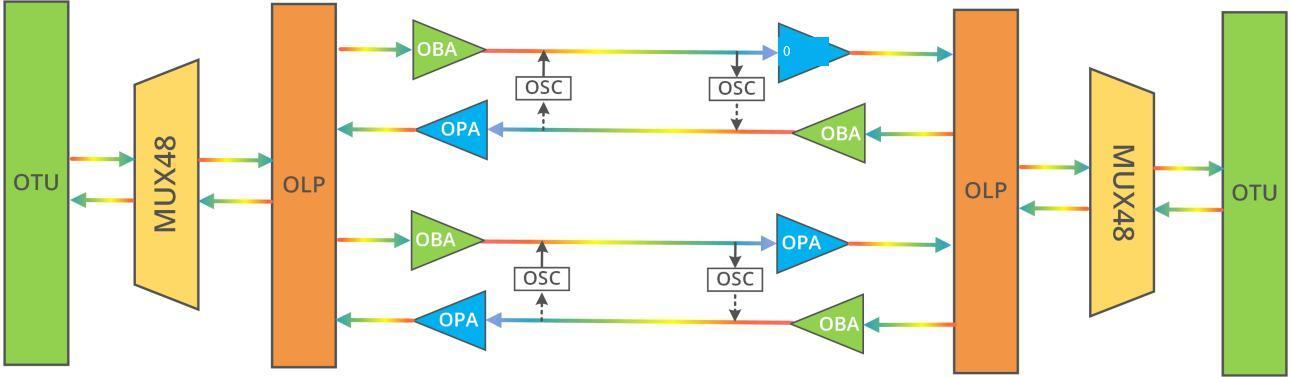

Point-to-point application
