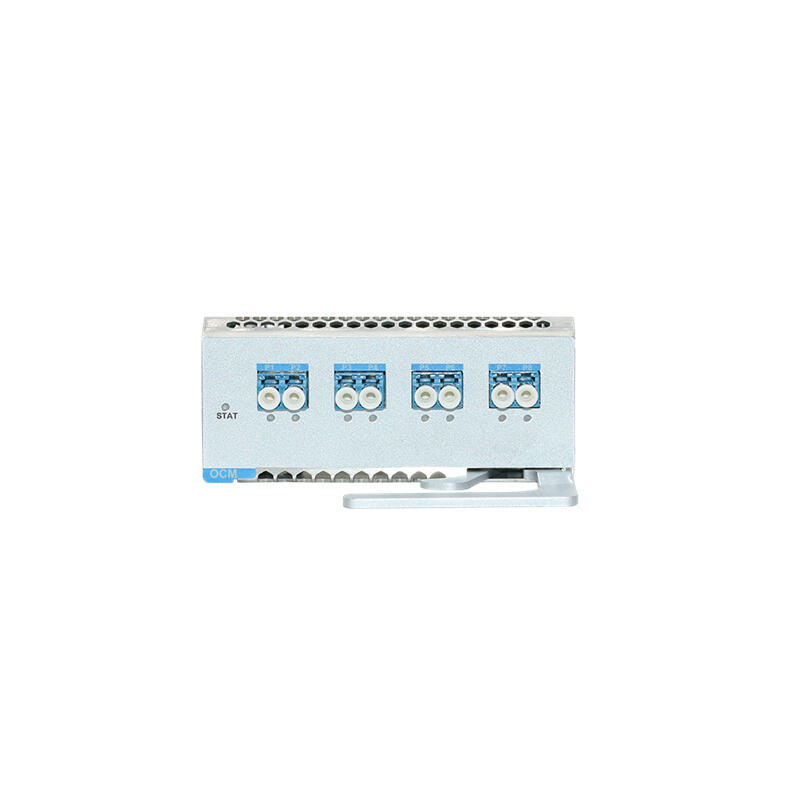

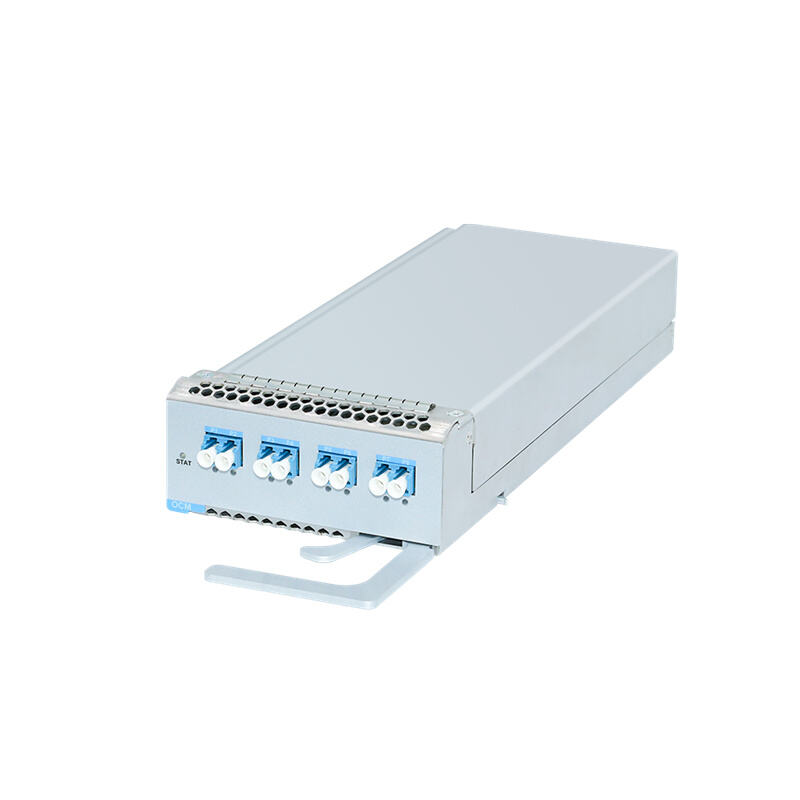

OCM is the spectral analysis board of Sino-Telecom's STN6800-D16 platform. OCM can be expanded to 8 channels and is primarily used for viewing the start and end frequencies of optical channels, optical power values, and can be configured with insertion loss compensation values.
OCM is the spectral analysis board of Sino-Telecom's STN6800-D16 platform. OCM can be expanded to 8 channels and is primarily used for viewing the start and end frequencies of optical channels, optical power values, and can be configured with insertion loss compensation values.
|
feature |
description |
|
slot |
single slot |
|
project |
unit |
indicator |
Remarks |
|
scope of work |
nm |
1528~1567 |
191.35~196.1 |
|
Channel spacing |
GHz |
50/100 |
|
|
Absolute accuracy of power measurement |
dB |
≤1 |
absolute value |
|
Measure the relative accuracy of power |
dB |
±0.8 |
|
|
Optical power resolution |
dB |
0.1 |
|
|
OCM scanning time |
s |
≤1 |
|
|
Channel power monitoring range |
dBm |
-40~-10 |
|
|
Center wavelength detection accuracy |
nm |
±0.1 |
|
|
Center wavelength resolution |
nm |
0.02 |
|
|
scan count |
Bilion |
＞1 |
Point-to-point application
Typical application scenarios
