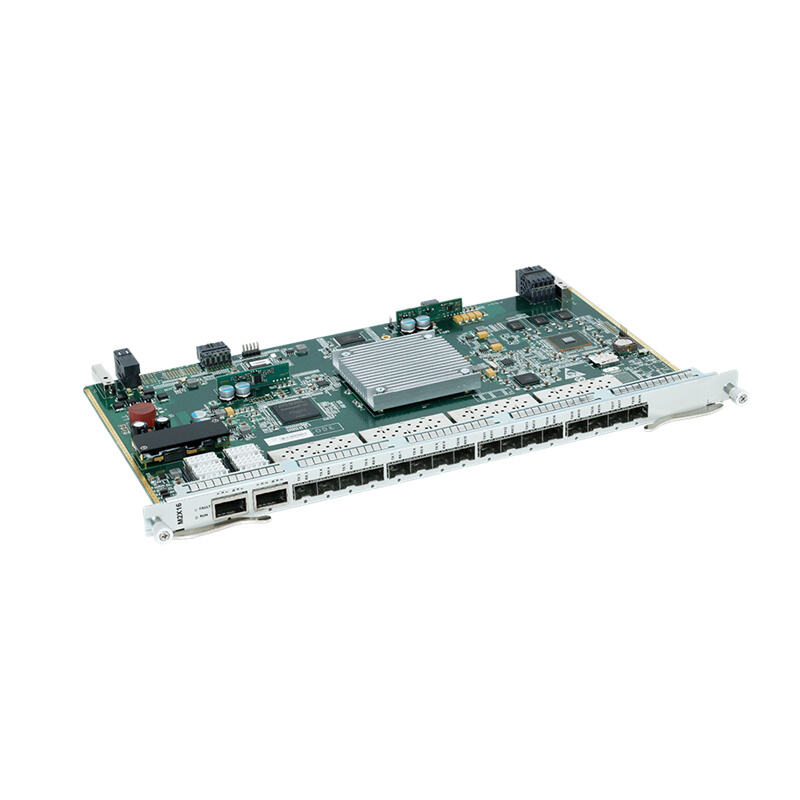

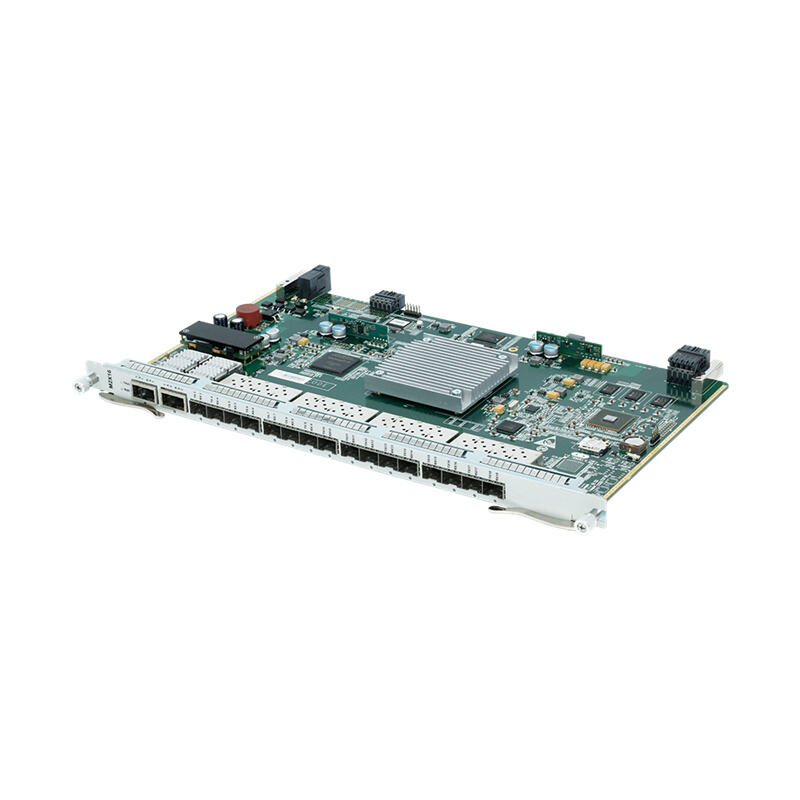

10G Any Rate Munxponder OTN M2X16

M2X16 is a 10G OTN Muxponder board which can realize the multiplexing and demultiplexing functions of 16 channels of services at any rate to OTU2.

The client-side port supports access of 16 channels of services at the rate below 2.5G. The typical services include STM-1/4/16 and FE/GE. The line-side port supports 2 channels of OTU2 signals, supports standard FEC and enhanced FEC error correction Function.

The STN6800-M2X16 service card is suitable for STN6800 2U/ 5U /10U chassis.

Product Description
Features
Specifications

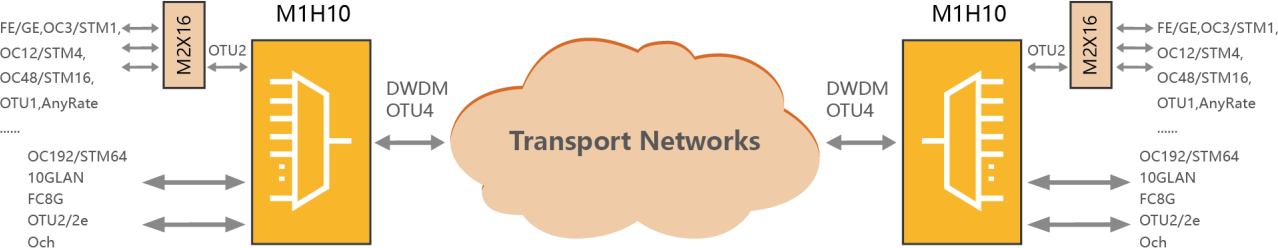

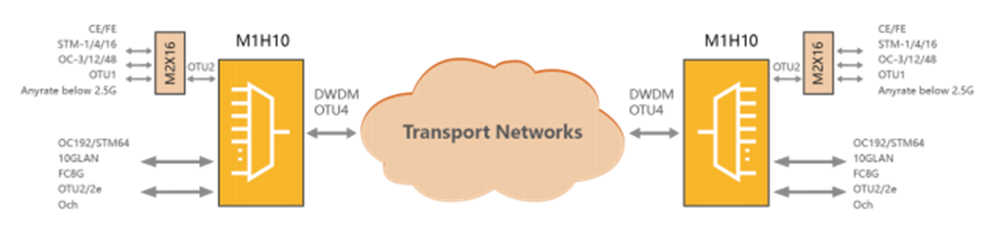

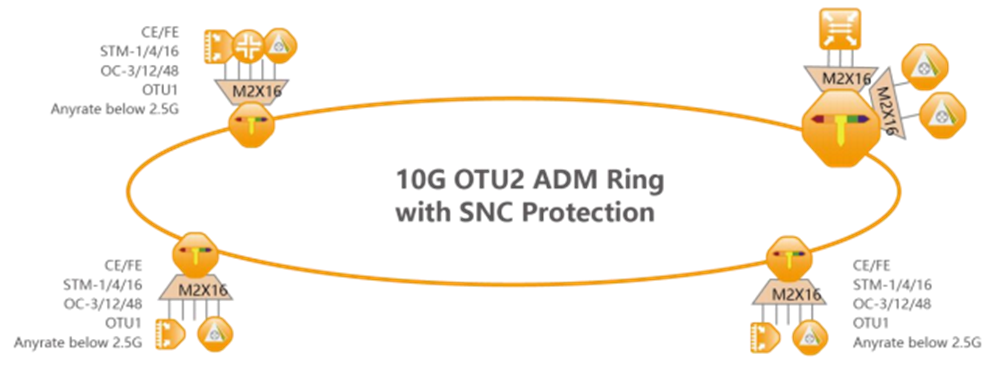

Applications
Related Products

Product Description

M2X16 is a 10G OTN Muxponder board which can realize the multiplexing and demultiplexing functions of 16 channels of services at any rate to OTU2.

The STN6800-M2X16 service card is suitable for STN6800 2U/ 5U /10U chassis.

Features

The client-side port supports access of 16 channels of services at the rate below 2.5G. The typical services include STM- 1/4/16 and FE/GE.
The line-side port supports 2 channels of OTU2 signals, which supports standard FEC and enhanced FEC error correction function.
The board supports cross-connect of OTN services and overhead processing functions.
The board supports GCC in-band management channel.
The board supports OTN electrical layer protection function.

Specifications

Item	M2X16 Description
Client-side Optical Module	M2X16 board provides 16 client-side optical transceiver modules, each of which is pluggable packaing module (SFP) . Receiving Direction: access STM-1/4/16 (OC-3/12/48) and FE/GE services to achieve optical-electrical conversion function of service signals. Transmitting Direction: Achieve electrical-optical conversion and output STM-1/4/16 (OC-3/12/48) and FE/GE service signals.
ODUk Mapping Unit	Realize the mapping/demapping process of client service electrical signals and ODUk (k=0, 1) signals, and detect and process ODUk overhead .
Service Cross-connect Unit	Realize the cross-connect function of client service signals .
OTU Framing Unit	Detect and process the overhead of OTU2 frame, and complete the multiplexing/demultiplexing process of ODUk (k=0, 1) and OTU2 signals, and realize FEC coding and error correction functions.
Line-Side Optical Module	M2X16 board provides 2 line-side optical transceiver modules which are with pluggable packaging module (XFP), to realize the optical-electrical conversion and electrical-optical conversion of OTU2 signals. Transmitting Direction: Access OTU2 electrical signals from OTU framing unit, realize electrical-optical conversion and output OTU2 optical signals. Receiving Direction: Realize optical-electrical conversion of OTU2 optical signals and output them to the OTU framing unit.
