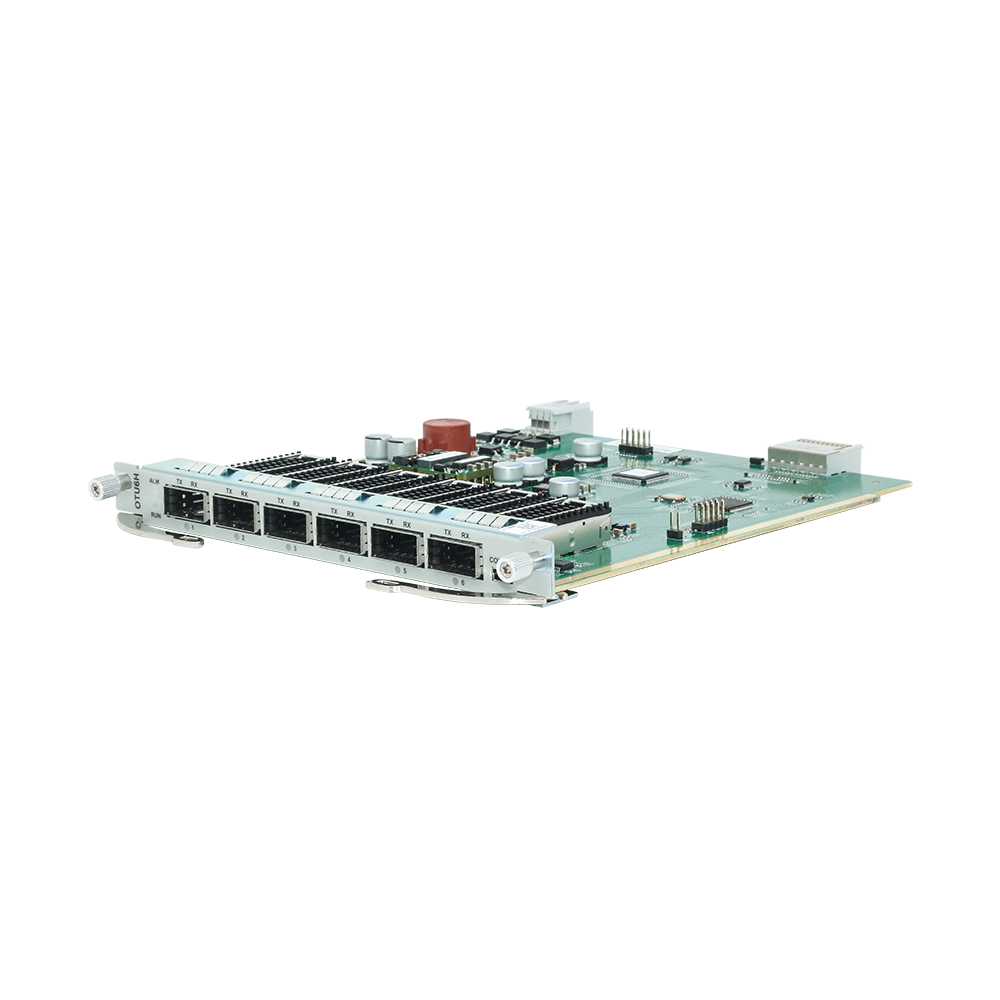

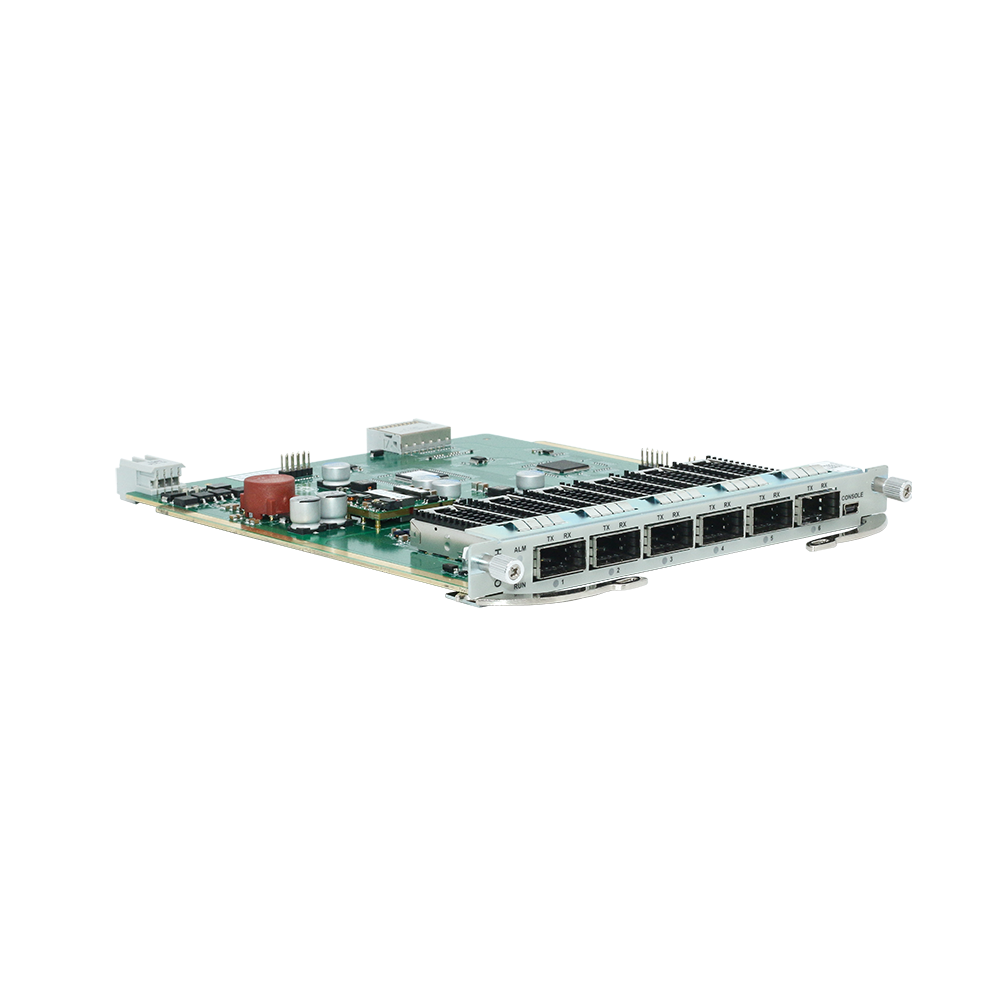

STN6200-OTU6H is a compact, high-density Optical-Electrical- Optical (OEO) converter. It primarily supports wavelength conversion, 3R (reshape, retime, and reamplify), and optical signal amplification functions. The device has 6 optical ports based on QSFP28/QSFP+ interfaces, enabling multi-rate and multi-service transmission at 3 channels of 40/100Gbps.

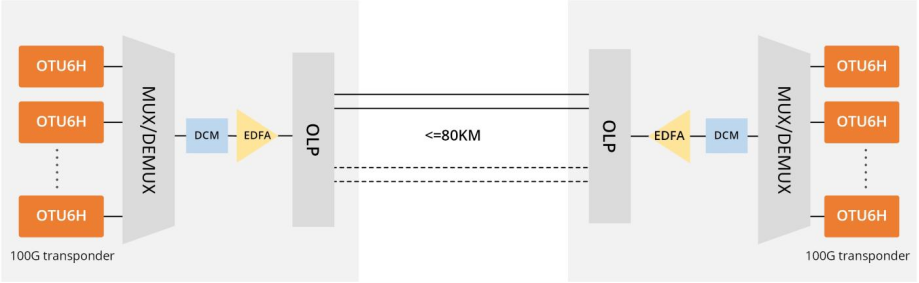

STN6200- OTU6H supports hot plugging and can be used for DWDM transmission in conjunction with MUX/DEMUX, DCM (dispersion compensation module), and EDFA (erbium-doped fiber amplifier) cards.
STN6200-OTU6 is suitable for 100G Ethernet and data center communication scenarios.
Support QSFP28 SR4/LR4/ER4/CWDM4/PSM4 optical modules
Support up to 80km 40G/100G DWDM transmission
Support 3R Function
Support ALS (Automatic Laser Shutdown) and DDM(Digital Diagnostic Monitoring)
Support multiple services and multiple rates
Ultra-low latency ≤30μs
|
OTU6H |
Description |
|
|
Function |
3 Channels OEO relay, regeneration, and conversion |
|
|
Interface |
6 optical ports based on QSFP28/QSFP+ interfaces |
|
|
Access rate |
40/100Gbps |
|
|
Operation & Maintenance |
DDM |
Support DDM(Digital Diagnostic Monitoring) |
|
|
ALS |
Support ALS (Automatic Laser Shutdown) |
|
Power Consumption |
<25W |
|
|
Latency |
30μs |
|
|
Operating Temp |
0°C to 50°C |
|
|
Storage Temp |
-10°C to 70°C |
|
|
Humidity |
0 to 90% (no condencing) |
|
|
Management Type |
SNMP, WEB |
|
