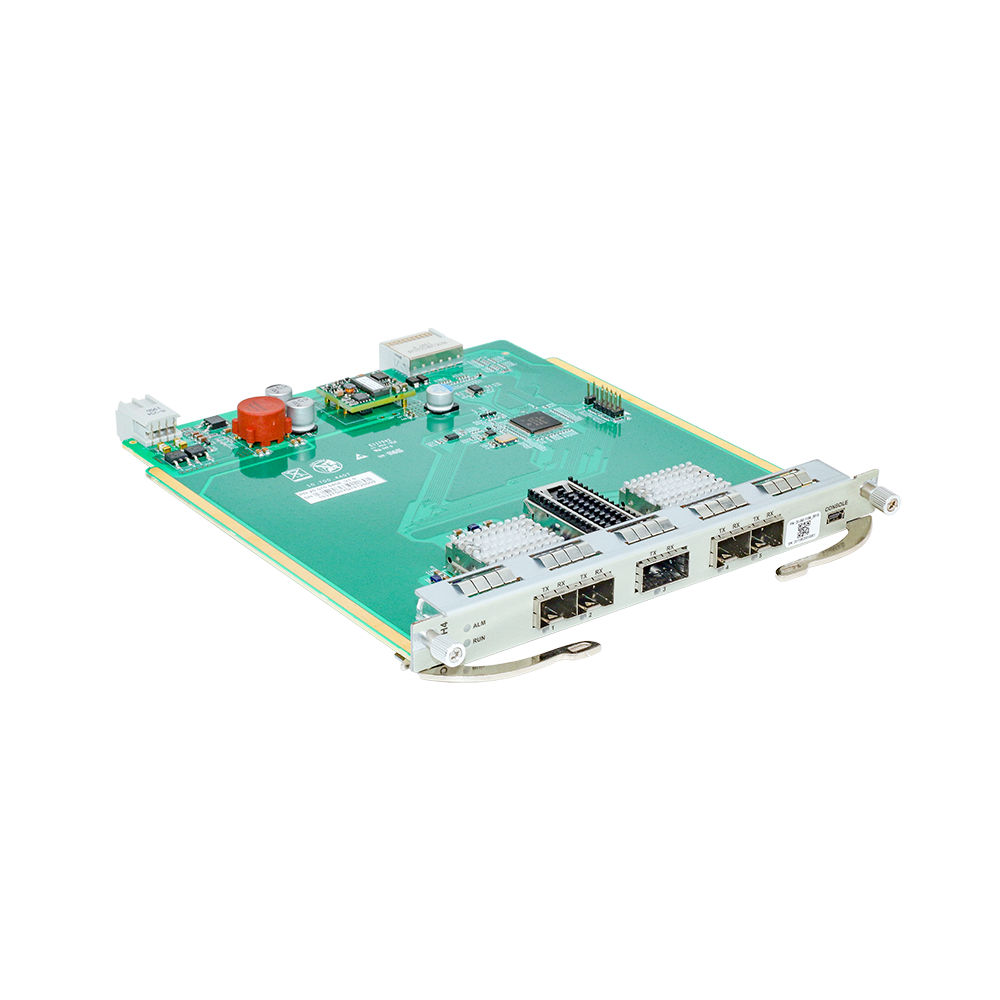

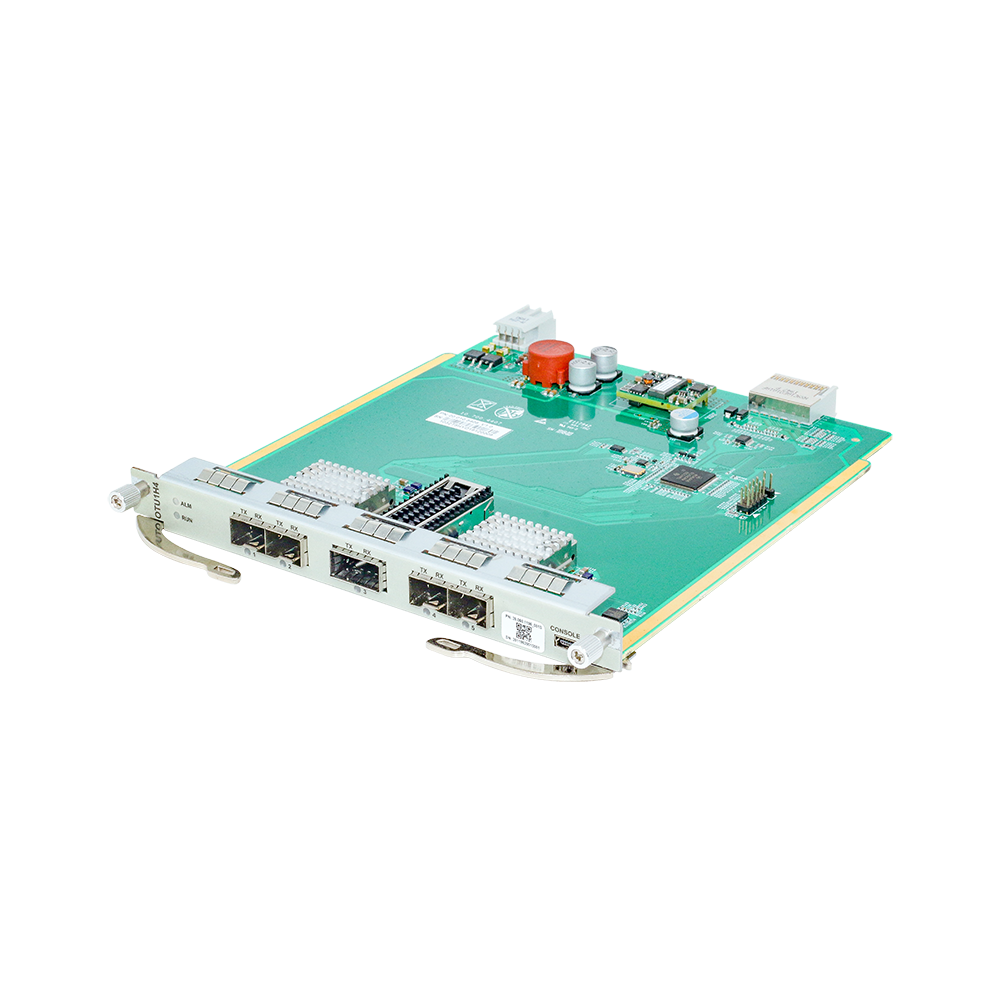

OTU1H4 is a compact and high- density photoelectric optical converter, which can realize wavelength conversion, 3R functionality, and optical signal amplification. It can be used in conjunction with Mux/Demux in DWDM network. For long-distance applications, it needs to be deployed with Optical Amplifier (OA) and Dispersion Compensation Module (DCM). The board supports 40G/100G QSFP28/QSFP+ client-side interfaces, making it suitable for scenarios such as 40G/100G Ethernet, data centers, and others.
OTU1H4 is a compact and high- density photoelectric optical converter, which can realize wavelength conversion, 3R functionality, and optical signal amplification. It can be used in conjunction with Mux/Demux in DWDM network. For long-distance applications, it needs to be deployed with Optical Amplifier (OA) and Dispersion Compensation Module (DCM). The board supports 40G/100G QSFP28/QSFP+ client-side interfaces, making it suitable for scenarios such as 40G/100G Ethernet, data centers, and others.
Support one 40G/100G client-side port
Support 100G Point-to-Point BiDi application
Support ALS (Automatic Laser Shutdown) function
Support SNMP and Web NMS
Ultra low latency
|
Parameter |
Index |
|
|
Basic function |
Support one 40G/100G client port |
|
|
Interface type |
Client-side: QSFP28/QSFP+ Line-side four: SFP28/SFP+ |
|
|
Access rate |
40/100Gbps |
|
|
Operation & Maintenance |
DDM |
Support DDM (Digital Diagnostic Monitoring) |
|
|
ALS |
Support ALS (Automatic Laser Shutdown) |
|
Slot width |
1 standard function slot. |
|
|
Max power consumption |
20W |
|
|
Operating Temp |
0°C to 50°C |
|
|
Storage Temp |
-10°C to 70°C |
|
|
Humidity |
0 to 90% (no condensing) |
|
|
Management Type |
SNMP, WEB |
|
