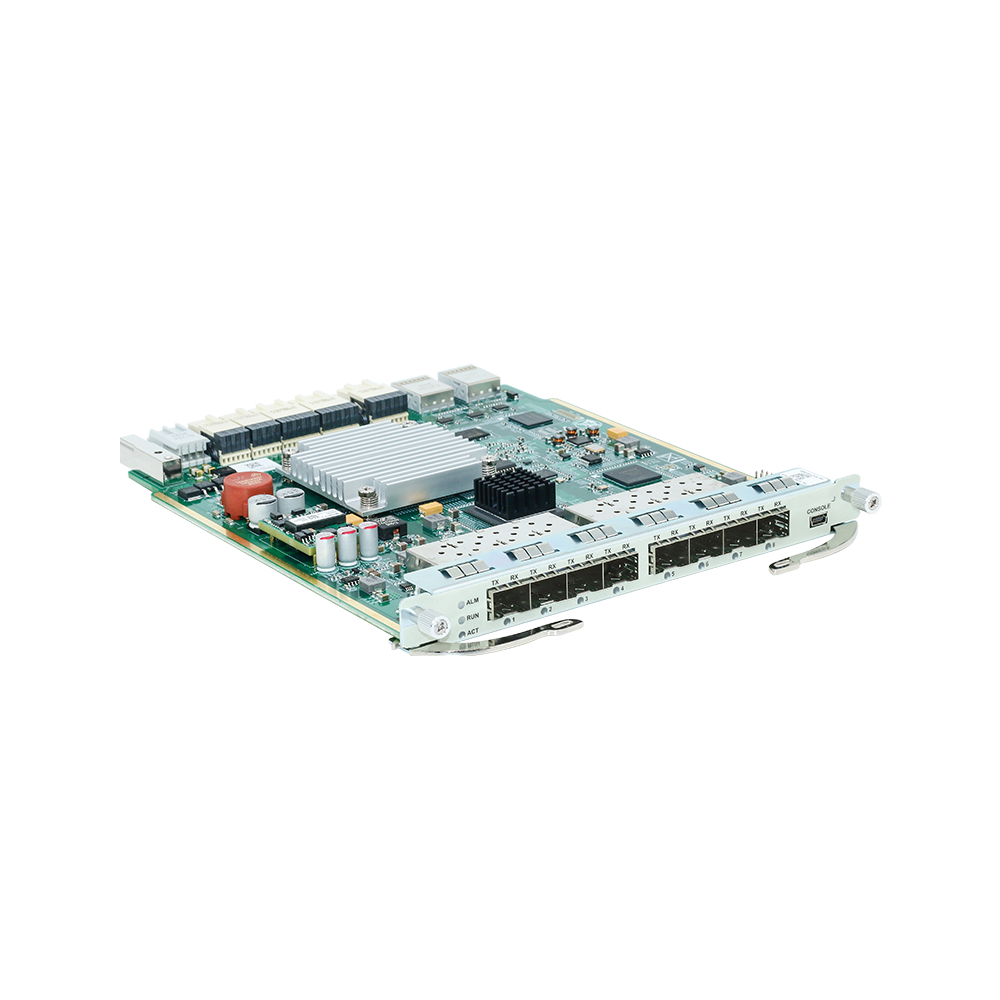

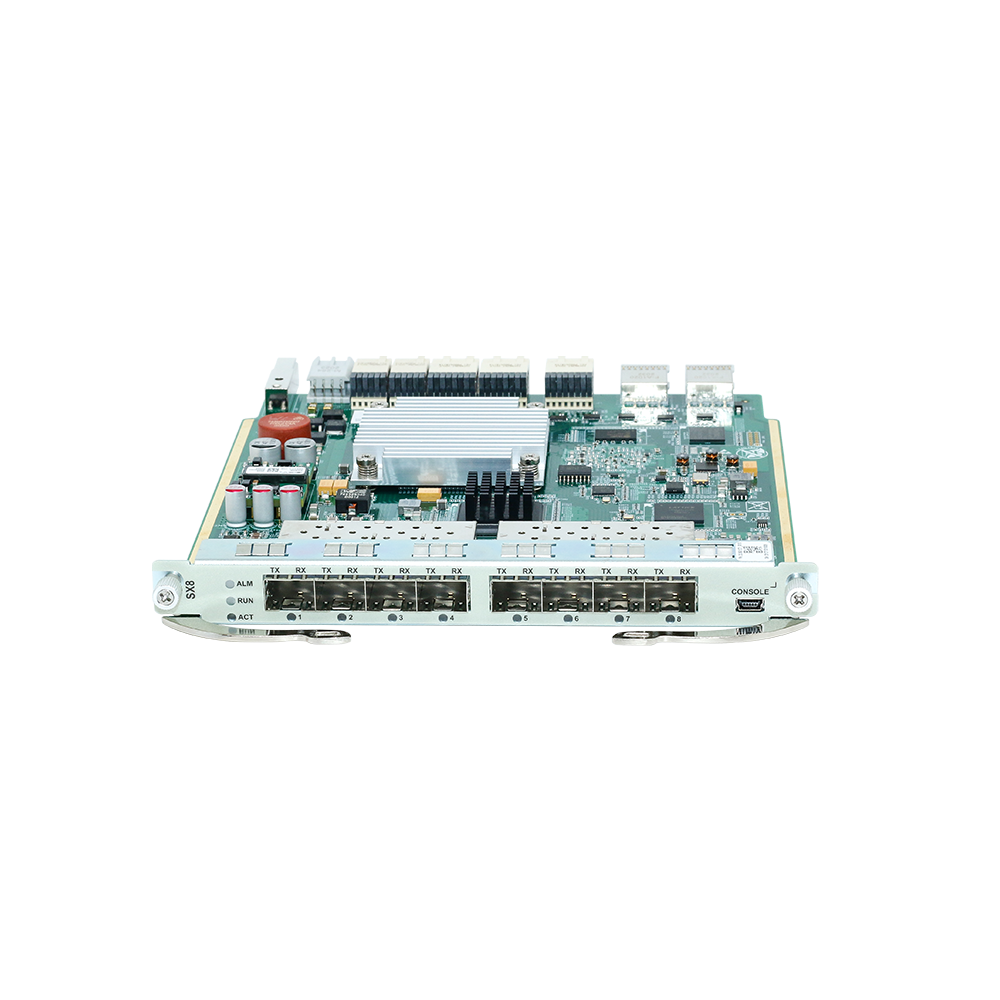

SX8 is an SDH service cross-connect board for the STN6200-CU2 platform from Sino Telecom.
The SDH service board SX8 is an SDH card utilized on the STN6200 platform. It utilizes industry-leading chip technology and fully supports relevant domestic and international standards (such as ITU-T G.707, G.783, etc.).
The SX8 single board on the SDH line side supports 8-port STM-1/4 and 4-port STM-16 customer-side interfaces, making it suitable for optical transmission network applications in metropolitan access and aggregation.
SX8 is an SDH service cross-connect board for the STN6200-CU2 platform from Sino Telecom.
The SDH service board SX8 is an SDH card utilized on the STN6200 platform. It utilizes industry-leading chip technology and fully supports relevant domestic and international standards (such as ITU-T G.707, G.783, etc.).
The SX8 single board on the SDH line side supports 8-port STM-1/4 and 4-port STM-16 customer-side interfaces, making it suitable for optical transmission network applications in metropolitan access and aggregation.
|
Feature |
Description |
|
Panel size (mm) (W*D*H) |
186mm*215mm*20mm |
|
User-side interface |
STM-1/4 ports of 8 SFPs STM-16 ports of 4 SFPs |
|
working environment |
Operating temperature: -5°C to 50°C Storage temperature: -40°C to 70°C Relative humidity: 5% to 95%, non-condensing |
|
Typical power consumption |
43W |
|
Indicator |
Description |
|
User-side signal and mapping method
|
STM-1 <-> VC4 STM-4 <-> VC4 or VC4-4C STM-16 <-> VC4 or VC4-4C or VC4-16C |
|
Transmission protection |
SNC/N, SNC/I, MSP |
