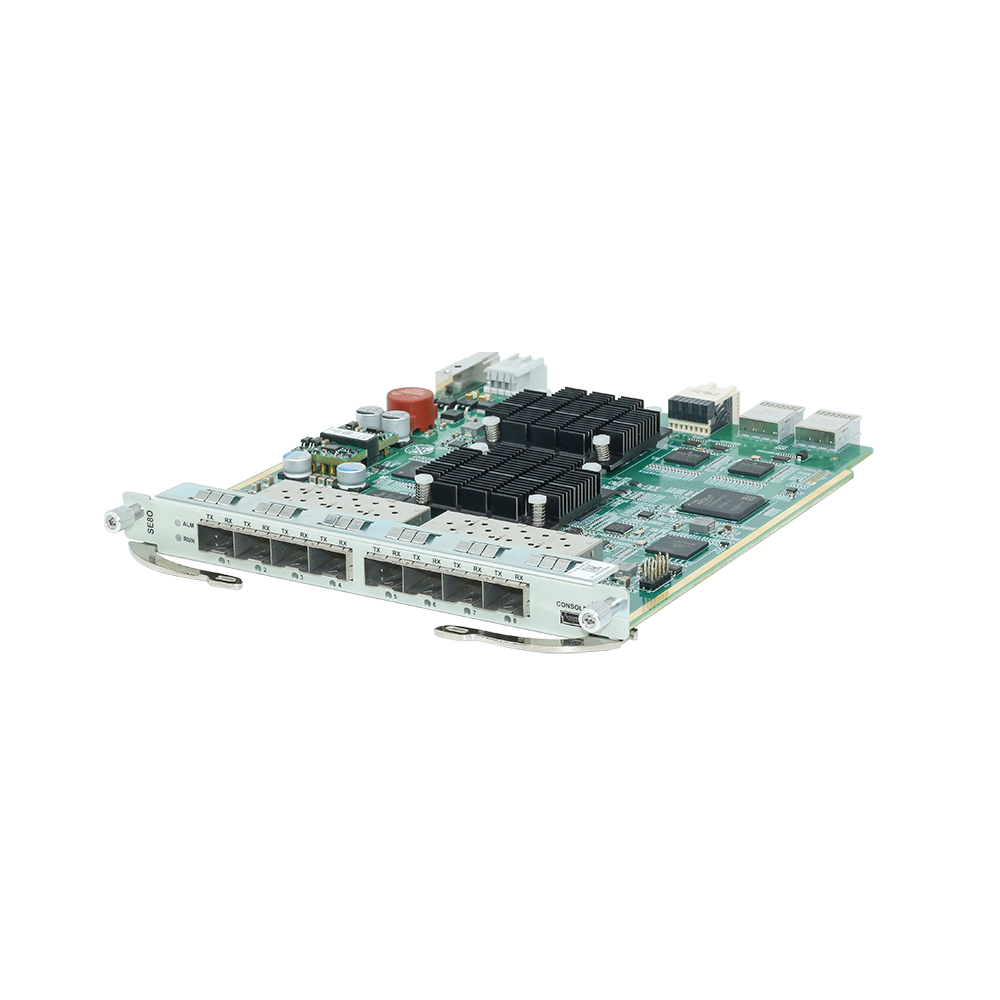

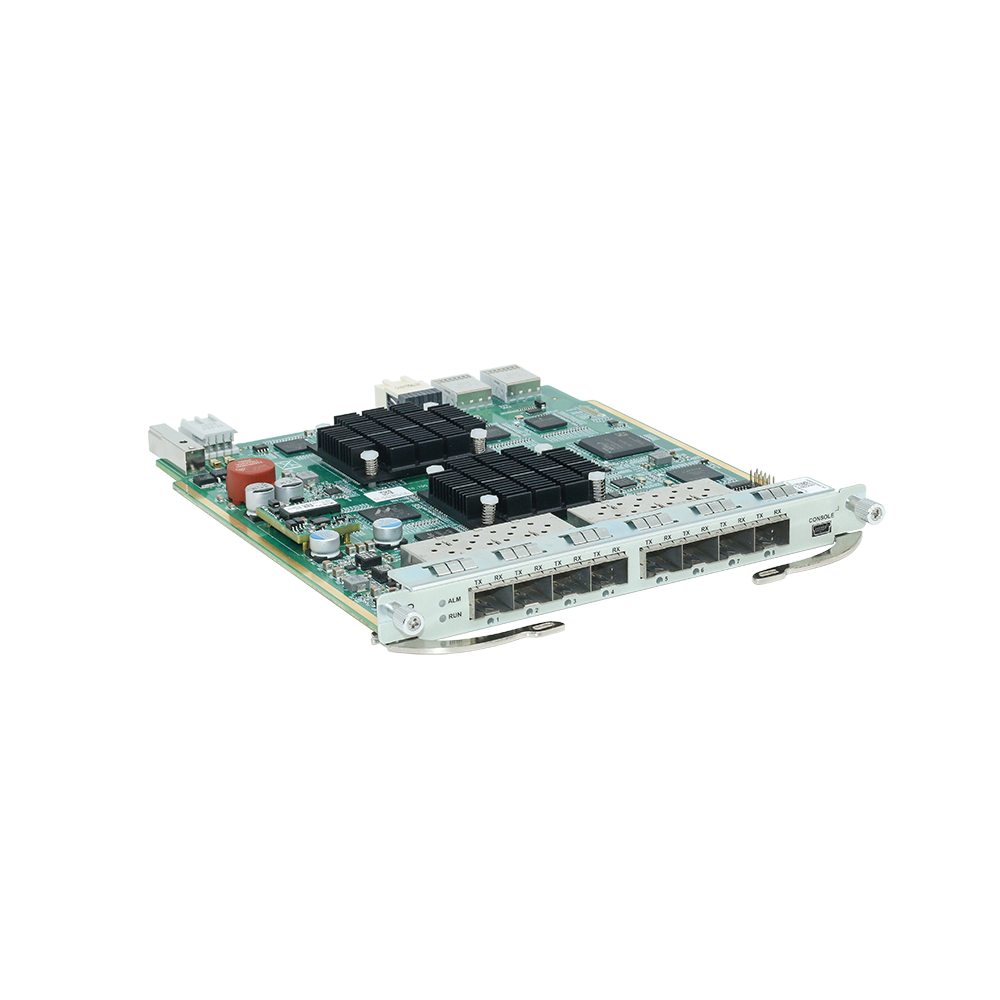

SE8O is an 8*GE EoS service board for the STN6200-CU2/CU5 platform from Sino Telecom.
The 8*GE EoS service board SE8O supports EoS-enabled service cards, utilizing industry-leading chip technology and fully complying with relevant domestic and international standards.
The 8*GE EoS service board, SE8O, supports 8 FE/GE client ports, flexibly meeting the GE/FE packet-switched EoS service functions, which are then mapped to OTN transmission. It is suitable for optical transmission network applications in metropolitan access and metropolitan aggregation.
SE8O is an 8*GE EoS service board for the STN6200-CU2/CU5 platform from Sino Telecom.
The 8*GE EoS service board SE8O supports EoS-enabled service cards, utilizing industry-leading chip technology and fully complying with relevant domestic and international standards.
The 8*GE EoS service board, SE8O, supports 8 FE/GE client ports, flexibly meeting the GE/FE packet-switched EoS service functions, which are then mapped to OTN transmission. It is suitable for optical transmission network applications in metropolitan access and metropolitan aggregation.
|
Feature |
Description |
|
Panel size (mm) (width * depth * height) |
186mm*215mm*20mm |
|
User-side interface |
8 SFP-based FE/GE interfaces |
|
working environment |
Operating temperature: -5°C to 50°C Storage temperature: -40°C to 70°C Relative humidity: 5% to 95%, no condensation |
|
Typical power consumption |
35W |
|
Indicator |
Description |
|
Ethernet signal and mapping method
|
FE (GFP-F) <-> VC12-xv or VC3-xv <->VC4 GE (GFP-F) <-> VC4-xv or VC3-xv <->VC4 |
|
Virtual concatenation and LCAS function |
Supports up to 8 virtual concatenation groups (8 VCGs) Supports both LCAS and non-LCAS functions |
|
Ethernet Private Line (EPL) service |
Support Ethernet Private Line (EPL) service |
|
Ethernet Virtual Private Line (EVPL) service |
Support the aggregation of multiple Ethernet Layer 2 services Support Layer 2 forwarding for Ethernet services |
|
LAG function |
Support Ethernet port aggregation |
|
Fluid control function |
Support flow control based on IEEE 802.3x |
|
QoS function |
Support QoS functionality based on port or port/VLAN traffic |
|
Speed limit function |
Support speed limiting function based on port or port/VLAN traffic |
|
Ethernet OAM |
Support performance monitoring and alarm monitoring reporting for Ethernet services |
|
MPLS-TP function |
Support Ethernet MPLS-TP forwarding service |
