10G/FC8/FC16 Transponder 3R OTU10, China 10G/FC8/FC16 Transponder 3R OTU10 Manufacturers, Suppliers, Factory

Product Description

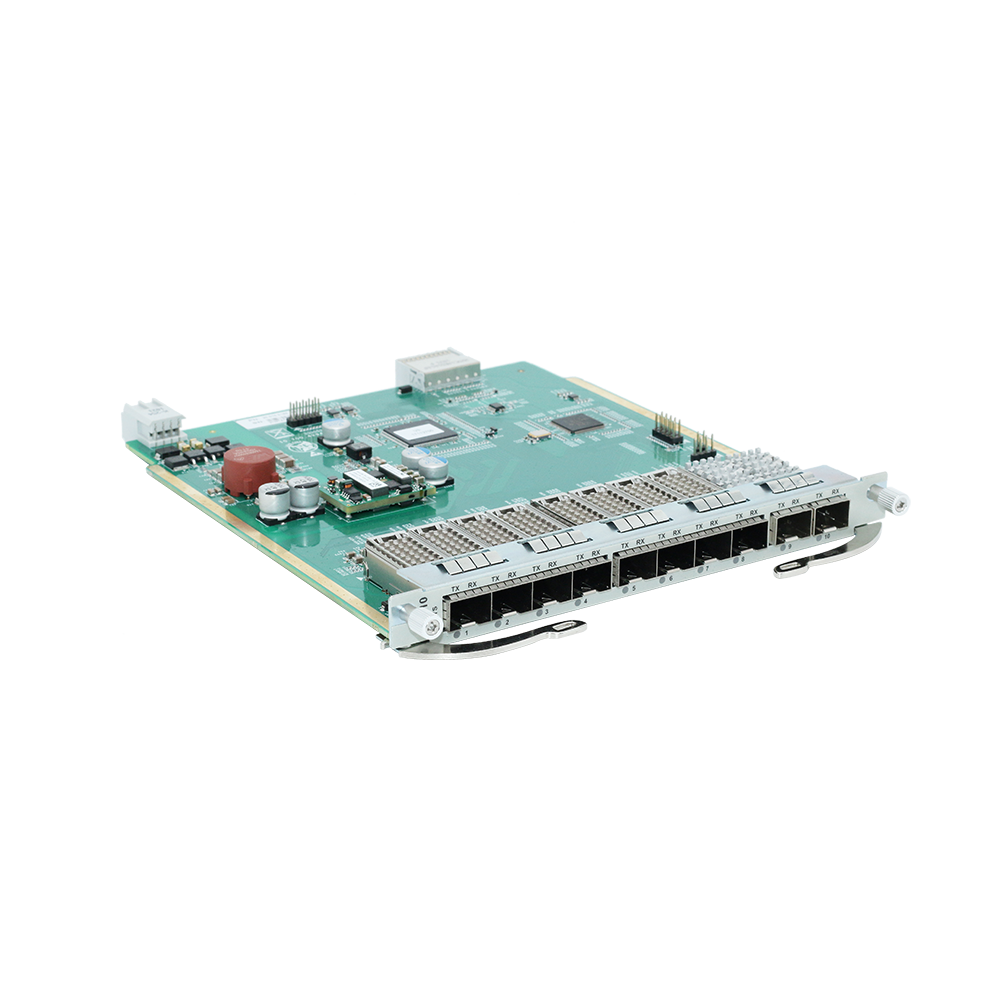

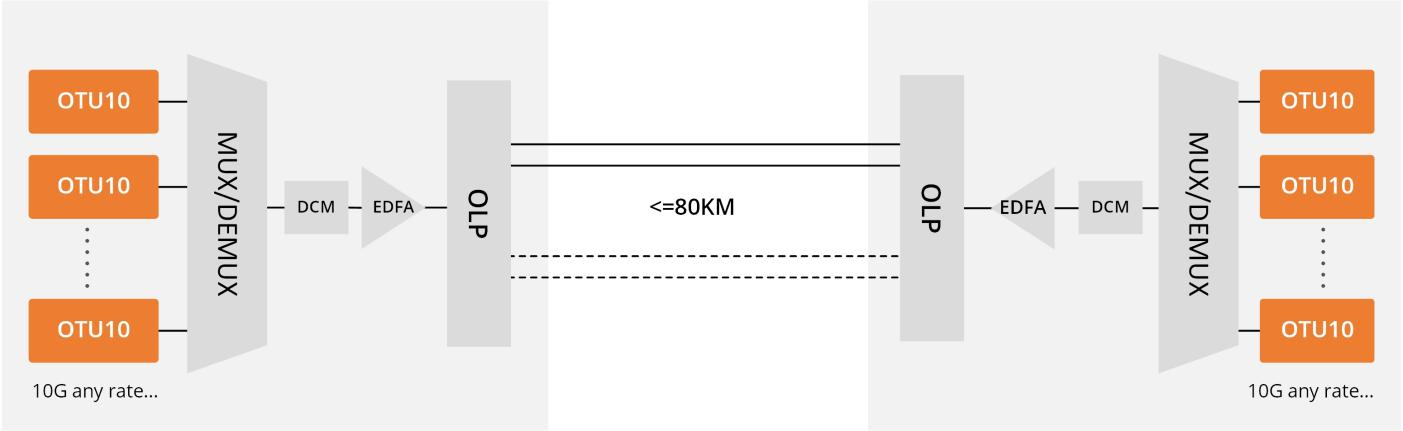

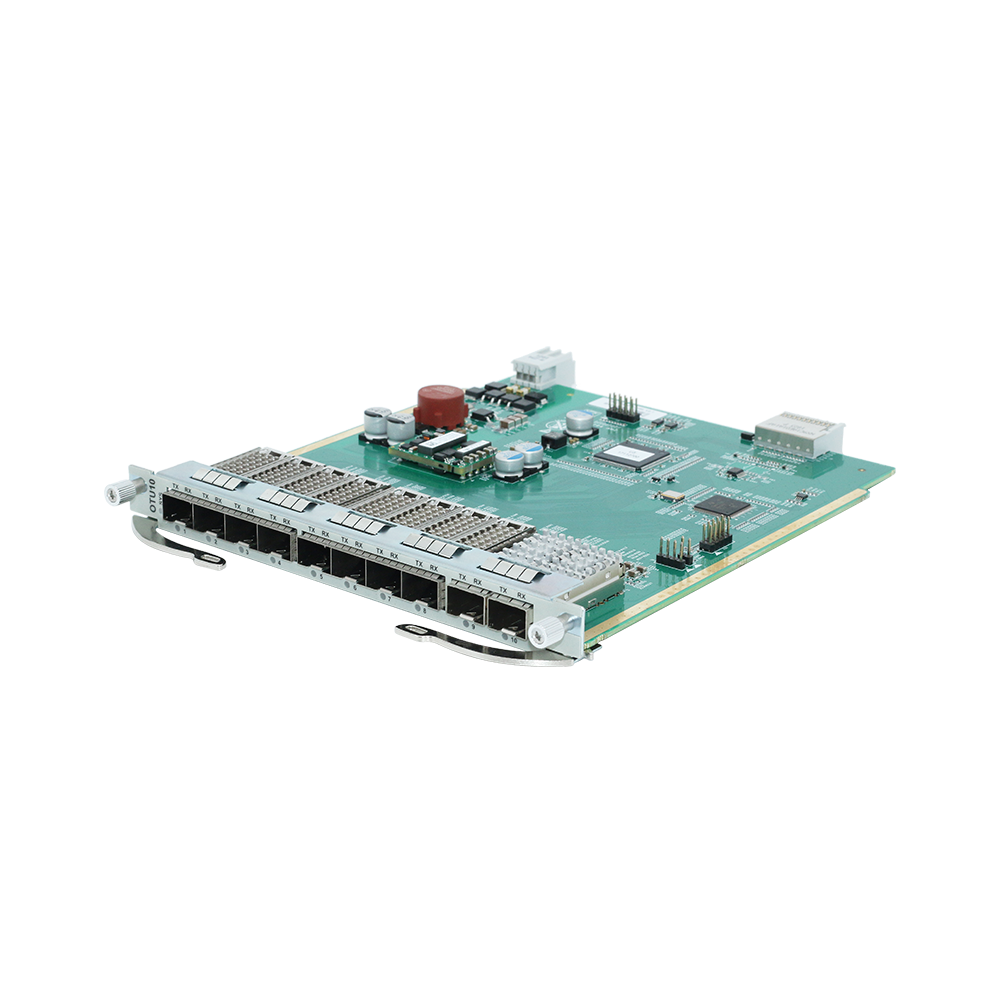

STN6200-OTU10 is a compact, high-density, low- power optical converter that enables wavelength conversion, 3R regeneration, and optical signal amplification. It is designed to be used in conjunction with MUX/DEMUX for CWDM/DWDM transmission. The board is compatible with SFP/SFP+ optical modules or ESFP electrical modules, supports hot swapping, and allows for multi-rate and multi- service access ranging from 100Mbps to 11.1Gbps. It is suitable for various applications including 100M to 10G, SDH/SONET, ethernet, etc. This communication system provides a fast and cost- effective transmission solution for OEO relays.

Features

Support access and forwarding transmission of optical signals at 850nm/1310nm/1550nm

Support Automatic Laser Shutdown (ALS) function

Support 100Mbps to 11.1Gbps Ethernet, SONET/SDH, Fibre Channel, SDI, HD-SDI, CPRI,etc.

Support 3R Function

Support multiple services and multiple rates over CWDM/DWDM

Support hot swap and low power consumption

Easy to set up and monitor the network with the management of web and SNMP

Ultra-low latency

Specification

Features		Description
Function		5 Channels transponder 16Gb Fiber Channel
Interface		SFP/SFP+ Optical Module ESFP Electrical Module
Access rate		100Mbps ~ 11.1Gbps
Operation & Maintenance	DDM	Support DDM (Digital Diagnostic Monitoring)
	ALS	Support ALS (Automatic Laser Shutdown)
Working environment		Working temperature: 0℃~50℃ Storage temperature: -10℃ ~ 70℃ Relative humidity: 10%~90%, no condensation
Power consumption		<15W
Management Type		SNMP, Web
