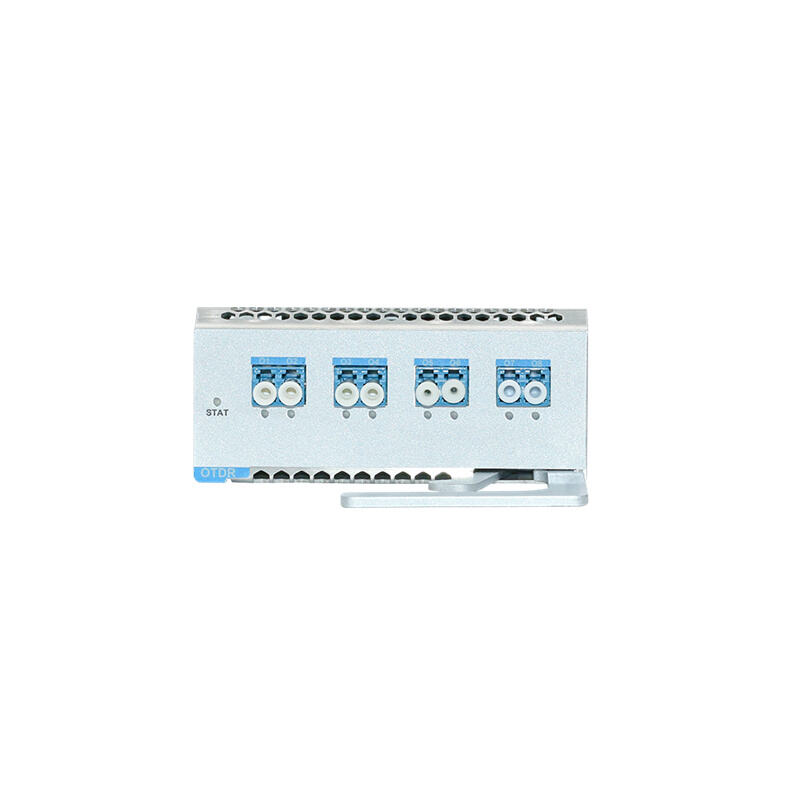

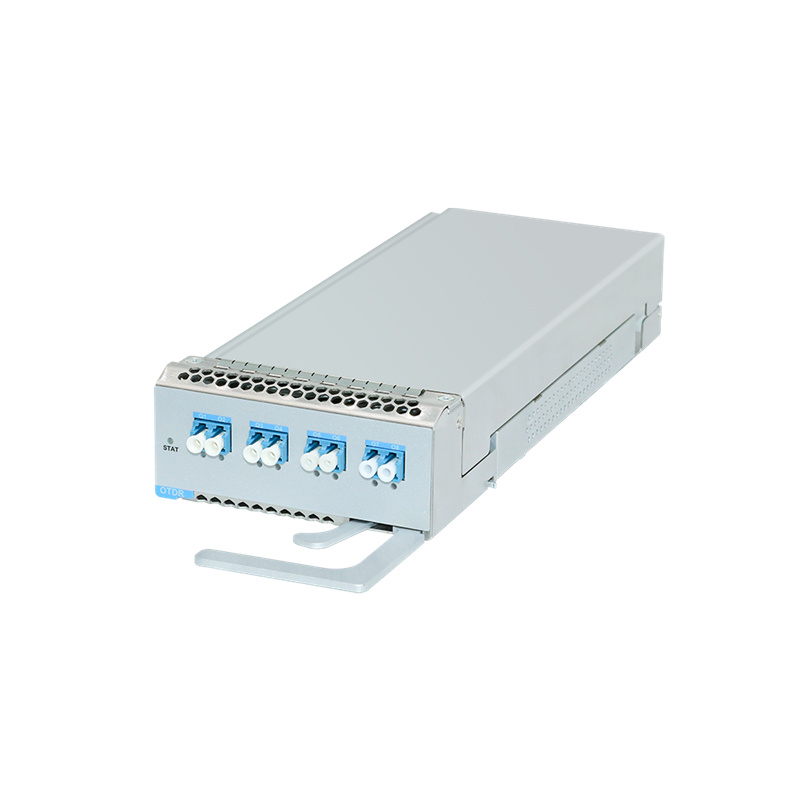

OTDR is the optical cable monitoring board of Sino-Telecom's STN6800-D16 platform. It is manufactured based on the principles of optical backscattering and Fresnel reflection. By utilizing the backscattered light generated during light propagation in optical fibers, it can obtain attenuation information and is used for measuring fiber attenuation, joint loss, locating fiber fault points, and understanding the loss distribution along the length of the fiber. It is an 8-channel board.
OTDR is the optical cable monitoring board of Sino-Telecom's STN6800-D16 platform. It is manufactured based on the principles of optical backscattering and Fresnel reflection. By utilizing the backscattered light generated during light propagation in optical fibers, it can obtain attenuation information and is used for measuring fiber attenuation, joint loss, locating fiber fault points, and understanding the loss distribution along the length of the fiber. It is an 8-channel board.
|
feature |
description |
|
slot |
single slot |
|
project |
unit |
indicator |
Remarks |
|
Operating wavelength |
nm |
1490 or 1625 |
|
|
dynamic range |
dB |
≥30 |
Pulse width: 20us, t<120s, @25℃ |
|
Pulse width range |
us |
0.1~20 |
Not below this range |
|
Maximum detection range |
km |
≥80 |
|
|
Loss test accuracy |
dB |
±0.5 |
|
|
Distance test accuracy |
m |
＜20 |
@80km |
|
sampling precision |
m |
0.05～8 |
|
|
Event blind spot |
m |
＜10 |
|
|
Attenuation blind zone |
m |
＜20 |
|
|
linearity |
dB |
±0.05 |
|
|
Maximum output optical power |
dBm |
＜17 |
