OLP

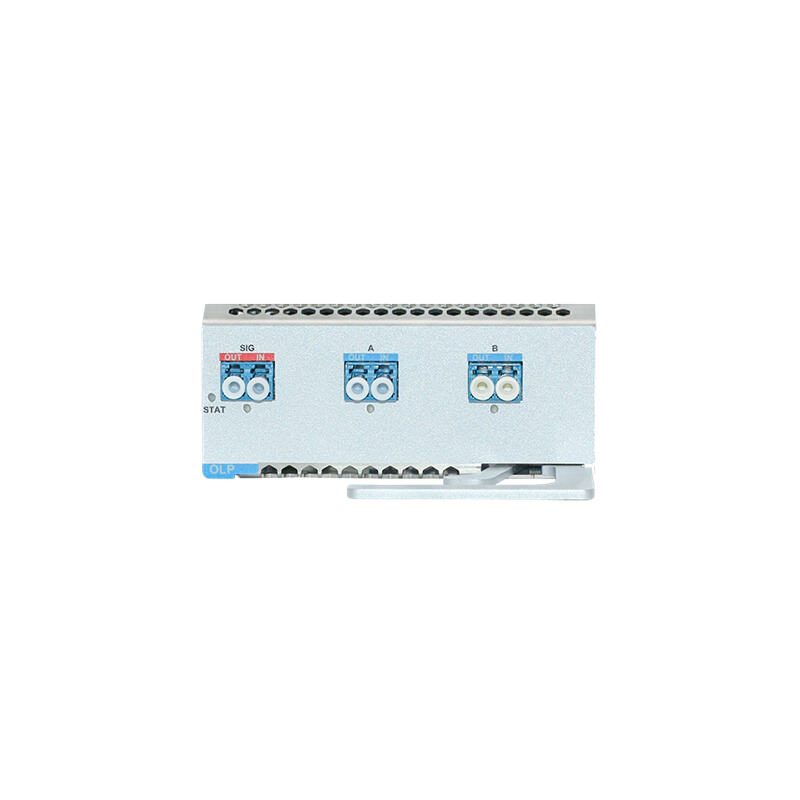

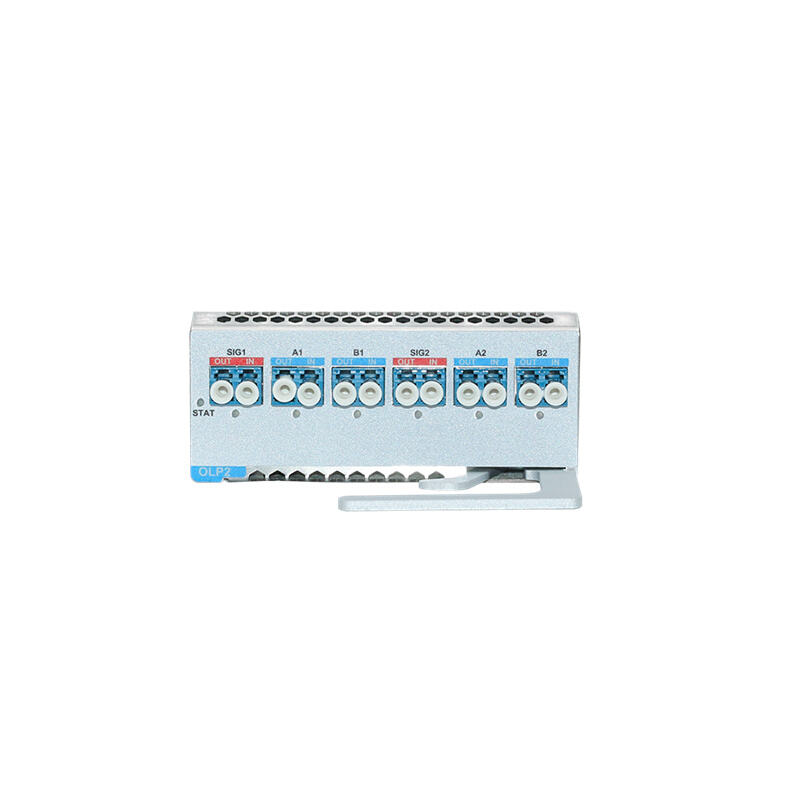

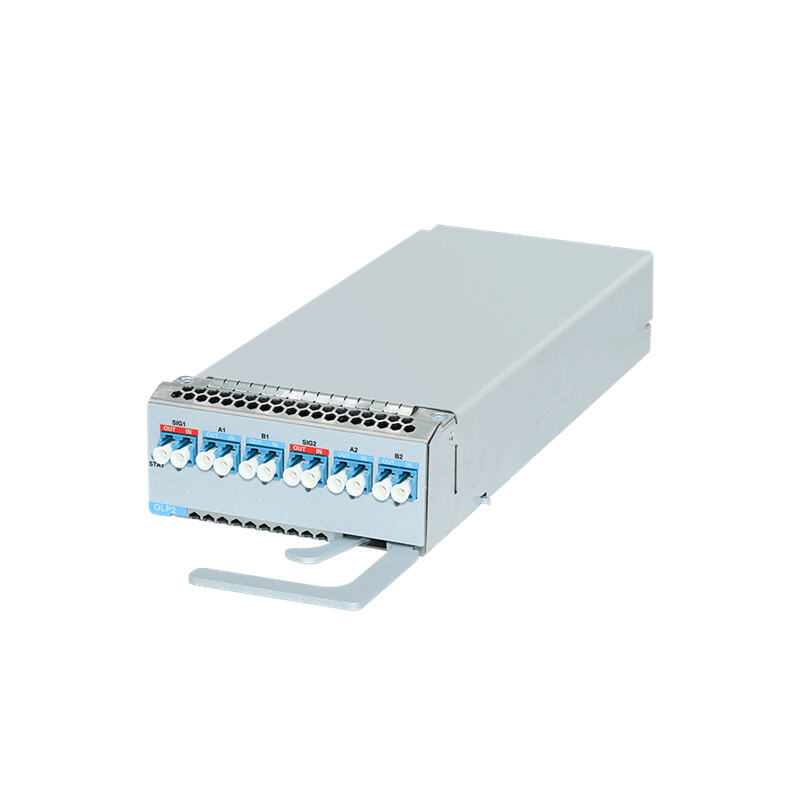

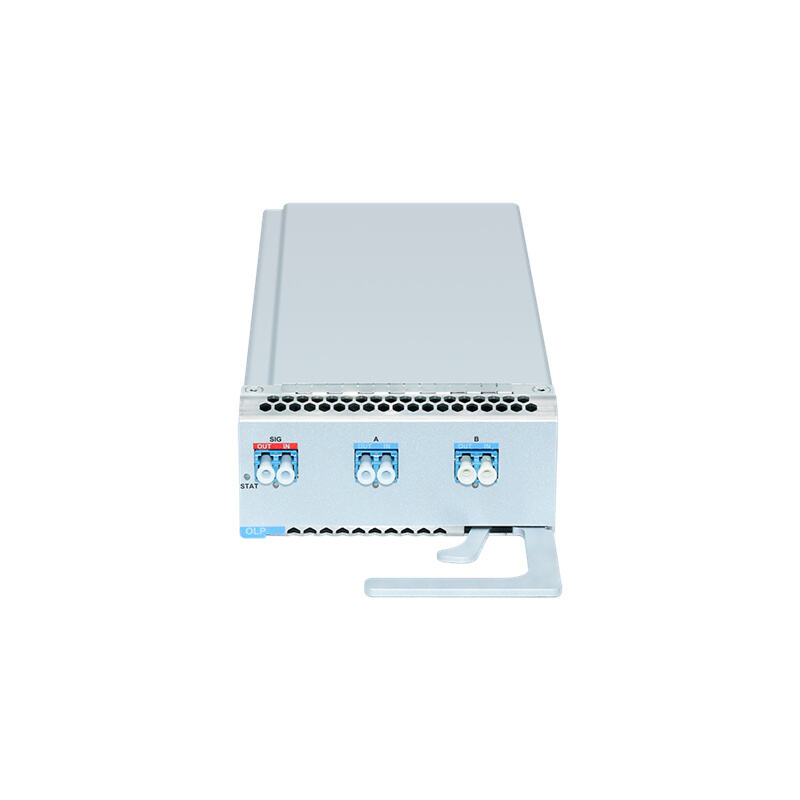

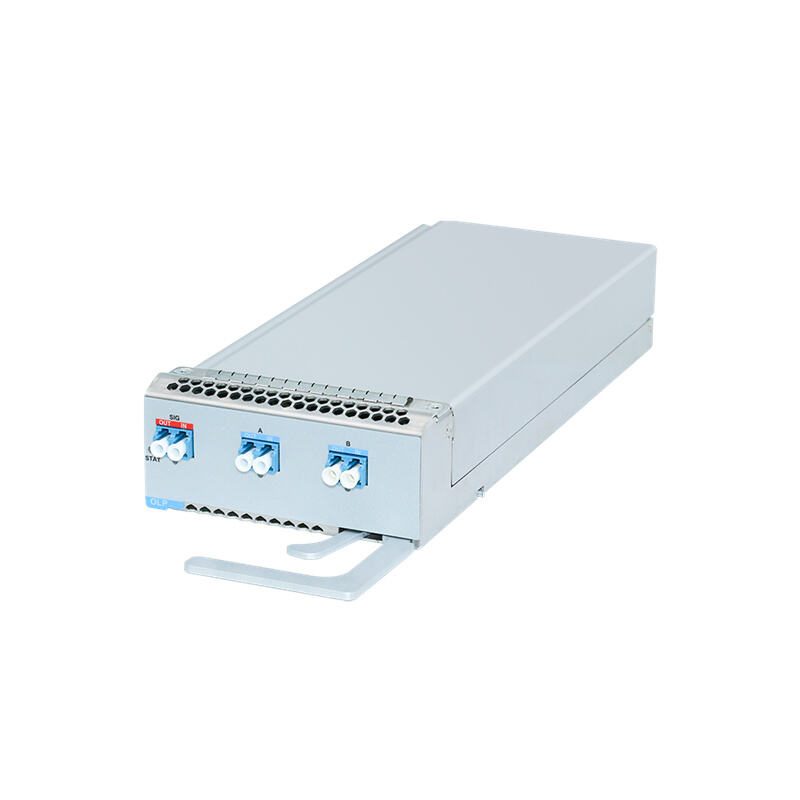

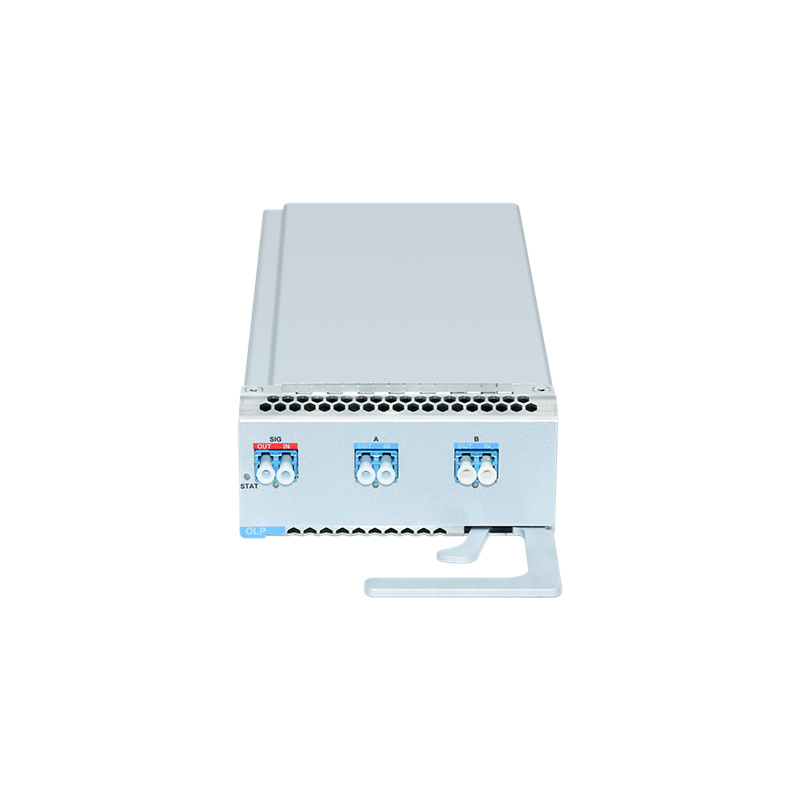

OLP is the optical protection board card of Sino-Telecom's STN6800-D16 platform, which includes single-channel OLP board cards and dual-channel OLP2 board cards. It enables real-time monitoring of the power status of service fibers. When the power value of the service fiber falls below the user's power threshold, it can automatically switch to the backup fiber. The optical protection system will provide users with a more stable, flexible, and highly secure transmission network. This system has been widely applied in backbone networks and important business routes. The difference between OLP and OLP2 is that OLP2 is a dual-channel version of OLP, but otherwise their functions and principles are the same.

Product Description
Technical Specifications
physical properties
technical indicators
Networking application
Related Products

Technical Specifications

Realize 1+1 protection for 1 or 2 independent optical signal groups.

Supports single optical channel, optical multiplexing section, and optical line protection.

Supports both manual and automatic working modes.

Supports power-off and light-free locking.

physical properties

feature	description
slot	single slot

technical indicators

project	unit	indicator	Remarks
protection method		1+1
Operating wavelength	nm	1310±50 and 1550±50
Transmission insertion loss	dB	≤4
Terminal insertion loss	dB	≤1.5	Optical switch insertion loss
Monitor optical power range	dBm	＋25～-50
Optical power accuracy	dBm	±0.5
Optical power resolution	dB	0.1
return loss	dB	＞45
Polarization-dependent loss	dB	≤0.1
Wavelength-dependent loss	dB	≤0.25
isolation	dB	＞50
switch time	ms	＜50
Number of switches	Cycles	>10^7
Relative threshold setting	dB	3~8	Default value: 5dB
Absolute threshold setting	dBm	＞-20
Optical port type		LC/UPC
