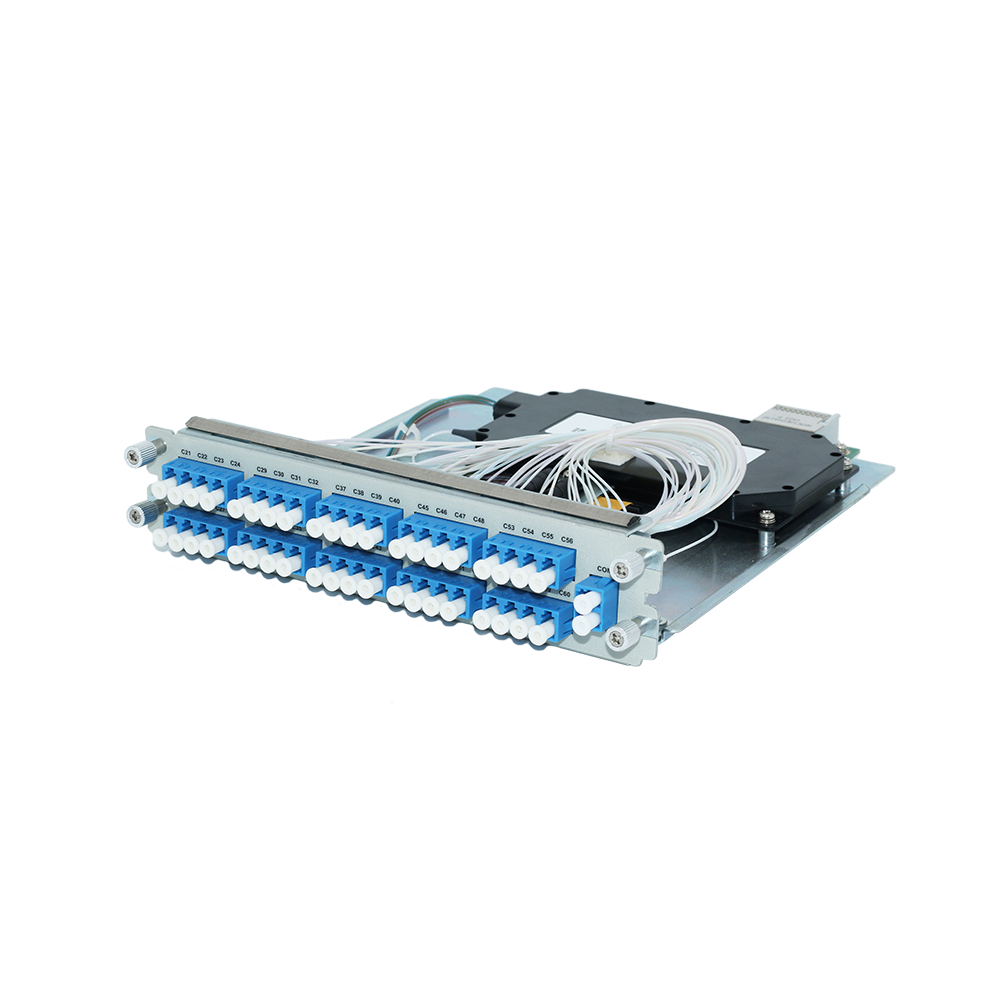

The STN6200-OMU40 is a high-density 40ch Mux or Demux. It is a low-loss and plug- in board that offers an excellent solution for infrastructure saving by aggregating all 40 DWDM channels at a single site. All 40 channels are distributed over the C-band with 100GHz spacing between channels. They follow the ITU-T standard and utilize high-quality AWG technology.
The STN6200-OMU40 is a high-density 40ch Mux or Demux. It is a low-loss and plug- in board that offers an excellent solution for infrastructure saving by aggregating all 40 DWDM channels at a single site. All 40 channels are distributed over the C-band with 100GHz spacing between channels. They follow the ITU-T standard and utilize high-quality AWG technology.
Low insertion loss
Based on free space technology

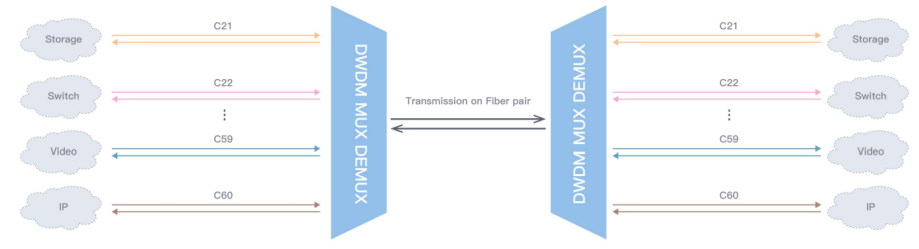

Multiplexing of up to 40 channels on fiber pair
Passive, no electric power required
Low-profile modular design, fits in STN6200 series chassis
Duplex LC/UPC, easily support duplex patch cables between transceiver and passive unit

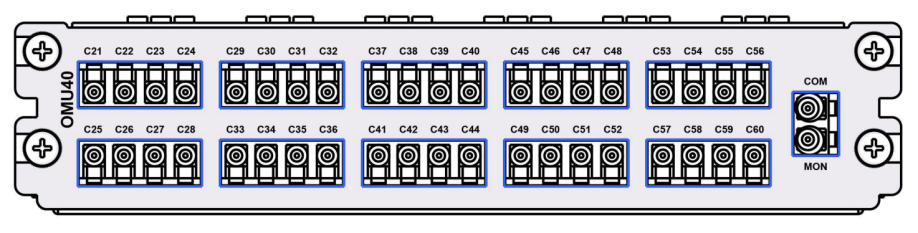

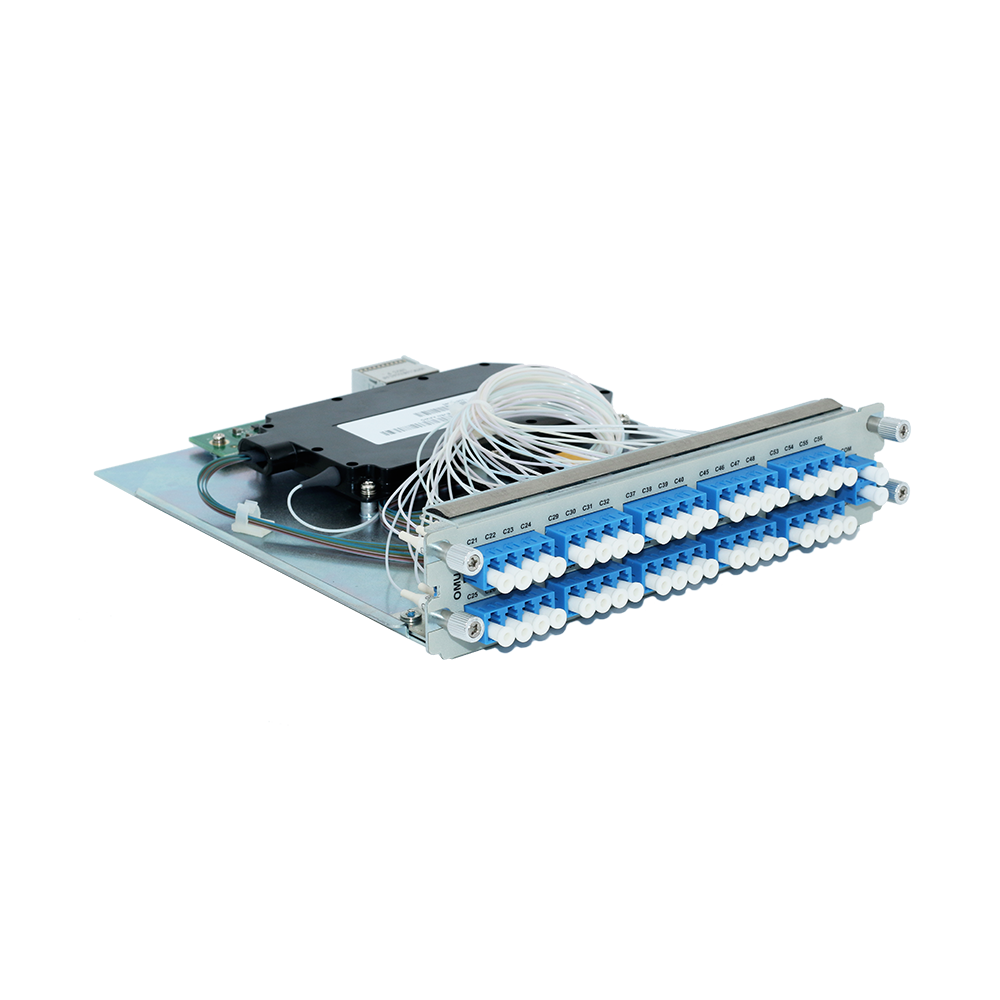

Front View
Function
|
Parameters |
Specifications |
|
Number of Channels |
40CH |
|
Channel Spacing |
100GHz |
|
Reference Passband |
±0.1nm |
|
ITU Frequency |
192.00THz - 195.90THz |
|
ITU Wavelength |
1530.334nm - 1561.419nm |
|
Center Frequency Accuracy |
±0.05nm |
|
Insertion Loss |
≤6.0dB |
|
Insertion Loss Uniformity |
≤1.0dB |
|
Ripple |
≤0.75dB |
|
1dB Bandwidth |
≥0.36nm |
|
3dB Bandwidth |
≥0.51nm |
|
Adjacent Channel |
≥25dB |
|
Non-Adjacent Channel Isolation |
≥30dB |
|
Total Crosstalk |
≥21dB |
|
Polarization Dependent Loss |
≤0.5dB |
|
Return Loss |
≥40dB |
|
Polarization Mode Dispersion (PMD) |
≤0.5ps |
|
Chromatic Dispersion |
±20 Ps/nm |
|
Connector Form |
LC/UPC |
|
Operating Temperature |
-5℃~ +65℃ |
|
Storage Temperature |
-40℃~ +85℃ |
|
Relative Humidity |
0% ~ 90% |
