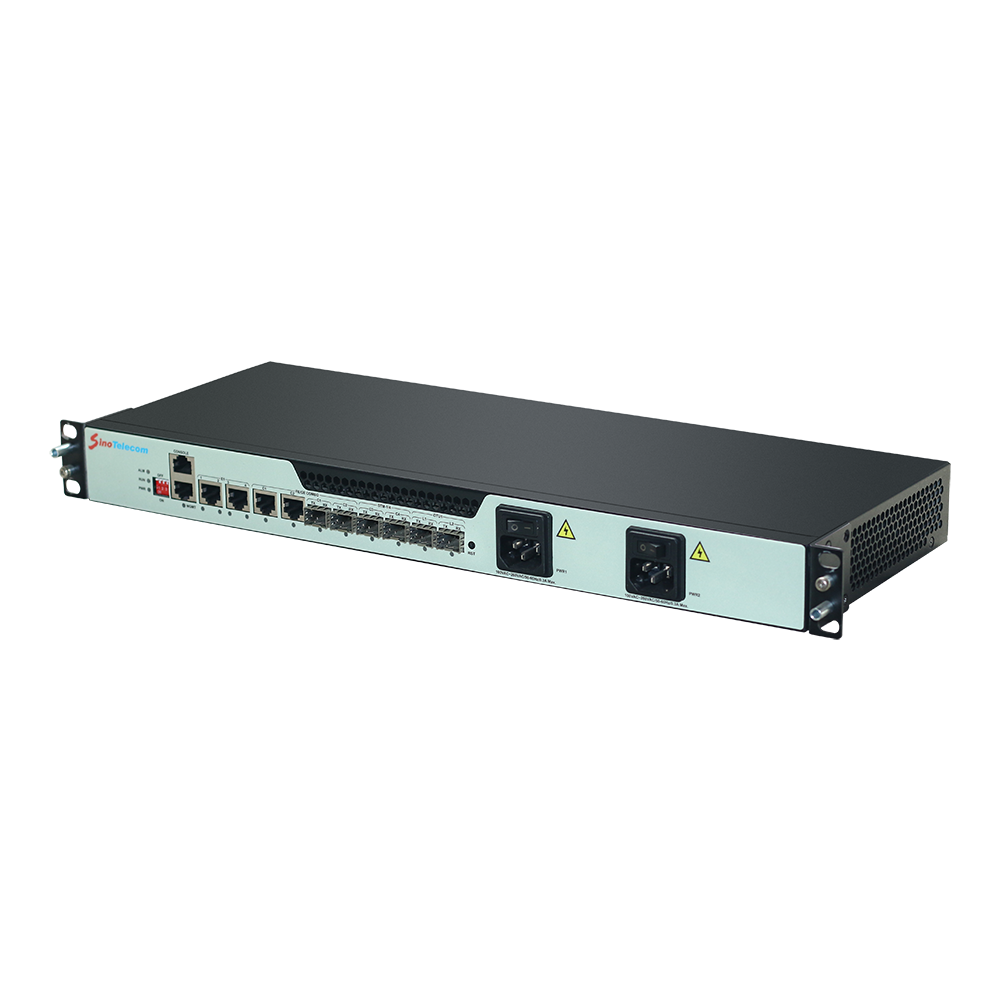

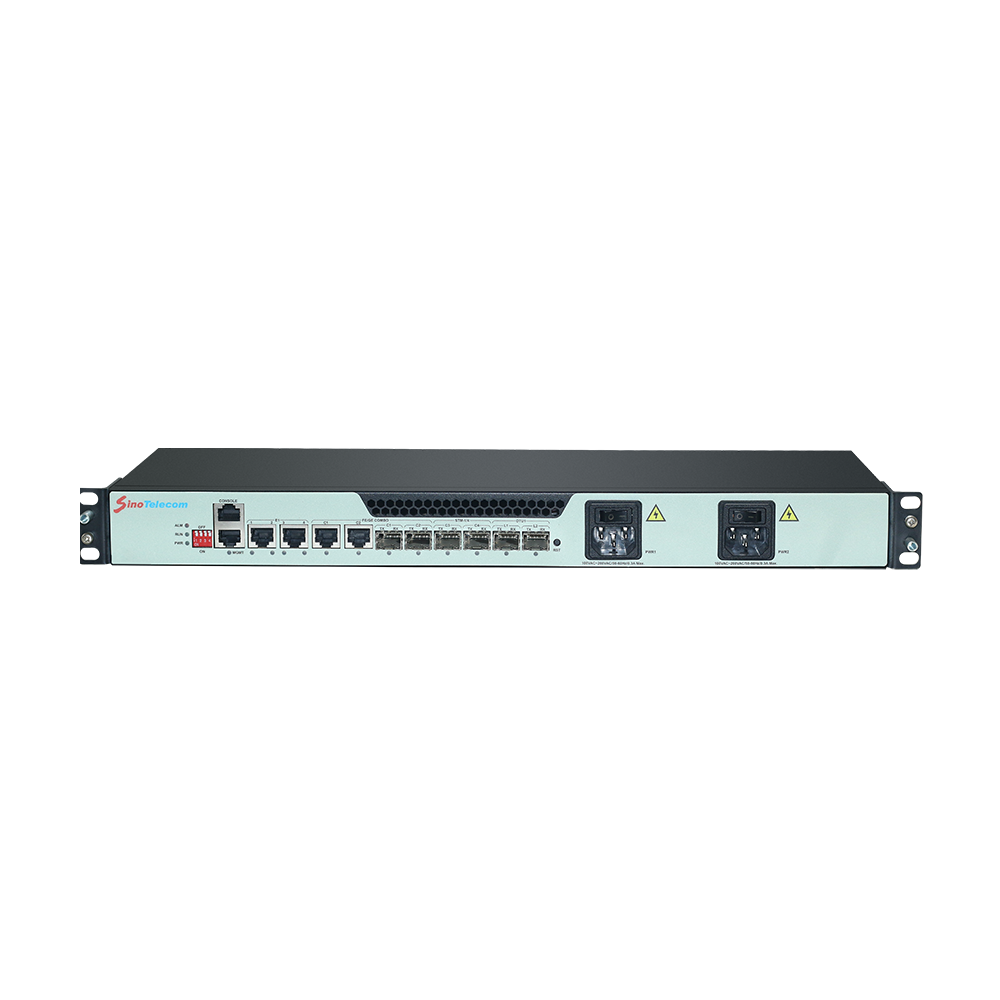

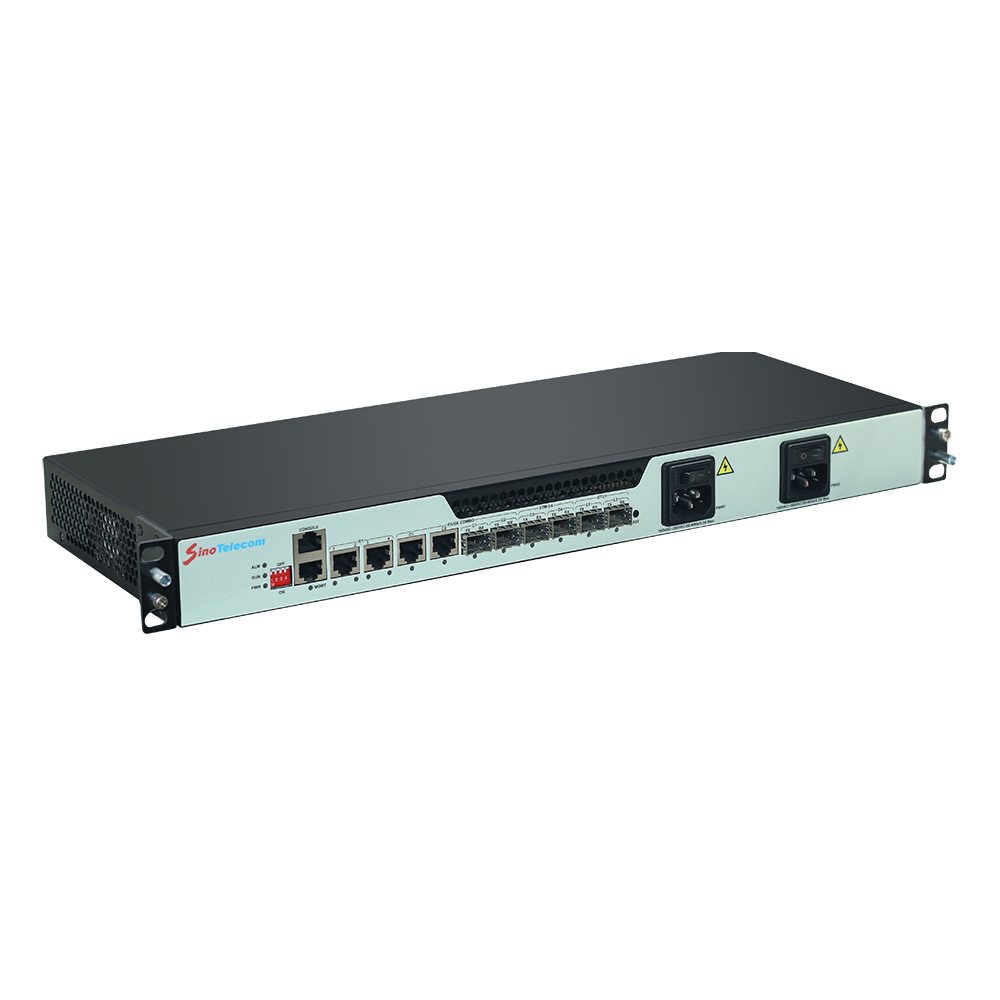

The STN6200-EU2T4 device is a box-type device that supports EoS/EoO functions. It utilizes industry-leading chip technology and fully complies with relevant domestic and international standards.
|
Feature |
Description |
|
Machine dimensions (mm) (w*d*h) |
Single AC/DC: 272mm×165mm×42mm Dual AC/DC: 442mm×166mm×44.2mm |
|
Power supply |
AC input: 100VAC~240VAC, 47~63Hz DC input: -40V to -72V |
|
User-side interface |
4 E1s, 2 FE/GE (combo) |
|
Line side interface |
2 STM-1/4s or 2 OTU1s |
|
Working environment |
Operating temperature: -10°°C to 55°°C |
|
Installation method |
Multiple installation methods such as desktop, wall-mounted, and cabinet-mounted |
|
Typical power consumption |
15W |
|
Indicator |
Description |
|
User-side signal and mapping method |
FE /GE(GFP-F) <-> VC12-xv <->VC4<-> STM-1/4 FE /GE(GFP-F) <-> VC4-xv <->VC4<-> STM-1/4 E1 <-> VC12 <-> VC4 <-> STM-1/4 E1 <-> VC12 <-> VC4 <-> vSTM-4 <-> ODU0<-> ODU1<-> OTU1 E1 <-> VC12 <-> VC4 <-> vSTM-16 <-> ODU1<-> OTU1 FE /GE(GFP-F) <-> VC12-xv <-> VC4<-> vSTM-16 <-> ODU1<-> OTU1 FE /GE(GFP-F) <-> VC4-xv <-> vSTM-4 <-> ODU0<-> ODU1<-> OTU1 FE /GE(GFP-F) <-> VC4-xv <-> vSTM-16 <-> ODU1<-> OTU1 STM-1/STM-4<-> vSTM-4 <-> ODU0<-> ODU1<-> OTU1 STM-1<-> vSTM-16 <-> ODU1<-> OTU1 |
|
Management |
Supports in-band management methods based on GCC or DCC |
|
Transmission protection |
VC-12/4 SNC MSP1+1 |
|
Power-fail alarm |
Support power-off monitoring and reporting function |
