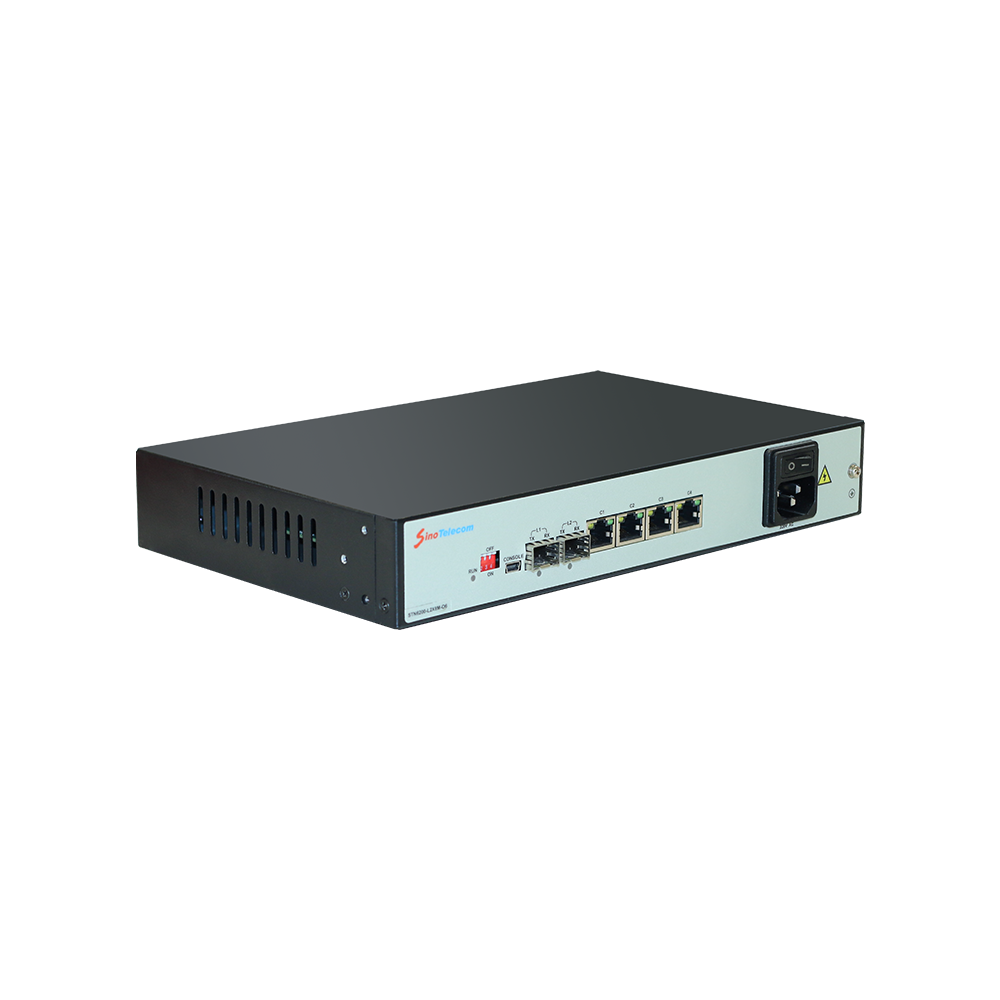

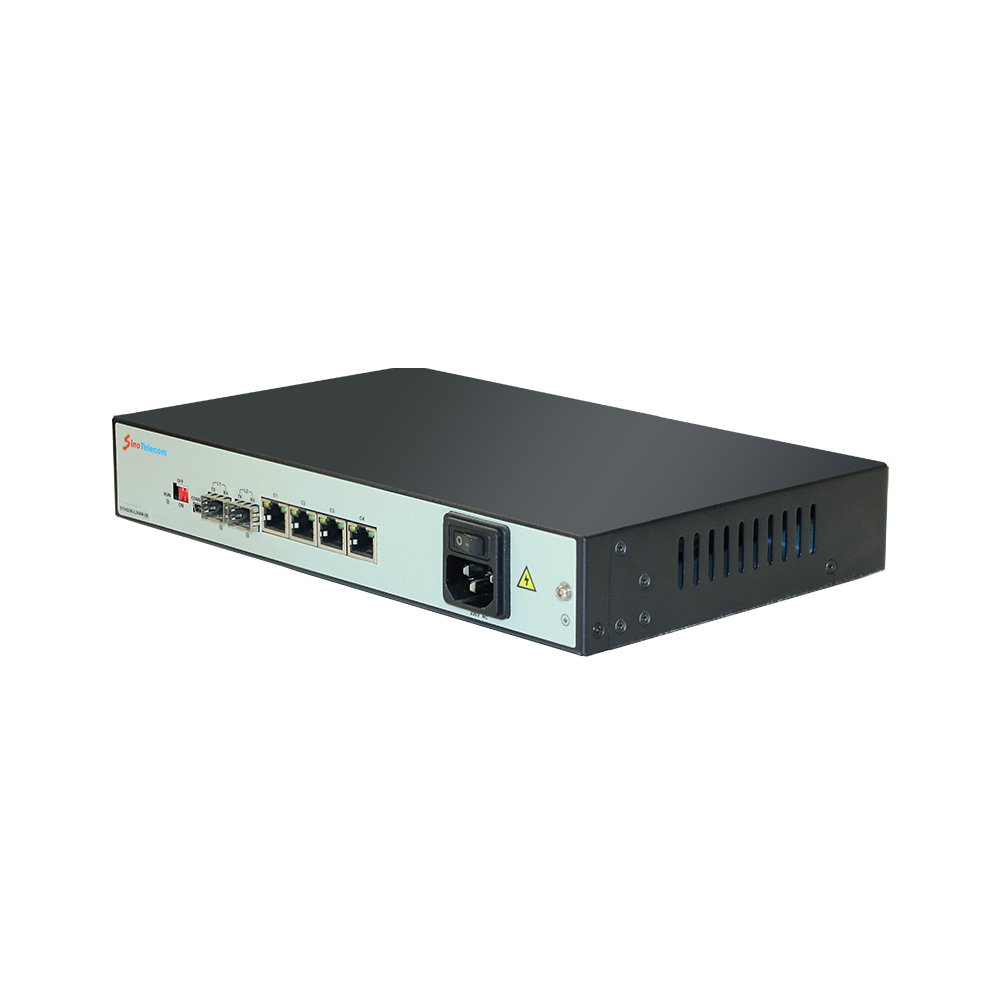

The STN6200-L2X8M-O6 device is a carrier-grade product that is both operational and manageable. It utilizes mature technology to accomplish bidirectional optical-to-electrical conversion for FE/GE services at a relatively low cost. Equipped with four FE/GE electrical ports and two FE/GE optical ports, it primarily serves to extend the reach of metropolitan area Ethernet networks through optical fibers.
The STN6200-L2X8M-O6 device is a carrier-grade product that is both operational and manageable. It utilizes mature technology to accomplish bidirectional optical-to-electrical conversion for FE/GE services at a relatively low cost. Equipped with four FE/GE electrical ports and two FE/GE optical ports, it primarily serves to extend the reach of metropolitan area Ethernet networks through optical fibers.
|
Feature |
Description |
|
Dimensions (mm) (w * d * h) |
272mm*166mm*42mm |
|
Power supply |
Ac input: 100vac~240vac, 47~63hz |
|
User-side interface |
4 rj45-based fe/ge electrical ports |
|
Line side interface |
2 sfp-based fe/ge optical ports |
|
Working environment |
Operating temperature: -10°°c to 55°°c |
|
Installation method |
Multiple installation methods such as desktop, wall-mounted, and cabinet-mounted |
|
Typical power consumption |
15w |
|
Indicator |
Description |
|
Function |
Full/half-duplex adaptive; Support power-off monitoring and reporting function. |
