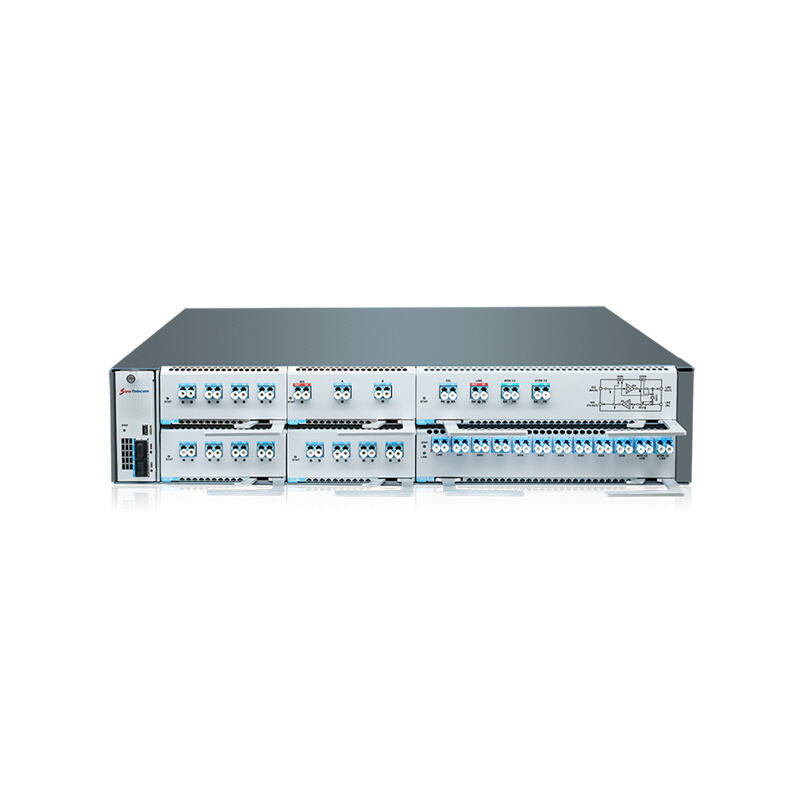

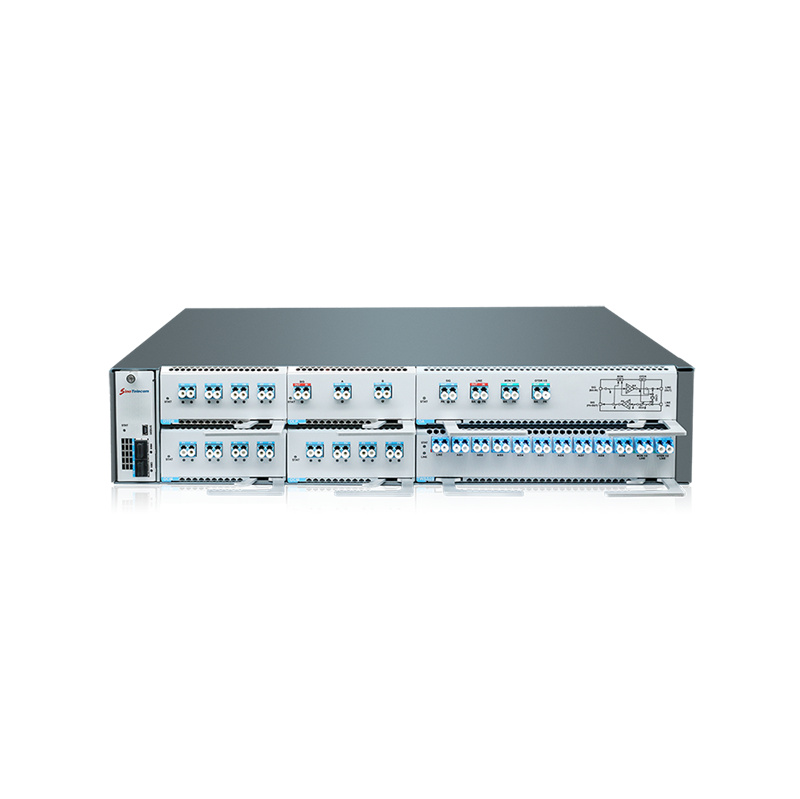

STN6800-D16-2U is a 200G/400G/800G stackable wavelength division transmission platform from Sino-Telecom, featuring ultra-large transmission capacity, compact size, low power consumption, and convenient operation and maintenance. It provides highly scalable, reliable, and secure connections, and can be widely applied to data center interconnection and transmission in new metropolitan area networks.
The STN6800-D16-2U device, based on an open software architecture, provides various open interfaces, facilitating integration into third-party integrated network management systems.
STN6800-D16-2U adopts the NMS network management system. Based on the B/S architecture, NMS employs a multi-process and modular design, enabling unified management of the networking and configuration of Xinnuo intelligent optical transmission equipment.

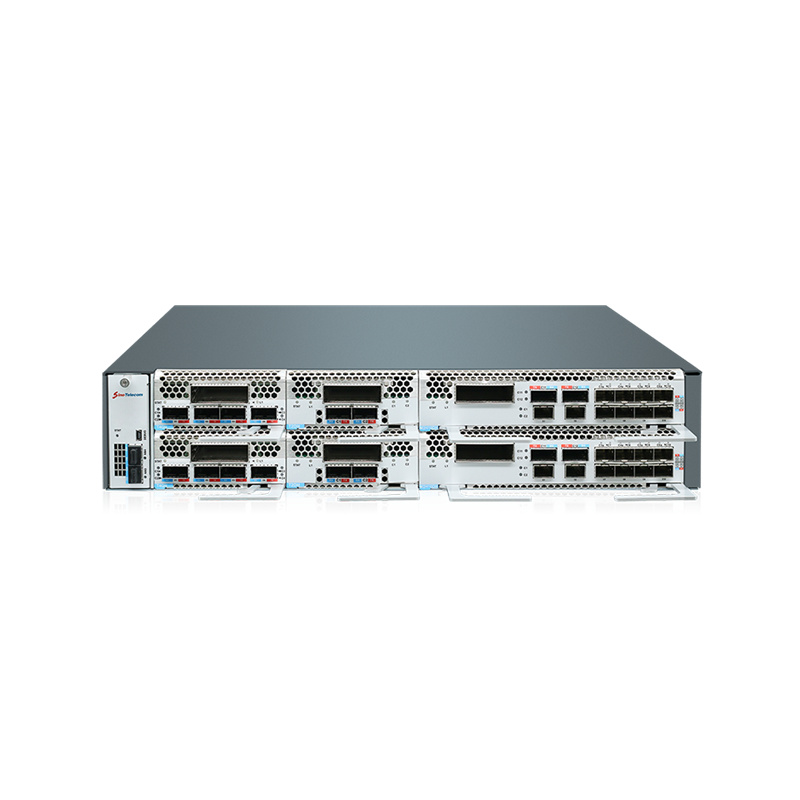

STN6800-D16-2U is an 8-slot, 2U shelf that can accommodate STN6800-D16 series wavelength conversion boards and aggregation boards, supporting up to 8 pluggable STN6800-D16 series cards. This platform is capable of transmitting multiple services and provides a maximum capacity of 6.4T.
The STN6800-D16-2U device primarily consists of a frame, fans, power supplies, and individual boards;
STN6800-D16-2U has a height of 2U, fits into a standard 19-inch cabinet, and complies with the specifications outlined in IEC297;

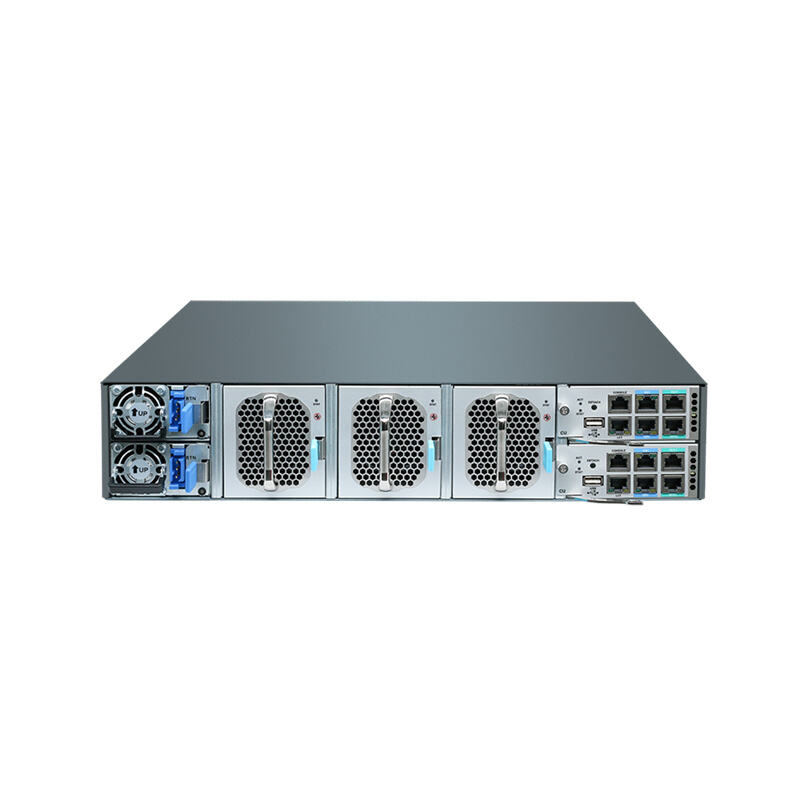

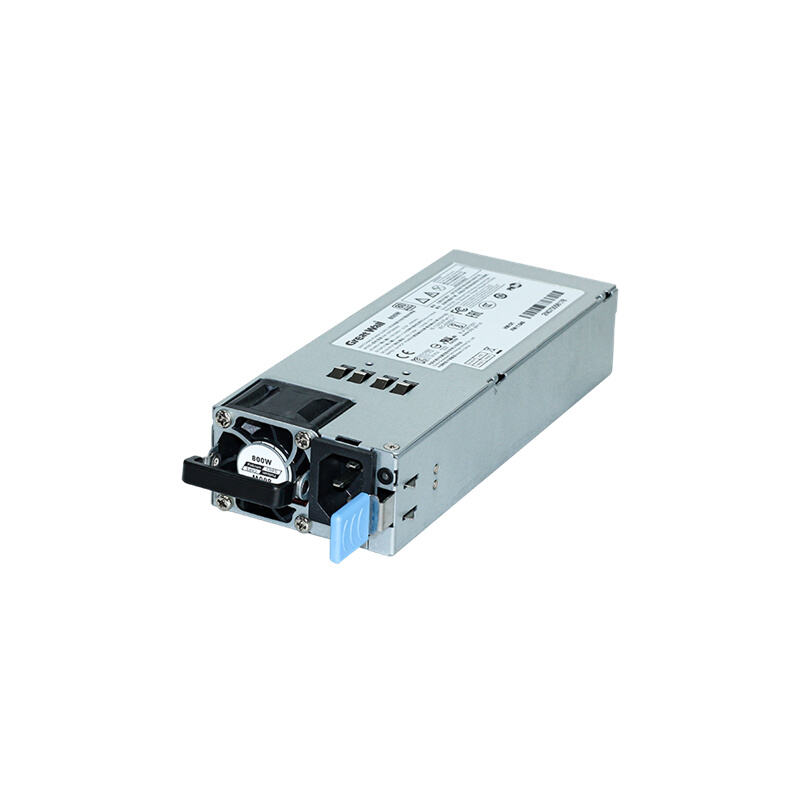

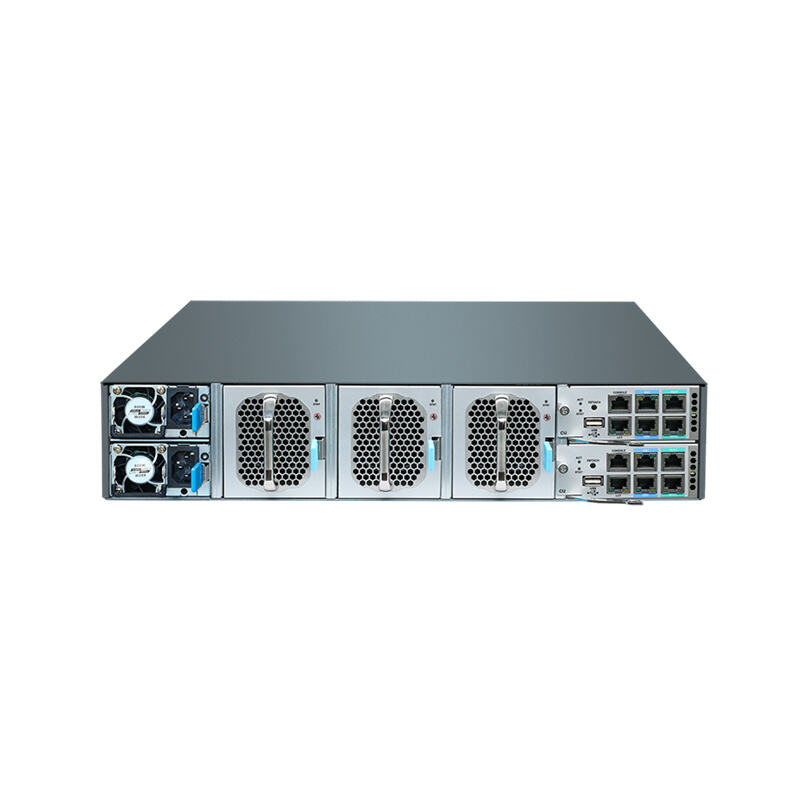

The STN6800-D16-2U device supports power supply from DC-48V, AC, and high-voltage DC sources, and features dual power redundancy backup;
The STN6800-D16-2U device utilizes plug-in smart fans, supports dual-fan redundancy backup, and employs a front-in and rear-out airflow for heat dissipation.
|
feature |
description |
|
chassis |
2U height |
|
power supply |
1+1 power backup AC input: 100~240V, 47~63Hz DC input: -40V to -72V 240VHDC input: 180~300VHDC |
|
heat dissipation |
Front air in, rear air out |
|
working environment |
Operating temperature: -10°°C to 45°°C Storage temperature: -40°°C to 70°°C Relative humidity: 10% to 90%, non-condensing |
|
Maximum Power Consumption |
700W |
|
Management interface |
RJ45, SFP optical interfaces |
|
management |
Supports open interfaces such as SNMP/NETCONF |
|
In-band management |
OSC |
|
indicator |
description |
|
Hardware slot |
8 channels |
|
Maximum transmission capacity |
6.4T |
|
Support business type |
Supports Ethernet services such as FE, GE, 10GE (LAN/WAN), 40GE, 100GE, 400GE, etc; Supports SDH services such as STM-1, STM-4, STM-16, and STM-64; Supports SONET services such as OC-3, OC-12, and OC-48; Support OTN services such as OTU2, OTU2e, and OTU4; Supports SAN services such as 8G, 16G, 32G, etc; Support 100G flexE service; |
Point-to-point application
Typical application scenarios
