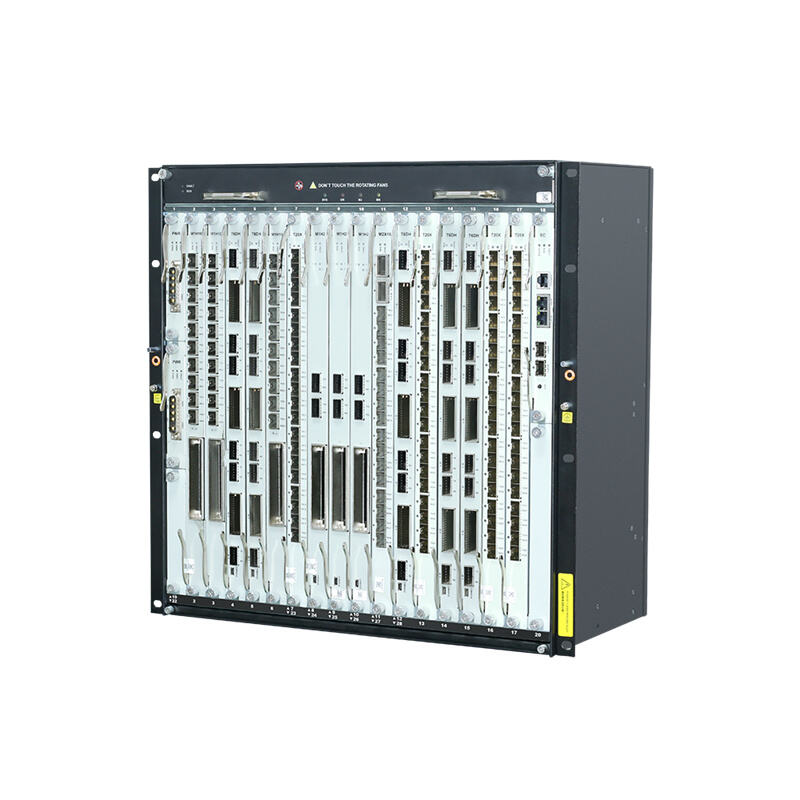

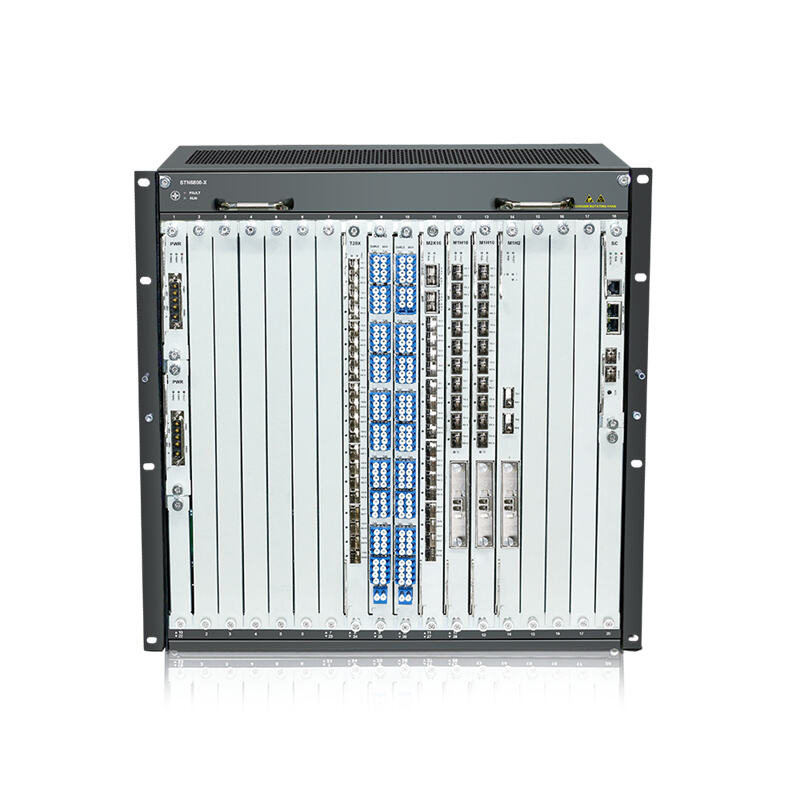

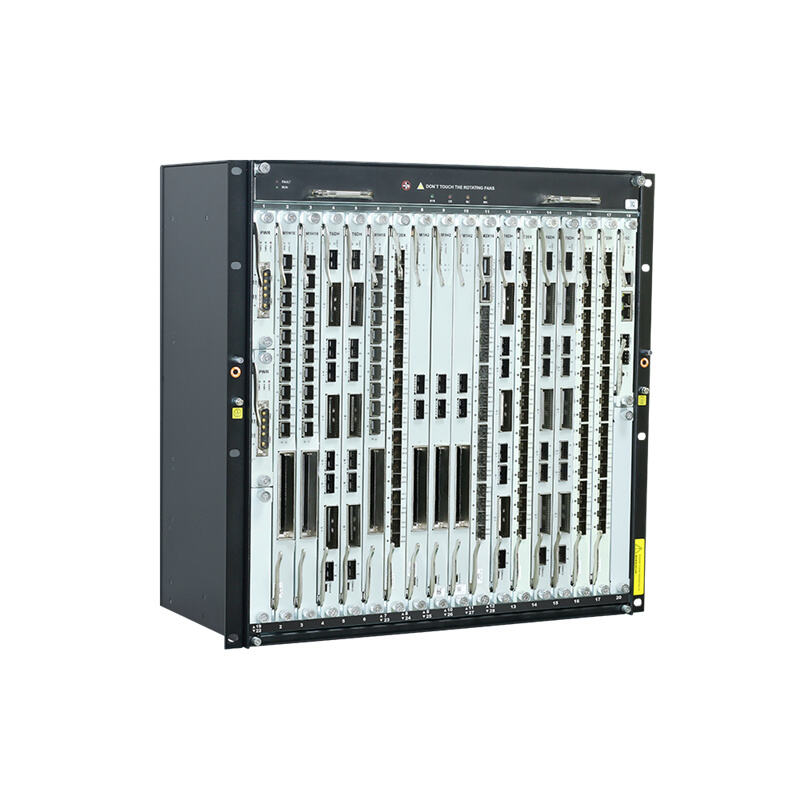

STN6800-X is a 10G/100G/200G high-capacity OTN transmission system that is primarily used for interconnection transmission in backbone networks, metro networks, and data centers. It supports high-capacity OTN scheduling capabilities and integrates various features such as OADM, power crossover, multi-service particle scheduling, and 10G/100G/200G transmission. The system also offers rich management and protection functions, allowing operators to build end-to-end OTN/WDM backbone transmission solutions, achieve high-capacity scheduling, and enable ultra-wideband intelligent transmission.
STN6800-X is a 10G/100G/200G high-capacity OTN transmission system that is primarily used for interconnection transmission in backbone networks, metro networks, and data centers. It supports high-capacity OTN scheduling capabilities and integrates various features such as OADM, power crossover, multi-service particle scheduling, and 10G/100G/200G transmission. The system also offers rich management and protection functions, allowing operators to build end-to-end OTN/WDM backbone transmission solutions, achieve high-capacity scheduling, and enable ultra-wideband intelligent transmission.
|
Characteristic |
Description |
|
Dimension(W*D*H) |
446mm x 463mm x 243mm |
|
Slots |
16 full height service slots, or 4-12 half height service slots and 10-14 full height service slots, 2 main control slots for 1+1 backup, 2 power slots for 1+1 backup,and 1 system interface slot |
|
Line Side Interface |
OTU2/2e,OTU4,OTUC2 |
|
Client Side Interface |
GE/FE,10GE LAN/WAN,40GE,100GE STM-1/4/16/64,OC-3/12/48/192 OTU2,OTU2e,OTU3,OTU4 |
|
Power Supply |
Dual DC -40V～-72V |
|
Power Consumption |
Max. 2500W |
|
Working Environment |
Working temperature: 0 ℃~40 ℃ Memory storage temperature: -40 ℃ ~ 70 ℃ Relative humidity: 10%~90%, no condensation |
|
Type Description |
|
|
OTN Cards |
|
|
Optical Cards |
|

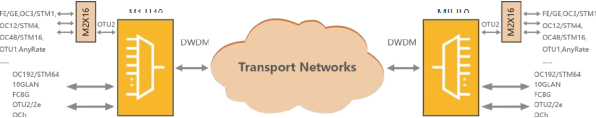

Point-to-point

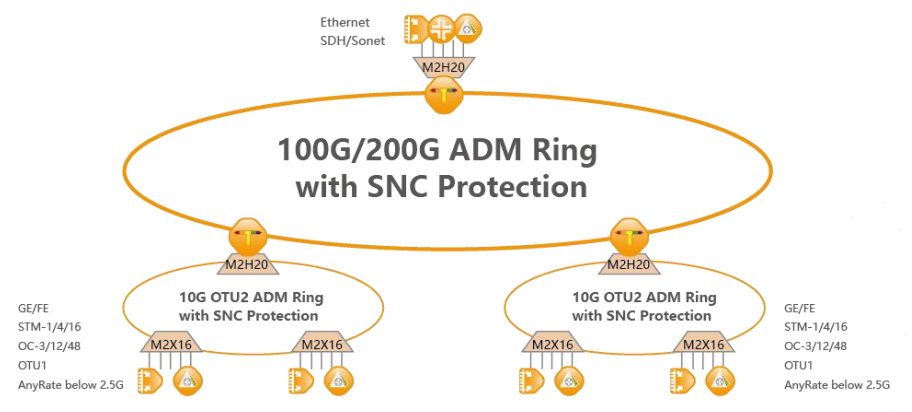

Ring Network Protection
