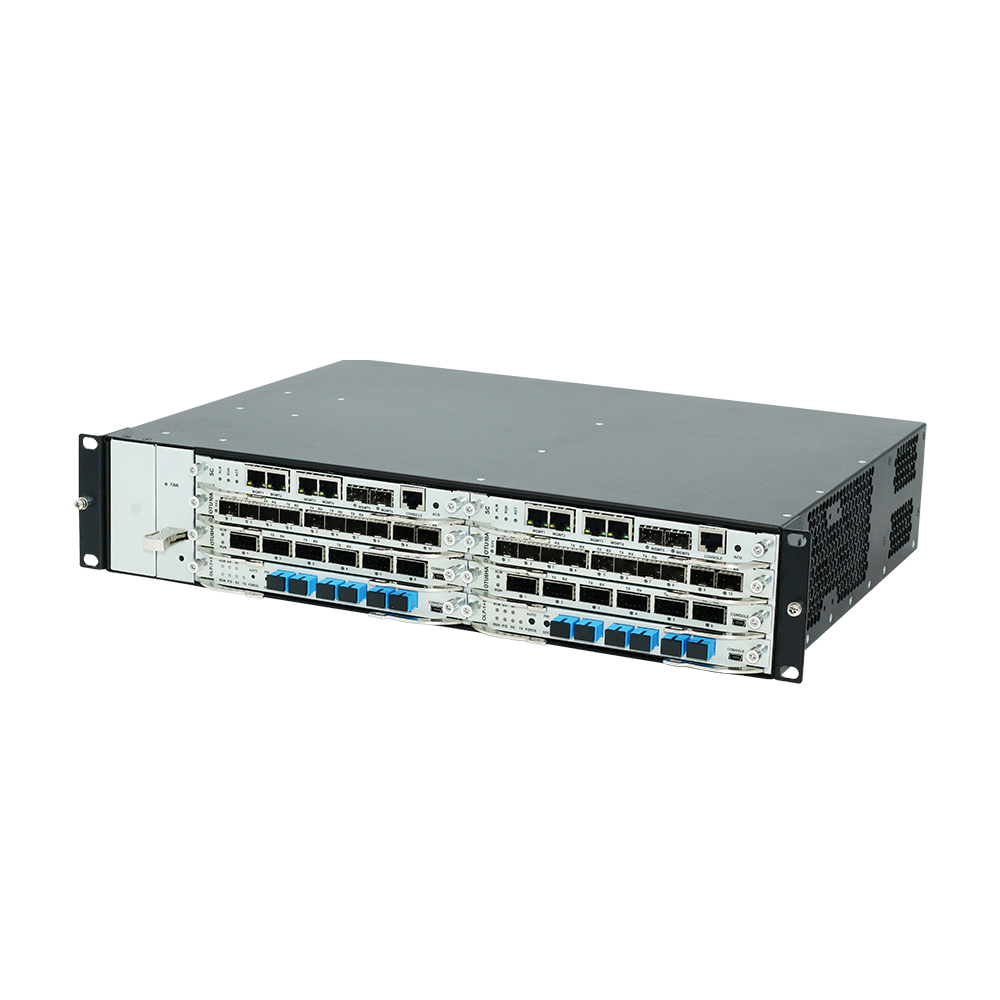

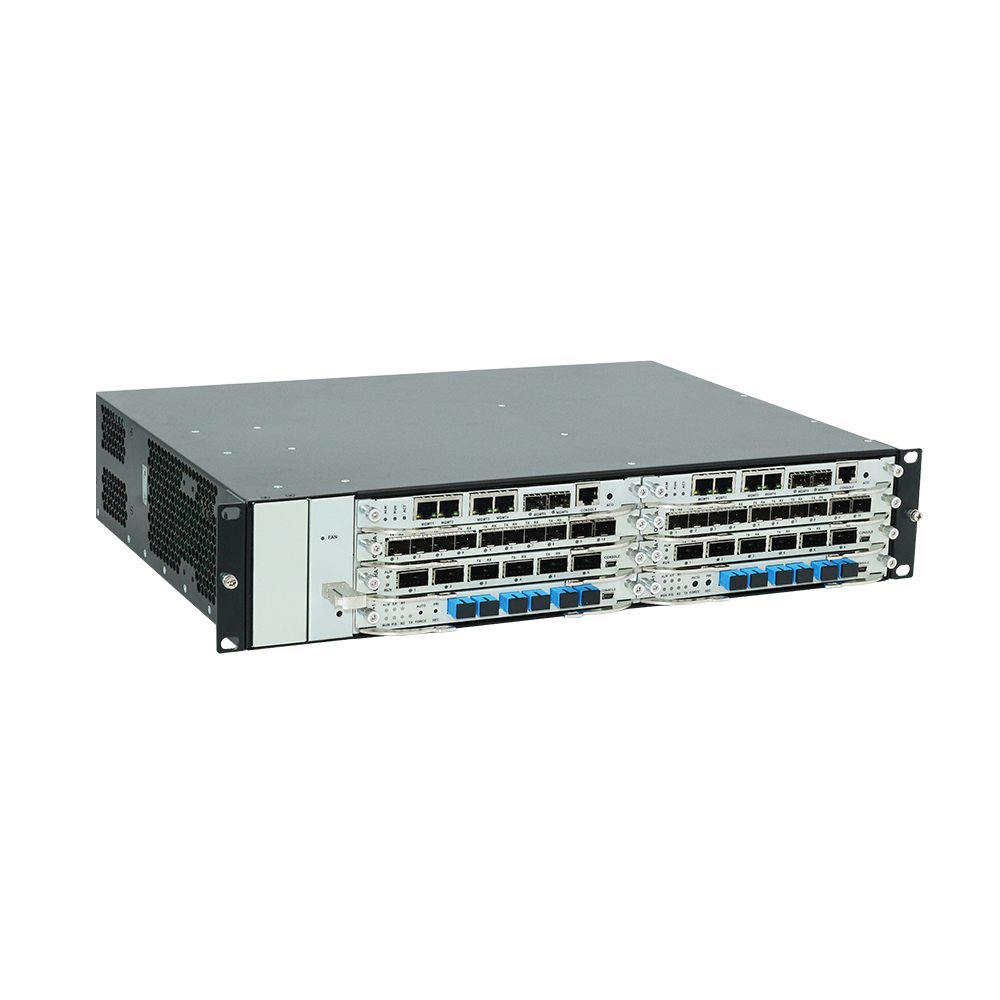

STN6200-II serial s mainly used in network access layer and aggregation layer. It supports multi kinds of sub cards used in service access. STN6200-II is specialized in PON channel aggregation & distance extend and optical transmission & optical protection service; it supports optical fiber sensing, optical crossing monitoring and optical fiber monitoring.

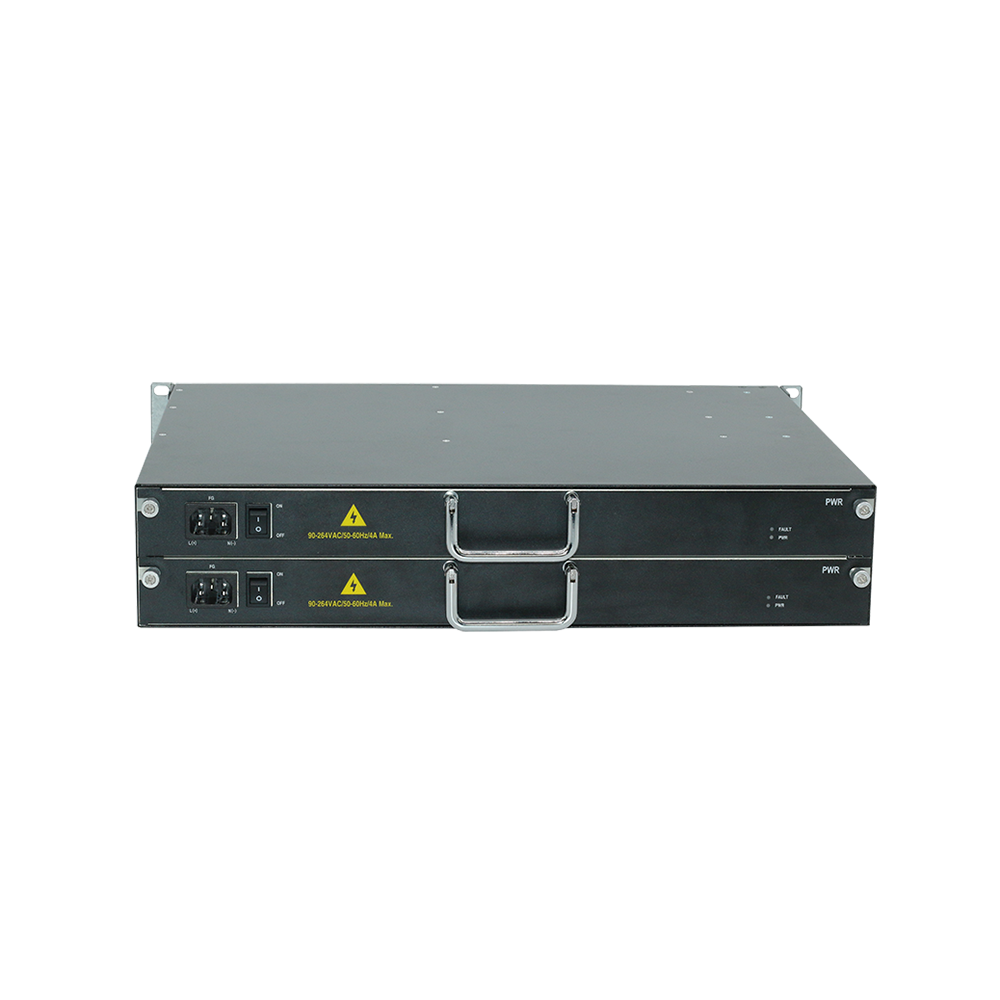

STN6200-II platform supports 1+1 dual power backup (AC220V/DC48V mixed application), 1+1 SC board card backup and service sub card hot swap. It supports in-band remote management by the Sino-telecom's network management system NMS3000. NMS3000 has powerful management ability and friendly operation interface, supports fast service configuration and opening. It's easy for equipment maintain and management.
|
Product Parameter |
STN6200-II-DC |
STN6200-II-AC |
|
Device Dimensions (mm) |
88(H)*444(W)*225(D) |
88(H)*444(W)*325(D) |
|
Power Supply |
DC -48/-60V |
AC 110~240V or DC -48/-60V |
|
Installation Method |
19-inch cabinet |
|
|
Maximum Wavelength |
48 |
|
|
Service Slot |
8 |
|
|
Single-channel Maximum Rate |
100Gbit/s |
|
|
Optical Fiber Interface |
LC/UPC, SC/UPC |
|
|
Transmission Fiber |
G.652, G.653, G.655 |
|
|
Protection Mode |
Device level protection: 1+1 SC card backup; 1 + 1 power card backup |
|
|
Transmission Technology |
DWDM(G.694.1), CWDM(G.694.2) 1.25G, 2.5G, 8G, 10G, 40G, 100G line rate Amplifier: EDFA, SOA |
|
