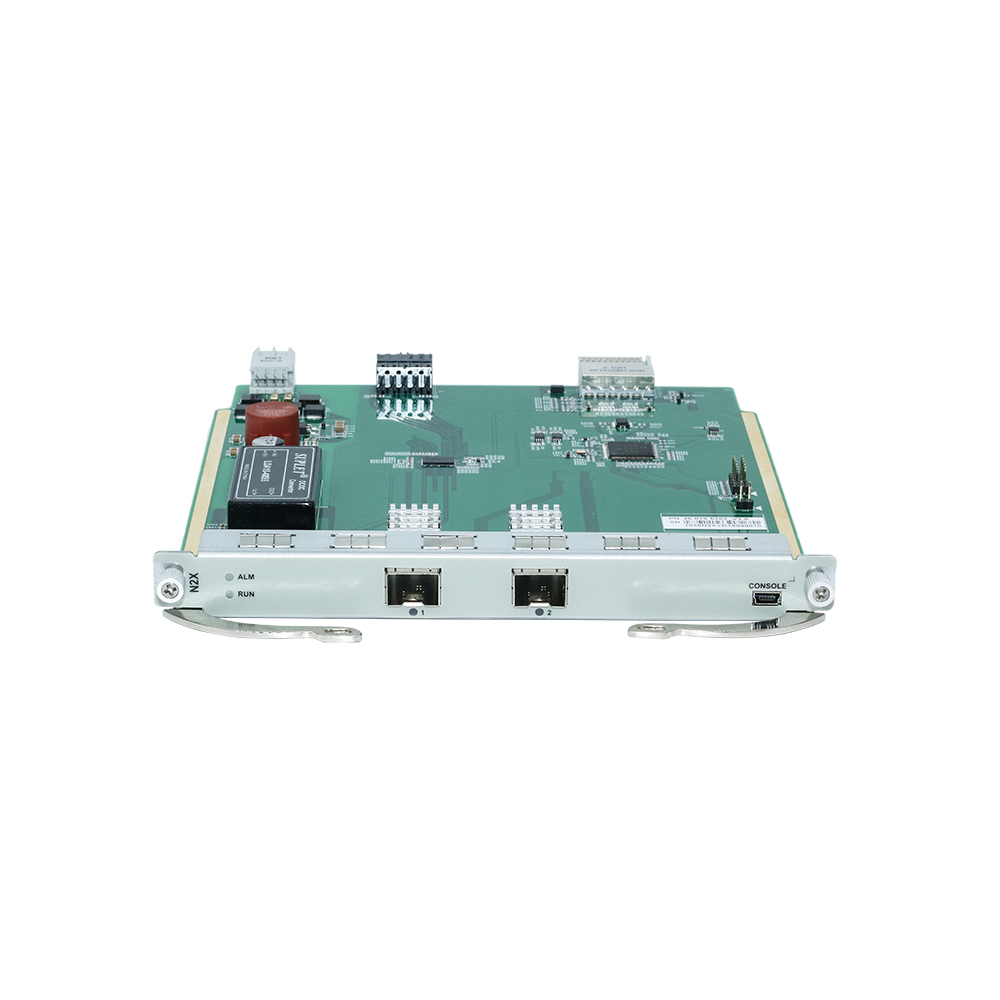

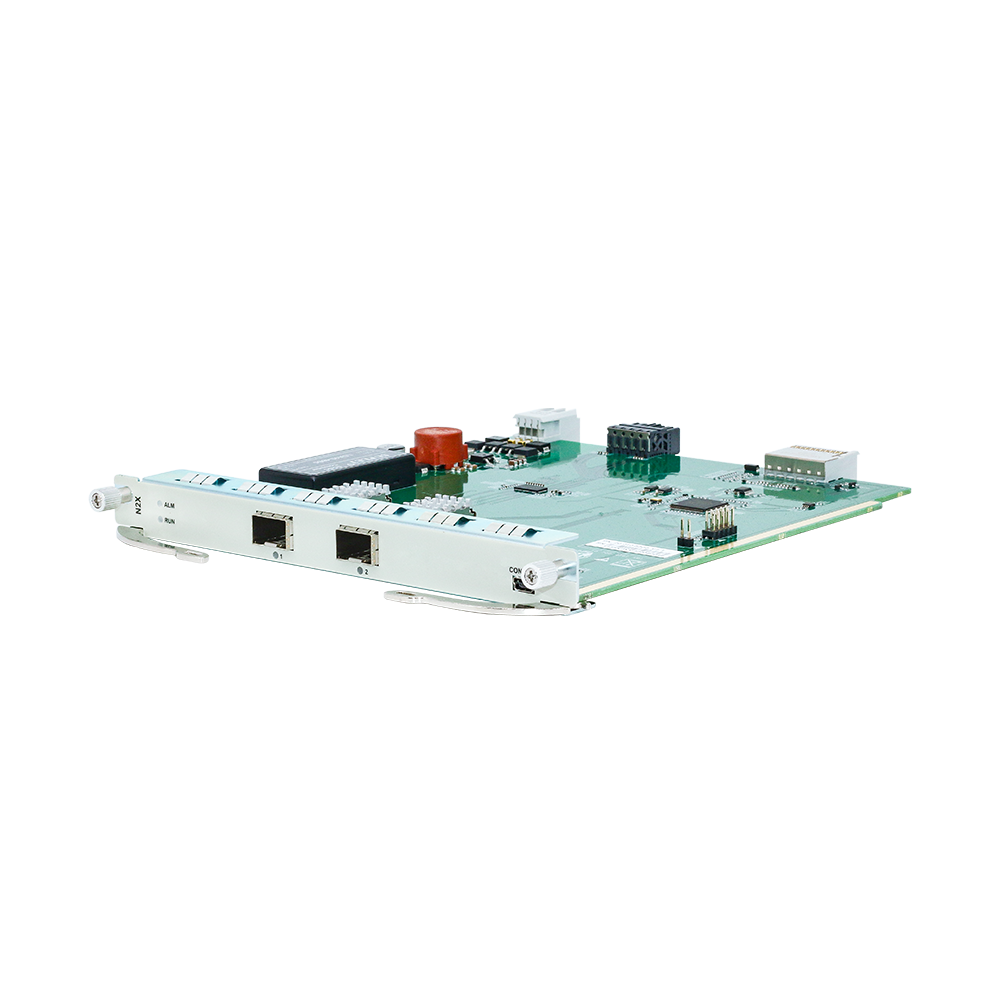

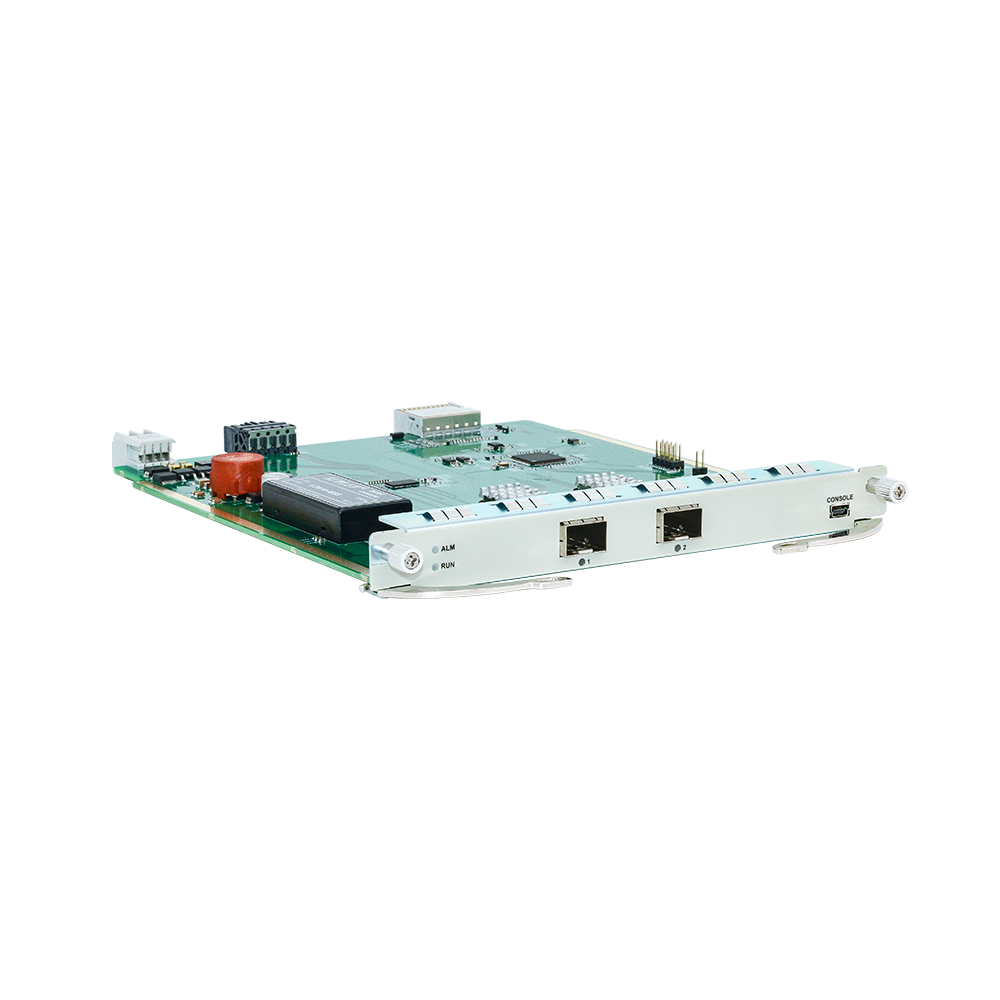

NCU2X is an OTN uplink card for the STN6200-CU5 platform from Sino Telecom.
The OTN uplink board NCU2X adopts industry-leading chip technology and fully supports relevant domestic and international standards.
The OTN uplink board NCU2X supports 2-port OTU2/OTU2e line-side interfaces, suitable for optical transmission network applications in metropolitan access and metropolitan aggregation.
NCU2X is an OTN uplink card for the STN6200-CU5 platform from Sino Telecom.
The OTN uplink board NCU2X adopts industry-leading chip technology and fully supports relevant domestic and international standards.
The OTN uplink board NCU2X supports 2-port OTU2/OTU2e line-side interfaces, suitable for optical transmission network applications in metropolitan access and metropolitan aggregation.
|
feature |
description |
|
Panel size (mm) (W*D*H) |
186mm*215mm*20mm |
|
Line side interface |
2 OTU2/OTU2e based on SFP/ |
|
working environment |
Operating temperature: -5°C to 50°C Storage temperature: -40°C to 70°C Relative humidity: 5% to 95%, non-condensing |
|
Typical power consumption |
30W |
|
indicator |
description |
|
System-side signal and multiplexing structure |
OTU2<->ODU2<->OSU; OTU2<->ODU2<->ODU0<->OSU; OTU2<->ODU2<->ODUflex<->OSU; OTU2<->ODU2<->fgODUflex; OTU2<->ODU2<->ODU0<->fgODUflex; OTU2<->ODU2<->ODUflex<->fgODUflex; OTU2<->ODU2 <-> ODU2<-> ODU0 <-> STM-4; OTU2<->ODU2 <-> ODU2<-> ODU1 <-> STM-16; OTU2<->ODU2<->ODU0 or ODU1 or ODUflex or mixed ODU0/ODU1/ODUflex ; OTU2/2e <->ODU2/2e; |
|
In-band management |
GCC0 on OTU2/OTU2e |
|
|
GCC1 or GCC2 or GCC1/2 on ODU2/2e |
|
Transmission protection |
SNC/N for ODU/OSU/fgODUflex SNC/I for ODU/OSU/fgODUflex SNC/S for ODU/OSU/fgODUflex |
