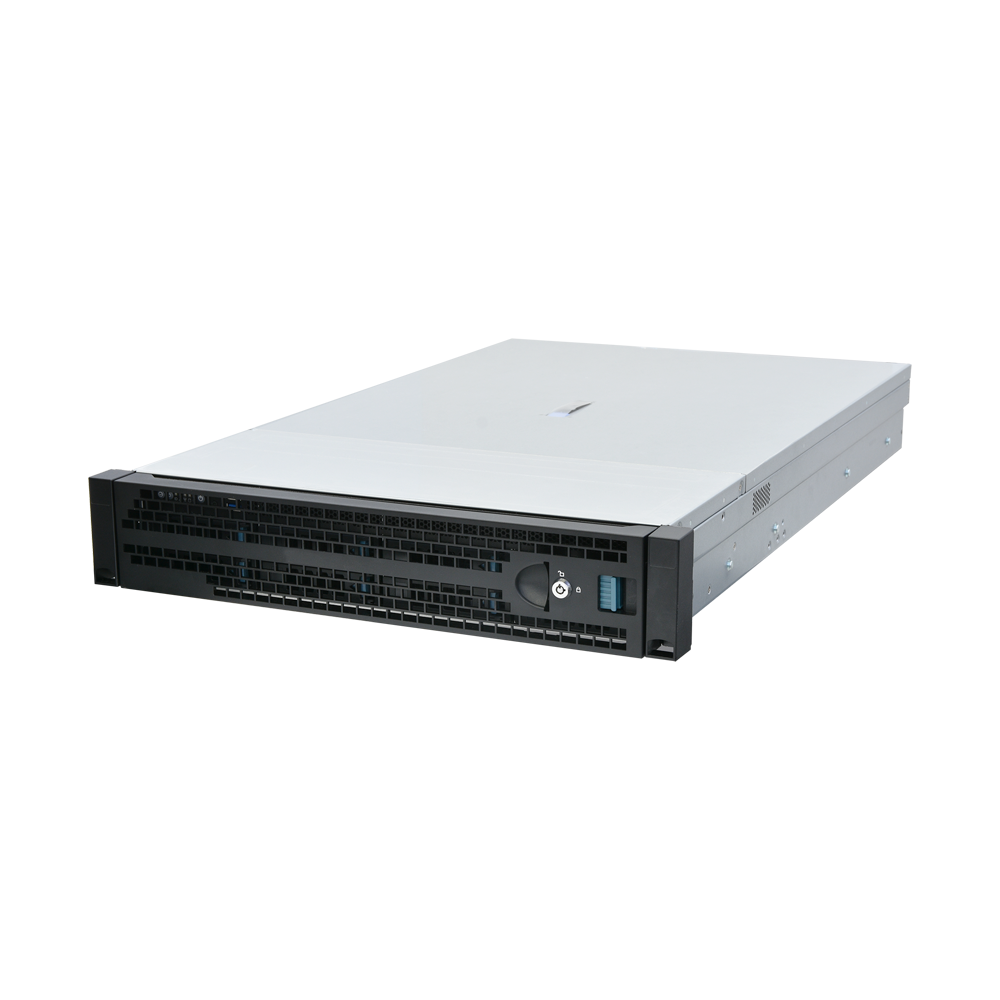

The MS8200-M is a 2U rackmount server supporting two Kunpeng 920-Max or 920-Smart modules. It features rich I/O expansion, flexible configuration, and fully leverages the computing performance of the Kunpeng modules. It supports various inference cards and is suitable for cloud computing, general-purpose computing, AI inference, network security, and other application scenarios.
The MS8200-M is a 2U rackmount server supporting two Kunpeng 920-Max or 920-Smart modules. It features rich I/O expansion, flexible configuration, and fully leverages the computing performance of the Kunpeng modules. It supports various inference cards and is suitable for cloud computing, general-purpose computing, AI inference, network security, and other application scenarios.
Powerful Performance
Rich I/O & Flexible Expansion
Stable and Reliable
|
Parameter |
Specification |
|
Model Type |
General-purpose computing server, Rackmount |
|
Form Factor |
2U, Width: 436mm, Height: 87mm, Depth: 660mm |
|
Processor |
Supports 2 x Kunpeng 920-Max or 920-Smart modules, TDP 185W |
|
PCIe Expansion |
6 x standard PCIe slots (Gen4, x16*2, x8*2, x4*2) |
|
Storage Interface |
Supports 8 x 3.5-inch SAS/SATA drive bays |
|
Onboard I/O Interfaces |
One USB2.0*2 header, one USB3.0*1 + USB2.0*1 header |
|
Security / Management |

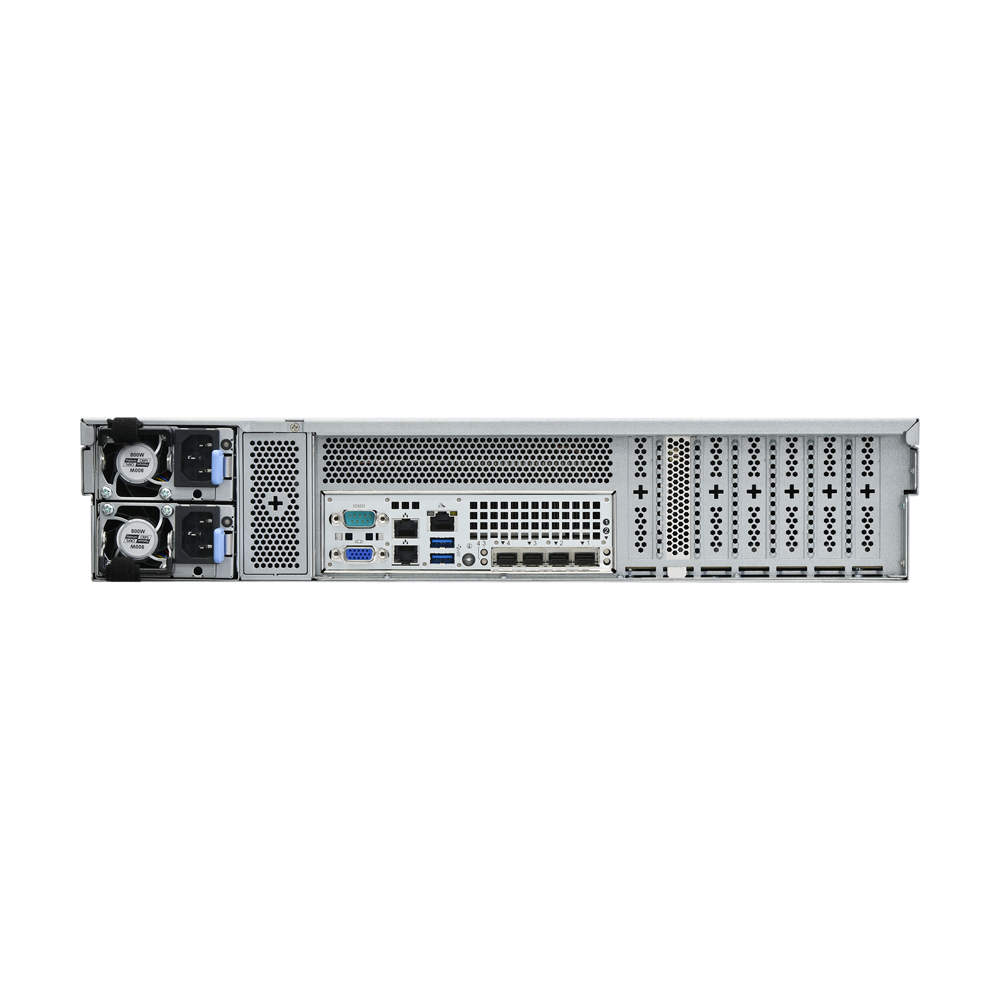

Rear I/O includes 1 x RJ45 1Gbps dedicated management port |
|
Operating Humidity |
8% to 90% RH (non-condensing) |
|
Storage Humidity |
5% to 95% RH (non-condensing) |
