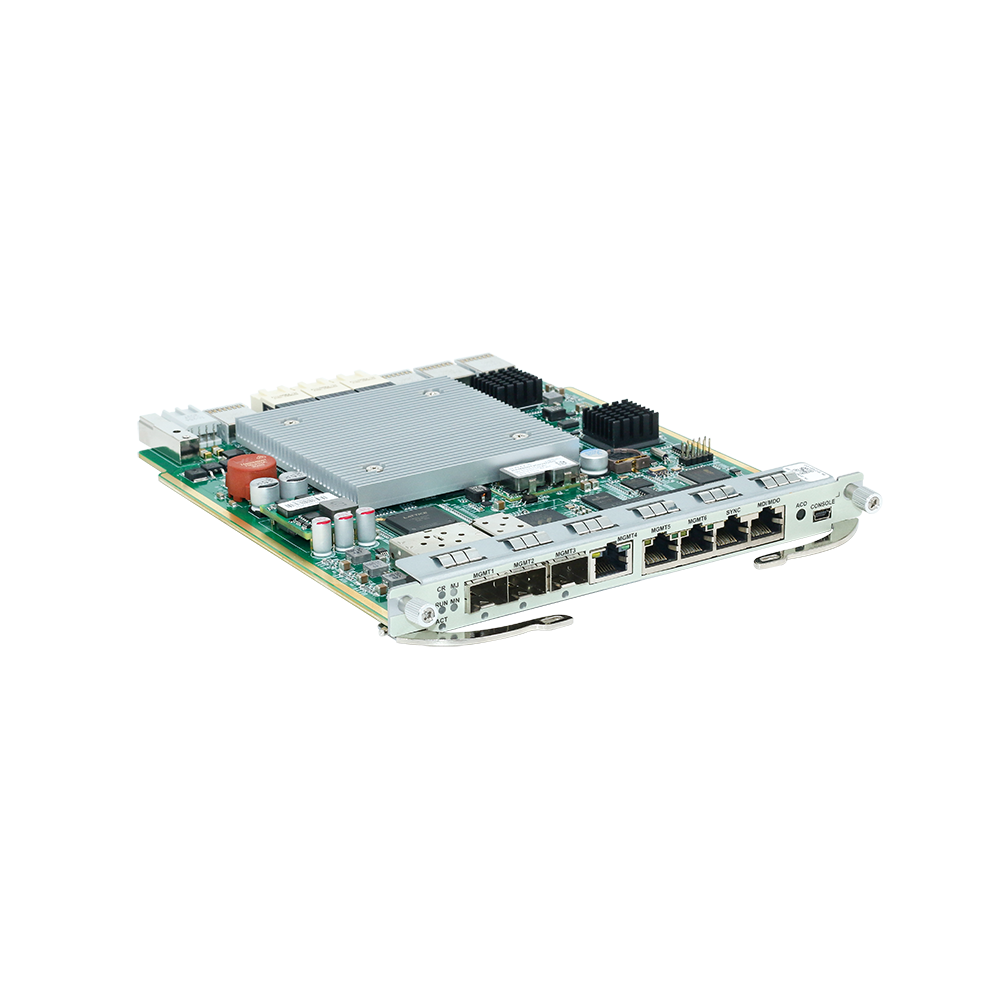

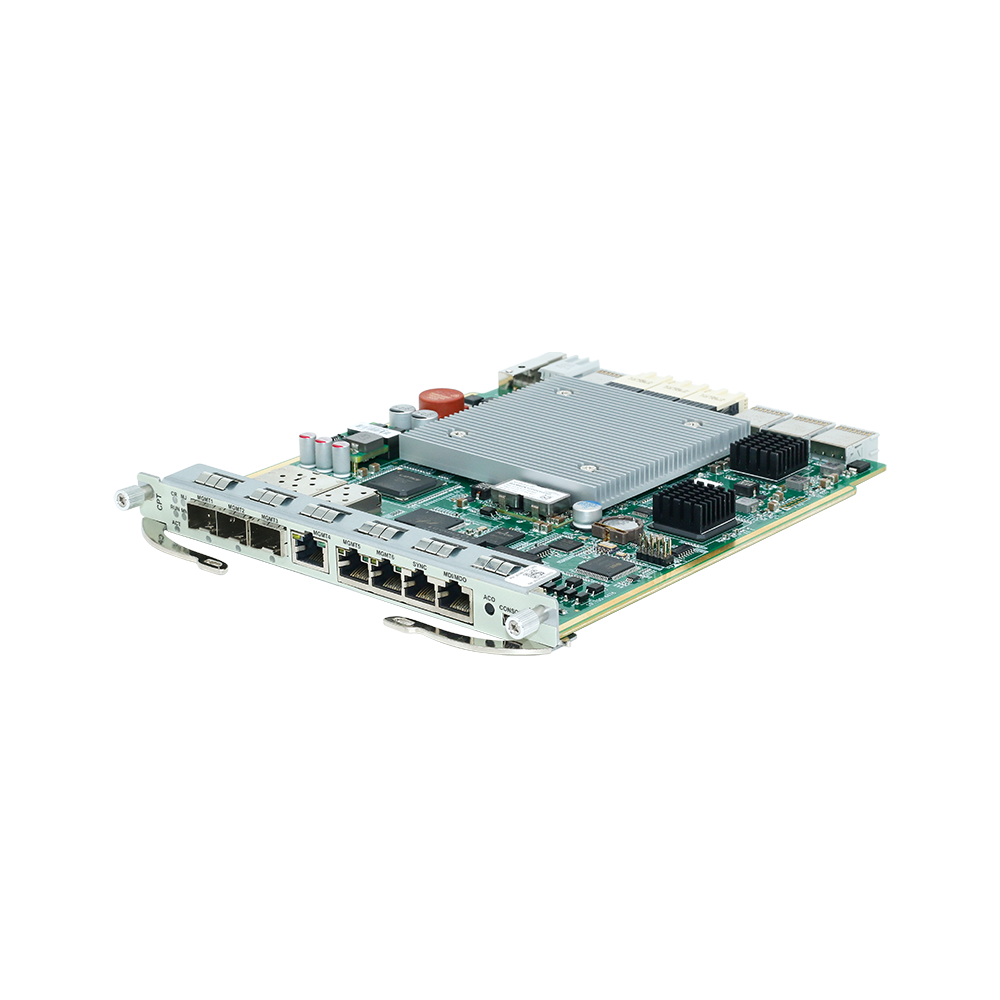

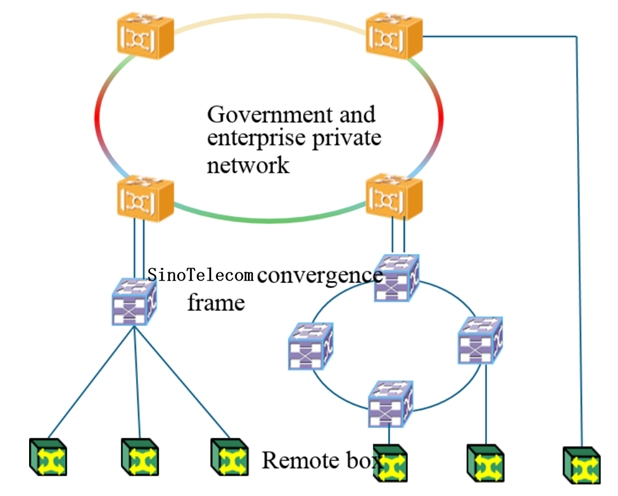

The CPT main control cross-connect board is the core component of STN6200-CU2, integrating functions such as system control, traffic scheduling, clock management, and communication coordination. It achieves flexible scheduling of multiple services through high-order/low-order cross-connect capabilities, and supports redundancy design, multi-protocol processing, and high-capacity bandwidth allocation, ensuring stable operation and efficient transmission of the equipment.
The CPT main control cross-connect board is the core component of STN6200-CU2, integrating functions such as system control, traffic scheduling, clock management, and communication coordination. It achieves flexible scheduling of multiple services through high-order/low-order cross-connect capabilities, and supports redundancy design, multi-protocol processing, and high-capacity bandwidth allocation, ensuring stable operation and efficient transmission of the equipment.
|
feature |
description |
|
Panel size (mm) (width * depth * height) |
186.3mm*197mm*19.8mm |
|
working environment |
Operating temperature: -5°C to 50°C Storage temperature: -40°C to 70°C Relative humidity: 5% to 95%, non-condensing |
|
Typical power consumption |
90W |
|
function |
description |
|
|
Management platform functions |
Construct MCN (Management Communication Network) using IP routing protocol; Provide management signal interoperability function; The management system is responsible for configuration management, fault management, performance management, and security management of devices, and stores management information of the devices; Provide network management monitoring, software debugging, cascading interfaces, as well as log backup and system backup upload interfaces; Supports the detection of ambient temperature and control of system fans, including an intelligent fan interface; Support the in-place detection function of the board cards, which can determine whether each board card in the frame is in place by reading the in-place signals reported by each business board card. |
|
|
Electromechanical management function |
Obtain relevant information such as power consumption, temperature, and voltage of the entire device; Generate operation logs for single board cards: Inspect the records of plugging, unplugging, and power-on, and query the production information of single board cards. |
|
