All-Optical AI Education Network Carrying Solution Based on DCI-BOX

As the "Data-Intelligence Integration" era reshapes the landscape of education, digital infrastructure is undergoing a milestone transition from basic connectivity to high-quality performance. Emerging applications, such as 4K/8K interactive classrooms and cross-campus AI supercomputing collaboration, demand a network that offers massive bandwidth, ultra-low latency, and strict security isolation. Sino-Telecom’s All-Optical AI Education Network Carrying Solution, based on the DCI-BOX platform, is specifically designed to address these core challenges.

Challenges from "Connectivity" to "All-Optical" Quality

Emerging applications such as AI-assisted teaching, cross-campus computing collaboration, and 4K/8K interactive classrooms are significantly increasing network demands:

· Multi-service isolation: Diverse services (teaching, administration, video, exams, etc.) require secure and physically isolated transmission.

· Ultra-high bandwidth: HD video and immersive technologies (VR/AR) are driving rapid traffic growth.

· High reliability: Critical services demand zero interruption and stable low-latency performance.

· Efficient fiber utilization: Limited fiber resources require higher transmission efficiency.

· Simplified O&M: Lean IT teams need intelligent management and fast fault detection.

· Computing resource sharing: Seamless cross-campus resource access is essential.

An intelligent, high-quality all-optical network has become the inevitable foundation for modern education.

Why Choose Sino-Telecom DCI Education Solution

Deep education-sector alignment: Optimized solution for national–provincial–institutional architecture, multi-campus operations, research collaboration, and exam networks
Hard-pipe guaranteed performance: OTN-based hard pipes provide dedicated bandwidth and congestion-free transmission, ensuring high reliability and consistently low latency for mission-critical services.
High capacity & compact deployment: 2U devices delivering up to 6.4T capacity with low power consumption
Intelligent O&M: OSNR monitoring, automated fault diagnosis, and predictive maintenance significantly reduce operational burden
Open and decoupled architecture: SDN support enables multi-vendor management and smooth upgrades to 400G/800G
Robust supply chain: Mature ecosystem with flexible solution combinations, resilient to global uncertainties

Sino-Telecom DCI-BOX All-Optical Education Network Solution

Based on proprietary DCI-BOX WDM technology, access OTN, and FTTx solutions, Sino-Telecom introduces a “three-layer integrated” all-optical DCI solution for the education sector, covering key scenarios such as multi-campus interconnection, disaster recovery, supercomputing collaboration, and local access.

Solution Architecture

The architecture is structured in three coordinated layers. At the core layer, DCI-BOX WDM devices form the backbone network, delivering high-capacity transmission with support for 3.2T/6.4T per device and 48/96-channel DWDM. Building on this foundation, the aggregation and access layer uses access OTN devices to enable flexible service connectivity across campuses and institutions, supporting multiple interfaces such as FE, GE, 10GE, 100GE, and STM-N, while FTTx solutions provide adaptable and scalable campus access. On top of this, the unified management and control layer is implemented through an NMS system, which offers centralized management of topology, configuration, alarms, and performance, supports SDN controller integration, and ensures efficient multi-vendor network management.

Application Scenarios

Scenario 1: High-Speed Multi-Campus Interconnection

DCI-BOX WDM enables all-optical interconnection with 100G/200G/400G over a single fiber pair, ensuring physical isolation, <1 ms latency, and real-time interactive teaching.

Scenario 2: Geo-Redundant Disaster Recovery

OTN hard pipes build a “local + remote” active-active architecture, delivering RPO ≈ 0 and RTO < 30 min with automatic switchover for secure data protection.

Scenario 3: Cross-Region Supercomputing Collaboration

DCI-BOX with RoCE switches enables microsecond latency and zero packet loss, supporting cross-campus GPU scheduling for AI and HPC workloads.

Scenario 4: FTTx Campus Access

GPON/FTTx replaces copper with simplified OLT–ODN–ONT architecture, offering low cost, easy O&M, and seamless integration with the DCI backbone.

Application Case — Municipal Education Network

Project Background

This municipal project aimed to establish a high-performance backbone network connecting educational institutions across 16 districts and counties. The primary requirement was to provide a highly reliable and secure transmission path for critical services, particularly the Examination Specialized Network, which demands strict physical isolation and zero downtime.

Technical Solution

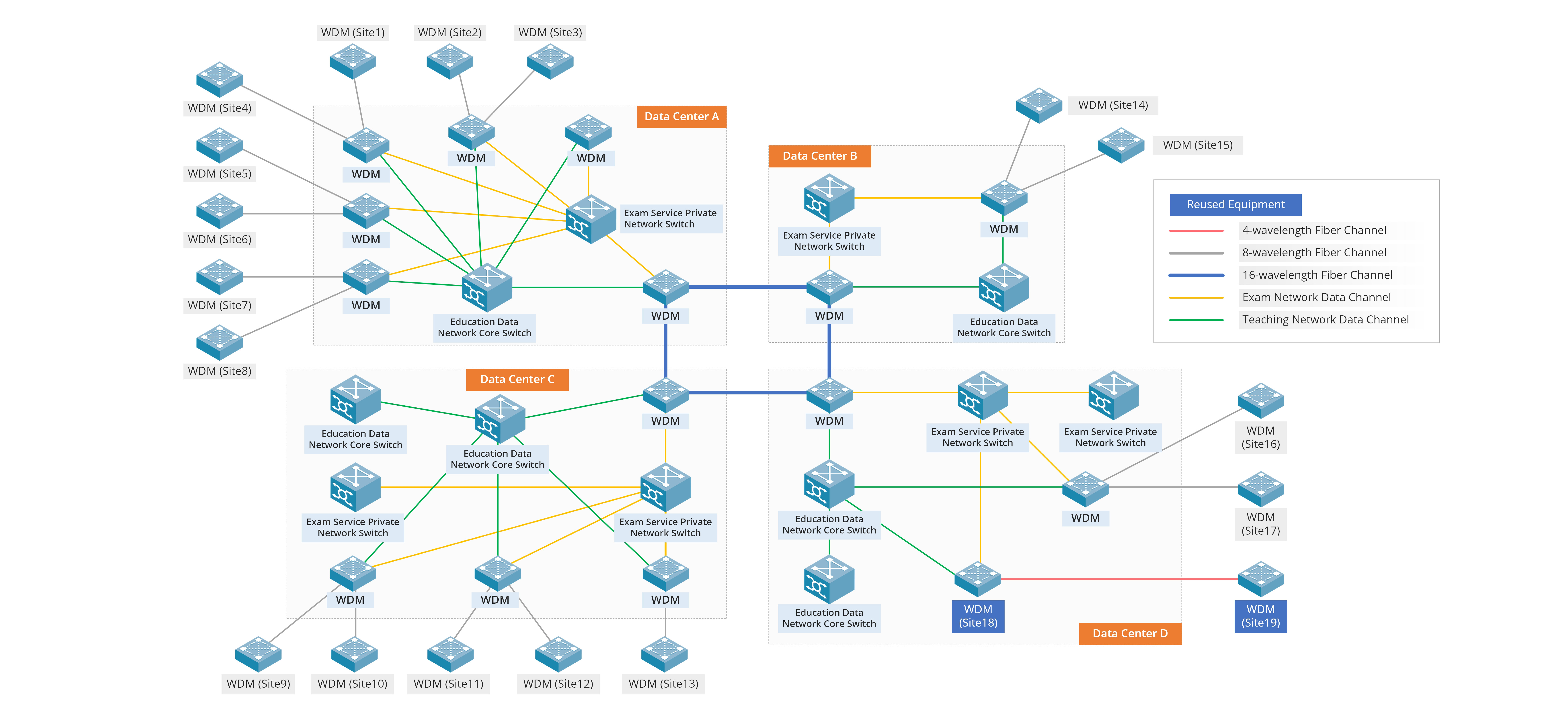

Core Backbone: Sino-Telecom WDM equipment was deployed at four core nodes, establishing a 16-wavelength core ring to serve as the city’s primary transmission artery.
District Aggregation: Connections from district information centers to the core nodes utilize 8-wavelength links.
Hard Pipe Isolation: A single, dedicated wavelength is exclusively allocated to the examination network, achieving true hardware-level isolation from other service traffic.

All-Optical AI Education Network Carrying Solution Based on DCI-BOX.jpg

The implementation successfully achieved complete physical isolation for the specialized examination network, guaranteeing zero communication interference during critical exam periods. Beyond security, the project integrated the entire municipal infrastructure into a unified management platform, which has drastically improved O&M efficiency.

Core Products and Technical Advantages

Product

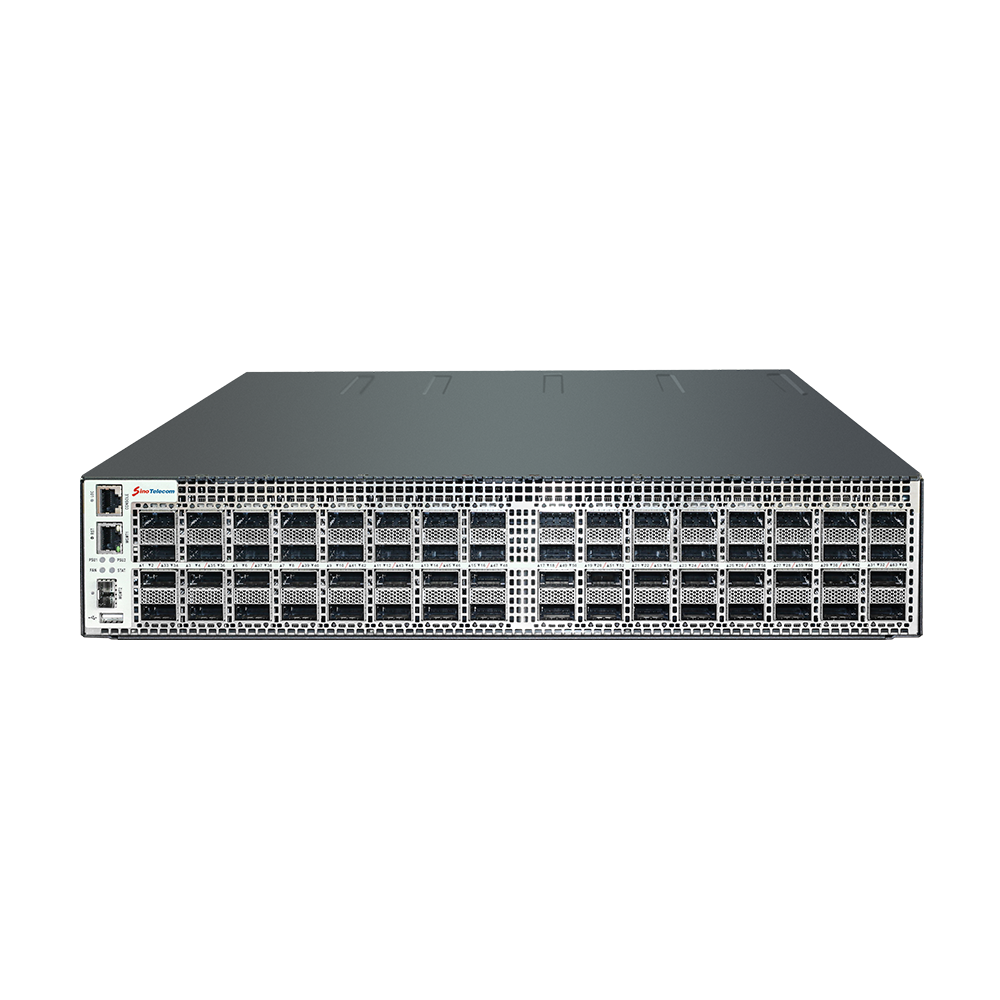

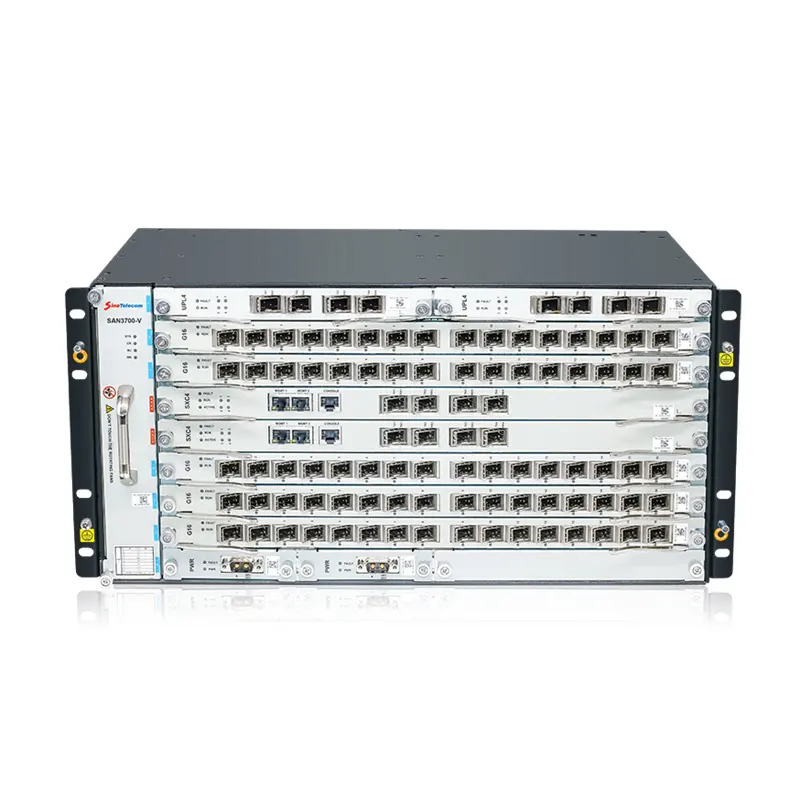

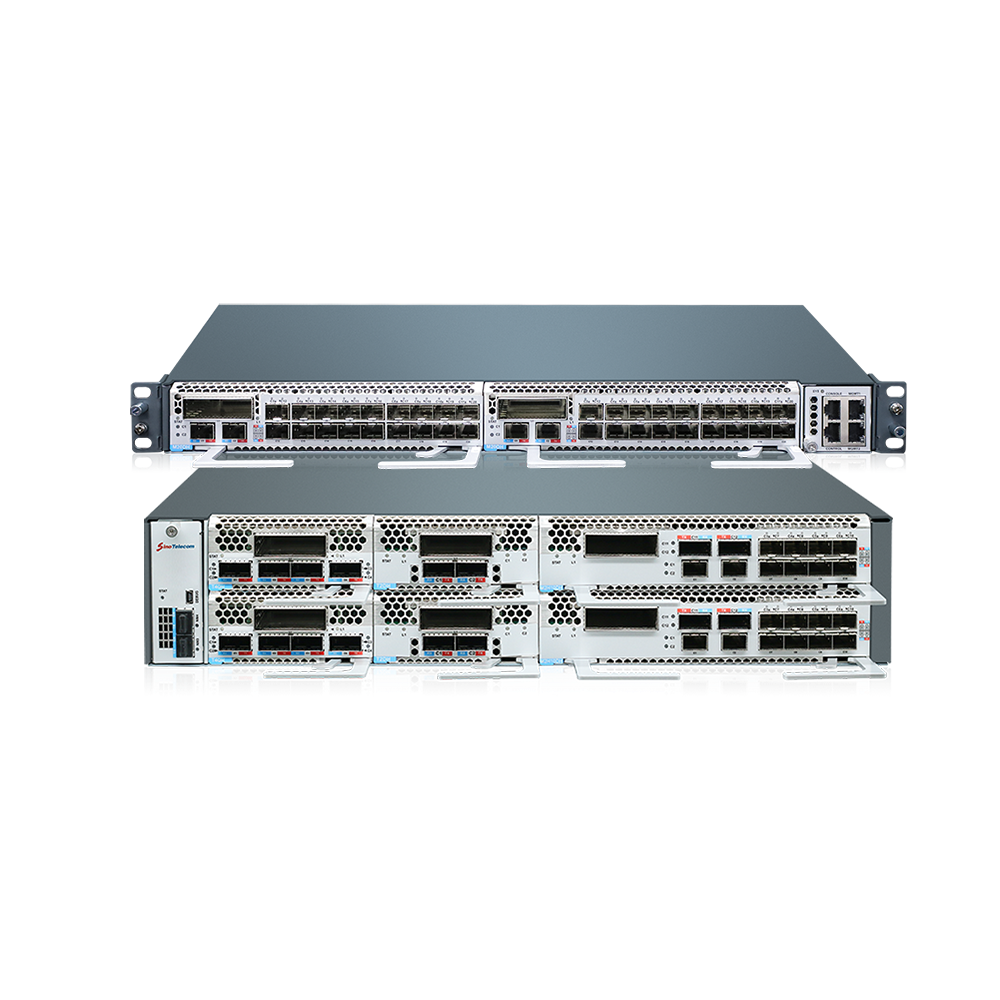

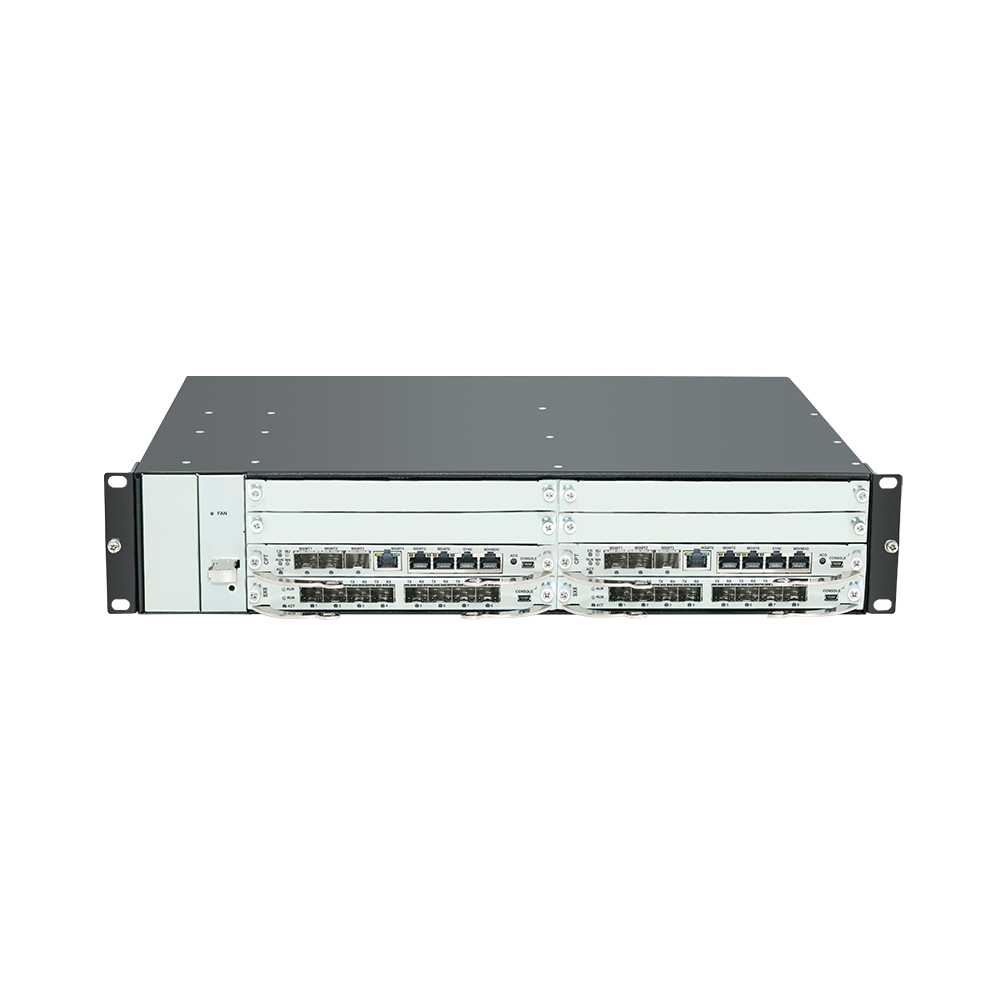

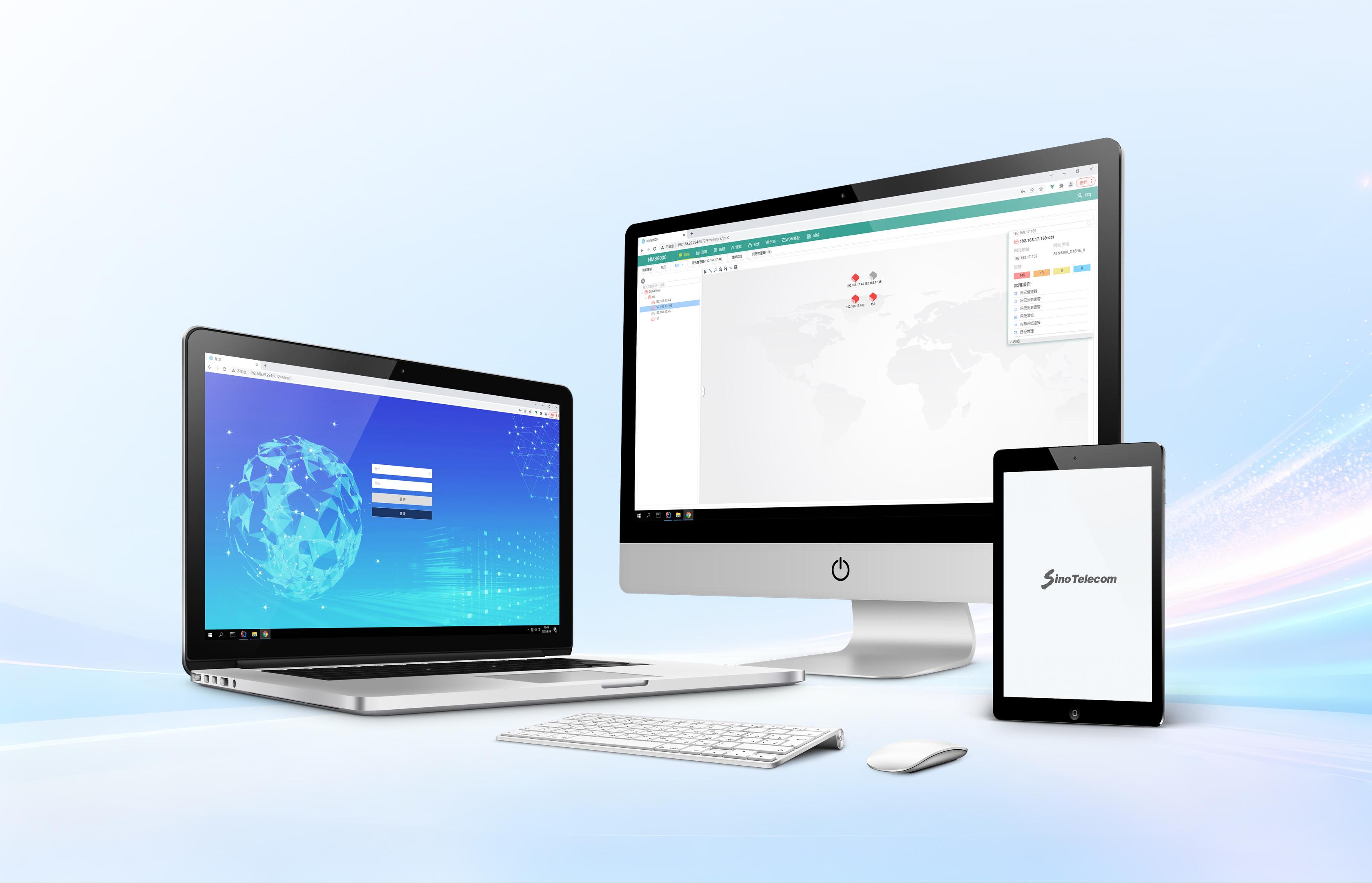

Product	DCI-BOX Platform	Access OTN	RoCE Lossless Computing Switch	FTTx	Intelligent Optical NMS
Features	48/96-channel DWDM 100G/200G/400G per wavelength, total capacity 3.2T/6.4T Supports FE/GE/10GE/100GE /400GE/FC Power consumption <30W/100G Open SDN interfaces	Modular (plug-in/box-type) design Supports FE/GE/STM-1/4/16/64/OTU1/2/E1 Supports ODUk/VC/OSU/fgOTN cross-connect Supports EoS and packet switching	Supports PFC/ECN for lossless networking Zero packet loss, low-latency RDMA 100G/400G ports, nanosecond-level latency RoCEv2 support with end-to-end lossless transmission (with DCI) Open SDN interfaces for orchestration	Fully compliant with ITU-T G.984.x & G.988 GPON standards 8 or 16 PON ports card Each PON port supports up to 128 ONUs L2 Functions L3 Functions SNMP/CLI/NMS Management 1+1 SC and Power Supply Protection	B/S architecture Unified topology, configuration, alarm, and performance management Optical-layer monitoring, OSNR detection, automatic fault diagnosis, degradation warning Multi equipment integration management, unified northbound interface. Efficiency gains
Use case	Backbone interconnection, data center interconnect (DCI)	Flexible campus/institution access, enterprise private lines	AI clusters, HPC, distributed storage, data center fabric	FTTx, Education, Healthcare, Hospitality, Government, Home,Enterprise	End-to-end network O&M
