Empowering Next-Gen AI Networks with Ultra High PerformanceAs AI driven applications rapidly evolve, they are pushing the boundaries of network bandwidthrequirements.
To meet the demands of large-scale cloud and intelligent computing (AI) centers,networks must deliver ultra-high performance, automation, visibility, intelligent analytics, security, and simplified management.
Empowering Next-Gen AI Networks with Ultra High PerformanceAs AI driven applications rapidly evolve, they are pushing the boundaries of network bandwidthrequirements.
To meet the demands of large-scale cloud and intelligent computing (AI) centers,networks must deliver ultra-high performance, automation, visibility, intelligent analytics, security, and simplified management.
The Sino-Telecom SR3864 Series AI Switches are purpose-built for high-performance AI computing environments. Designed with 64 × 400G Ethernet ports in a compact 2U Chassis, the SR3864 delivers exceptional throughput and efficiency --- perfectly aligning with the infrastructure needs of modern AI data centers for high density, energy efficiency, and space optimization.
Supporting both 200G and 400G architectures, the SR3864 is ideal for next-generation Leaf-Spine topologies and three-tier CLOS network designs. It features QSFP112 (Quad Small Form-factor Pluggable 112G) ports, offering backward compatibility for seamless upgrades and investment protection.
|
Model |
Description |
|
SR3864H-DQ-CE |
64 * 400Gbps QSFP112 |
 |
 |
|
Frontside |

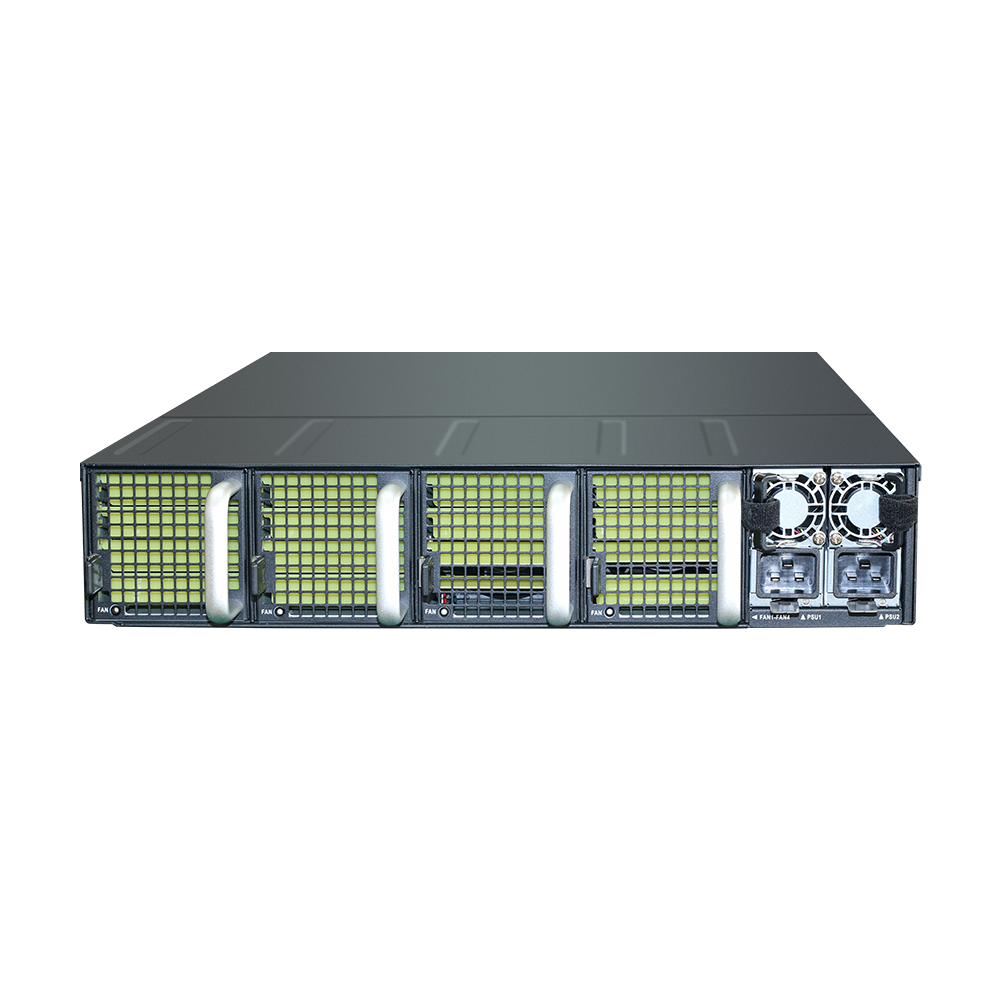

Backside |
Sino-Telecom AI switch provides the following features and benefits:
Built with domestically developed chips, the SR3864 ensures full-stack autonomy from silicon to system, delivering enhanced information security and supply chain assurance for mission- critical industries.
Leverages advanced congestion management and flow control algorithms based on Priority Flow Control (PFC) and Explicit Congestion Notification (ECN). Combined with precise latency monitoring and telemetry, the SR3864 meets the stringent requirements of AI network architectures.
Powered by an in-house developed VCCL collective communication library and proprietary Deep- Routing technology, the switch optimizes parameters for intelligent computing scenarios, boosting collective communication performance by up to 50% during large-scale model training.
Supports high-efficiency packet-based multipath transmission, distributing packets across multiple paths for fine-grained load balancing. Compared to traditional flow-based methods (e.g., ECMP), traffic spraying offers superior network resource utilization and performance under dynamic workloads.
Enables millisecond-level traffic statistics and AI workload analysis via built-in agents that collect real-time traffic data and transmit it to the central management platform. This ensures complete traffic visibility and intelligent traffic regulation across the network.
The first 8 ports of the switch support native ZR/ZR+ optics, enabling seamless long-haul connectivity. This eliminates the need for DCI-layer conversions between optical and electrical domains, significantly reducing cost, complexity, and points of failure in city-scale computing interconnect solutions.
The Venus AI NOC is an integrated network management platform purpose-built for intelligent computing centers. It offers centralized control, automated deployment, real-time monitoring and analytics, and multi-tenant management, delivering a comprehensive and efficient solution for AI data center networks.
|
Physical characteristics |
|
|
Size |
W 500mm * D 700mm * H 88mm |
|
Weight |
21kg |
|
Voltage |
AC 100-220V， HVDC 180-320V |
|
Power module |
3000W, AC/HVDC，Support 1 + 1 redundancy and hot plugging |
|
FAN |
Support 3 + 1 redundancy and hot plugging |
|
Console |
1 port |
|
Management port |
1 * MGMT1 + 1 * MGMT2 |
|
USB |
1 * USB 2.0 |
|
Working environment |
Temperature: 0ºC～40ºC Humidity: 10%RH~90%RH |
|
Interface |
64*400G QSFP / 128*200G QSFP |
|
Business Characteristics |
|
|
Switching capacity |
51.2T(BIDI) |
|
Packet forwarding rate |
10800Mpps |
|
Interface |
Supports 64*400G Q112 interfaces. Supports port splitting. Supports interface statistics. |
|
AI Computing Center Feature |
Support lossless network RoCEv2 Support for PFC, ECN, DCQCN features Support for RDMA Features Supports intelligent recognition of traffic models and dynamically adjusts DCQCN parameters. Support PFC Anti-lock |
|
Management and
Monitoring
|
Support Console/Telnet/SSH/SNMP/SNMP
trap/Mirror/sflow/NTP/FTP/SFTP
Supports Telemetry collection, supports Telemetry channels in Dial-In
and Dial-Out modes, supports multi information collection.
Support Syslog, system log, operation command log
Support for power, fan, interface Up/Down, cache overflow alarms;
Support for port statistics at the millisecond level
Support for ECMP Hash routing view
Supports MOD (Mirror on Drop) functionality, allowing mirrored output
of dropped packets and providing deep insight into packet loss events
and root cause analysis.
Enables histogram-based buffer analysis, offering accurate visibility
into buffer utilization trends and congestion patterns for precise
performance tuning and capacity planning.
Support cache micro-burst detection
Support for managing files through CLI, SNMP v1/v2c/v3, RMON,
Console, Telnet, SSH, etc.
|
|
L2
|
LLDP、VLAN
|
|
L3
|
Supports ARP, interface MAC offset, static ARP, ping, trace, ACL, UDF,
multicast, policy routing
|
|
Routing protocol
|
OSPF, BGP, static routing
|
|
VRF
|
vrf member ports support physical interfaces, loopback interfaces,
VLAN interfaces, bundle interfaces, support IPv4/IPv6 addresses,
support BGP, OSPF, static routing protocols, support ECMP, ACL
|
|
IPv6
|
Supports ND,PMTU,ping6,trace6,icmpv6,telnet/SSH v6,NTP v6, SNMP
v6,Static routing,ACL,OSPFv3,BGP4+
|
|
Reliability
|
Supports LACP, support ECMP
Supports Link Delay function, which can effectively suppress port flapping
|
|
QoS
|
Support for flow classification, traffic scheduling, traffic rate limiting
and shaping, traffic policing, PFC, and ECN functions
Support traffic statistics based on interface queues, support cache
statistics based on interface PG and queues, support statistics for
PFC and ECN.
|
|
Security feature
|
Supports user hierarchical management and password
protection
HTTPS,SSL
|
|
Product number
|
Product Description
|
|
SR3864H-DQ-CE
|
SR3864H-DQ-CE Switch, 64p 400/200 GbpsQSFP112 ports
|
