10G OTN Muxponder
STN6800-M2X16: 10G OTN Muxponder Card for STN6800 Platform (16 x 1.25G SFP to 2 x 10G XFP)
The client-side port supports access of 16 channels of services at the rate below 2.5G. The typical services include STM-1/4/16 and FE/GE. The line-side port supports 2 channels of OTU2 signals, supports standard FEC and enhanced FEC error correction Function. STN6800-M2X16 is suitable for STN6800 2U/5U /10U chassis.
The M2X16 is a 10G OTN Muxponder board which can realize the multiplexing and demultiplexing functions of 16 channels of services at any rate to OTU2.
The client-side port supports access of 16 channels of services at the rate below 2.5G. The typical services include STM-1/4/16 and FE/GE. The line-side port supports 2 channels of OTU2 signals, supports standard FEC and enhanced FEC error correction Function.
The STN6800-M2X16 service card is suitable for STN6800 2U/ 5U /10U chassis.
● The client-side port supports access of 16 channels of services at the rate below 2.5G. The typical services include STM-1/4/16 and FE/GE.
● The line-side port supports 2 channels of OTU2 signals, which supports standard FEC and enhanced FEC error correction function.
● The board supports cross-connect of OTN services and overhead processing functions.
● The board supports GCC in-band management channel.
● The board supports OTN electrical layer protection function.
|
Item |
Description |
|
Client-side Optical Module |
M2X16 board provides 16 client-side optical transceiver modules, each of which is pluggable packaing module (SFP). optical-electrical conversion function of service signals. and FE/GE service signals. |
|
ODUk Mapping Unit |
Realize the mapping/demapping process of client service electrical signals and ODUk (k=0, 1) signals, and detect and process ODUk overhead. |
|
Service Cross-connect Unit |
Realize the cross-connect function of client service signals. |
|
OTU Framing Unit |
Detect and process the overhead of OTU2 frame, and complete the multiplexing/demultiplexing process of ODUk (k=0, 1) and OTU2 signals. Moreover, realize FEC coding and error correction functions. |
|
Line-Side Optical Module |
M2X16 board provides 2 line-side optical transceiver modules which are with pluggable packaging (XFP), so as to realize the optical-electrical conversion and electrical-optical conversion of OTU2 signals. electrical-optical conversion and output OTU2 optical signals. and output them to OUT framing unit. |

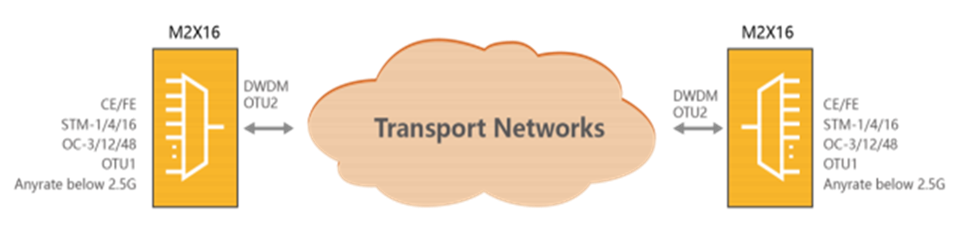

1.Point to Point
2. Two Stages of Multiplexing (together with M1H10)

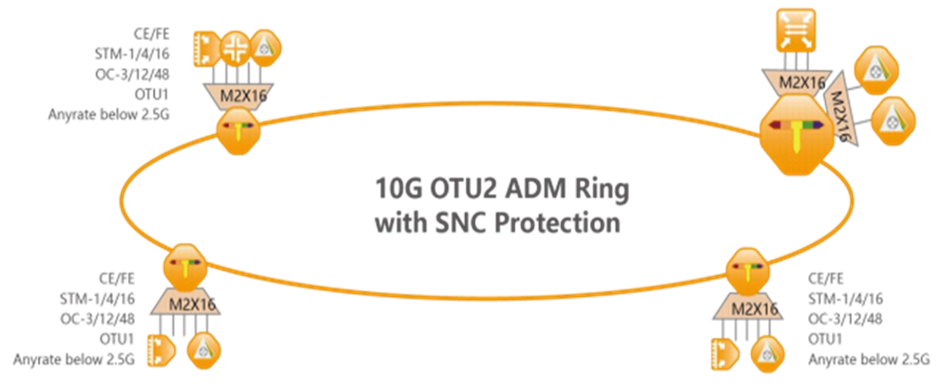

3. 10G Ring Application
