SR3100-24E2G

The SR3100-24E2G is Sino's next-generation green and energy-efficient Gigabit Ethernet switch for enterprise campus networks. Built on next-gen high-performance hardware and Sino's proprietary SROS software platform, it delivers streamlined installation and maintenance, rich Layer 2/3 functionalities, and seamless IPv6 upgrade capabilities for various scenarios including campus aggregation and access. Advanced features like intelligent device stacking, cluster management, and rapid ring protection further enhance network stability, empowering enterprises to build future-ready IT infrastructure for office and production environments.

The product features an advanced hardware architecture design with industry-leading processing power. The 1U rack-mounted switch delivers 8+2 Gbps port density and is equipped with high-performance ASIC switching chips to meet the needs of various complex scenarios.

Supports STP/RSTP/MSTP protocols, along with ring protection, dual uplink primary/backup link protection, LACP link aggregation, and other efficient redundancy mechanisms.

The high reliability design of hardware and software meets the millisecond-level failure recovery time requirements of telecom-grade services, and truly achieves the high reliability of 59s (99.999%) for operational-grade core equipment.

The fully developed two-and three-tier multicast routing protocol supports IPTV, multi-terminal HD video surveillance, and HD video conferencing access.

The comprehensive three-tier routing protocol and large routing table capacity meet the needs of various types of network interconnection, and can be used to build large campus networks, enterprise networks and industry user private networks.

Supports L2-L4 packet filtering and provides flow classification technology. Offers flexible queue scheduling algorithms that can be configured for both ports and queues, supporting multiple mechanisms such as PQ, WFQ, and WRR.

Full support for the IPv6 protocol suite, including IPv6 neighbor discovery, ICMPv6, Path MTU discovery, DHCPv6, and other IPv6 features.

Supports IPv6-based Ping, Traceroute, Telnet, SSH, ACL, and other protocols to meet the needs of pure IPv6 network device management and service control.

Supports IPv6 multicast features such as MLD and MLD Snooping, as well as IPv6 static routing and third-layer routing protocols like RIPng, providing users with comprehensive IPv6 Layer 2 and Layer 3 solutions.

Device-level security: The advanced hardware architecture enables hierarchical packet scheduling and protection, defending against DoS attacks, TCP SYN Flood, UDP Flood, broadcast storms, and high traffic. It also provides command-line access control with tiered permissions.

Comprehensive security authentication mechanism: Supports IEEE 802.1x, MAC authentication, Radius, Tacacs+, and other authentication methods, providing users with a complete security authentication mechanism.

Enhanced security mechanisms: Supports plaintext or MD5 authentication for relevant routing protocols, and uRPF reverse routing lookup technology to effectively control unauthorized traffic. Hardware-level packet deep inspection and filtering technology enables deep detection of control and data packets, effectively isolating malicious data packets and enhancing network system security.

Supports multiple management interfaces including Console, SNMPv1/v2/v3, and a universal network management platform. It provides CLI command-line, Web-based management, TELNET, and SSH access for streamlined device management, with enhanced security through SSH2.0 and SSL encryption.

Supports SPAN mirroring and multiple mirroring observation ports to analyze network traffic for management and maintenance. Provides various network traffic analysis reports to help users optimize network architecture and adjust resource deployment.

Supports 802.3af, 802.3at standard with built-in single power supply, enabling 8-port POE (15W) full-load power supply without external power.

Supports uninterrupted POE power supply during the device's hot restart.

When the power supply is insufficient, you can configure the priority of the power supply port. High-priority ports are powered first to ensure critical services.

The POE port withstands lightning surges up to 2KV, while the power supply can handle surges up to 4KV.

The advanced power system architecture design enables efficient power conversion, unique power monitoring, slow start-up and other functions, real-time monitoring of the running state of the whole machine, intelligent adjustment, and deep energy saving.

Supports AC/DC/HVDC power types for flexible power distribution.

Supports energy-efficient Ethernet features compliant with the IEEE 802.3az international standard, effectively reducing energy consumption.

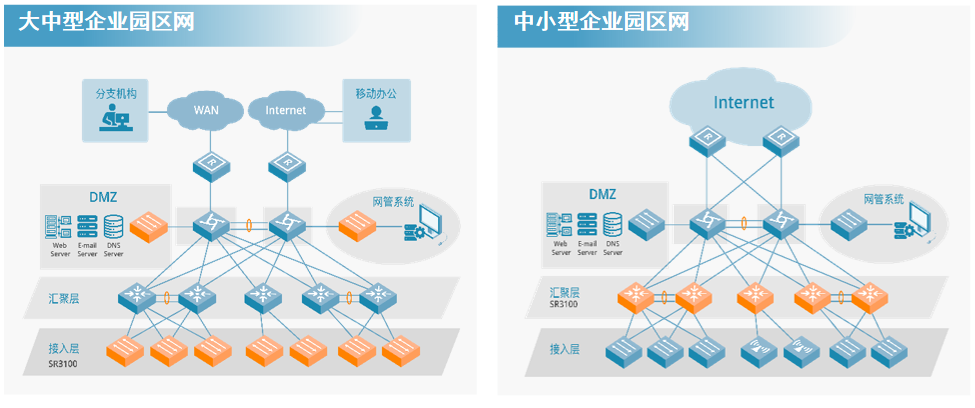

Scenario for large and medium-sized enterprise campus networks

The SR3100 series is deployed in the access layer of campus networks in large and medium-sized enterprises, enabling access for office terminals, wireless APs, and other devices to build high-performance, highly reliable enterprise campus networks.

Small and medium enterprise campus network scenario

The SR3100 series is deployed in the aggregation layer of SME campus networks, providing GE/10GE aggregation capabilities to help users build high-performance, multi-service converged, and highly reliable enterprise campus networks.
