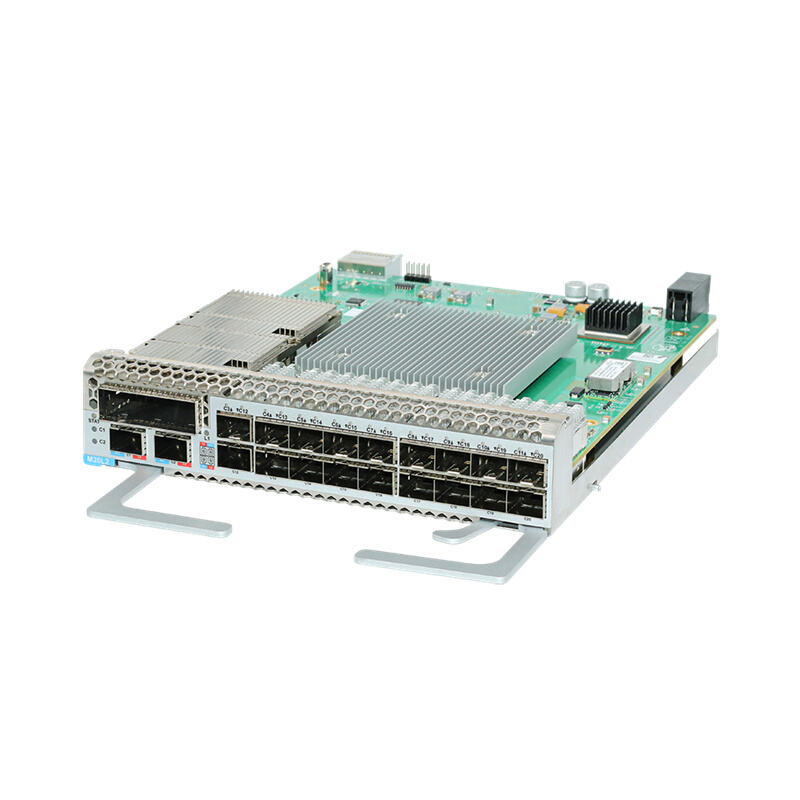

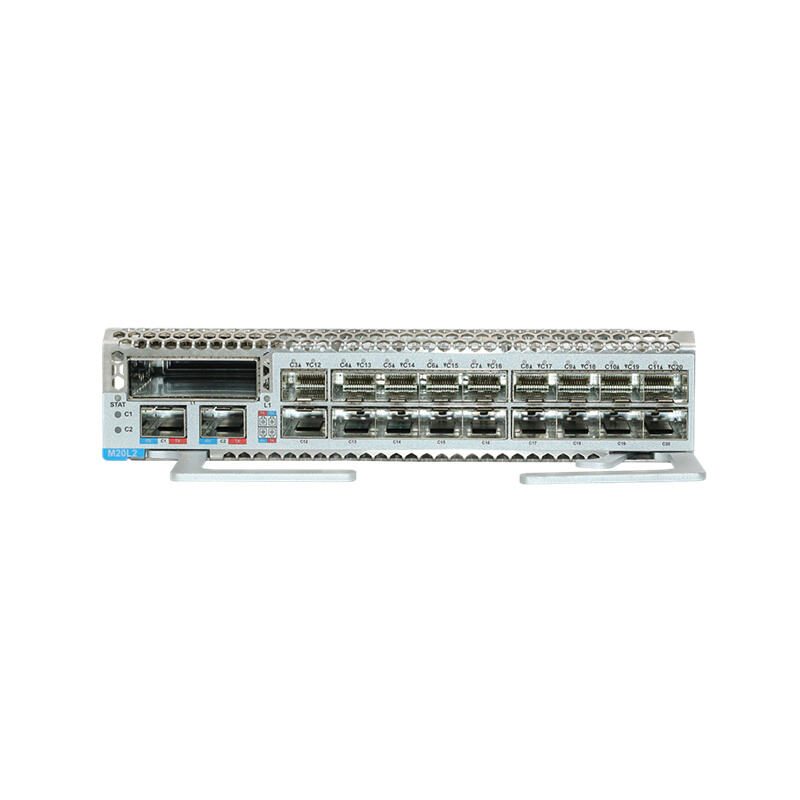

M20DH is a high-density dual-slot 200G TMUX card for the STN6800-D16 platform from Sino-Telecom. It is a 2*10G tributary line aggregation card suitable for STN6800-D16-1U/2U network elements.
The M20DH card is a single-channel multiplexer designed for high-capacity optical transmission networks;
Its modular and scalable architecture supports on-demand expansion, offering the flexible "pay-as-you-go" advantage;
The client side supports 20*10G service access and is equipped with functions such as 10G WAN/LAN, OTU2, OTU2E, STM-64, FC3200, FC1600, FC800, and GE;
The line test supports coherent 1*200G CFP DCO color light module.
|
feature |
description |
|
Device dimensions |
Dual-slot board card |
|
Basic functions |
Realize the mutual conversion between 10G/FC8G/FC16G/FC32G services and OTUC2 signals |
|
Customer-side interface |
Supports 20 pluggable SFP+ 10G/FC8G/FC32G modules |
|
Line side interface |
Supports one pluggable 200G CFP2 DCO coherent color light module. |
|
Customer-side business type |
10GE/OTU2/STM-64/10GE WAN/FC8G/FC16G/FC32G |
|
Business mapping path |
20*10G mode: 10G <->ODU2<->ODU4<-> ODUC2<-> OTUC2 STM64 <-> ODU2 <-> ODU4<-> ODUC2<-> OTUC2 OTU2 <-> ODU2<-> ODU4<-> ODUC2<-> OTUC2 2*32G+14*10G mode or 4*32G+8*10G mode: 10G <->ODU2<->ODU4<-> ODUC2<-> OTUC2 STM64 <-> ODU2 <-> ODU4<-> ODUC2<-> OTUC2 OTU2 <-> ODU2<-> ODU4<-> ODUC2<-> OTUC2 FC8G/FC16G/FC32G<->ODUflex<->ODU4<->ODUC2<->OTUC2 6*32G mode: FC32G<->ODUflex<->ODU4<->ODUC2<->OTUC2 |
|
OTN function |
The line side provides an OTUC2 interface Adopt the frame format and overhead processing recommended by ITU-T G.709 ODUk (k=flex, 2, 4, C2) layer: Supports PM function OTUk (k=C2) layer: Supports SM function |
|
Switch mode |
The board supports four working modes. When switching the board mode, a "board cold start" operation is required |
|
WDM specification |
Support the DWDM technical specifications of ITU-T G.694.1 |
|
Line-side wavelength tunable function |
The wavelength division side optical signal is adjustable within the 96-wave range of the extended C-band at a 50GHz spacing |
|
Line-side modulation format |
200G：16QAM/QPSK |
|
FEC mode |
SD-FEC |
|
indicator |
description |
|
PRBS |
support |
|
Ethernet bidirectional service interruption |
support |
|
Error correction coding |
Support ultra-strong FEC, namely SD-FEC |
|
Performance monitoring and alarm monitoring |
Supports OTN, Ethernet performance monitoring, and alarm monitoring functions. |
|
Automatic laser shut-off (ALS) |
support |
|
Time delay measurement |
support |
|
LLDP |
support |
|
Ethernet service encapsulation method |
10G：BMP/GFPF/GFPFextp |
|
loopback |
External near-end loopback Internal far-end loopback |
|
Local Fault |
When there is a loss of Ethernet input or a fault on the wavelength division side, the customer side inserts a Local Fault downstream Support transparent transmission for Local Fault and Remote Fault |
|
protection function |
The switching of the optical protection card must be completed within 50ms |
