CU

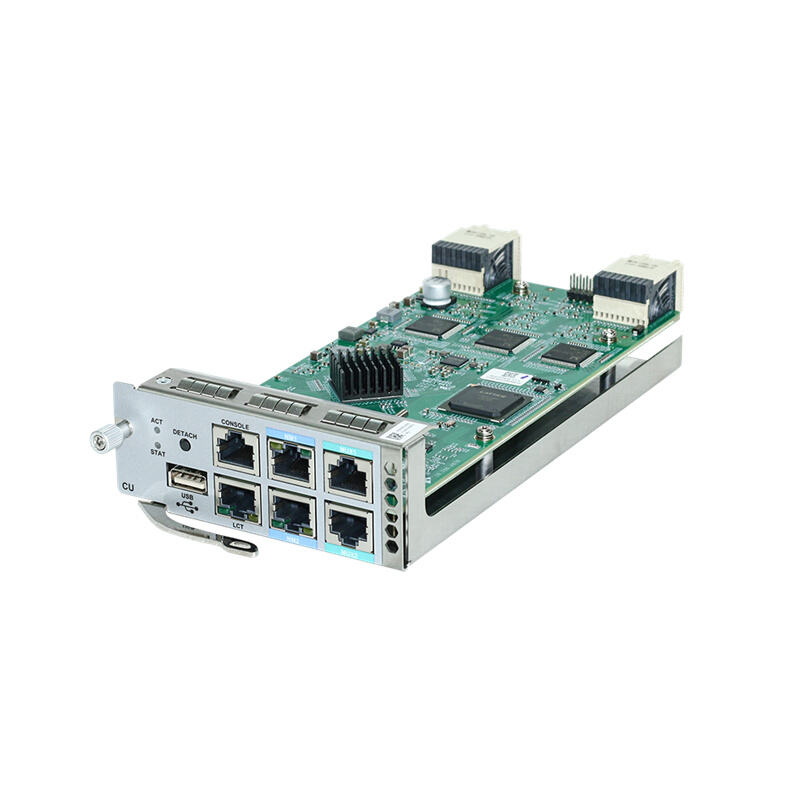

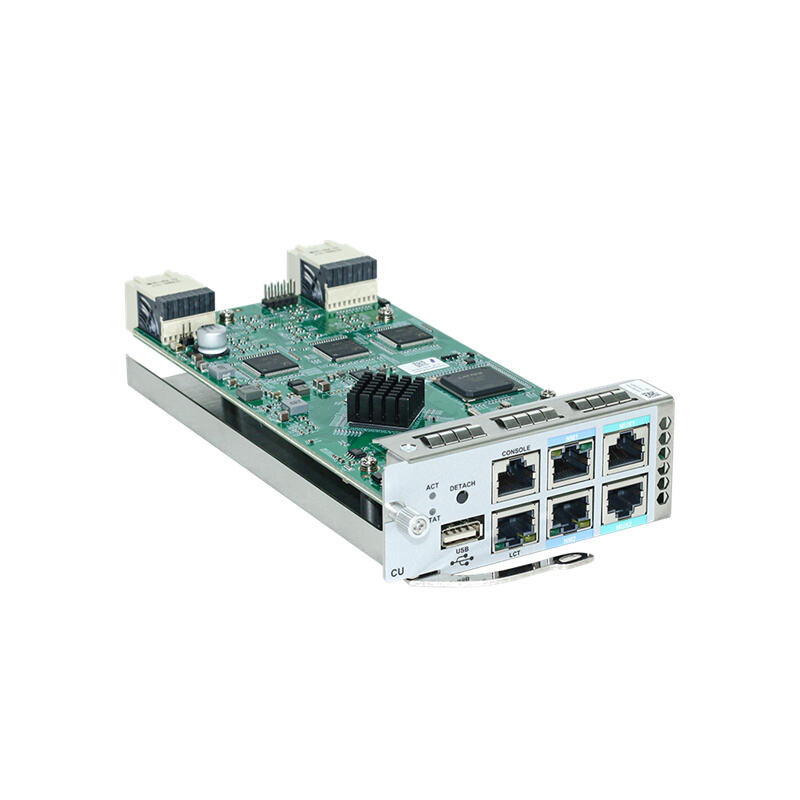

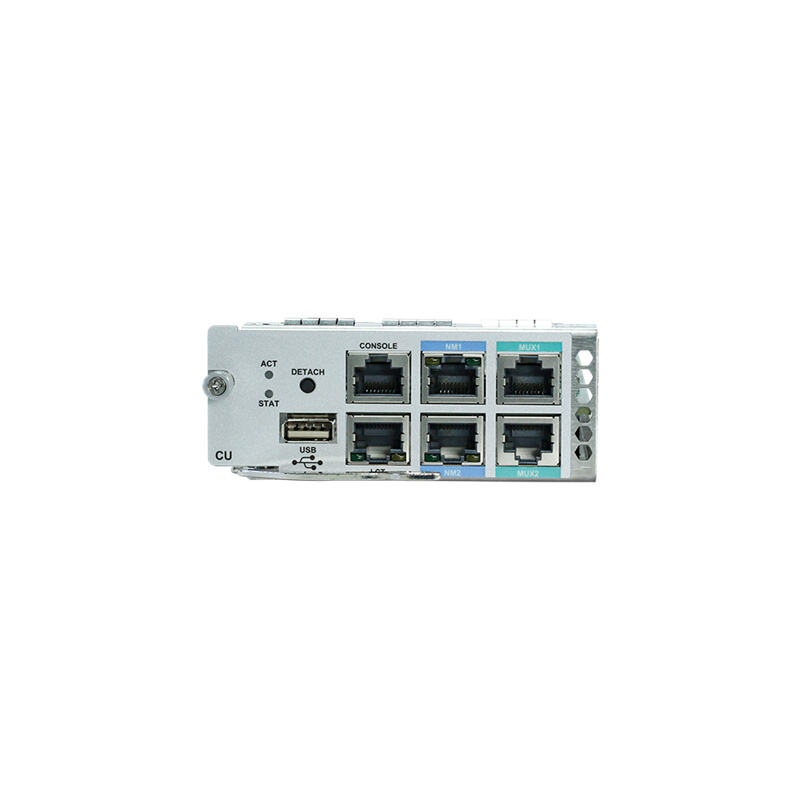

CU is the main control management board card of the STN6800-D16 platform from Sino-Telecom. The main control management board card of STN6800-D16-1U is integrated into the 1U fan board card and is not a standalone hardware board card.

Product Description
Technical Specifications
physical properties
technical indicators
Networking application
Related Products

Technical Specifications

The CU main control management card is the core for controlling the software and hardware of the network element;

The CU main control management card is capable of automatically completing data acquisition, signal processing, and control computation;

The CU main control management card supports multiple communication interfaces and protocols;

The CU main control management card supports fault synchronization and recovery;

The CU main control management card supports system self-checking and fault localization;

The CU main control management card supports data backup and recovery.

physical properties

feature	description
slot	single slot
protect	Support 1+1 protection for the main controller

technical indicators

function

description

Management platform functions

Construct MCN (Management Communication Network) using IP routing protocol;

Provide management signal interoperability function;

The management system is responsible for configuration management, fault management, performance management, and security management of devices, and stores management information of the devices;

Provide network management monitoring, software debugging, cascading interfaces, as well as log backup and system backup upload interfaces;

Supports the detection of ambient temperature and control of system fans, including an intelligent fan interface;

Support the in-place detection function of the board cards, which can determine whether each board card in the frame is in place by reading the in-place signal reported by each business board card.

Electromechanical management function

Obtain relevant information such as power consumption, temperature, and voltage of the entire device;

Generate operation logs for single board cards: Inspect the records of plugging, unplugging, and power-on, and query the production information of single board cards.
