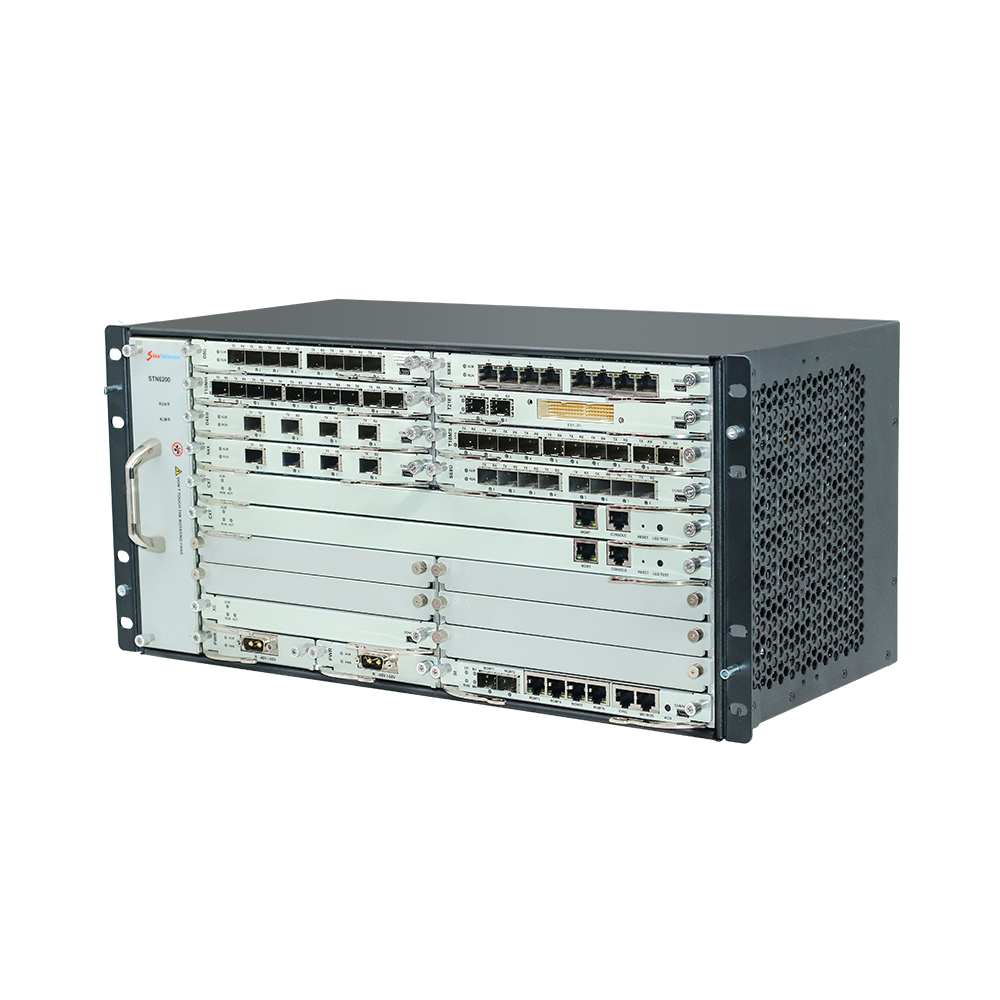

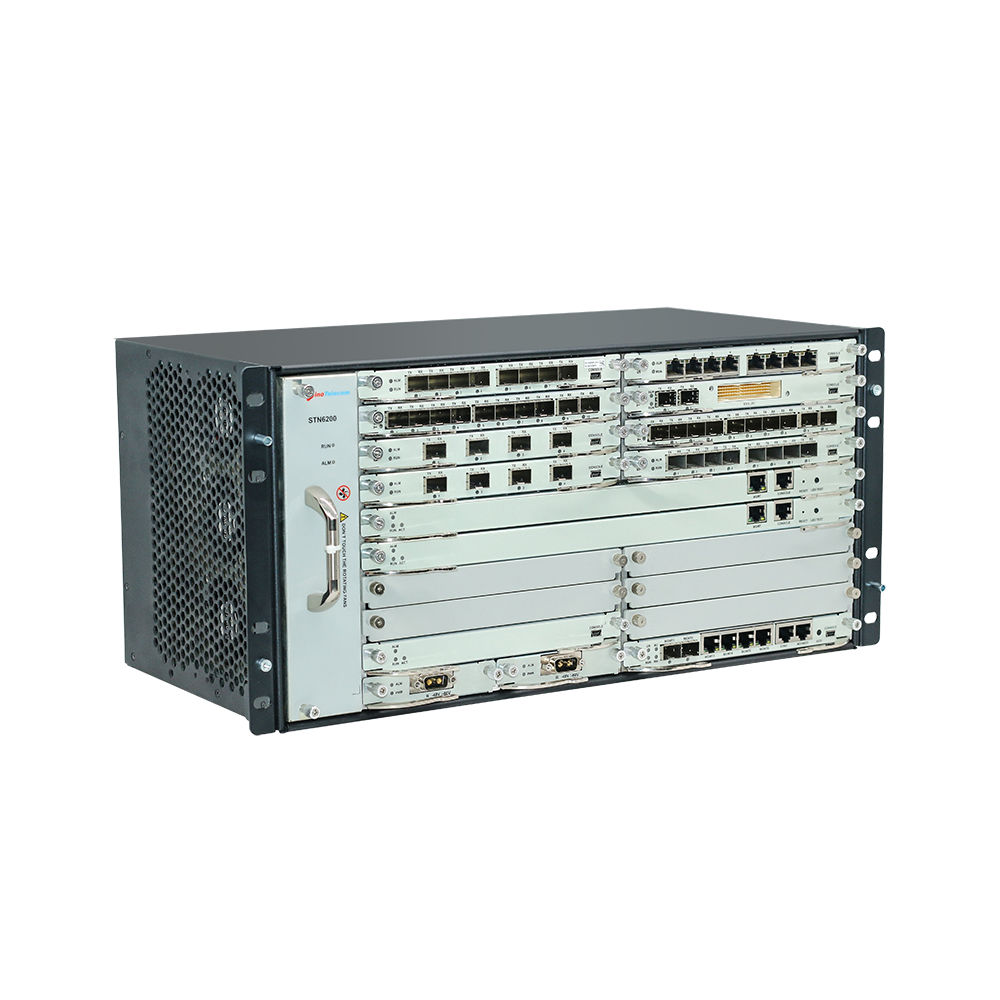

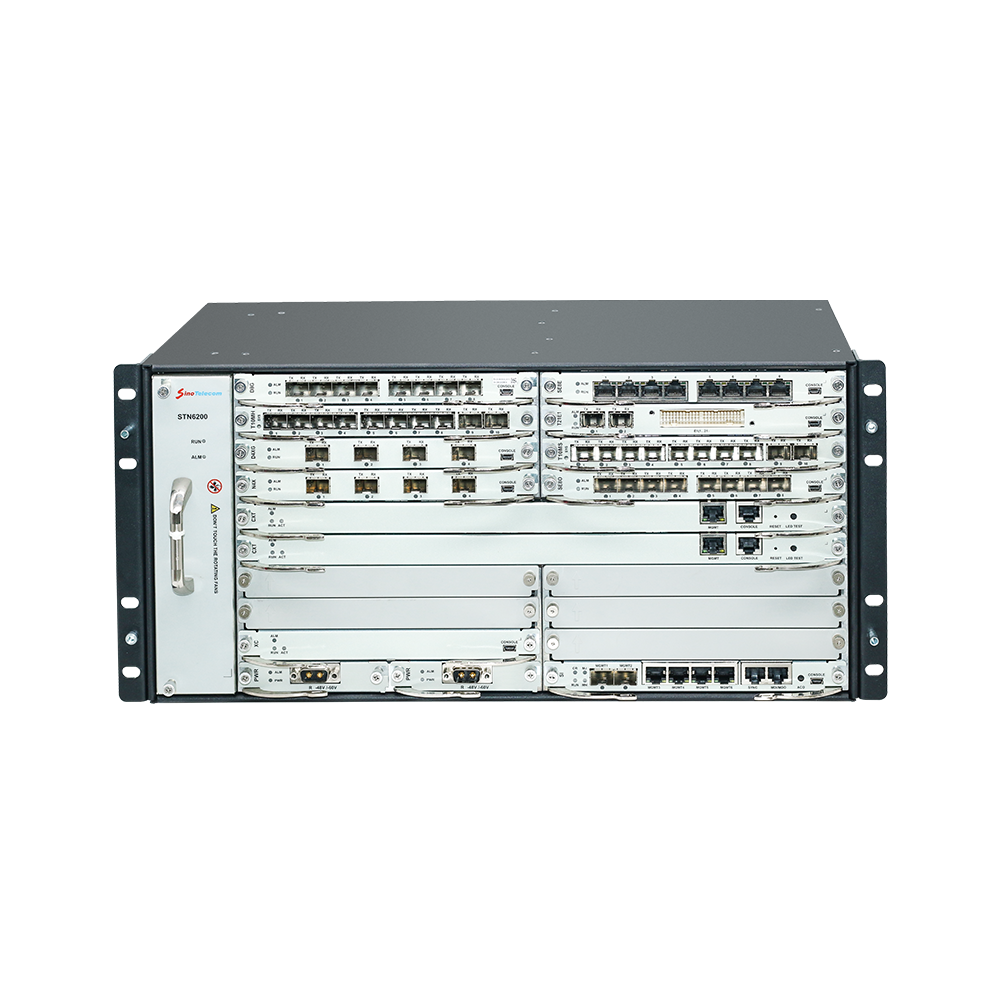

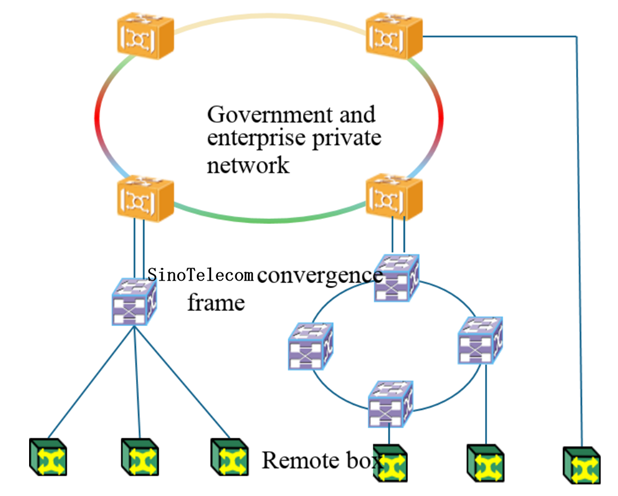

Sino Telecom's cost-effective STN6200-CU5 series card-based OTN/WDM optical transmission platform can serve as a standalone WDM platform, or as an aggregation and access transmission platform for OTN, with flexible configuration based on business capacity.
The STN6200-5U adopts a unified cross-connect approach, supporting centralized cross-connect for ODUK/PKT/VC/OSU/fgODUflex.
Different business boards support hot plugging and are compatible across the entire series of shelves. They feature a highly compact structure, flexible configuration, low power consumption, and support a user-friendly web management interface based on B/S architecture, making maintenance simple. They are widely used in transmission, operation and maintenance, and data communication fields such as operators, power, broadcasting and television, and security;
|
feature |
description |
|
Overall dimensions |
222(H)*444(W)*225(D) |
|
installation width |
19 inches, compatible with 21 inches by changing the ear hook |
|
Number of business slots |
20 standard slots 1~8,9~14 business cards 15,16 Master control card 17,18 /17,19 power cards 20 fan cards |
|
Maximum power consumption of the entire machine |
750W |
|
Power supply form |
Dual power supply, with options including dual DC48V, dual AC220V, DC48V, and AC220V |
|
Operating Temperature |
-10°C ~ 50°C |
|
Storage temperature |
-20°C ~ 80°C |
|
relative humidity |
5% to 95% non-condensing |
